Smart Building Management Systems Flow Meter F3CL&F3RO clip-on ultrasonic flow meter adopts the measurement principle of ultrasonic transit-time method, is combined with Gentos' ultrasonic flow algorithm technology, and achieves accurate measurement of fluid flow in the pipeline. The product is designed with an integrated clamp-on structure, which is simple and convenient to install.
Product Introduction
Flow Range: 0.1~16ft/s (0.03~5.0m/s)
Accuracy: 2.0%
Optional Output: RS485 & 4-20mA
Suitable for various narrow working environments
Product Parameter
Body Parameters
Transmitter Dimensions

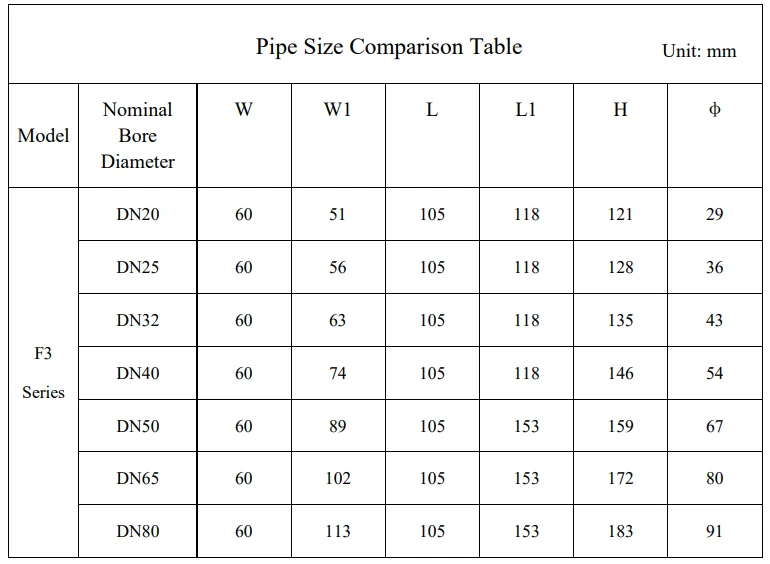

Pipe Size Comparison Table

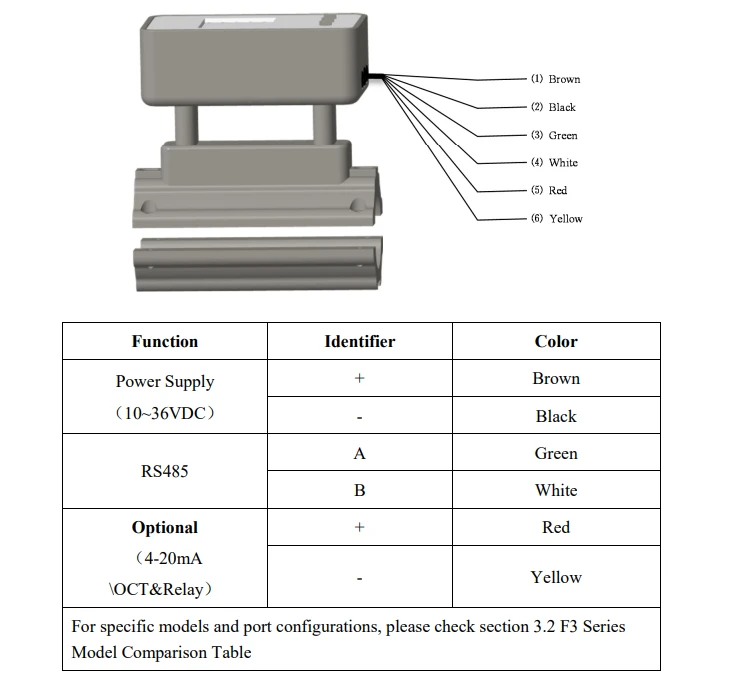

Meter Wiring

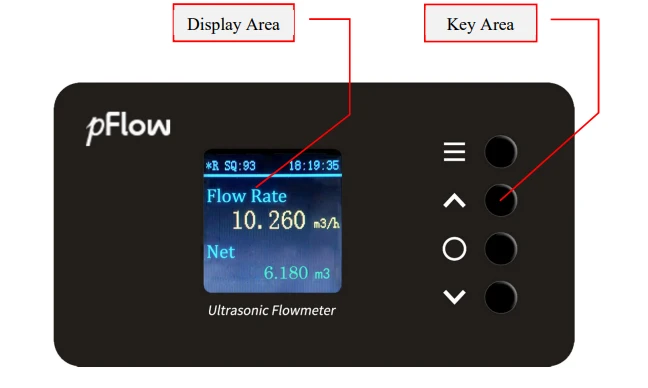

Appearance
Technical Parameters
|
Performance Index |
|
|
Flow velocity |
0.1~16ft/s (0.03~5.0m/s) |
|
Accuracy |
±2%,(1.0~16ft/s) |
|
Repeatability |
0.2% |
|
Pipe Size |
DN20~DN80 |
|
Measured medium |
Water |
|
Pipe Material |
Carbon Steel, Stainless Steel, Copper, PVC |
|
Functional Index |
|
|
Communication Interface |
RS485(standard); Support FUJI Protocol and MODBUS Protocol |
|
Output |
4-20mA (For F3CL), OCT&Relay (For F3RO) |
|
Power Supply |
10～36VDC/500mA |
|
Keyboard |
4 physical keys |
|
Display Screen |
1.44 " LCD color screen, resolution 128 * 128 |
|
Temperature |
Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ).Externally Connected with 5V/2A power adapter for power or charge |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
IP |
IP54 |
Product Applications
Residential water measurement
Ultra-pure water measurement
Monitoring of aquaculture systems
HVAC chilled water measurement
Agricultural irrigation
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Direct support：
Quick Response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q1: What is the purpose of a rotameter?
A1: The purpose of a rotameter is to measure the flow rate of a fluid (liquid or gas) passing through a pipe or tube. Rotameters are simple and cost-effective flow meters that rely on the principle of variable area flow measurement. The key components of a rotameter include a tapered tube through which the fluid flows, a float or ball that moves up and down based on the flow rate, and a scale to read the flow rate.
Q2: Why does rotameter need to be mounted vertically?
A2: Rotameters are typically designed to be mounted vertically because the float or ball inside the tube relies on the force of gravity to accurately indicate the flow rate of the fluid passing through the tube. When mounted vertically, gravity ensures that the float or ball moves freely and responds accurately to changes in flow rate.
Q3: What is the difference between a flowmeter and a rotameter?
A3:Flowmeters are more versatile and accurate instruments for measuring flow rates, while rotameters are simpler devices that provide a visual indication of flow rate but may have limitations in accuracy and range. The choice between a flowmeter and a rotameter depends on the specific requirements of the application and the level of accuracy needed for the flow rate measurement.
Q4:How does a rotameter measure flow rate?
A4:A rotameter measures flow rate by utilizing the principles of buoyancy and flow resistance to indicate the flow rate of a fluid based on the position of a float or ball within a tapered tube. It is a simple and cost-effective flow measurement instrument suitable for applications where accurate flow rate indication is sufficient.
Q5: How to adjust the rotameter?
A5: Adjust the measuring range of the rotameter according to your needs and fluid properties. The measuring range can be adjusted by changing the position of the float by turning the adjusting screw or adjusting the valve.
