What is a BTU Meter?
A BTU meter, also known as an energy meter, is a device used to measure the heat energy generated or consumed in a heating or cooling system. The meter works by measuring the flow rate and temperature difference of a liquid passing through a heat exchanger.
The BTU meter consists of two temperature sensors, a flow sensor, and a calculator. One temperature sensor is placed at the inlet and the other at the outlet of the heat exchanger. The flow sensor measures the rate of flow of the liquid passing through the heat exchanger.
The temperature difference between the inlet and outlet of the heat exchanger is measured by the two temperature sensors. The flow rate of the liquid is measured by the flow sensor. The calculator then uses this data to calculate the amount of heat energy that has been transferred through the heat exchanger.
The BTU meter provides accurate measurements of heat energy transferred, making it a useful tool for monitoring the energy consumption of heating or cooling systems. It can be used in various settings, including commercial, industrial, and residential applications. The data provided by the meter can be used to optimize the efficiency of HVAC systems, detect leaks or system inefficiencies, and help identify areas for improvement in energy consumption.
The working principle of a BTU meter is based on the measurement of the heat energy that is exchanged between two fluids in a heat exchanger. The meter measures the temperature difference and the flow rate of the two fluids and uses these values to calculate the amount of heat energy that has been transferred.
BTU meters consist of two temperature sensors, a flow sensor, and a calculator. The two temperature sensors are placed at the inlet and outlet of the heat exchanger to measure the temperature difference between the two fluids. The flow sensor measures the flow rate of the fluids passing through the heat exchanger.
The temperature difference and the flow rate data are transmitted to the calculator, which uses them to calculate the amount of heat energy that has been transferred between the two fluids. The calculator multiplies the flow rate by the temperature difference and by a constant that depends on the specific heat capacity of the fluids.
The resulting value is the amount of heat energy transferred, which is expressed in BTUs. This value can be used to determine the efficiency of a heating or cooling system and to identify any potential inefficiencies or areas for improvement.
The data provided by the BTU meter can be used to optimize the operation of HVAC systems, detect leaks or system inefficiencies, and help identify areas for improvement in energy consumption.
A BTU meter, which stands for British Thermal Unit meter, is a device designed to measure the amount of energy, typically in the form of heat, that is transferred over time. BTUs are a common unit of measurement for energy in heating and cooling systems, as well as in appliances like water heaters and furnaces. The benefits of using a BTU meter include:
1. Energy Monitoring: It allows users to monitor the energy usage of heating and cooling systems, helping to identify inefficiencies and areas for potential savings.
2. Cost Management: By tracking BTU consumption, building managers and homeowners can better manage energy costs and make informed decisions about energy usage and conservation.
3. System Efficiency: BTU meters can help determine the efficiency of heating and cooling equipment, which is crucial for maintaining optimal system performance and extending equipment lifespan.
4. Demand Response Programs: Utilities often offer demand response programs that reward customers for reducing their energy usage during peak demand periods. BTU meters provide the data needed to participate in these programs.
5. Load Balancing: In commercial buildings, BTU meters can be used to balance the load across multiple HVAC units, ensuring even distribution of heating and cooling and improving overall comfort.
6. Maintenance and Troubleshooting: Accurate BTU measurements can assist in diagnosing issues with heating and cooling systems, guiding maintenance and repair work.
7. Regulatory Compliance: Some jurisdictions require the monitoring of energy usage to comply with local regulations and codes, and BTU meters can facilitate compliance with these requirements.
8. Renewable Energy Integration: When integrating renewable energy sources, BTU meters can help match supply with demand and optimize energy generation and storage.
9. Water Heater Management: For water heaters, BTU meters can track energy use, which is especially useful for solar thermal and hybrid water heating systems.
10. Data Analysis: The data collected by BTU meters can be analyzed using advanced software to predict future energy needs, model energy savings scenarios, and inform strategic decisions about energy infrastructure upgrades.
What is BTU Measurement System?
The BTU measurement system is a system used to measure the amount of heat energy produced or consumed in a heating or cooling system. The system is based on the British Thermal Unit (BTU), which is the amount of heat energy required to raise the temperature of one pound of water by one degree Fahrenheit.
The BTU measurement system typically includes a BTU meter, which measures the flow rate and temperature difference of a liquid passing through a heat exchanger. The meter consists of two temperature sensors, a flow sensor, and a calculator. One temperature sensor is placed at the inlet and the other at the outlet of the heat exchanger. The flow sensor measures the rate of flow of the liquid passing through the heat exchanger.
The temperature difference between the inlet and outlet of the heat exchanger is measured by the two temperature sensors. The flow rate of the liquid is measured by the flow sensor. The calculator then uses this data to calculate the amount of heat energy that has been transferred through the heat exchanger.
The BTU measurement system is used in various applications, including commercial, industrial, and residential settings. It can be used to monitor the energy consumption of heating or cooling systems, optimize the efficiency of HVAC systems, detect leaks or system inefficiencies, and help identify areas for improvement in energy consumption.
In general, the BTU measurement system is a valuable tool for measuring and monitoring the amount of heat energy produced or consumed in a heating or cooling system, and can help to optimize the efficiency and reduce the energy consumption of HVAC systems.
BTU Meter Types
There are several types of BTU meters available, each designed for specific applications and operating conditions. Here are some of the common types of BTU meters:
In-line BTU meters: These meters are installed directly in the pipeline, and measure the flow rate and temperature difference of the fluid passing through the meter. They are typically used in closed-loop HVAC systems, and are available in various sizes to accommodate different pipe diameters.

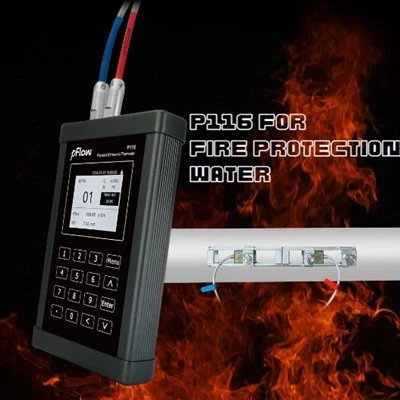

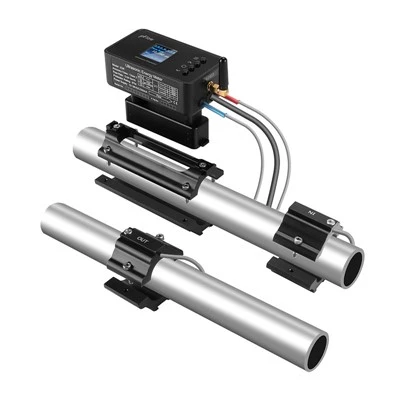

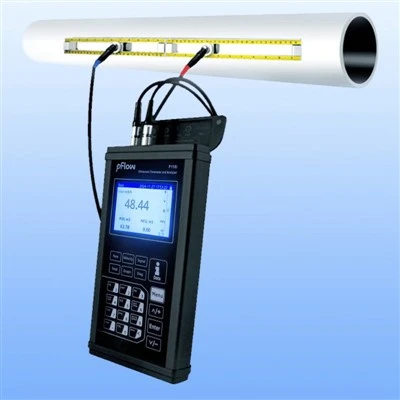

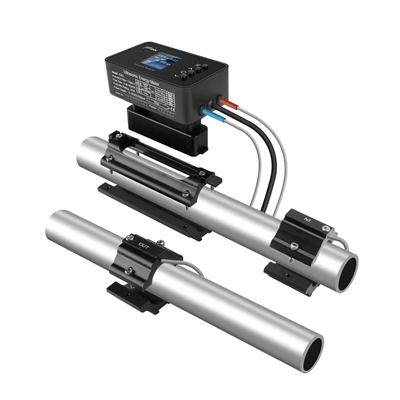

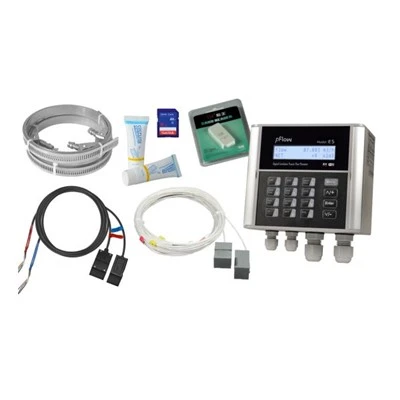

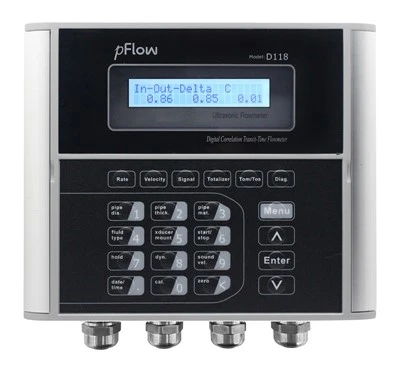

Clamp-on BTU meters: These meters are attached to the outside of the pipe, and use ultrasonic sensors to measure the flow rate and temperature difference of the fluid passing through the pipe. They are commonly used in applications where it is difficult or impractical to install an in-line meter, such as retrofitting existing HVAC systems.

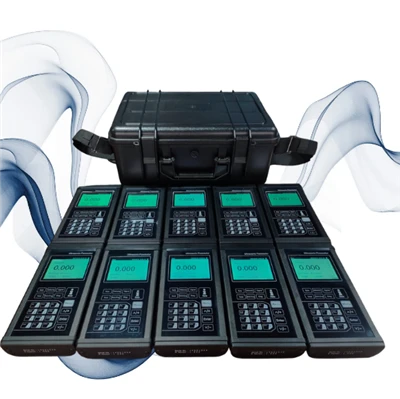

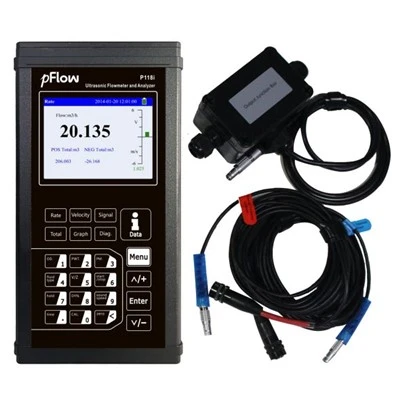

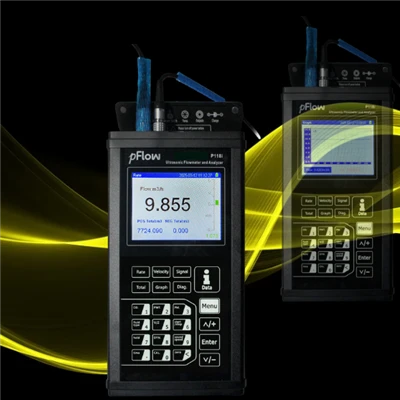

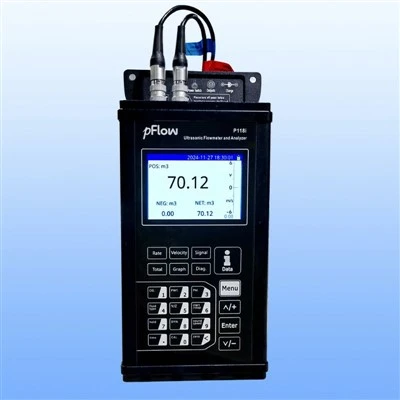

Portable BTU meters: These meters are designed for temporary installations, and are typically used for commissioning, testing, or troubleshooting HVAC systems. They can be easily moved from one location to another, and are often used to verify the accuracy of in-line or clamp-on meters.
Thermal dispersion BTU meters: These meters use a pair of temperature sensors mounted in a probe inserted into the fluid flow stream. The temperature difference between the two sensors is used to measure the mass flow rate of the fluid, and the temperature difference and flow rate are used to calculate the heat energy transfer. They are commonly used in hydronic heating and cooling systems.
Vortex shedding BTU meters: These meters use a vortex shedding principle to measure the flow rate of a fluid passing through a meter. The temperature difference between the inlet and outlet of the meter is used to calculate the heat energy transfer. They are commonly used in chilled water systems.
How BTU Meter Installation
The installation of a BTU meter involves several steps to ensure accurate and reliable measurement of heat energy transfer. Here are some of the key aspects to consider when installing a BTU meter:
Meter location: The meter should be located in a section of the pipeline where the flow is fully developed and there is a consistent flow profile. This can be achieved by ensuring that there are no bends or obstructions upstream of the meter, and that the meter is installed at least 10 pipe diameters downstream of any elbows, valves, or other flow disturbances.
Meter orientation: BTU meters should be installed in the correct orientation, with the flow arrow pointing in the direction of flow. The meter should also be installed vertically, with the sensors in a horizontal position.
Sensor placement: The temperature sensors should be placed in the correct location to ensure accurate measurement of temperature difference. In an in-line meter, the sensors should be placed at the inlet and outlet of the heat exchanger, while in a clamp-on meter, the sensors should be placed on opposite sides of the pipe, with the flow path between them.
Calibration: The BTU meter should be calibrated prior to installation to ensure accurate measurement of heat energy transfer. This involves setting the meter's flow and temperature parameters to match the specific system requirements, and verifying the accuracy of the measurement.
Electrical connections: The meter should be wired correctly, with the appropriate connections made to the temperature and flow sensors, and to the building automation or control system.
Commissioning: Once the meter is installed and calibrated, it should be commissioned to ensure that it is functioning correctly and providing accurate measurement of heat energy transfer. This involves running the system and verifying that the meter readings match the expected values, and making any necessary adjustments to the meter or system settings.
In short, the installation of a BTU meter requires careful attention to detail and proper planning to ensure accurate and reliable measurement of heat energy transfer. By following the manufacturer's installation instructions and best practices, the meter can be installed correctly and provide valuable data for optimizing energy usage and reducing costs.
BTU Meter VS. Energy Meter
BTU meters and energy meters are both used to measure energy usage, but they differ in the way they measure and report energy consumption. Here are the key differences between the two:
Measurement principle: A BTU meter measures the thermal energy transferred in a heat transfer system, while an energy meter measures the electrical energy consumed by an electrical system.
Units of measurement: A BTU meter measures energy in British Thermal Units (BTUs), while an energy meter measures energy in kilowatt-hours (kWh).
Accuracy: BTU meters are generally more accurate than energy meters for measuring thermal energy transfer. This is because BTU meters can take into account factors such as temperature difference, specific heat capacity, and flow rate of the heat transfer fluid.
Application: BTU meters are typically used in buildings and facilities that use hot or chilled water for heating, ventilation, and air conditioning (HVAC) systems. Energy meters are used for monitoring and measuring electricity consumption in commercial and residential buildings.
Cost: The cost of BTU meters and energy meters can vary depending on the level of accuracy, features, and installation requirements. BTU meters are generally more expensive than energy meters due to their more complex measurement technology.
A BTU meter measures the amount of energy, typically in British Thermal Units (BTUs), that is used or delivered by a heating or cooling system, or for tracking energy usage in appliances and HVAC systems. To read a BTU meter, follow these steps:
1. Locate the Display: Find the display panel on the BTU meter. It may have dials or digital numbers.
2. Check for Multiple Registers: Some BTU meters have multiple registers that measure different flows or energy usages. Make sure to read the correct register for the information you need.
3. Read the Dial Indicators: If the meter has analog dials, look for the pointers that indicate the usage. Each dial represents a specific range of BTUs. The dials are usually graduated in thousands (k BTUs) or hundreds of thousands (M BTUs).
a. Start with the dial farthest to the left and read the number it indicates.
b. Then move to the next dial to the right and add the value indicated to the previous reading.
c. Continue this process until you've read all the dials.
4. Interpret Digital Displays: If the meter has a digital readout, the current usage will be displayed directly. Ensure that the display shows the total energy usage in BTUs or the appropriate unit. Some digital meters may also show additional information such as flow rate or energy cost.
5. Record the Reading: Write down the numbers from the meter. If it's a manual dial type, you might need to convert the readings to the proper unit (e.g., converting dial positions to k BTUs or M BTUs).
6. Take Care of the Decimal: If the meter uses decimal points, make sure to record the decimal accurately.
7. Consider the Time Frame: If you are taking readings at different times, keep track of the time frame for each reading to calculate energy consumption over a period.
Always refer to the specific instructions provided by the manufacturer of the BTU meter if they differ from the general guidelines above. Some meters may have unique features or require special handling. If you are unsure about how to read the meter, consult a professional or the user manual for guidance.
Is It Better to Have Higher or Lower Btu?
Space Heating/Cooling
For space heaters and air conditioners, the appropriate BTU rating should match the size of the room and its climate. Higher BTU units can handle larger spaces or colder/hotter climates, whereas lower BTU units may suffice for smaller rooms or milder climates. Optimal BTU ensures efficient operation without wasting energy.
Water Heaters
The BTU rating of a water heater should align with the hot water demands of the household or building. Higher BTU ratings can provide hotter water faster and maintain higher temperatures for longer, but if the heater is oversized, it may consume more energy than necessary.
Appliances
In appliances like refrigerators, freezers, and ovens, the BTU rating corresponds to the energy required to maintain specific temperatures. A lower BTU appliance might be more efficient if it still meets the cooling or heating needs.
HVAC Systems
Properly sized HVAC systems, which balance the total available BTUs with the building's heat loss or gain, are critical for energy efficiency. Overly high BTU systems can lead to unnecessary cooling or heating, while too low can fail to meet comfort levels.
Energy Efficiency
Generally, the goal is to use the lowest effective BTU to perform a task to conserve energy. High efficiency appliances and systems often use less BTU output to achieve the same results as their less efficient counterparts.
Cost Savings
Lower BTU appliances can save money on initial purchase and operating costs, provided they meet the user's needs without underperforming.
Where do you Put a BTU Meter?
A BTU meter is typically installed in the service line of a heating or cooling system, or in the supply line of an appliance, where it can accurately measure the energy usage. The exact placement depends on the type of system and the requirements for measurement. Here are some common scenarios:
Central HVAC Systems: In the case of a central heating and cooling system, a BTU meter can be installed on the return line of the condenser or boiler to measure the energy used by the system. It can also be placed on the supply side to measure the energy output.
Split Air Conditioning Systems: For split AC systems, the BTU meter can be installed on the liquid line that connects the outdoor condenser to the indoor evaporator coil.
Hot Water Heaters: On a hot water heater, the BTU meter is often placed on the inlet or outlet side of the heater to measure the energy used to heat water.
Appliances: For individual appliances, such as furnaces or boilers, the meter is installed in the flow line that leads to or from the appliance.
When installing a BTU meter, consider the following:
Accessibility: Ensure that the meter is easily accessible for reading and maintenance.
Accuracy: Position the meter where it can measure the full flow of the system to ensure accurate readings.
Installation Standards: Follow local codes and standards for installation, which may include proper insulation, support, and protection of the meter.
System Configuration: The meter should be installed in such a way that it does not impede the normal operation of the system.
Professional Installation: It is often recommended to have a professional install the BTU meter to ensure that it is correctly sized and positioned for optimal performance.
Before installation, review the manufacturer's specifications to determine the appropriate model and configuration for the intended application. Proper installation and regular maintenance will ensure that the BTU meter provides accurate and reliable energy consumption data.
