Brief Introduction
|
Accuracy: |
±0.5% |
Pipe size : |
1"~240" (25~6000mm) |
|
Output: |
RS485, 4-20mA, OCT, Relay |
IP Rating: |
IP68 transducer |
|
Temperature: |
-40°F to 176°F (-40℃～80℃) |
||
Product Introduction

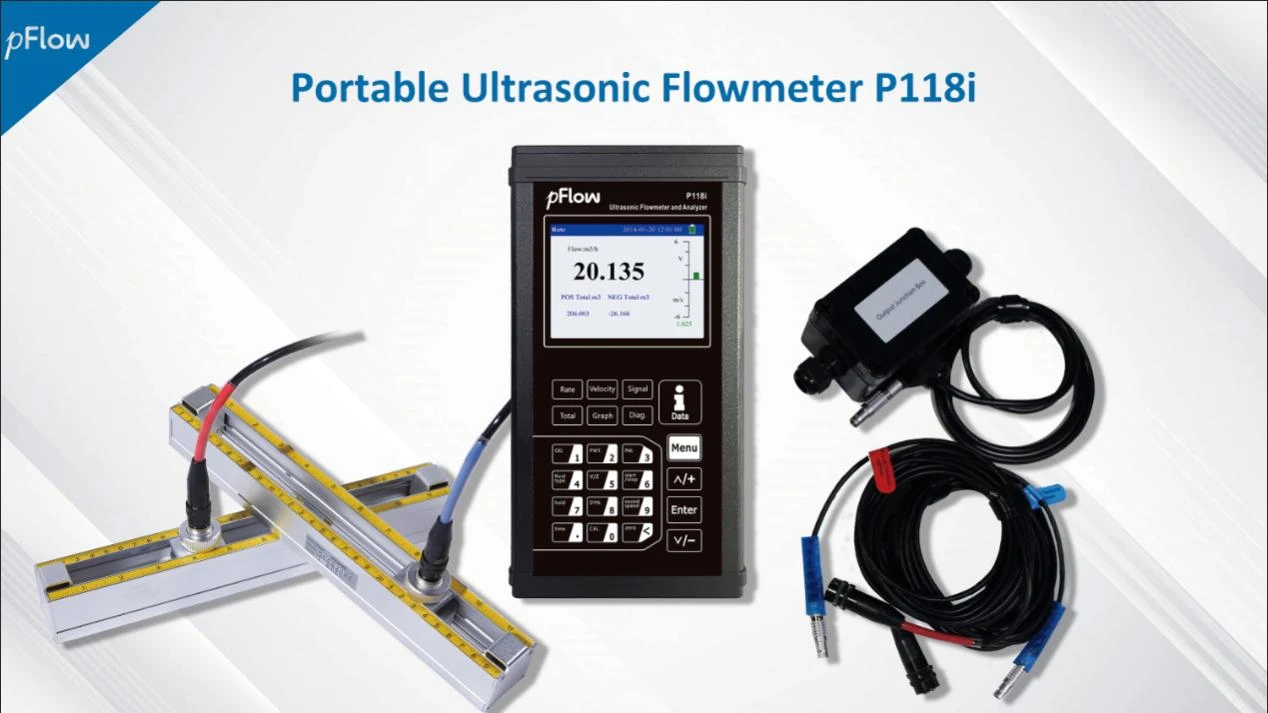

The P118i Ultrasonic Flowmeter and Analyzer is a cutting-edge device designed for precise liquid measurement. It excels in flow measurement, offering high accuracy and reliability. With its advanced technology, it also supports energy measurement, making it ideal for applications requiring detailed monitoring. The device features a user-friendly interface and robust temperature control functions, ensuring accurate measurements even in varying conditions. Its versatile applications make it a reliable choice for liquid measurement and energy management.
Product Applications
- Hotel energy metering,Lodge cooling energy metering
- Liquid cooling industry,efficient cooling, temperature control, energy saving
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
1)Technical Parameters
|
Performance Specifications |
|
|
Flow range |
± (0.03 ~ 40) ft/s ± (0.01 ~ 12) m/s |
|
Accuracy |
± 0.5% of measured value. 1.5 ft/s～40 ft/s or -1.5 ft/s～-40 ft/s (0.5 m/s～12 m/s or -0.5 m/s～-12 m/s) |
|
Repeatability |
0.15%. |
|
Pipe Size |
0.6" ~ 240" (DN15 ~ DN6000) |
|
Function Specifications |
|
|
Output |
Analog output: 0/4 ~ 20 mA, ( max load 750 Ω ); Pulse output: 0 ~ 9999 Hz, OCT ( min. and max. frequency is adjustable ); Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ). |
|
SD card |
Storage: 8GB (To prevail in kind); Max: 512 files; Interval: 1 ~ 60 seconds. |
|
Power Supply |
Rechargeable Lithium Battery Power ( continuous operation of main battery 10 hours ). |
|
Keypad |
Tactile Keys. |
|
Display |
3.5 inch TFT color screen( 320 × 240 ), backlit LCD. |
|
Temperature |
Transmitter: 14°F to 122°F (-10℃~ 50℃) Transducer: -40°F to 176°F (-40℃~ 80℃,standard) |
|
Humidity |
0 ~ 99% RH, non-condensing. |
|
Physical Specifications |
|
|
Transmitter |
NEMA13 ( IP54 ). |
|
Transducer |
Encapsulated design, IP68; Standard cable length: 5m. |
|
Weight |
Transmitter: 1kg. |
2)Body Parameters
3)Appearance
4)Compatible Pipe Materials
5)Detectable Fluids
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track energy usage?
A: Yes, it's designed to monitor and track thermal energy usage, monitoring in real time and helping manage energy budgets effectively.
Hot Tags: portable temperature control meter, China portable temperature control meter manufacturers, suppliers, factory, BTU Meter in Chilled Water System, MeterTube Platform, ro water flow meter, Chilled Water BTU Meter, Heat Energy Meter, Swimming Pool Flow Meter
Product Parameter
1)Technical Parameters
|
Performance Specifications |
|
|
Flow range |
± (0.03 ~ 40) ft/s ± (0.01 ~ 12) m/s |
|
Accuracy |
± 0.5% of measured value. 1.5 ft/s～40 ft/s or -1.5 ft/s～-40 ft/s (0.5 m/s～12 m/s or -0.5 m/s～-12 m/s) |
|
Repeatability |
0.15%. |
|
Pipe Size |
0.6" ~ 240" (DN15 ~ DN6000) |
|
Function Specifications |
|
|
Output |
Analog output: 0/4 ~ 20 mA, ( max load 750 Ω ); Pulse output: 0 ~ 9999 Hz, OCT ( min. and max. frequency is adjustable ); Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ). |
|
SD card |
Storage: 8GB (To prevail in kind); Max: 512 files; Interval: 1 ~ 60 seconds. |
|
Power Supply |
Rechargeable Lithium Battery Power ( continuous operation of main battery 10 hours ). |
|
Keypad |
Tactile Keys. |
|
Display |
3.5 inch TFT color screen( 320 × 240 ), backlit LCD. |
|
Temperature |
Transmitter: 14°F to 122°F (-10℃~ 50℃) Transducer: -40°F to 176°F (-40℃~ 80℃,standard) |
|
Humidity |
0 ~ 99% RH, non-condensing. |
|
Physical Specifications |
|
|
Transmitter |
NEMA13 ( IP54 ). |
|
Transducer |
Encapsulated design, IP68; Standard cable length: 5m. |
|
Weight |
Transmitter: 1kg. |
