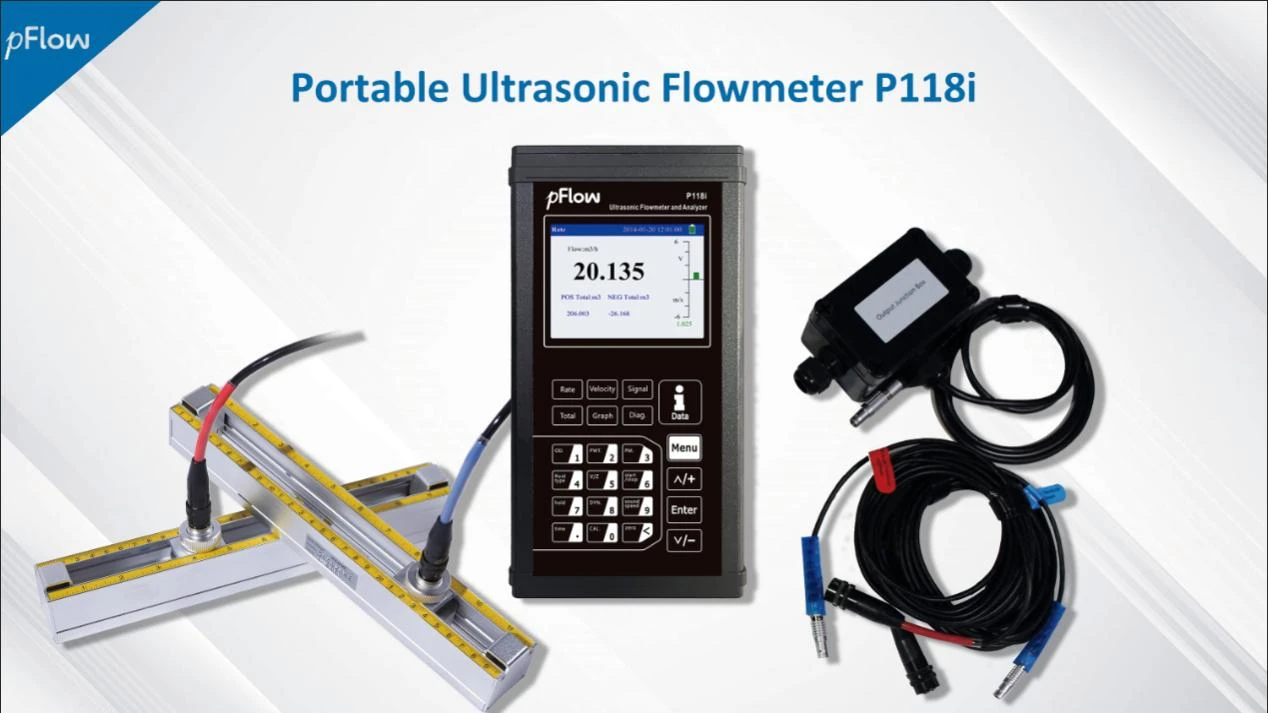

Brief Introduction
In the rapidly growing aquaculture industry, precise water flow management is essential for maintaining healthy aquatic environments. The P118i Aquaculture Ultrasonic Portable Flow Meter is your reliable solution for aquaculture to monitoring water flow, ensuring optimal conditions for fish farming and other aquaculture applications.
Product Parameter
Body Parameters

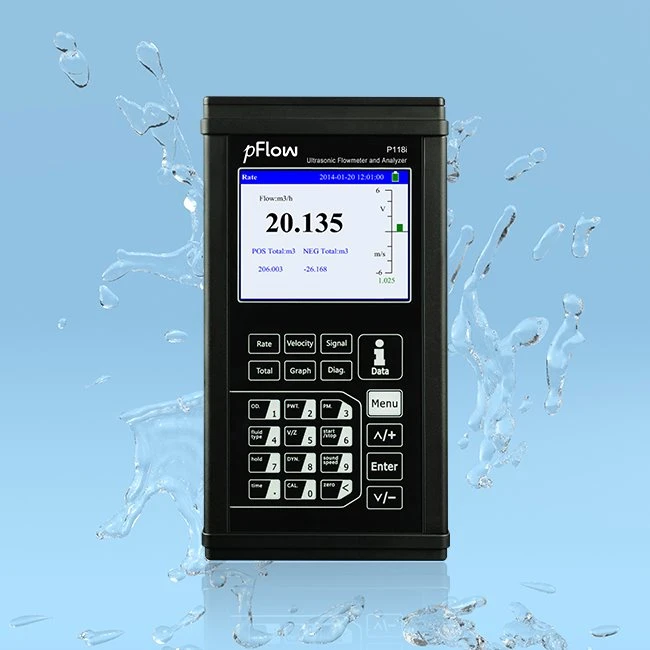

Appearance
Technical Parameters
|

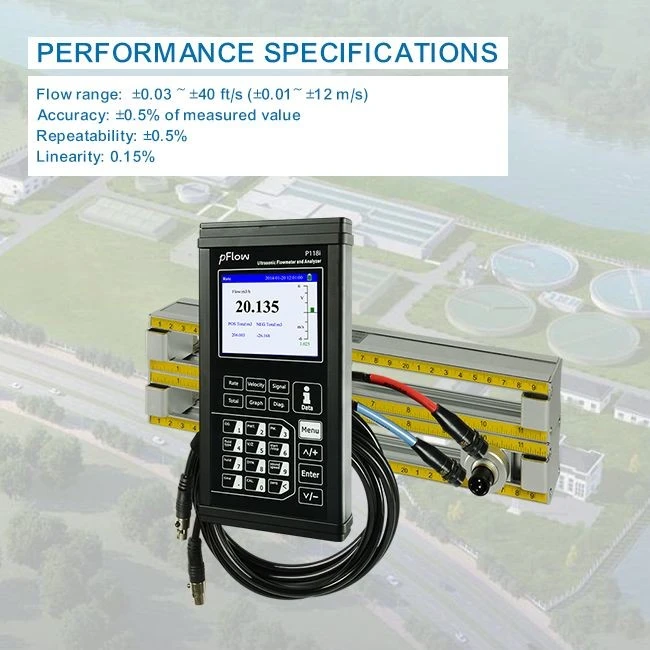

Performance Specifications |
|
|
Flow range |
± (0.03 ~ 40) ft/s ± (0.01 ~ 12) m/s |
|
Accuracy |
± 0.5% of measured value.(0.5 m/s～5 m/s) |
|
Repeatability |
0.15%. |
|
Pipe Size |
1" ~ 240" (DN25~ DN6000) |
|
Function Specifications |
|
|
Output |
Analog output: 0/4 ~ 20 mA, ( max load 750 Ω ); Pulse output: 0 ~ 9999 Hz, OCT ( min. and max. frequency is adjustable ); Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ). |
|
TF card |
Storage: 16GB (To prevail in kind); Max: 1000 files; Interval: 1 ~ 60 seconds. |
|
Power Supply |
10.8V rechargeable Lithium Battery Power ( continuous operation of main battery 10 hours ). |
|
Keypad |
Tactile Keys. |
|
Display |
3.5-inch IPS full-viewing colorful screen Resolution (H*V): 480×640 |
|
Temperature |
Transmitter: 14°F to 122°F (-10℃~ 50℃) Transducer: -40°F to 176°F (-40℃~ 80℃,standard) |
|
Humidity |
0 ~ 99% RH, non-condensing. |
|
Physical Specifications |
|
|
Transmitter |
NEMA13 ( IP54 ). |
|
Transducer |
Encapsulated design, IP68; Standard cable length: 5m. |
|
Weight |
Transmitter: 1kg. |

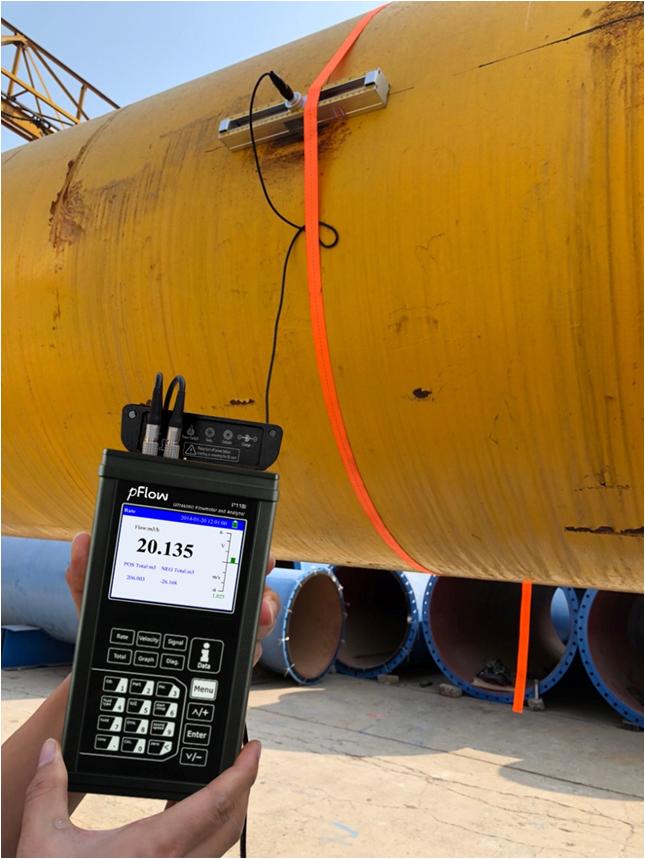

Product Applications
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
1.What is the P118i Flow Meter?
A precise flow meter for aquaculture, ensuring optimal water circulation and improved aquatic health.
2.How does it measure flow?
The P118i uses ultrasonic technology with non-invasive, clamp-on transducers for accurate, real-time water flow monitoring.
3.Is it suitable for saltwater?
No, the P118i works for water only.
4.Can it detect leaks?
Yes, the P118i detects flow irregularities, helping identify leaks or blockages to prevent water loss and improve efficiency.
5.Is it easy to install?
Yes, the P118i is easy to install with clamp-on transducers, requiring no pipe cutting and minimal maintenance.
