Brief Introduction

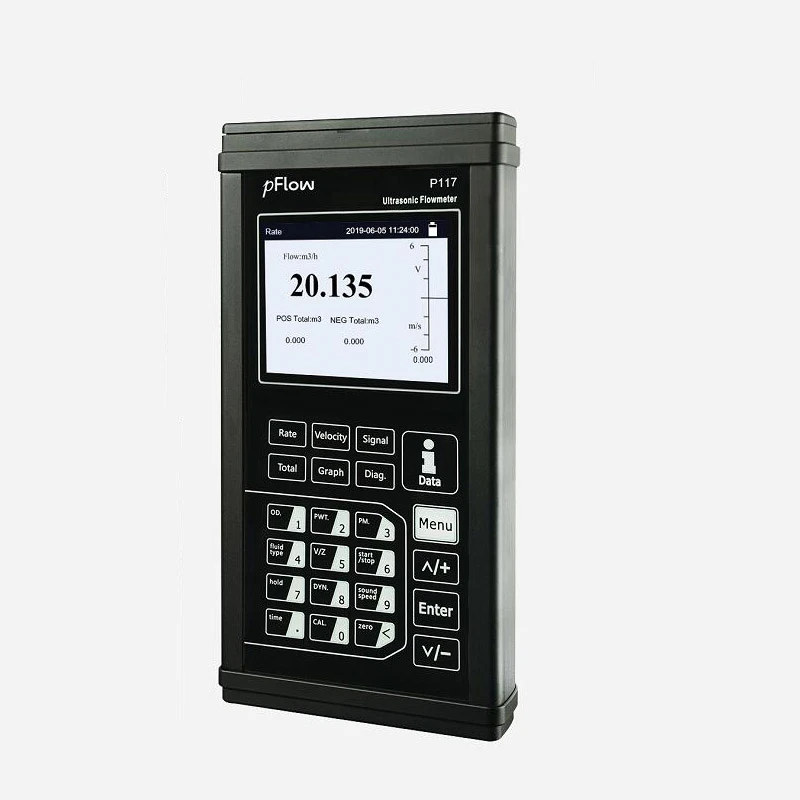

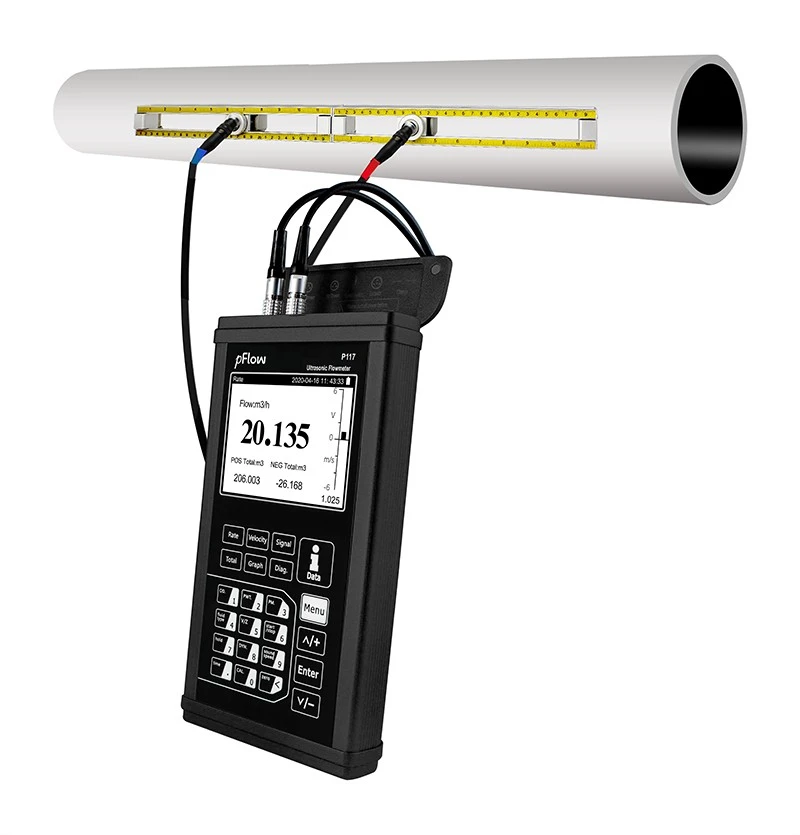

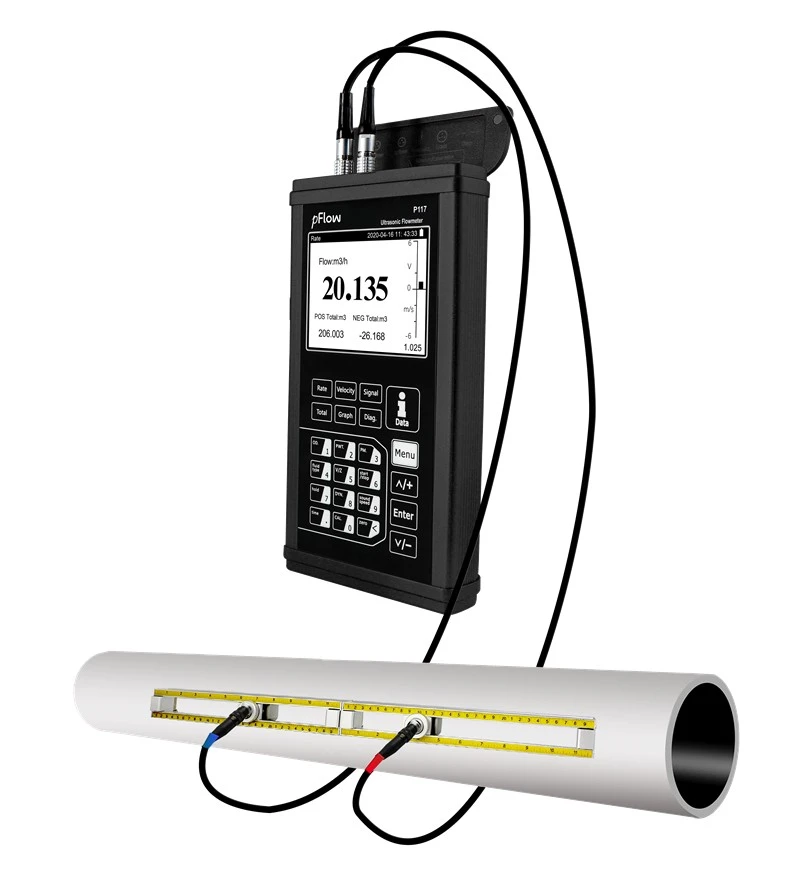

P117 Portable Ultrasonic Flowmeter enables the user to do flow measurement checks at many points in a flow process without the need for a permanent installation.
This universal transit-time meter features a dual-function push button interface, ergonomic handheld design and beautiful 3.5in TFT backlit digital display that significantly simplifies setup and data collection.
Comparing with other traditional flowmeter or ultrasonic flowmeter, it has distinctive features such as high precision,high reliability, high capability and low cost, the flowmeter features other advantages:
TVT technology designed. Less hardware components, low voltage broadband pulse transmission, low consumption power. Clear, user-friendly menu selections make flowmeter simpleand convenient to use. Daily, monthly and yearly totalized flow. Parallel operation of positive, negative and net flow totalizes with scale factor (span) and 7 digit isplay, while the output of totalize pulse and frequency output are transmitted viarelay and open collector.
Product Introduction

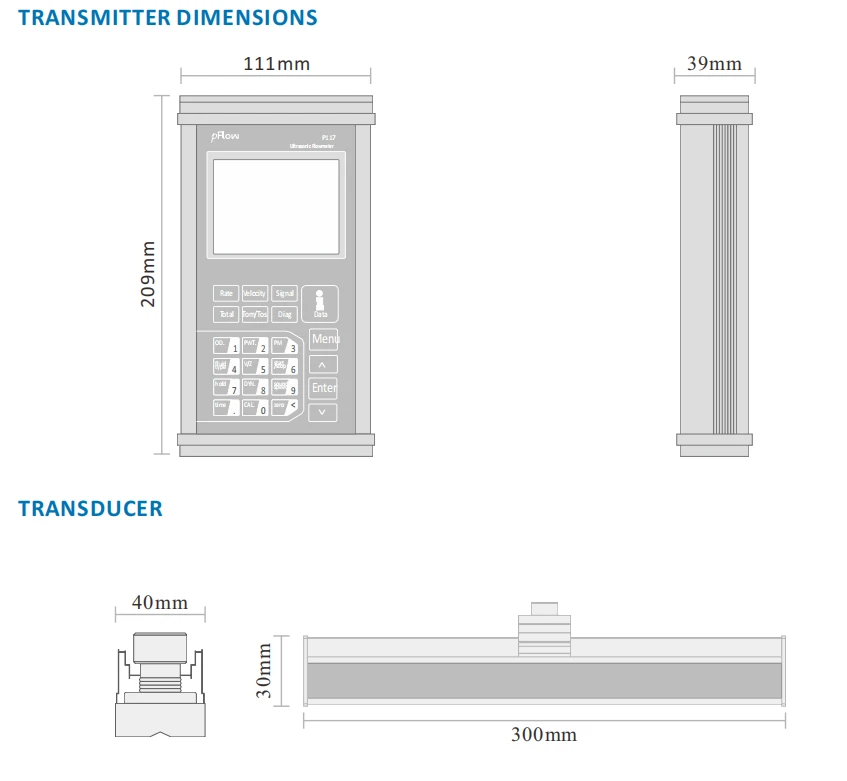

Body Parameters

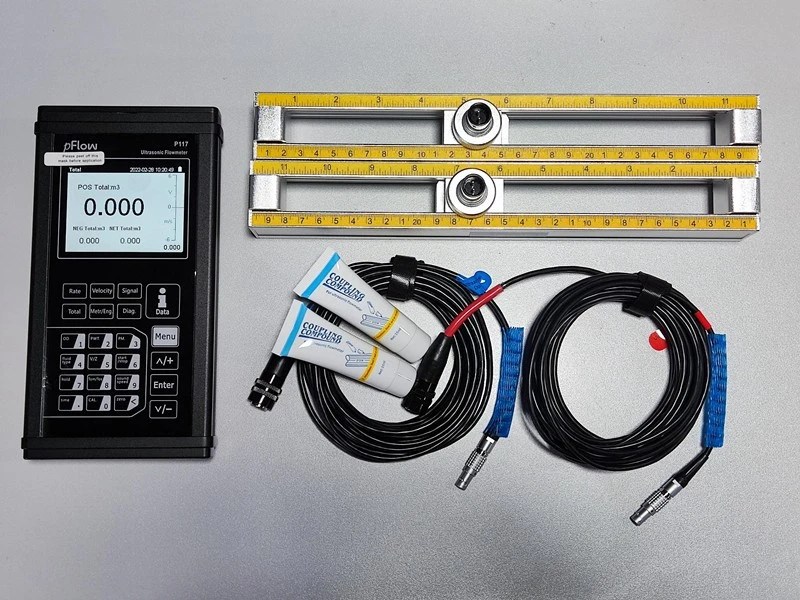

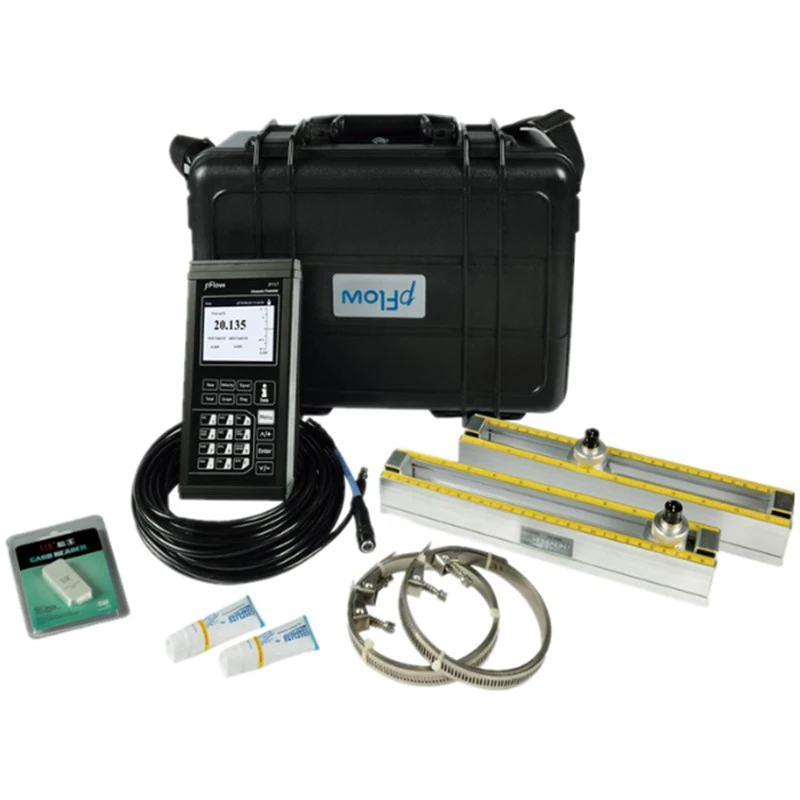

Appearance
Technical Parameters
|
Performance Index |
|
|
Flow range |
0.03m/s ~6m/s |
|
Accuracy |
±1.0% of measured value |
|
Repeatability |
0.3% |
|
Medium |
Water |
|
Pipe Size |
1"~47" (25mm~1200mm) |
|
Functional Index |
|
|
Output |
Analog output: 4~20mA, Max 750Ω |
|
SD card |
Max: 512 files, Interval:1 ~ 60 seconds. |
|
Power supply |
rechargeable Lithium Battery Power ( continuous operation of main battery 6 hours ). |
|
Keypad |
Tactile Keys |
|
Display |
3.5 inch TFT black and white screen( 320 x 240 ), backlit LCD. |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
Temperature |
Transmitter:-10℃ ~50℃(-40°F to 176°F ); Measuring medium:-40℃~80℃(Standard). |
|
Physical Characteristics |
|
|
Transmitter |
NEMA13 ( IP54 ). |
|
Transducer |
Encapsulated design, IP68 Standard cable length: 5m. |
|
Weight |
Transmitter: 1kg. |
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
1. Q: How does this flow meter perform Cement plant?
A: It monitors and measures water volume, speed and energy. Then the data is aggregated so that users can see it intuitively.
2. Q: What is the role of flow meter in cement plant?
A: The role of flow meters in cement plants is mainly reflected in improving production efficiency, optimizing production processes, ensuring product quality and realizing intelligent management of production processes.
3. Q: How to choose the right flowmeter model for you?
A: Please contact our technical sales with the product you are interested in, after confirming your pipe material and pipe diameter, we will recommend the most suitable flow meter model for you.
4. Q: How do you install a data integration flowmeter?
A: Follow the manufacturer's installation instructions.
5. Q: How do I know that the flowmeter fits the size of my pipe?
A: Customers need to provide the pipe material and pipe diameter.Then our sales department will recommend the Ultrasonic Energy Meter that suitable for you,also all the products will have the calibration certificate with our own factory before delivery.
