Your Professional Agricultural Irrigation Supplier
Gentos Measurement & Control Co., Ltd is a leading manufacturer of ultrasonic flowmeters with over three decades of experience in fluid measurement.
Our pFlow brand has gained a strong reputation and is highly regarded in Asia, Europe, and America. Gentos Product line includes Clamp on flowmeters, BTU meters, IoT Ball Valves, providing versatile solutions for various applications.
Why Choose us
Customized Service
We offer tailored flow measurement solutions designed to meet the specific requirements of diverse industries.
Comprehensive Product Qualifications
Our company has successfully obtained certifications under the GB/T 19001-2016/ISO 9001:2015 international quality management system and the GB/T 24001-2016/ISO 14001:2015 environmental management system standards.
Extensive Experience
With more than 30 years of accumulated expertise in fluid measurement, we deliver reliable and high-performance solutions across a wide range of applications.
Parameter
|
Performance Index |
|
|
Flow Velocity |
0.03~5.0m/s |
|
Accuracy |
±2%,(0.3~5.0m/s) |
|
Repeatability |
0.2% |
|
Pipe Size |
DN20~DN80 |
|
Medium |
Water |
|
Pipe Material |
Carbon Steel, Stainless Steel, Copper, PVC |
|
Functional Index |
|
|
Communication Protocol |
Support HTTP Protocol and MQTT Protocol |
|
Power Supply |
POE network cable power supply |
|
Key |
4 keys |
|
Display Screen |
1.44 "LCD color screen, resolution 128 * 128 |
|
Temperature |
Transmitter installation ambient temperature: -10℃~50℃ Measured medium temperature: 0℃~60℃ |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
Physical Characteristics |
|
|
Transmitter |
Plate mounted type |
|
Transducer |
Clamp on Standard cable length：9m |
|
Network Cable |
POE network cable, standard length: 2m |
Types of Agricultural Irrigation
The agricultural irrigation produced by our company mainly include the following types:

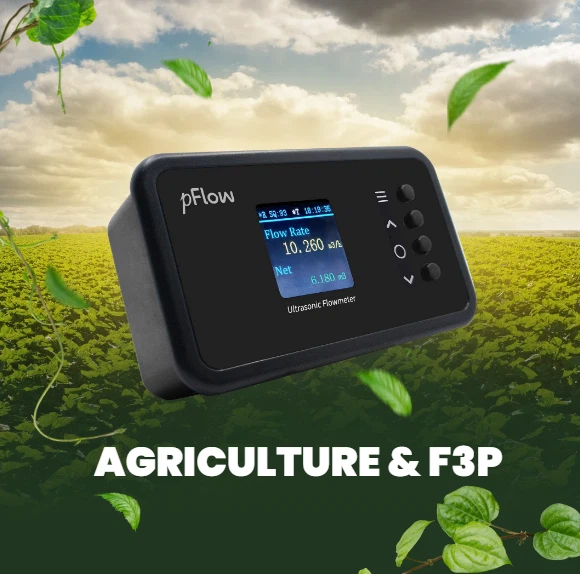

Ultrasonic Clamp On Meter For Agriculture
The F3P Embedded Ultrasonic Flowmeter is a highly effective solution for agricultural water monitoring. Utilizing advanced ultrasonic transit time measurement technology, it provides precise and real-time data on water flow rates within irrigation systems. Its non-intrusive installation means no pipeline disruption, ensuring seamless integration into existing agricultural water supply networks.
Modern Agriculture Water Flowmeter P116
The Model P116 Ultrasonic Flowmeter is a state-of-the-art universal transit-time flowmeter designed using ARM technology and low-voltage broadband pulse transmission. While principally designed for clean liquid applications, the instrument is tolerant of liquids with the small amounts of air bubbles or suspended solids found in most industrial environments.
Benefits of Agricultural Irrigation
No moving parts: Traditional mechanical flowmeters measure pressure through the use of moving parts, which serve as mechanical sensors. Unfortunately, these parts pose several problems. They often obstruct flow and cause pressure loss. The moving parts also degrade over time, providing less accurate results and requiring repair and replacement. Since there are no moving parts in modern agriculture water flowmeter, you don’t have to worry about them degrading or creating a blockage.
Low maintenance: Since modern agriculture water flowmeters don’t involve moving parts, they last a long time with very little maintenance. They also have low power consumption, so they often last for several years before the batteries need to be replaced.
Digital and analog options: Modern agriculture water flowmeters come in a wide range of outputs, and advanced technology has allowed for the creation of ultrasonic transducers with digital readouts and network connection capabilities. This means that transducers can communicate measurements in real time to a central monitoring system.
High accuracy: As long as the meter is properly mounted and installed, these meters are highly accurate. However, inline and insertion flowmeters are generally more accurate than clamp-on modern agriculture water flowmeters.
Application of Agricultural Irrigation
Water Flow Measurement
Modern agricultural water flow meters accurately measure the flow rate of water in irrigation systems, ensuring efficient water distribution and usage.
Leak Detection
Modern agricultural water flow meters can detect leaks in irrigation pipelines by monitoring changes in flow patterns, helping to conserve water and prevent wastage.
Volume Measurement
Modern agricultural water flow meters provide precise measurements of water volume, allowing farmers to accurately calculate water usage for irrigation purposes and manage resources effectively.
Nutrient Delivery
Modern agricultural water flow meters are used to regulate the precise delivery of fertilizers and nutrients in hydroponic systems, ensuring optimal plant growth and yield.
Irrigation System Monitoring
Modern agricultural water flow meters can monitor the performance of irrigation systems in real time, detecting any anomalies or inefficiencies and enabling timely maintenance and adjustments.
Water Management
Both modern agricultural water flow meters play a crucial role in water management strategies, helping farmers and irrigation authorities monitor water usage, improve efficiency, and conserve precious water resources.
