Brief Introduction
|
Accuracy: |
±2% |
Pipe Size: |
DN25-600 |
|
Output: |
RS485, 4-20mA |
Medium Temperature: |
0℃~60℃ |
Product Introduction
The D114 Ultrasonic Flow Monitor delivers accurate real-time flow rate and total flow measurement across various pipe sizes and materials, making it ideal for agricultural irrigation systems. It enables non-invasive installation on existing pipelines, ensuring quick setup and minimal disruption to farming operations.
Key Advantages:
Non-Invasive Installation:
Clamp-on design allows fast, tool-free setup without cutting or stopping water flow.
Wide Compatibility:
Works with pipe diameters from 25 mm to 600 mm and supports multiple materials including carbon steel, stainless steel, PVC, and copper.
Smart Irrigation Integration:
Features RS485/Modbus and 4–20 mA output for easy connection to automated irrigation and water management systems.
- Agriculture and irrigation systems, Modern Agriculture, drop irrigation, Gardening
- Recirculating aquaculture systems, RAS, Aquaculture Services
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Index |
|
|
Velocity Range |
0.5m/s ~5.0m/s |
|
Accuracy |
±2% |
|
Pipe Size |
1ʺ ~ 24ʺ ( 25mm ~ 600mm ). |
|
Medium |
Water |
|
Pipe Material |
Carbon steel, Stainless steel, PVC, Copper. |
|
Function Index |
|
|
Communication Interface |
RS485, Support MODBUS Protocol |
|
Output |
4~20 mA, max load 750Ω |
|
Power Supply |
10～36VDC/1A |
|
Keyboard |
16 Touch Keys |
|
Display Screen |
20×2 lattice alphanumeric, back lit LCD. |
|
Temperature |
Transmitter:14°F to 122°F(-10℃~50℃) |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
IP |
IP65 |
|
Physical Characteristics |
|
|
Transmitter |
Engineering Plastic (ABS), IP Rating IP65 |
|
Transducer |
Encapsulated design, IP68. |
|
Transducer |
Clamp On |
|
Cable |
Standard cable length: 16 ft (5m). |
Body Parameters

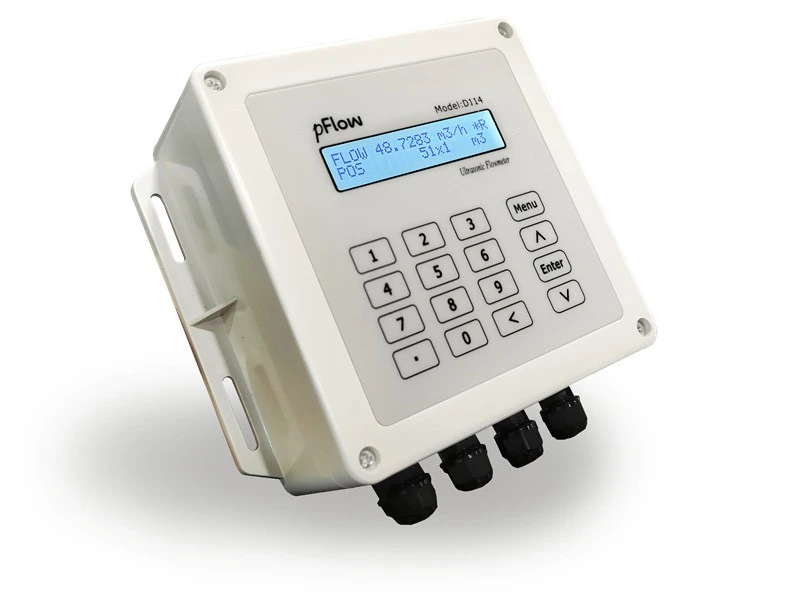

Appearance

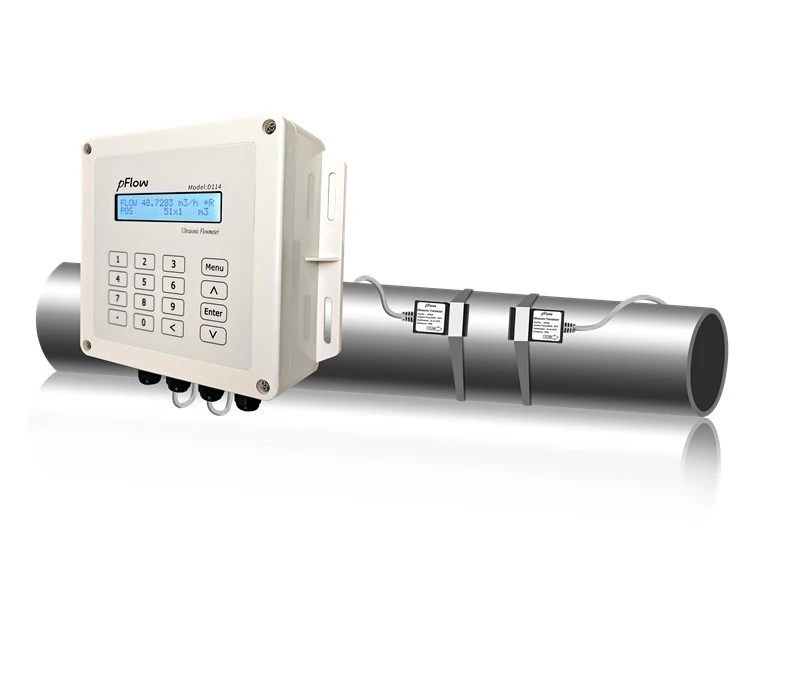

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
