Water Flow Monitor

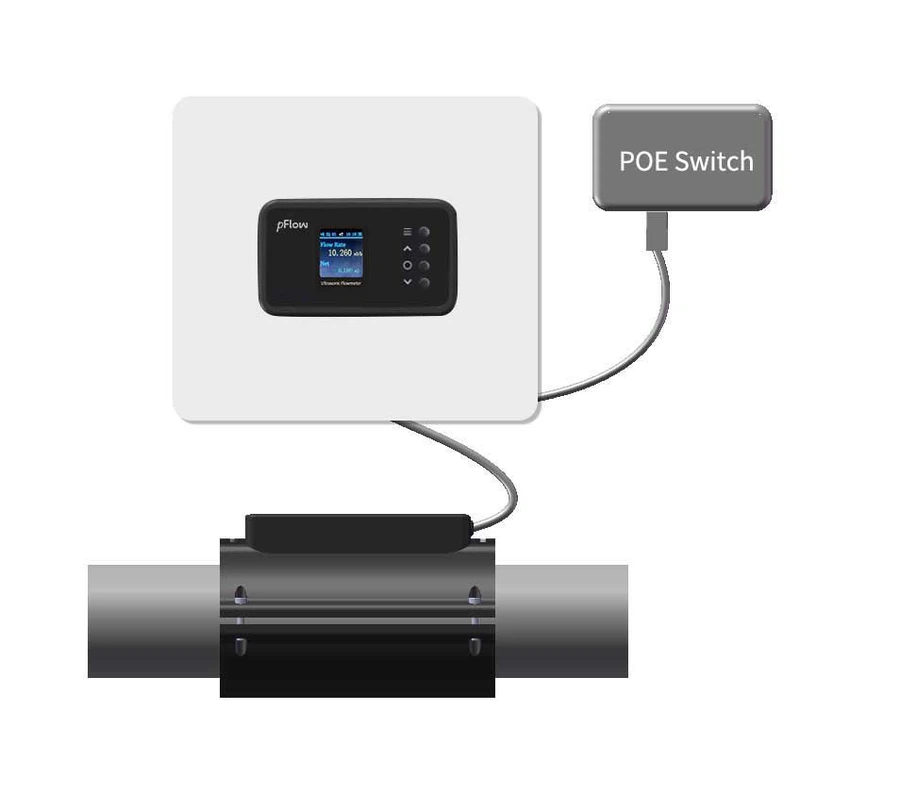

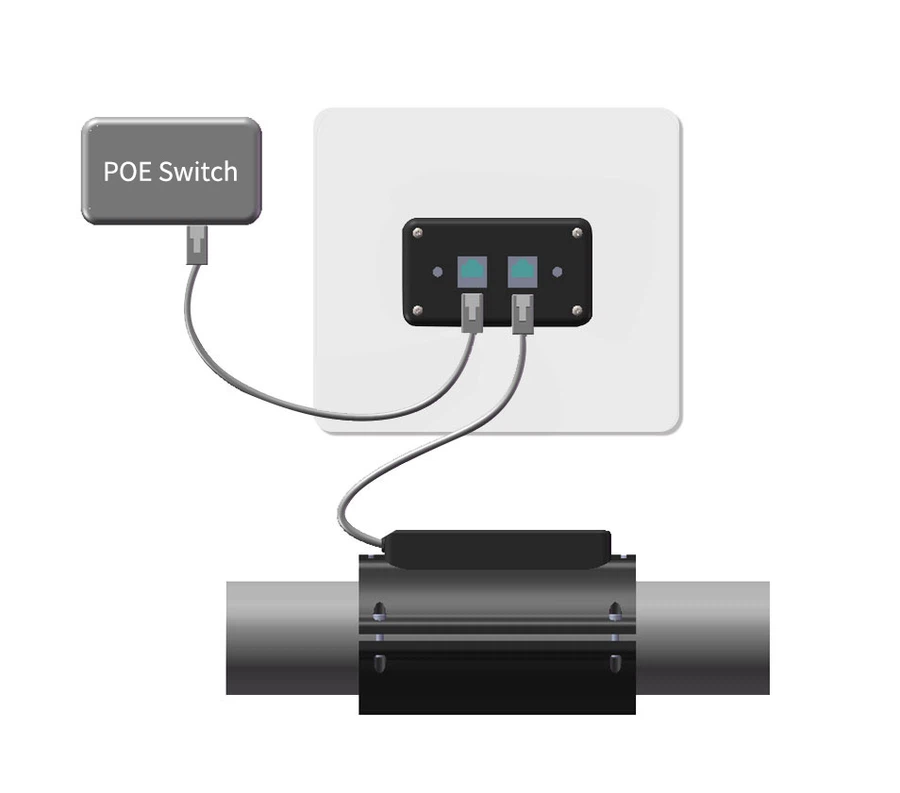

Leveraging ultrasonic technology, our water flow monitor F3P delivers exceptional accuracy across a wide range of fluid types and flow rates, ensuring reliable performance in even the most demanding applications. Combined with Gentos ultrasonic signal processing technology and unique flow algorithm, fluid flow in the pipeline can be accurately measured. With Power over Ethernet support, installation becomes a breeze, eliminating the need for separate power sources and simplifying cable management. Enjoy hassle-free setup and reduced installation costs with POE convenience. The water flow monitor F3P is designed with a split clamp-on structure, which is simple and convenient to install. The installation process does not need to contact the fluid medium,nor stop production. The instrument adopts POE power supply and Ethernet communication to realize cloud data. Choose between a panel mount design for seamless integration into control panels and equipment enclosures, or opt for the split configuration for flexible installation options and accessibility in confined spaces. Users can manage, analyze and monitor measurement data information by access cloud data through mobile terminals and PC terminals anywhere anytime. Water flow monitor F3P stays informed with instant access to real-time flow data, empowering users to make informed decisions promptly and optimize processes for maximum efficiency. Intuitive controls and a user-friendly interface make operation straightforward, allowing for quick setup and configuration to suit users' specific requirements.





1)Body Parameters

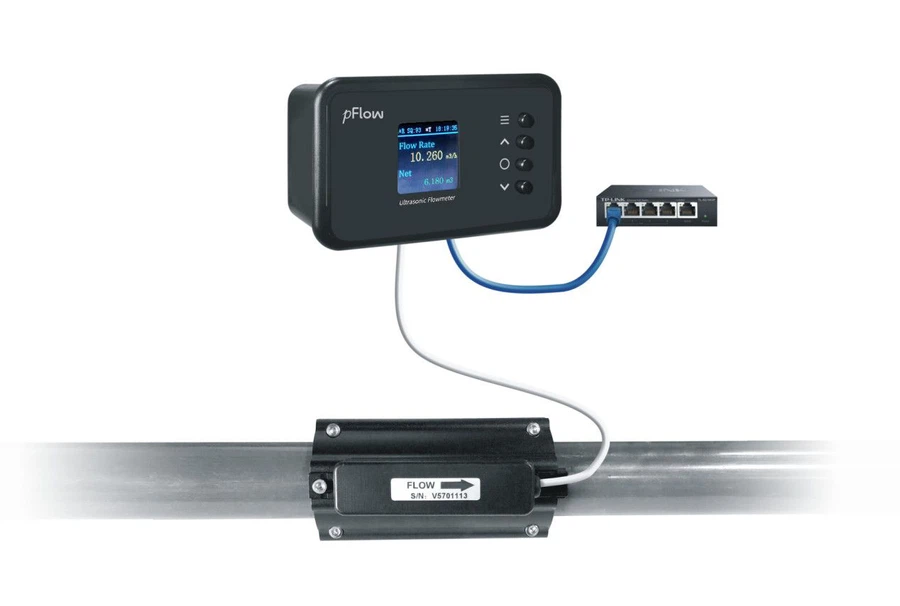

2)Appearance



3)Technical Parameters

Performance Index
Flow velocity	0.1~16ft/s (0.03~5.0m/s)
Pipe Size	DN20~DN80
Measured medium	water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC (Select one of them as per customer's requirements. The details are subject to the instrument display.)
Accuracy level	±2%,(1.0~16ft/s)
Temperature	Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ).
Functional Index
Communication Protocol	Support HTTP Protocol and MQTT Protocol
Power supply	POE network cable power supply
Key	4 keys
Display screen	1.44 "LCD color screen, resolution 128 * 128
Humidity	Relative humidity 0~99%, No condensation
Physical Characteristics
Transmitter	Plate mounted type
Transducer	Clamp on Standard cable length：2m
Network Cable	POE network cable, standard length: 2m





Pure water: In the pure water industry, where maintaining the highest standards of quality is paramount, water flow monitor F3P plays a critical role in various specific applications. F3P is used to measure the flow rates of raw water entering purification plants and the treated water leaving these facilities. By accurately monitoring flow rates, operators can ensure that water purification processes, such as filtration, ion exchange, and reverse osmosis, are operating efficiently and meeting quality standards. F3P is installed at key points within water distribution networks to monitor the flow of purified water to residential, commercial, and industrial consumers. By continuously monitoring flow rates, utilities can detect leaks, assess system performance, and optimize distribution to ensure consistent water supply and pressure. In the bottled water industry, ultrasonic flow meters are integrated into bottling and packaging lines to measure the flow of purified water into bottles, cans, or other containers. Accurate flow measurement ensures precise filling levels, minimizes product giveaway, and maintains product quality and consistency.For applications requiring ultra-pure water, such as semiconductor manufacturing, pharmaceutical production, and laboratory research, F3P is used to measure the flow of water through purification systems, including deionization, distillation, and UV sterilization. Precise flow measurement is essential to ensure the purity and integrity of the water used in these sensitive processes. In wastewater treatment plants, water flow monitor F3P employed to measure the flow of treated water discharged into receiving bodies of water or recycled for reuse. Accurate flow measurement helps utilities comply with environmental regulations, optimize treatment processes, and assess the effectiveness of treatment facilities. Ultrasonic flow meters play a crucial role in water recycling and reuse applications, where purified water is treated and reused for non-potable purposes such as irrigation, industrial processes, and cooling systems. By accurately measuring flow rates, operators can track water usage, assess the effectiveness of recycling systems, and maximize water conservation efforts. Some ultrasonic flow meters are equipped with additional sensors to monitor water quality parameters such as pH, conductivity, and temperature. By integrating flow and water quality monitoring capabilities, operators can gain comprehensive insights into water treatment processes and ensure that purified water meets stringent quality standards.





For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: What is a water flow monitor?

A1: A water flow meter is a flow meter designed to measure the flow of water specifically, as opposed to other types of liquids. Water flow meters can be used to track the flow of water within a variety of applications.



Q2: What are the two basic types of flow monitoring?

A2: There are two main types of ultrasonic flowmeters: Doppler and transit time. While they both utilize ultrasound to make measurements and can be non-invasive (measure flow from outside the tube, pipe or vessel, also called clamp-on device), they measure flow by very different methods.



Q3: How does a water flow monitor work?

A3: Water flow monitors typically work by using sensors, such as turbine or electromagnetic sensors, to measure the velocity of the water passing through the pipe. This velocity measurement is then converted into a flow rate using the known dimensions of the pipe.



Q4: How accurate are water flow monitors?

A4: The accuracy of water flow monitors can vary depending on factors such as the type of meter, installation conditions, and calibration. However, many modern water flow monitors can provide high levels of accuracy, typically within a few percentage points.



Q5: What are the different types of water flow monitors?

A5: There are several types of water flow monitors available, including:

Mechanical flow meters: These use physical mechanisms such as turbines or paddle wheels to measure flow.

Ultrasonic flow meters: These use ultrasonic waves to measure flow non-invasively.

Electromagnetic flow meters: These measure flow by applying a magnetic field and measuring the induced voltage.

Vortex flow meters: These measure flow by detecting the frequency of vortices shed by a bluff body in the flow.
