Gentos Measurement & Control Co., Ltd is a leading manufacturer of ultrasonic flowmeters with over three decades of experience in fluid measurement.
Our pFlow brand has gained a strong reputation and is highly regarded in Asia, Europe, and America. Gentos Product line includes Clamp on flowmeters, BTU meters, IoT Ball Valves, providing versatile solutions for various applications.
Why Choose us
Customized Service
We offer tailored flow measurement solutions designed to meet the specific requirements of diverse industries.
Comprehensive Product Qualifications
Our company has successfully obtained certifications under the GB/T 19001-2016/ISO 9001:2015 international quality management system and the GB/T 24001-2016/ISO 14001:2015 environmental management system standards.
Extensive Experience
With more than 30 years of accumulated expertise in fluid measurement, we deliver reliable and high-performance solutions across a wide range of applications.
Parameter
|
Performance Index |
|
|
Flow Velocity |
0.03 ~ 5.0 m/s |
|
Nominal diameter |
DN20~DN80 |
|
Accuracy level |
±2% |
|
Temperature range |
0-60℃ |
|
Temperature difference range |
2~50K |
|
Temperature resolution |
0.01℃ |
|
Measuring medium |
Water |
|
Pipe Material |
Carbon Steel, Stainless Steel, Copper, PVC (According to the user's selection requirements, it has been selected at the factory, and the details are subject to the instrument display.) |
|
Functional Index |
|
|
Input Interface |
2*PT1000 Clamp-on temperature sensor |
|
Support Protocol |
HTTP, MOTT Protocol |
|
Power supply |
Power over Ethernet |
|
Keyboard |
4 touch keys |
|
Display screen |
1.44 " LCD colorful screen, resolution 128 *128 |
|
Temperature |
Transmitter installation ambient temperature: 14 °F to 122 °F(-10℃ ~50℃) |
|
Humidity |
Relative humidity 0~99%,No condensation |
|
IP |
IP54 |
|
Physical Characteristics |
|
|
Transmitter |
Integrated |
|
Transducer |
Clamp on |
|
Cable |
POE waterproof cable, standard length: 0.5m |
Types of Carbon Emission Management
The carbon emission management produced by our company mainly include the following types:

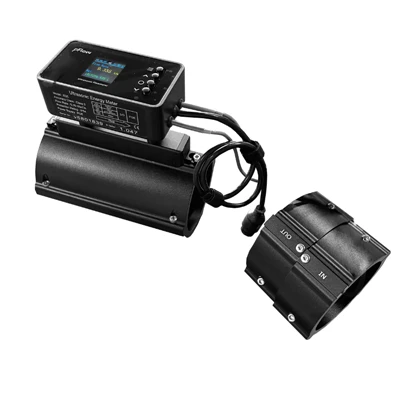

Carbon Audit Heat Meter
The E3E Clip-on Ultrasonic Thermal Energy/BTU Flow Meter is an ideal tool for Carbon Audit applications, especially in heat metering and energy management.
It provides precise measurement of fluid flow and thermal energy using ultrasonic time difference technology, ensuring accurate data for carbon audit processes.
D118 Environmental Flow Tracking Flow Meter
D118 Ultrasonic Flowmeter is a state-of-the-art transit time ultrasonic flowmeter. Designed using the latest digital technology and low-voltage broadband pulse transmission.Widely used in environmental monitoring, buildings BMS,industrial, medical, chemical,environmental, and other fields.
Benefits of Carbon Emission Management
Carbon audit heat meter have many advantages, including:
Non-intrusive Measurement: The carbon audit heat meter adopts a non-contact measurement method, which requires no cutting of pipes or shutdowns and does not contaminate the pipe medium, achieving non-destructive installation. This non-intrusive measurement method allows it to be applied in situations where it is difficult to shut down or where pipeline integrity needs to be maintained.
High-precision Measurement: Due to the adoption of high-precision ultrasonic sensing technology, the carbon audit heat meter can accurately measure the flow velocity and flow rate of fluids.
Wide Applicability: The carbon audit heat meter can measure various fluid media, such as water, sewage, seawater, gases, steam, oil, etc., and is suitable for various pipeline materials and sizes. This makes it widely applicable in various industrial production and environmental monitoring fields.
Convenient Installation: The installation process of the carbon audit heat meter is simple and quick, with sensors only needing to be attached to the pipe surface for completion. This installation method saves time and cost while reducing interference and impact on the pipeline system.
Good Environmental Adaptability: The carbon audit heat meter has good corrosion resistance, high temperature resistance, impact resistance, and wear resistance, capable of meeting the flow measurement requirements of various complex environments and harsh conditions.
Low Cost: Compared to other types of flowmeters, the carbon audit heat meter produces low noise and power consumption during operation and has a relatively low overall cost.
