What is Industrial Flow Meter
An industrial flow meter is a device that measures the rate of flow of a fluid moving through a pipe or process stream. These meters are essential in a variety of industrial applications for monitoring and controlling the flow of liquids, gases, and steam. Industrial flow meters are designed to handle high pressures and flows and to provide accurate measurements even in challenging environments.
There are several types of flow meters used in industry, each with different operating principles and suitable for different applications.
These include:
1. Differential Pressure Meters: These work on the principle that flow causes a pressure difference. The most common type is the orifice plate meter, which has a hole that creates a pressure drop proportional to the flow rate.
2. Electromagnetic Meters: These use the magnetic field principle to measure flow. They are particularly useful for measuring clean liquid flows and are not affected by density, viscosity, or conductivity of the fluid.
3. Turbine Meters: These count the number of rotations of a turbine blade that is directly influenced by the flow of the fluid. They are precise and ideal for clean fluids.
4. Positive Displacement Meters: These measure flow by trapping a fixed volume of fluid and moving it through the meter with each cycle. They are very precise but can be subject to wear and tear from particulates in the fluid.
5. Vortex Shedder Meters: These measure flow by sensing the frequency at which a bluff body creates vortices in the flow stream. They are suitable for a wide range of fluids and are less affected by fluid properties than differential pressure meters.

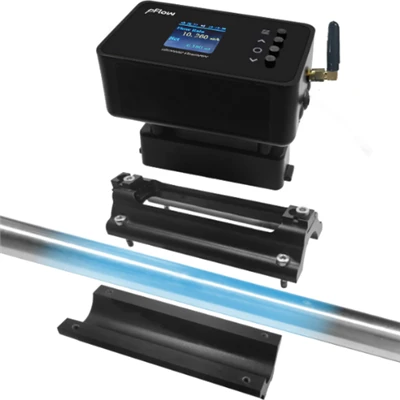

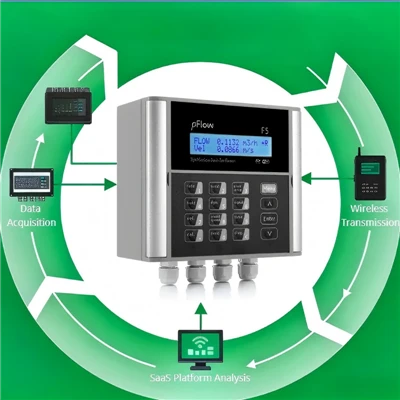

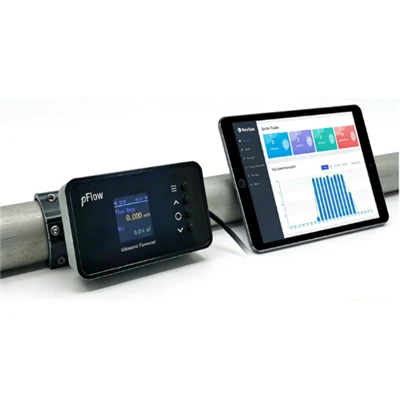

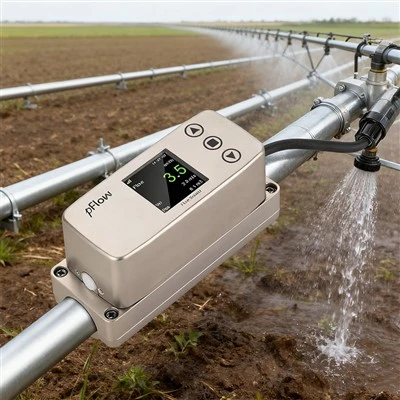

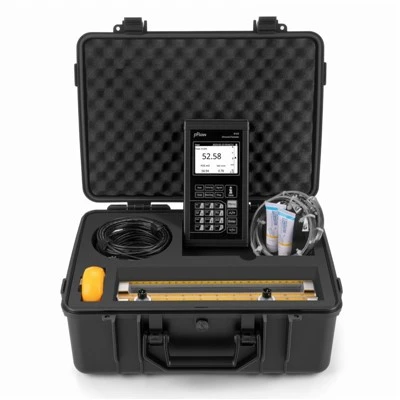

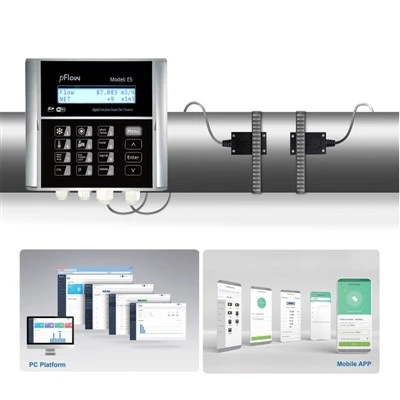

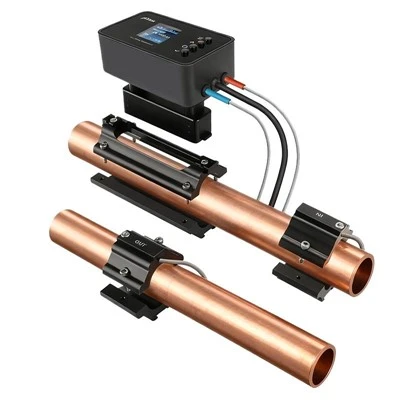

6. Ultrasonic Meters: These use ultrasonic waves to measure the flow rate. There are two main types: time-of-flight and Doppler. Time-of-flight measures the speed of sound through the fluid and relates it to the flow rate, while Doppler meters detect the reflected signal from particles in the fluid.
Industrial flow meters are equipped with various sensors and electronics to convert the mechanical motion or pressure difference into an electrical signal that can be displayed, recorded, or transmitted for process control and automation systems. Accurate flow measurement is critical for optimizing processes, ensuring efficient energy consumption, preventing overflow or depletion, and complying with regulatory standards.
When selecting an industrial flow meter, engineers must consider the physical properties of the fluid, the required accuracy and repeatability, the flow conditions, the environment in which the meter will operate, and the output requirements for integration with control systems. Proper installation, maintenance, and calibration are also crucial for ensuring the longevity and reliability of flow meter equipment in industrial settings.
What are Flow Meters used For in Industry?
Flow meters are instruments that measure the rate of fluid movement, whether liquid or gas, through a pipe or process. In industry, they serve several critical functions:
1. Process Control: Flow meters are integral to maintaining the efficiency and productivity of processes by ensuring that the correct amount of fluid is being used. They help regulate the flow of materials to match the required rates for production processes.
2. Quality Assurance: Accurate measurement of flow rates helps in monitoring the quality of the product by controlling the input rates of raw materials and the output rates of finished products.
3. Energy Management: By measuring the flow of energy carriers such as natural gas, steam, and fuel oils, industries can optimize their energy usage, reduce waste, and minimize costs.
4. Compliance with Regulations: Flow meters ensure that industrial operations comply with environmental regulations by accurately measuring emissions and discharges.
5. Cost Accounting: Flow meters are used for billing purposes and tracking the consumption of utilities and fluids within a facility, which aids in cost allocation and management.
6. System Diagnostics: Flow measurements can indicate problems within a system, such as blockages, leaks, or other inefficiencies, allowing for timely maintenance and repairs.
7. Research and Development: Engineers use flow meters during the development of new processes and products to understand fluid dynamics and to refine the design of systems.
8. Safety: Monitoring flow rates is crucial in hazardous environments to prevent overflows or surges that could lead to equipment damage, fires, or explosions.
Different types of flow meters are used for different applications based on the type of fluid, flow rate, pressure, temperature, and required accuracy. Common types include turbine flow meters, positive displacement flow meters, electromagnetic flow meters, ultrasonic flow meters, and mass flow controllers. Each type has its own strengths and is selected based on the specific requirements of the industrial application.
What are the Primary Applications Where Industrial Flow Meters are Commonly Utilized?
Industrial flow meters are widely used in a variety of sectors to monitor and control the flow of liquids, gases, and steam within industrial processes. Some of the primary applications include:
1. Water and Wastewater Treatment: Flow meters are used to measure the flow rate of water in treatment plants, distribution networks, and sewage systems to ensure efficient operation and compliance with environmental regulations.
2. Oil and Gas: In the oil and gas industry, flow meters are critical for measuring the production of crude oil, natural gas, and refined products. They are used for custody transfer, allocation metering, and process control.
3. Chemical Processing: Flow meters are essential in chemical plants for measuring the flow of chemicals in pipelines and reactors, which helps in maintaining the correct mixture ratios and process conditions.
4. Power Generation: In power plants, flow meters are used to measure the flow rate of water and steam in boilers, turbines, and condensers to optimize the efficiency of electricity generation.
5. Pulp and Paper: Flow meters are used in pulp and paper mills to measure the flow of water, chemicals, and pulp stock in various stages of the manufacturing process.
6. Food and Beverage: Flow meters are employed in the food and beverage industry to measure the flow of liquids, pastes, and slurries in processing, packaging, and bottling lines.
7. Pharmaceuticals: In pharmaceutical manufacturing, flow meters are used to dispense precise quantities of liquids and gases for mixing, reacting, and filling operations to ensure product quality and consistency.
8. HVAC: Heating, Ventilation, and Air Conditioning systems use flow meters to measure the flow of air and refrigerants, helping to maintain optimal temperature and energy efficiency.
9. Metal Production: Flow meters are utilized in metal smelting and refining processes to measure the flow of molten metals, fluxes, and gases.
10. Semiconductor Manufacturing: In the semiconductor industry, flow meters are critical for controlling the flow of gases and liquids in wafer fabrication and cleaning processes.
Calibrating an industrial flow meter to ensure compliance with international standards generally involves the following steps:
1. Understanding Standards: Before calibration, familiarize yourself with the relevant standards such as ISO 4189 for coriolis mass flowmeters, ISO 5167 for orifice plate, venturi tube, and pitot tube devices, or OIML R 117 for water meters. These standards specify the tolerances, tests, and procedures necessary to certify a flow meter.
2. Selecting Appropriate Calibration Facility: Use a calibration laboratory that is accredited to the relevant standards. The facility should have the proper flow loop and calibration equipment traceable to national standards.
3. Preparation: Clean the flow meter thoroughly and inspect it for any damage or wear that might affect its performance. Ensure that all connections are tight and free of leaks.
4. Installation in Flow Loop: Install the flow meter in a dedicated flow loop that can simulate the operating conditions of the meter in its actual application. This includes matching the fluid type, temperature, pressure, and flow rate.
5. Calibration Procedure: Follow the standard's prescribed procedures for the flow meter type. This may involve comparing the meter's readings against a known standard or master meter under various flow conditions. Record data meticulously.
6. Uncertainty Analysis: Determine the uncertainty associated with the calibration process. This includes evaluating the accuracy of the reference standard, the repeatability of measurements, and the environmental conditions during calibration.
7. Data Evaluation: Analyze the collected data to determine if the flow meter meets the specified tolerance limits according to the relevant standard. Adjust or repair the meter if necessary.
8. Documentation: Prepare a detailed calibration report that includes the measured values, uncertainties, and compliance status. This documentation is essential for traceability and future reference.
9. Labeling: Apply a calibration label to the flow meter indicating the date of calibration, the next due date, and the calibration status (pass/fail).
10. Periodic Recalibration: Schedule regular recalibrations to maintain compliance with standards, especially if the meter is subject to harsh operating conditions or if its performance is critical to process control.
It is important that the calibration process is performed by qualified personnel who are trained in handling the specific type of flow meter and adhering to the relevant international standards. Calibration must be conducted using appropriate methods, equipment, and facilities to ensure accurate and reliable results.
Industrial flow meters and water meters are both instruments used to measure the flow rate of fluids, but they differ in their design, capabilities, and intended applications.
Industrial flow meters are designed for use in complex and demanding industrial environments. They are capable of measuring a wide range of fluids, including corrosive, abrasive, or high-viscosity liquids, as well as gases and steam. Industrial flow meters are built to withstand high pressures, extreme temperatures, and variable flow rates, making them suitable for use in diverse applications such as chemical processing, oil and gas exploration, power generation, and manufacturing. These meters often feature advanced materials, multiple measurement technologies (such as magnetic, turbine, differential pressure, ultrasonic, and Coriolis), digital communication capabilities, and integrated diagnostics for process optimization and predictive maintenance.
On the other hand, water meters are specifically designed for measuring the volume of water usage in residential, commercial, or municipal settings. They are generally less complex than industrial flow meters and are optimized for measuring water flow under relatively stable conditions. Water meters typically use positive displacement mechanisms or velocity principles to measure water consumption. They are often constructed from materials compatible with potable water standards and are designed to provide accurate measurements over a narrower range of flow rates compared to industrial meters.
In summary, industrial flow meters are versatile, robust, and capable of handling a wide variety of fluids and challenging conditions, while water meters are specialized for measuring the flow of water in plumbing and water supply systems. The choice between an industrial flow meter and a water meter will depend on the specific requirements of the application, including the type of fluid, flow rate, pressure, temperature, and measurement accuracy needed.
What is a Normal Flow Meter Reading?
A "normal" flow meter reading refers to the expected flow rate for a particular application or system, which can vary widely depending on the context. For example, in a residential water supply, a normal flow rate might be a few gallons per minute (GPM), whereas in an industrial process, normal flow rates could range from hundreds of liters per hour to thousands of liters per second.
In industrial settings, normal flow rates are often defined by the process requirements or specified in the plant's operating procedures. For instance, if a chemical mixing tank requires 50 liters of a reactant every hour, then a flow meter reading of approximately 50 liters per hour would be considered normal under steady-state conditions.
It is important to calibrate the flow meter according to the expected flow range for the application to ensure accurate readings. If the flow rate deviates significantly from what is considered normal, it may indicate a problem with the process, such as a blockage, leak, pump failure, or incorrect setpoints.
In any case, the normal flow meter reading is specific to each application and should be defined based on the operational requirements of the system being monitored. Regular monitoring and comparison with known normal values help in detecting abnormalities and ensuring the process operates within desired parameters.
What Industries Use Flow Meters?
Flow meters are crucial to many different industries. The following are three industries that rely on flow meters.
Oil & Gas
Oil and gas manufacturing require flow meters for many reasons. The main purpose is to measure the volume of the liquids and natural gases at many different points in the process. The oil and gas industries must properly measure flows regardless of whether they are pure or not as well as when flowing long distances.
The oil industry uses flow meters to measure the volume of oil flowing from one point to the other. The natural gas industry uses flow meters for the same reasons as the oil industry. They need flow meters to show and record how much gas is flowing and processing. Both oil and gas use flow meters to record and monitor their various systems and processes.
Wastewater & Water Utilities
From wastewater to drinking water, flow meters are critical for the wastewater and water utilities industry. The water industry currently endures significant challenges caused by rapid urbanization, climate change, and rising customer demands; thus, the industry must accurately measure wastewater, such as sewage and other waste. Flow meters can prevent clogs in systems with thicker wastewater, such as sludge.
Water utilities also need flow meters for potable drinking water. They must accurately measure the correct amount of water that reaches each sector, such as in a city grid. This is very important so people have access to clean drinking water.
Food & Beverage
The food and beverage industry is usually characterized by a high water consumption and considerable waste water discharge volumes. For this reason, they face significant costs for water supply and trade effluent disposal.
Expenses for water supply and waste disposal, increase global competition in the food & beverage industry, rising of raw material costs, and energy supply rates drive the important of having more efficiently and optimized production processes.
What is the Impact of Fluid Temperature on The Performance of a Magnetic Flow Meter?
Material Expansion: As the temperature of the fluid increases, the liquid expands. This expansion can lead to a decrease in flow measurement accuracy if the flow tube's dimensions remain constant. Magnetic flow meters are designed to measure the velocity of a fluid at a fixed point, but if the fluid's cross-sectional area changes due to thermal expansion, the velocity reading may not accurately represent the flow rate through the entire pipe.
Liner Decomposition: The liner is a crucial component in magnetic flow meters, providing a non-conductive surface for the fluid to flow against while also allowing the electromagnetic field to pass through. Certain liners, such as those made of plastics, can degrade when exposed to high temperatures, potentially leading to measurement inaccuracies or even equipment failure.
Magnet Coils: The magnet coils used to create the magnetic field may experience changes in resistance with temperature variations. Since the strength of the magnetic field is proportional to the current in the magnet coil, fluctuations in temperature can affect the stability and accuracy of the measurement.
Electronics: The electronics that process the signals from the sensor and display the flow rate can be sensitive to temperature changes. High temperatures can lead to decreased component life expectancy, increased noise in the electronic signal, and reduced measurement stability.
Fluid Properties: The viscosity and electrical conductivity of the fluid can change with temperature. These properties directly affect the flow measurement as magnetic flow meters rely on the conductive fluid moving through the magnetic field to induce an electric potential (voltage), which is proportional to the fluid velocity. Changes in conductivity can alter the voltage signal, impacting measurement accuracy.
To mitigate the impact of temperature on magnetic flow meter performance, engineers must select a liner material suitable for the fluid's temperature, ensure that the flow meter is correctly installed with adequate thermal compensation, and possibly employ additional temperature sensors to adjust flow measurements in real-time. Proper maintenance and regular calibration are also necessary to account for any changes in the meter's performance due to temperature fluctuations.
