Brief Introduction
|
Accuracy: |
0.5 % |
Pipe Size Range: |
Clamp-on type: 25mm~5000mm (1" ~ 200" ) |
|
Flow Rage: |
±0.01m/s ~ ±12 m/s ±0.03ft/s ~ ±40 ft/s |
Communication : |
RS485, available to MODBUS protocol |

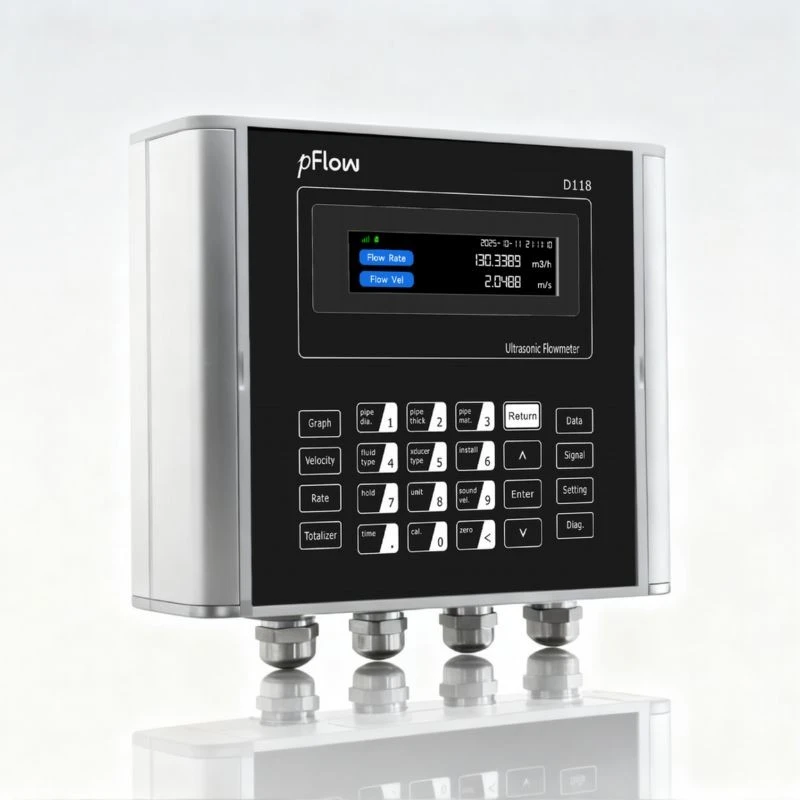

Product Introduction
With ±0.5 % accuracy and 16 GB logging, D118 clamp-on ultrasonic flowmeter is suitable for continuous measurement in industrial environments. It feeds real-time flow data straight to your Building Automation System via Modbus-RS485, slashing wiring and downtime.
- High precision readings
- Low power consumption
- Zero downtime installation
- Building Automation System
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance specifications |
|
|
Measurable Flow Velocity Range |
±0.01m/s～±12 m/s(±0.03 ft/s～±40 ft/s) |
|
Accuracy |
0.5% (0.5~5m/s standard condition) |
|
Repeatability |
0.1% |
|
Pipe Size Range |
Clamp-on type: 25mm~5000 mm (1″~200″) Insertion type: 50mm~5000 mm (2″~200″) |
|
Function specifications |
|
|
Outputs |
Analog output: 4～20mA, maximum load 750Ω Pulse output: 0～9999Hz, OCT output (maximum and minimum frequencies adjustable) Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ) |
|
Communication |
RS485, available to MODBUS protocol |
|
TF Card |
Storage period: More than 1000 days Storage interval: 1～3600 seconds |
|
Power Supply |
90～245VAC(48～63Hz)or 10～36VDC |
|
Keyboard |
24-key touch keyboard |
|
Display Screen |
3.71-inch TFT color screen |
|
Temperature |
Transmitter ambient temperature: -10℃～50℃ Sensor medium temperature: -40℃～80℃ (standard) |
|
Humidity |
Up to 99% RH, non-condensing |
|
Physical specifications |
|
|
Transmitter |
Die-cast aluminum chassis, IP rating: IP65 |
|
Transducer/Sensor |
Sealed design, IP rating: IP68 Standard cable length: 9m, can be extended to 305m |
|
Weight |
Transmitter: Approximately 2.2kg Clamp-on sensor: Approximately 2kg per pair Insertion sensor: Approximately 4kg per pair |

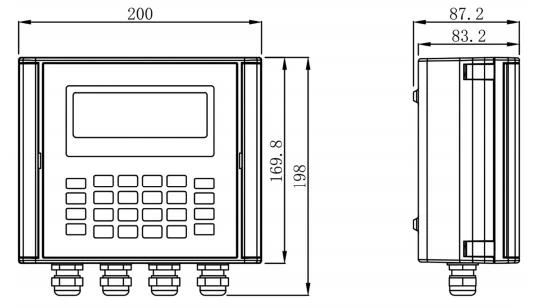

Body Parameters

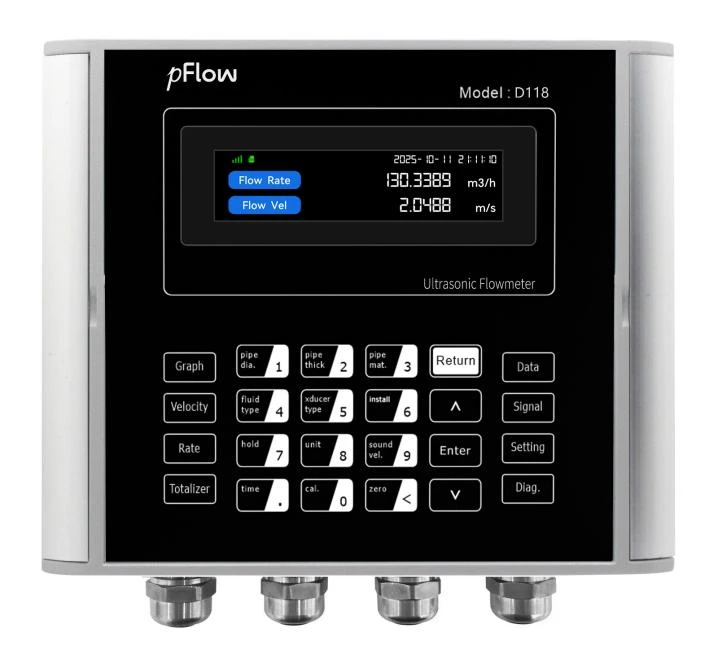

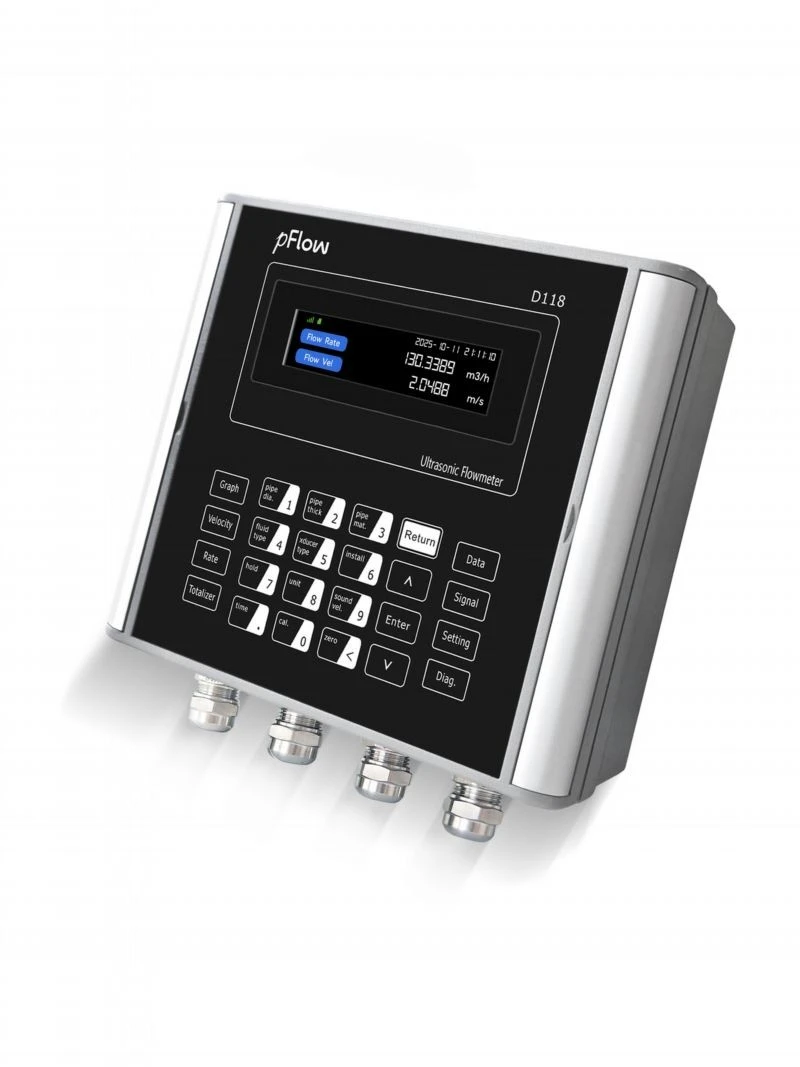

Appearance

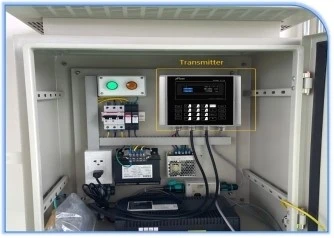

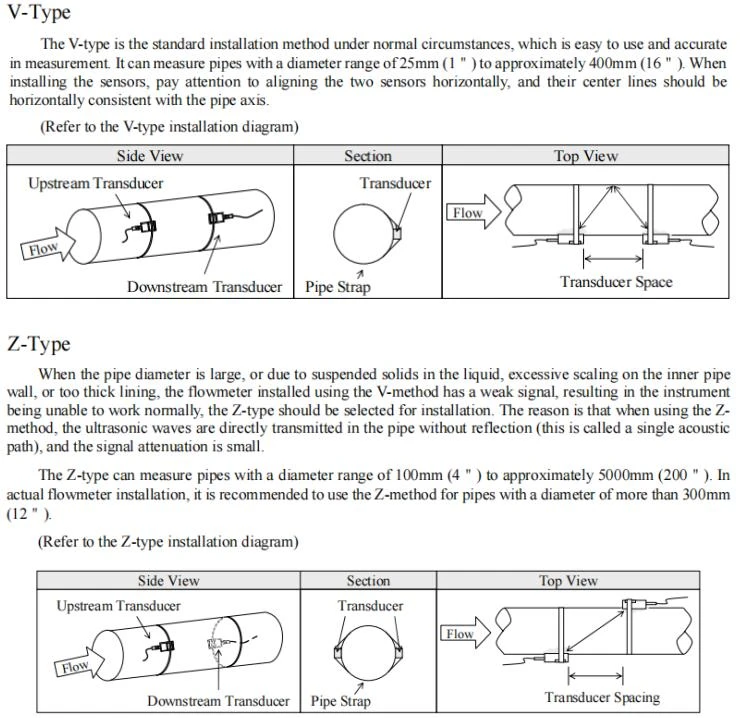

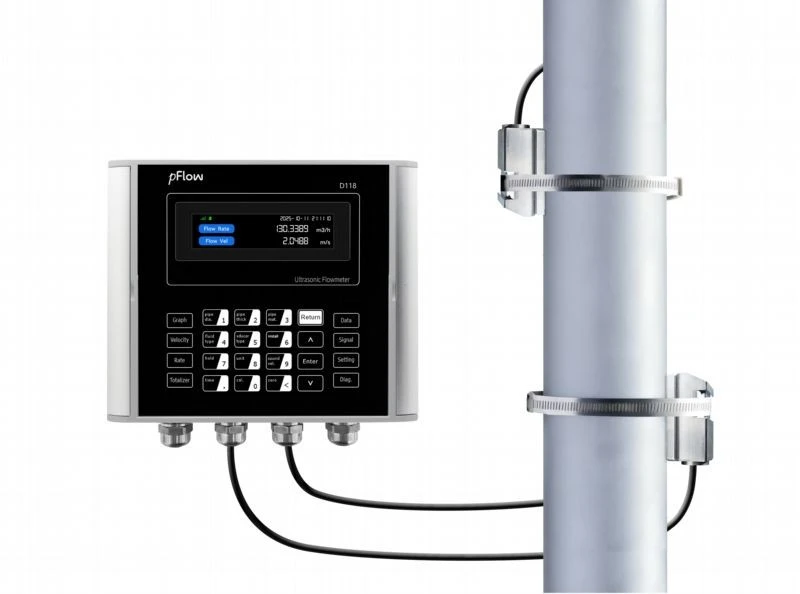

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
