Brief Introduction
D106E ultrasonic flow meter-ARM-powered, wide-pulse technology for accurate, easy water metering from HVAC to industry.
|
Accuracy: |
±1.0 % |
Pipe Size: |
1" ~ 24"(25 mm ~ 600 mm) |
|
Velocity Range: |
0.5m/s ~5.0m/s |
Medium Temperature: |
0 °C ~ 60 °C |
Product Introduction

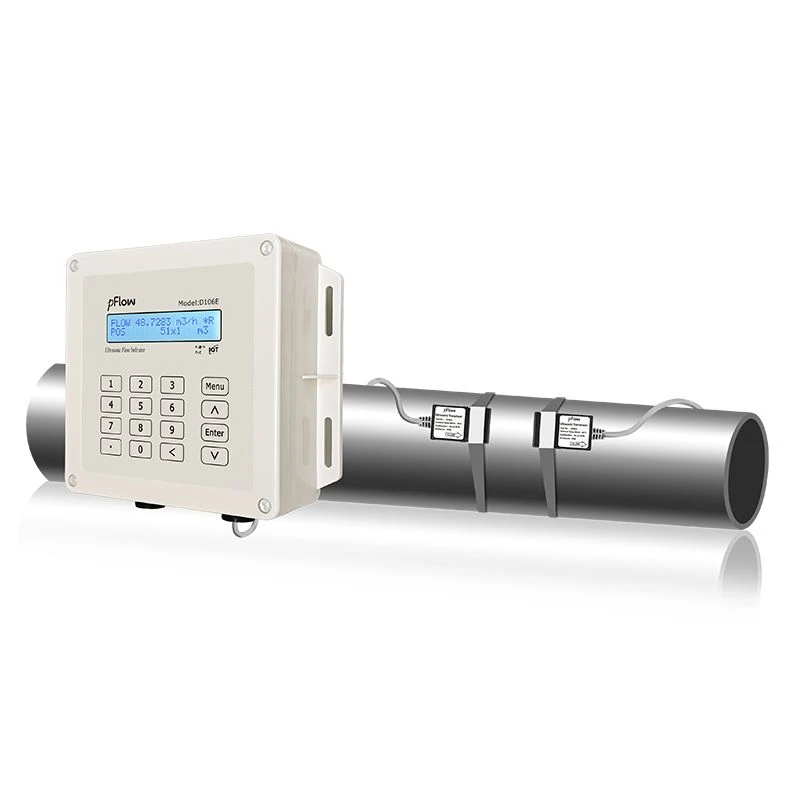

D106E Ultrasonic Flow Meter packs ARM-core transit-time technology into a POE-powered, clamp-on design for 1-24" pipes.
- Clamp-on install – zero pipework, zero downtime

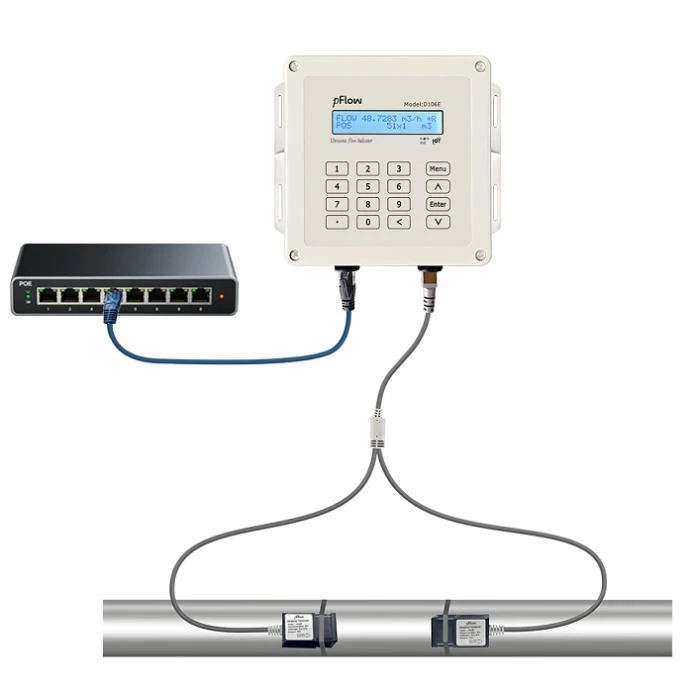

- POE-powered with HTTP/MQTT–one-cable power + cloud data
- ±1 % accuracy, 0.5-5 m/s range – reliable from drip to full flow

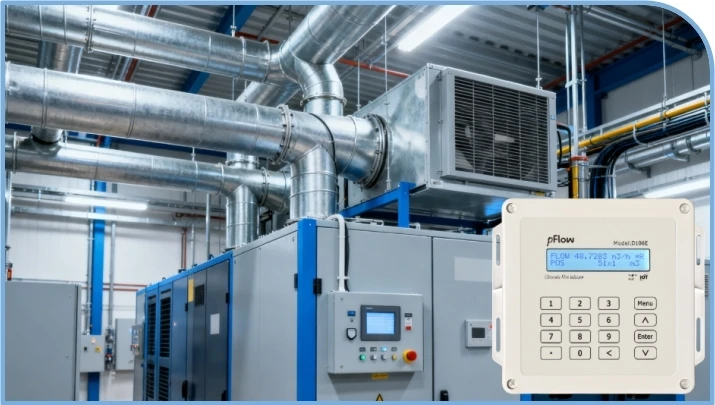

- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Chemical industry
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Food manufacturing industry
- Pharmaceutical industry
- Beverage manufacturing industry
- Semiconductor industry
Product Parameter
Technical Parameters
|
Performance Index |
|
|
Velocity Range |
0.5m/s ~5.0m/s |
|
Accuracy |
±1% |
|
Pipe Size |
1ʺ ~ 24ʺ ( 25mm ~ 600mm ). |
|
Medium |
Water |
|
Pipe Material |
Carbon steel, Stainless steel, PVC, Copper |
|
Function Index |
|
|
Communication Interface |
HTTP,MQTT Protocol |
|
Power Supply |
POE Network cable power supply |
|
Keyboard |
Touch Keys*16 |
|
Display Screen |
20×2 lattice alphanumeric, back lit LCD. |
|
Temperature |
Transmitter temperature: -10℃～50℃ Transducer temperature: 0℃～60℃ |
|
Humidity |
Relative Humidity0～99%, No condensation |
|
Physical Characteristics |
|
|
Transmitter |
Engineering Plastic (ABS), IP Rating IP65 |
|

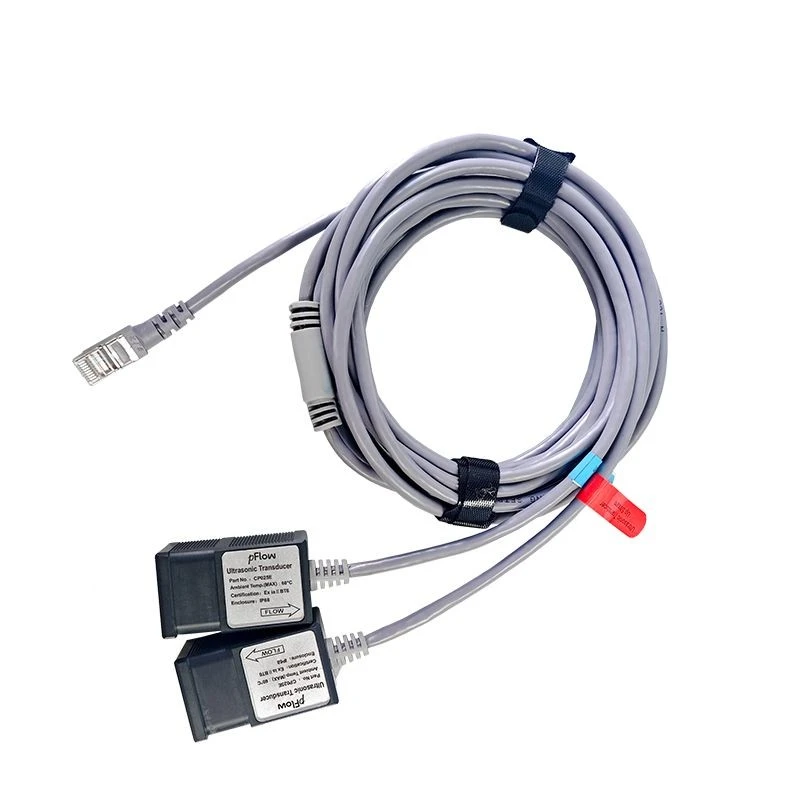

Transducer |
Sealed design, protection class IP68 |
|
cable |
Standard cable length: 16 ft (5m). |
|
Weight |
Transmitter: approximately 0.6kg; Transducer: approximately 0.5kg. |
Body Parameters

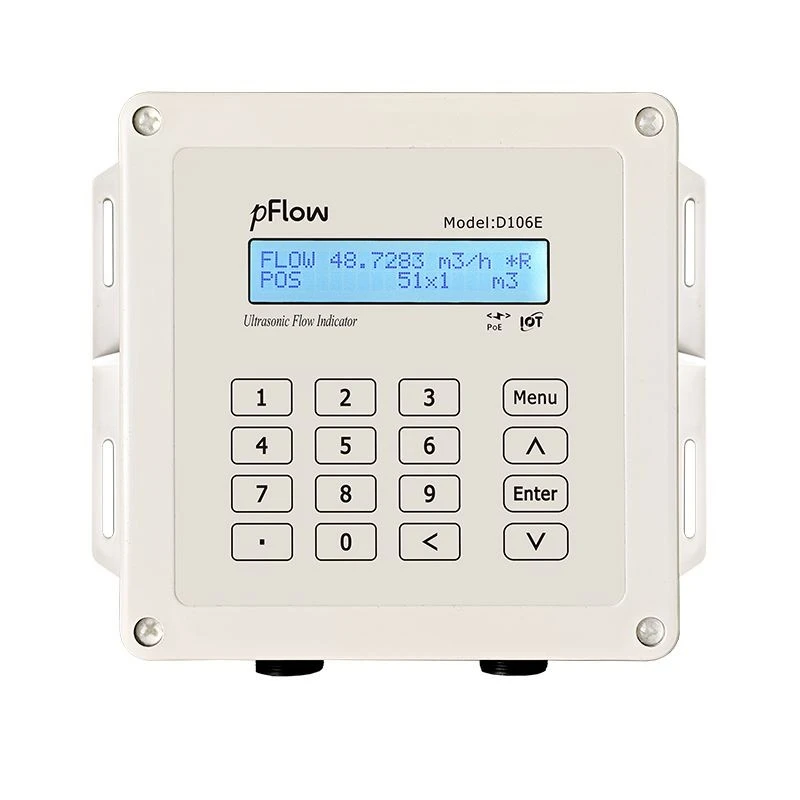

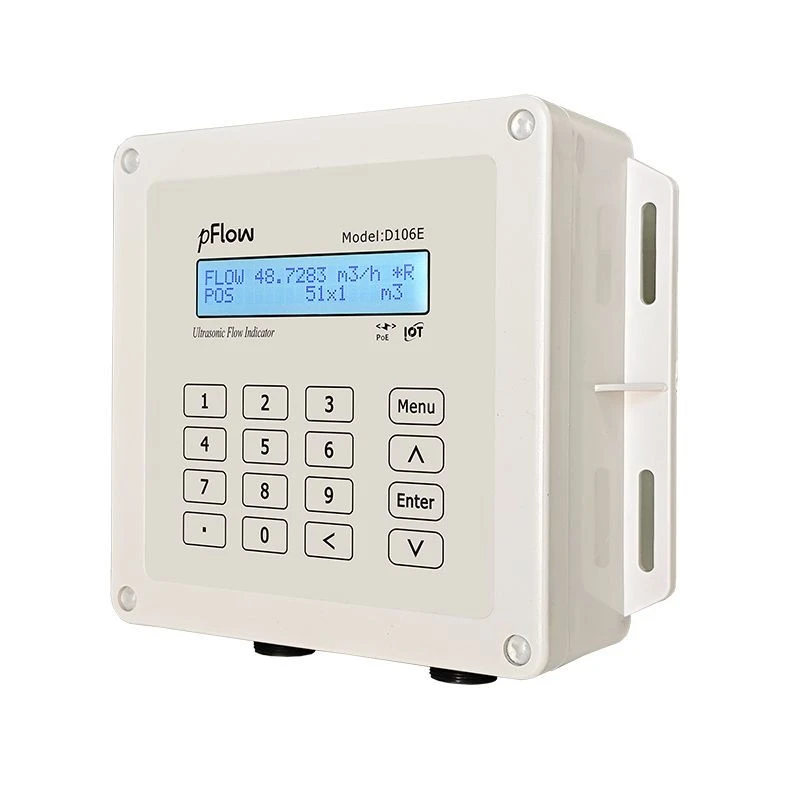

Appearance
FAQ
Q: Can this ultrasonic flow meter work with PVC pipes?
A: Absolutely! The D106E supports a wide range of pipe materials including PVC, carbon steel, stainless steel, and copper. Just make sure to enter the correct pipe material during setup for optimal accuracy..
Q: Do I need to cut the pipe to install this flow meter?
A: No pipe cutting, no downtime! Our ultrasonic flow meters are clamp-on type, which means they install externally and start measuring instantly-perfect for retrofits or sensitive systems.
Q: Can it be used for both hot and cold water?
A: Yes, the D106E is designed for water temperatures from 0°C to 60°C at the sensor, making it ideal for chilled water, hot water, and even HVAC systems.
Q: How do I reset the positive totalizer back to zero?
A: Go to window M47, unlock the unit with the 6-digit password, then enter M37, select "POS Totalizer Reset" (or "All") and press ENTER. Power-off records, ESN and calibration data are not affected.
Q: Is it possible to extend the transducer cable to 30 m?
A: The standard length is 5 m; you may extend up to 50 m with shielded twisted-pair (≥ 0.5 mm²). After extending, perform a static zero calibration (M42) while the line is full and flow is at rest.
