Brief Introduction
|
Accuracy: |
± 1.0 % |
Pipe Size: |
Clamp-on: 25mm～800mm (1"～32") Insertion: 50mm～1200mm (2"～48") |
|
Flow Rage: |
0.01～5.0 m/s (0.03～16 ft/s) |
Communication Interface: |
RS485 MODBUS |

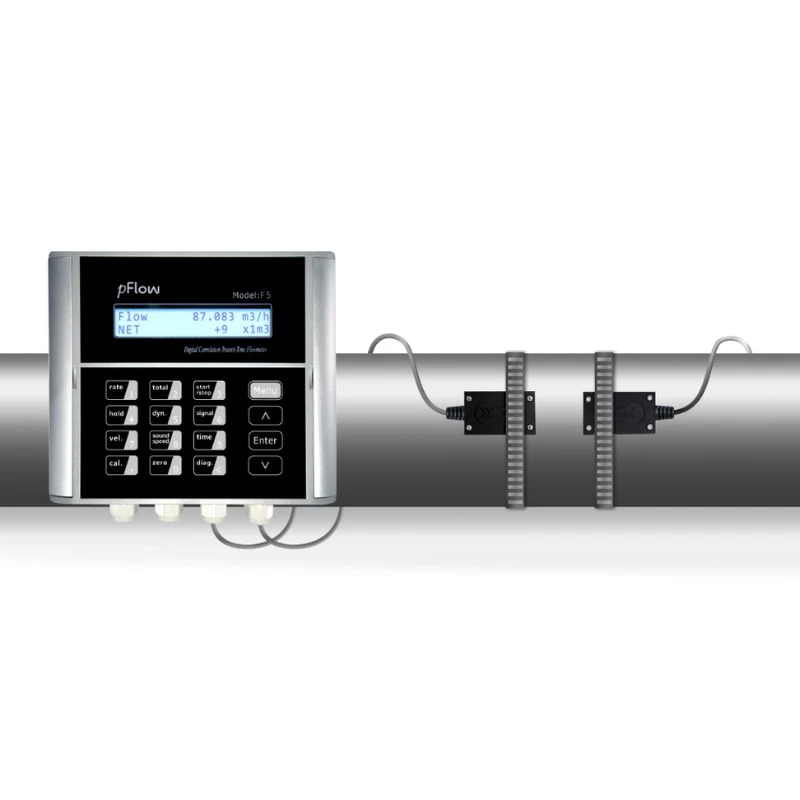

Product Introduction
Engineered for integration into Building Automation Systems, F5 ultrasonic flowmeter delivers real-time, high-accuracy flow data with minimal install effort. Clamp-on or insertion sensors fit 25 mm-1200 mm pipes, and can connect to BMS via RS-485/WiFi, reducing project downtime and manpower requirements.
- Wide pipe range
- Install in minutes
- Remote Meter Reading
- Building Automation System
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance specifications |
|
|
Flow range |
0.01～5.0 m/s(0.03～16 ft/s) |
|
Accuracy |
± 1.0 % of measured value (0.5m/s～5m/s) |
|
Pipe Size |
Clamp-on: 25mm～800mm (1"～32") Insertion: 50mm～1200mm (2"～48") |
|
Fluid |
Water |
|
Pipe material |
Carbon steel, stainless steel, PVC, Copper |
|
Function specifications |
|
|
Outputs |
Analog Output: 4～20mA, with a maximum load of 750Ω Pulse Output: 0～9999Hz, OCT output (maximum and minimum frequencies are adjustable) Relay Output: Maximum frequency of 1Hz (1A @ 125VAC or 2A @ 30VDC) |
|
Communication Interface |
RS485 MODBUS |
|
WiFi |
Frequency Range: 2.412~2.484GHz |
|
Transmit Power: 802.11b 16±2 dBm, 802.11n 13±2 dBm, 802.11g 14±2 dBm |
|
|
Open Environment Transmission Distance: 40 meters |
|
|
Standard TF Card |
Storage Period: Over 1000 days, Storage Interval: 1 to 3600 seconds |
|
Power Supply |
10～36VDC/1A |
|
Keypad |
16 ( 4×4 ) key with tactile action |
|
Display |
20×2 lattice alphanumeric, back lit LCD |
|
Temperature |
Transmitter: 14 °F to 122 °F (–10℃ ~ 50℃) Transducer: 32 °F to 176 °F (0℃ ~ 80℃) |
|
Humidity |
Up to 99% RH, non-condensing |
|
Physical specifications |
|
|
Transmitter |
PC/ABS Plastic Housing, IP Rating IP65 |
|
Transducer |
Encapsulated design, IP Rating IP68 |
|
Transducer cable |
Standard Length: 9m (30ft) |
|
Weight |
Transmitter: 0.7kg Transducer: 0.4kg |

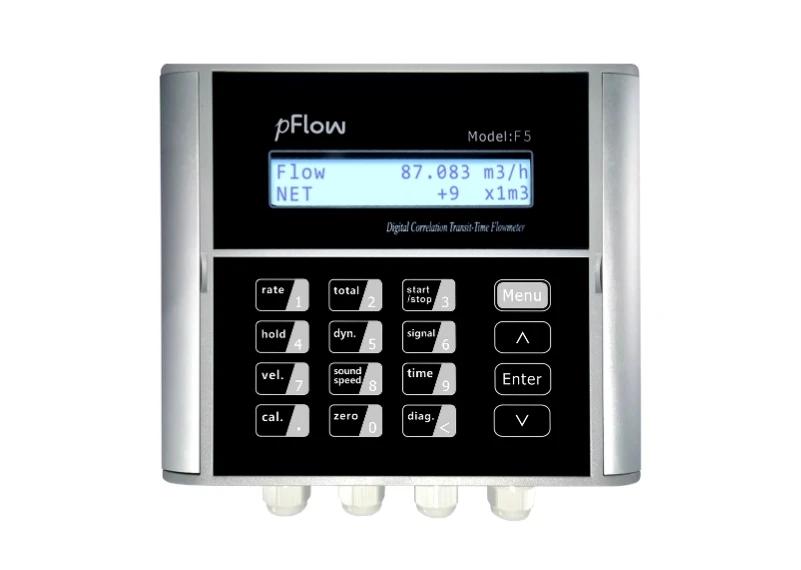

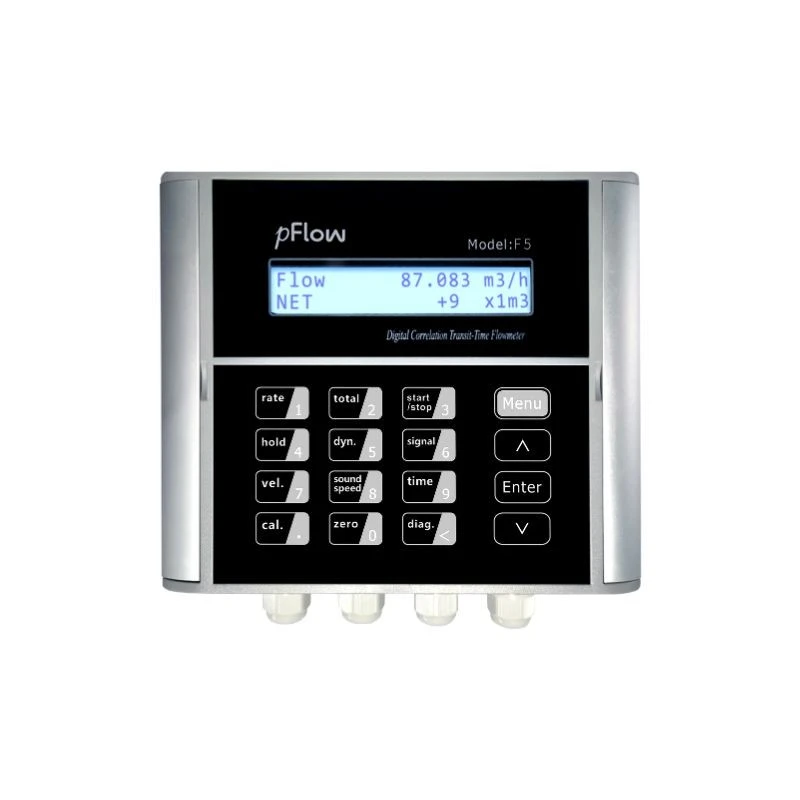

Appearance

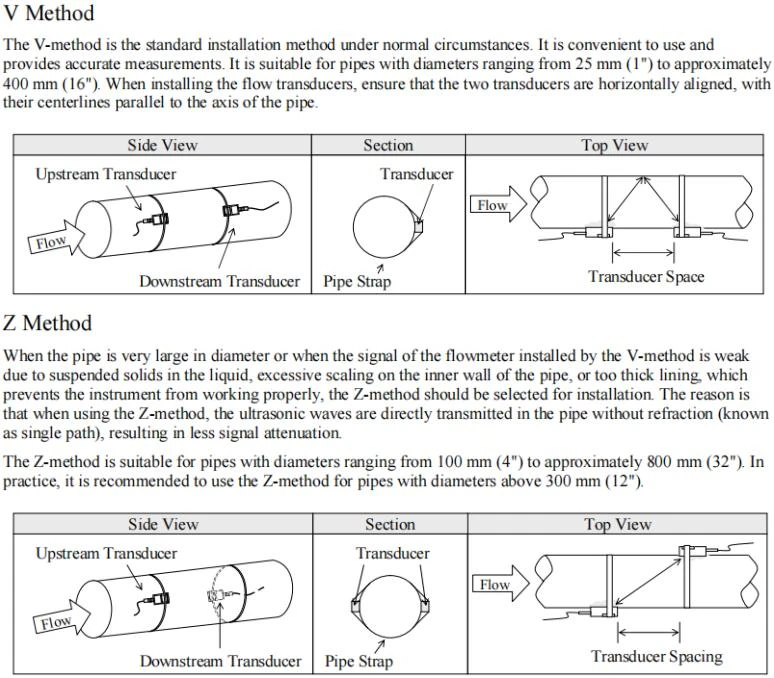

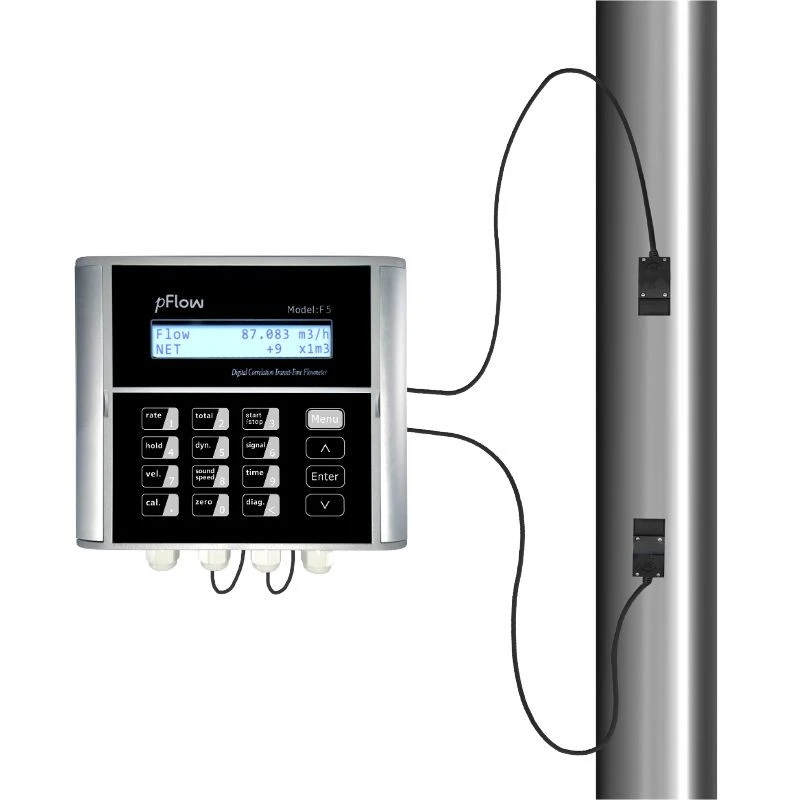

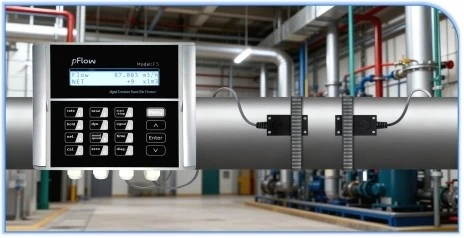

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
Hot Tags: smart flowmeter for building automation system, China smart flowmeter for building automation system manufacturers, suppliers, factory, beer flow sensor, BMS Meter, Chilled Water BTU Meter, measurement of industrial waste water flow, portable ultrasonic water flow meter, Waste Water Meter
Products Description
1)Technical Parameters
|
Performance specifications |
|
|
Flow range |
0.01～5.0 m/s(0.03～16 ft/s) |
|
Accuracy |
± 1.0 % of measured value (0.5m/s～5m/s) |
|
Pipe Size |
Clamp-on: 25mm～800mm (1"～32") Insertion: 50mm～1200mm (2"～48") |
|
Fluid |
Water |
|
Pipe material |
Carbon steel, stainless steel, PVC, Copper |
|
Function specifications |
|
|
Outputs |
Analog Output: 4～20mA, with a maximum load of 750Ω Pulse Output: 0～9999Hz, OCT output (maximum and minimum frequencies are adjustable) Relay Output: Maximum frequency of 1Hz (1A @ 125VAC or 2A @ 30VDC) |
|
Communication Interface |
RS485 MODBUS |
|
WiFi |
Frequency Range: 2.412~2.484GHz |
|
Transmit Power: 802.11b 16±2 dBm, 802.11n 13±2 dBm, 802.11g 14±2 dBm |
|
|
Open Environment Transmission Distance: 40 meters |
|
|
Standard TF Card |
Storage Period: Over 1000 days, Storage Interval: 1 to 3600 seconds |
|
Power Supply |
10～36VDC/1A |
|
Keypad |
16 ( 4×4 ) key with tactile action |
|
Display |
20×2 lattice alphanumeric, back lit LCD |
|
Temperature |
Transmitter: 14 °F to 122 °F (–10℃ ~ 50℃) Transducer: 32 °F to 176 °F (0℃ ~ 80℃) |
|
Humidity |
Up to 99% RH, non-condensing |
|
Physical specifications |
|
|
Transmitter |
PC/ABS Plastic Housing, IP Rating IP65 |
|
Transducer |
Encapsulated design, IP Rating IP68 |
|
Transducer cable |
Standard Length: 9m (30ft) |
|
Weight |
Transmitter: 0.7kg Transducer: 0.4kg |
