Brief Introduction
|
Accuracy: |
±2%,(1.0~16ft/s) |
Pipe Size: |
DN20~DN80 |
|
Power Supply: |
RS485,MODBUS Protocol |
Key : |
4 keys |
Product Introduction

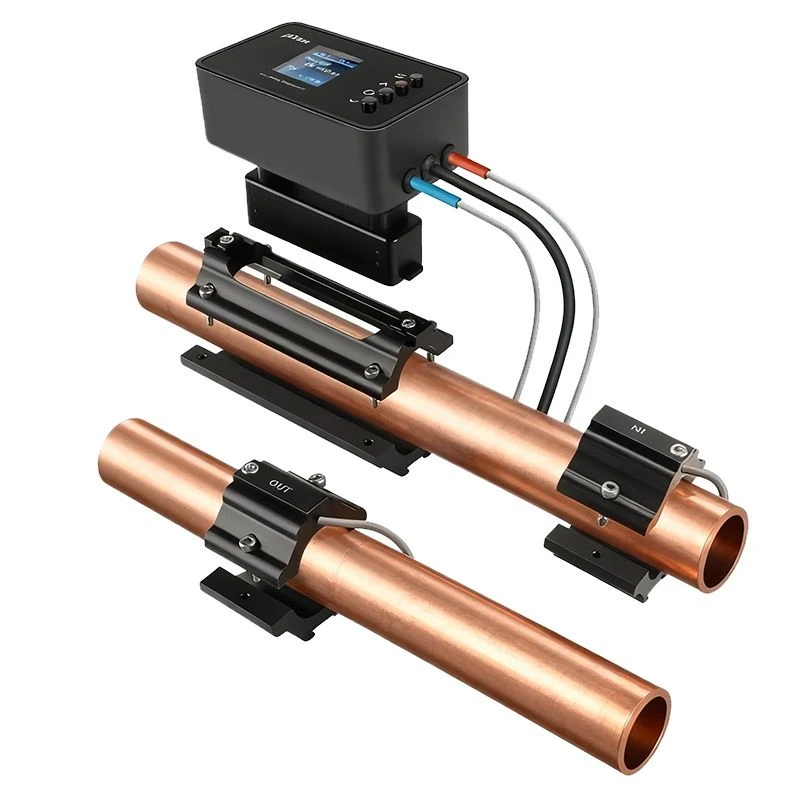

The E3R clip-on ultrasonic BTU meter installs in minutes without cutting pipes or shutting down flow, delivering ±2 % accuracy across DN20–80 lines using LoRaWAN or RS485. Its dual PT1000 probes, color LCD, and IP65 housing make it a rugged, plug-and-play energy meter for global cooling systems.
- Easy install
- Easily clip on
- Support online update and upgrade

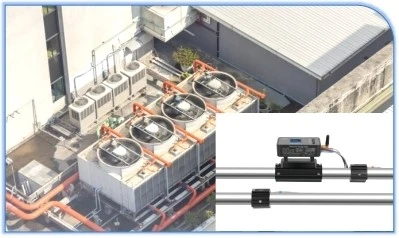

- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Commercial
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Index |
|
|
Flow Velocity |
0.1~16ft/s (0.03~5.0m/s) |
|
Accuracy |
±2% of measured value , velocity＞0.3m/s |
|
Pipe Size |
DN20~DN80 |
|
Temperature range |
0~60℃ |
|
Temperature difference range |
2~50K |
|
Temperature resolution |
0.01℃ |
|
Medium |
Water |
|
Pipe Material |
Carbon Steel, Stainless Steel, Copper, PVC (According to the user's selection requirements, it has been selected at the factory, and the details are subject to the instrument display.) |
|
Function Specifications |
|
|
Input interface |
2*PT1000 Clamp-on temperature sensor |
|
Communication interface |
RS485; FUJI or MODBUS Protocol |
|
LoRa Communication |
Maximum Transmit Power: 22dBm Temperature：-40~85℃ LoRaWAN communication protocol is available |
|
LoRa Frequency selection |
EU868 Frequency: 863000000~865400000, unit: HZ US915 Frequency: 902300000~914900000, unit: HZ CN779 Frequency: 780100000~786500000, unit: HZ EU433 Frequency: 433775000~434665000, unit: HZ AU915 Frequency: 915200000~927800000, unit: HZ CN470 Frequency: 470300000~489300000, unit: HZ AS923(HK) Frequency: 920000000~925000000, unit: HZ |
|
Power supply |
10～36VDC/500mA |
|
Keyboard |
4 touch keys |
|
Display screen |
1.44 " LCD colorful screen, resolution 128 * 128 |
|
Temperature |
Transmitter: -10℃~50℃ Transducer: 0℃~60℃ |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
IP rating |
IP54 |
|
Physical Characteristics |
|
|
Transmitter |
All-in-one |
|
Transducer |
Clamp on |
|
Cable |
Ø5 Six-core cable, standard length: 2m |

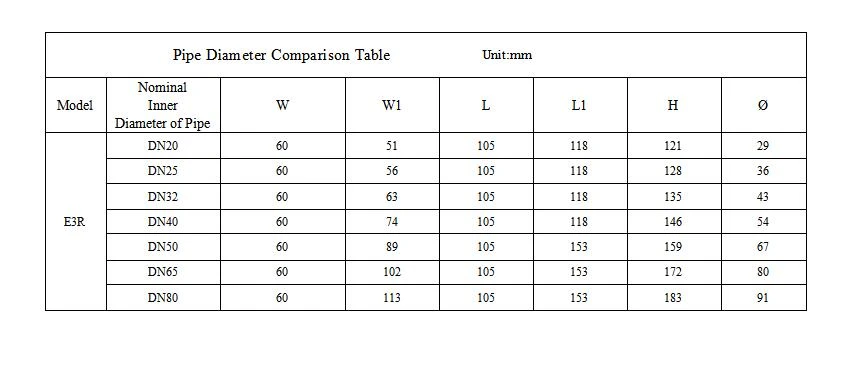

Body Parameters

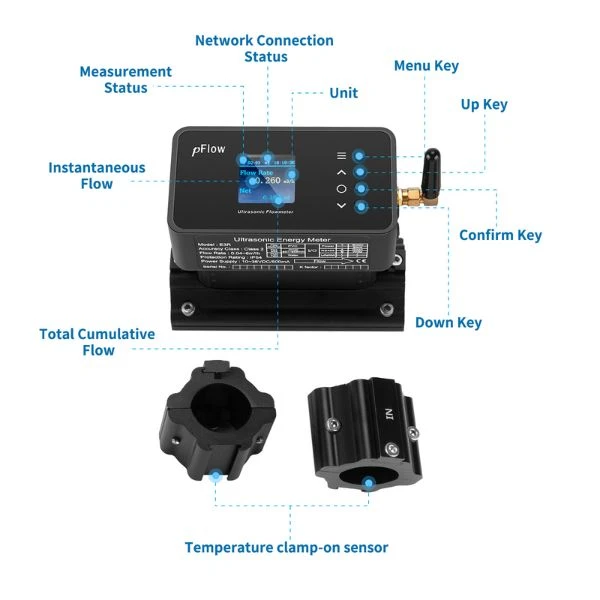

Appearance

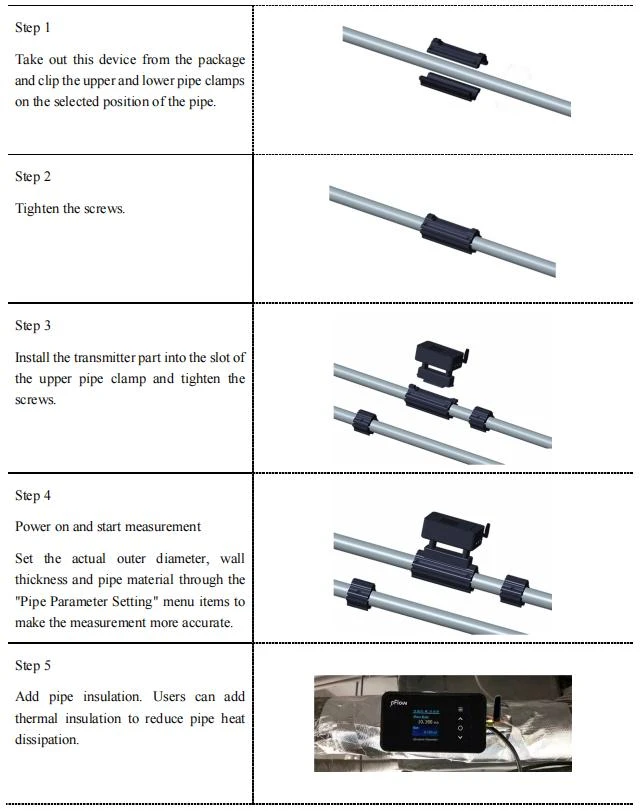

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What types of pipes are compatible with the E3R flowmeter?
A: The E3R supports carbon steel, stainless steel, copper, and PVC pipes with outer diameters ranging from DN20 to DN80 mm. Please refer to the pipe size chart in the manual for exact OD ranges.
Q: Does the E3R require pipe cutting or process shutdown for installation?
A: No-E3R is a clamp-on meter; it installs in minutes without cutting the pipe or shutting down the process.
Q: How is the E3R powered and how does it communicate?
A: The E3R runs on 10–36 VDC and talks via RS485/Modbus and 22 dBm LoRaWAN, and it clamps on in minutes-no pipe cutting, no flow shutdown.
Q: What is the measurable flow range and accuracy?
A: The E3R measures flow velocities from 0.03 to 5.0 m/s with an accuracy of ±2% in the range of 1.0–16 ft/s (0.3–5.0 m/s). Repeatability is 0.2%.
Hot Tags: ultrasonic flowmeter for liquid cooling system, China ultrasonic flowmeter for liquid cooling system manufacturers, suppliers, factory, BMS Meter, Chilled Water BTU Meter, Industrial Ultrasonic Flow Meters, measurement of industrial waste water flow, Waste Water Meter, water meter with bms integration
Products Description
1)Technical Parameters
|
Performance Index |
|
|
Flow Velocity |
0.1~16ft/s (0.03~5.0m/s) |
|
Accuracy |
±2% of measured value , velocity＞0.3m/s |
|
Pipe Size |
DN20~DN80 |
|
Temperature range |
0~60℃ |
|
Temperature difference range |
2~50K |
|
Temperature resolution |
0.01℃ |
|
Medium |
Water |
|
Pipe Material |
Carbon Steel, Stainless Steel, Copper, PVC (According to the user's selection requirements, it has been selected at the factory, and the details are subject to the instrument display.) |
|
Function Specifications |
|
|
Input interface |
2*PT1000 Clamp-on temperature sensor |
|
Communication interface |
RS485; FUJI or MODBUS Protocol |
|
LoRa Communication |
Maximum Transmit Power: 22dBm Temperature：-40~85℃ LoRaWAN communication protocol is available |
|
LoRa Frequency selection |
EU868 Frequency: 863000000~865400000, unit: HZ US915 Frequency: 902300000~914900000, unit: HZ CN779 Frequency: 780100000~786500000, unit: HZ EU433 Frequency: 433775000~434665000, unit: HZ AU915 Frequency: 915200000~927800000, unit: HZ CN470 Frequency: 470300000~489300000, unit: HZ AS923(HK) Frequency: 920000000~925000000, unit: HZ |
|
Power supply |
10～36VDC/500mA |
|
Keyboard |
4 touch keys |
|
Display screen |
1.44 " LCD colorful screen, resolution 128 * 128 |
|
Temperature |
Transmitter: -10℃~50℃ Transducer: 0℃~60℃ |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
IP rating |
IP54 |
|
Physical Characteristics |
|
|
Transmitter |
All-in-one |
|
Transducer |
Clamp on |
|
Cable |
Ø5 Six-core cable, standard length: 2m |
