Brief Introduction
|
Accuracy: |
±2% of RD |
Pipe Size: |
DN15~DN32 |
|
Output: |
RS485, 4-20mA |
Medium Temperature: |
0℃~60℃ |
Product Introduction
Adopts clamp-on ultrasonic technology, designed for small-diameter pipelines, realizing non-invasive coolant flow measurement without pipeline damage.
Built with bubble interference resistance, supports DN15-DN32 pipes, and fits confined spaces like data center server racks.
- Small-Diameter Focus
- Bubble Resistance
- Space-Saving
- Data center server rack cooling, small-diameter pipeline monitoring
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Indicators |
|
|
Flow Velocity Range |
0.3m/s ~5.0m/s |
|
Accuracy |
±2% of RD |
|
Repeatability |
0.4% |
|
Pipe Sizes |
DN15,DN20,DN25,DN32 |
|
Medium |
Deionized Water, Ethylene Glycol-Water Mixture, Propylene Glycol-Water Mixture, Oil-Based Coolant, Fluorocarbon Fluid |
|
Pipe Material |
Stainless steel |
|
Functional Indicators |
|
|
Communication Interface |
RS485; supports MODBUS protocol |
|
Output |
4~20 mA, max load 500Ω, isolated |
|
Power Supply |
10～36VDC/500mA |
|
Keyboard |
3 touch keys |
|
Display Screen |
1.54" LCD color screen, resolution 240*240 |
|
Temperature |
Transmitter: -10℃ to 50℃ Transducer: 0℃~60℃ |
|
Humidity |
20~90% relative humidity, no condensation |
|
IP Rating |
IP65 |
|
Physical Characteristics |
|
|
Housing Material |
PC engineering plastic |
|
Pipe Clamp Material |
PC engineering plastic |
|
Transmitter |
Integrated |
|
Transducer |
Clamp-on |
|
Cable |
φ5 black six-core cable with M12 A-Code connector, standard length: 2 m |
Body Parameters

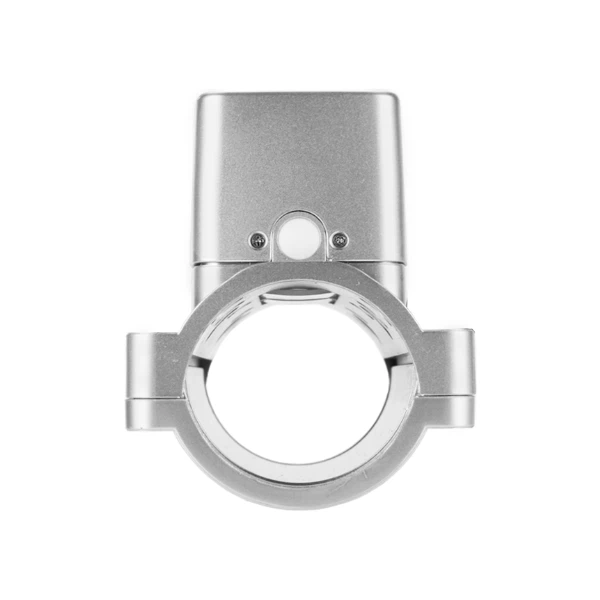

Appearance
Installation
FAQ
Q: What pipe sizes does D2 support?
A: It supports DN15, DN20, DN25, DN32, suitable for small-diameter coolant pipelines in data center server racks.
Q: How does D2 handle bubble interference in pipelines?
A: It has built-in anti-bubble tech; tilting the sensor head can reduce bubble impact on measurements.
Q: What's D2's low flow cut-off default value?
A: Factory default is 0.15m/s, adjustable to ≤0.25m/s via "System Setup" to avoid invalid accumulation.
Q: Can D2 be used in humid data center environments?
A: Yes, it has IP65 protection and resists 20%~90% RH (no condensation), adapting to humid scenes.
Q: How to calibrate D2's 4~20mA output?
A: Enter "Calibration Settings > 4-20mA Calibration", connect an external precision ammeter, and adjust via up/down keys.
