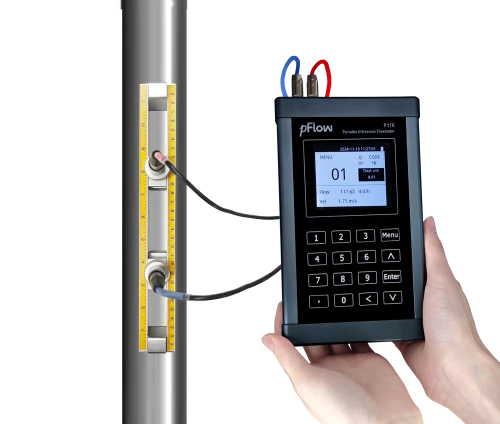

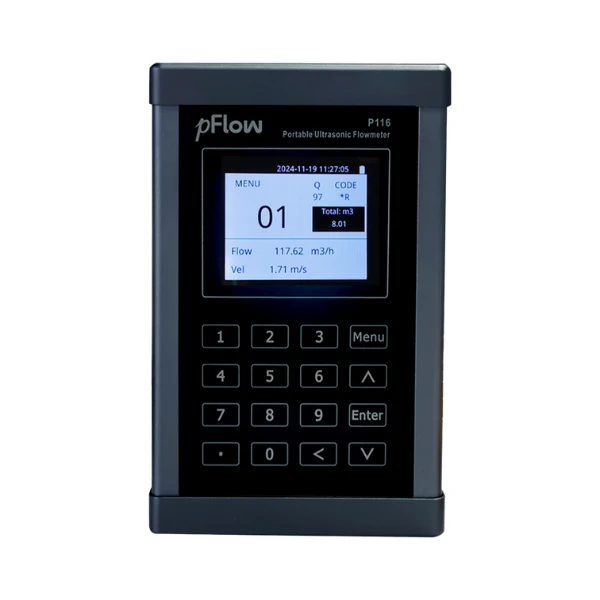

Efficient Propylene Glycol Coolant Management With P116 Portable Flowmeter



Accuracy:	±1.0%	Pipe size :	1" ~ 32" (25mm～800mm)
Pipe Material：	Carbon Steel,Stainless Steel,PVC,Copper
Communication：	RS485, Support MODBUS RTU, FUJI protocol.

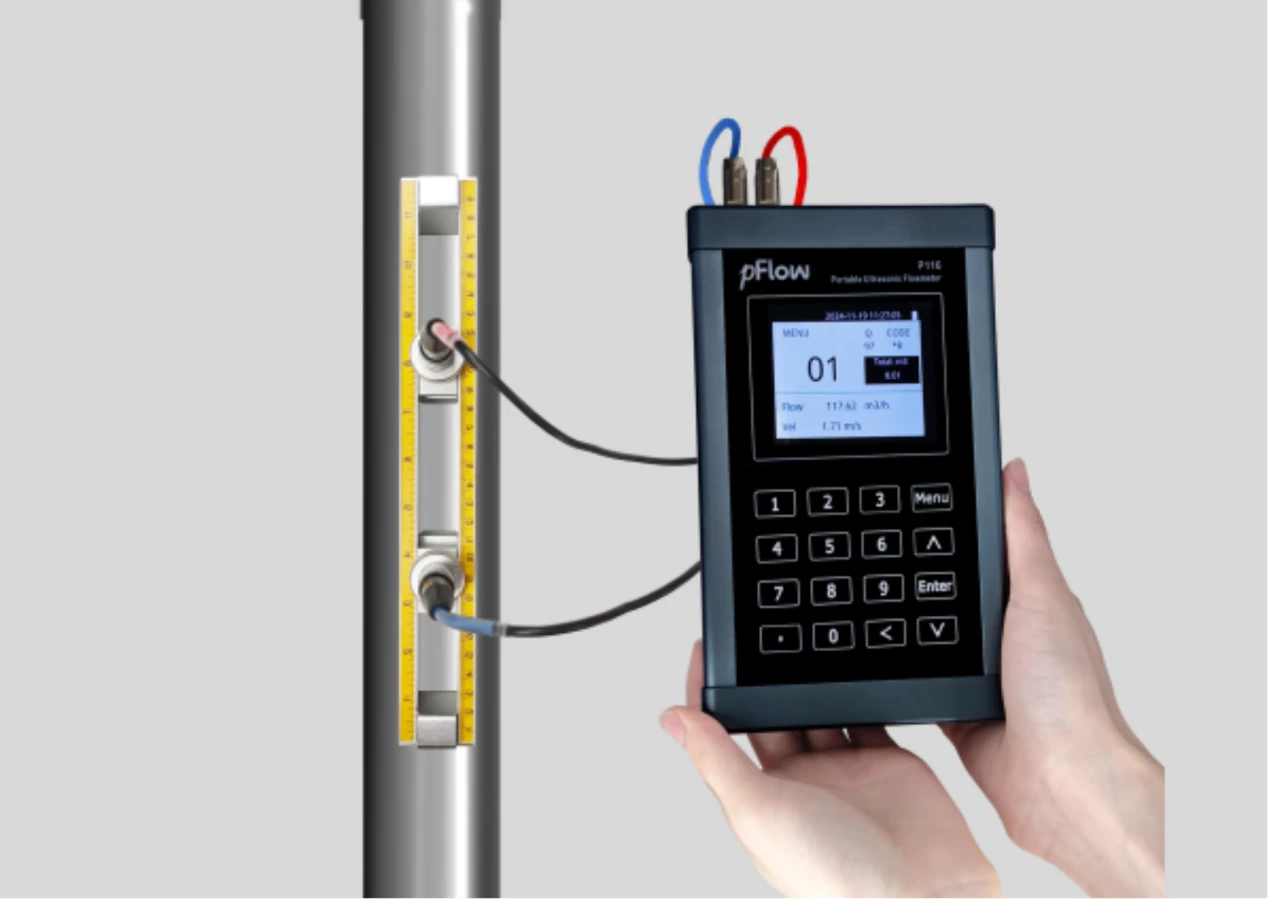

The P116 Portable Ultrasonic Flowmeter is an ideal tool for efficient management of propylene glycol coolant systems. With a compact and lightweight design, it offers precise flow measurement in a range of ±0.01 m/s to ±5 m/s, ensuring high accuracy and repeatability of 0.2%. The device features a 2.8" TFT black and white screen for clear data display and is equipped with a 16GB TF card for extensive data logging. Its magnetic clamp-on transducers make installation quick and easy on metallic pipes, supporting pipe sizes from 25 mm to 800 mm. Suitable for various industrial applications, the P116 enhances coolant monitoring with its long-lasting battery life and reliable performance.





●Propylene Glycol Coolant Management

●City Water Distribution

●Water and wastewater management

●HVAC (Heating, Ventilation, and Air Conditioning) systems

●Process industries (chemical, pharmaceutical, food and beverage)

●Energy management and environmental monitoring

●Agriculture and irrigation systems

●Research and development

●Facilities management

●Industrial maintenance and troubleshooting

●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.





1)Technical Parameters

Performance Specifications
Flow range	(0.03 ~ 16) ft/s ; (0.01 ~ 5) m/s
Accuracy	±1.0% of measured value.(0.5 m/s～5 m/s)
Repeatability	0.2%.
Pipe Size	1" ~ 32" (25mm～800mm)

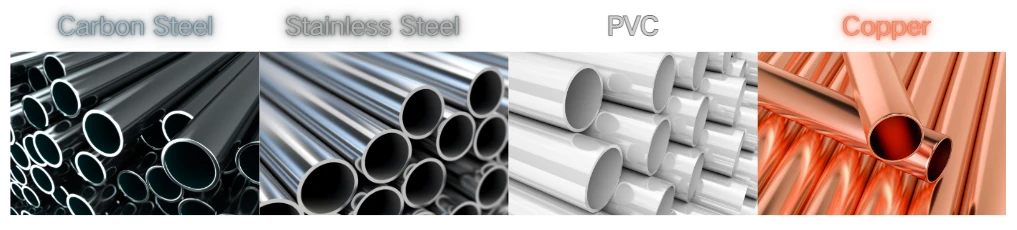

Pipe Material	Carbon Steel,Stainless Steel,PVC,Copper
Measurement medium	Water
Functional Specifications
Communication	RS485, Support MODBUS RTU, FUJI protocol.
Output	Analog output: 4 ~ 20 mA, ( max load 500 Ω ). Pulse output: 0 ~ 9999 Hz, OCT ( min. and max. frequency is adjustable ).
TF card	Storage: 16GB (To prevail in kind); Max: 1000 files; Interval: 1 ~ 60 seconds.
Power supply	10.8V rechargeable Lithium Battery Power ( continuous operation of main battery 10 hours ).
Keypad	Tactile Keys
Display	2.8" TFT black and white screen 240×320, with backlight LCD display.
Temperature	Transmitter: 14°F to 122°F (-10℃~ 50℃) Transducer: 32°F to 176°F (0℃~ 80℃,standard )
Humidity	0 ~ 99% RH, non-condensing.
Physical Specifications
Transmitter	NEMA13 (IP54)
Transducer	Encapsulated design, IP68; Standard cable length: 5m.
Weight	Transmitter: approximately 0.7kg Transducer: (including transducer rail): 1.2kg

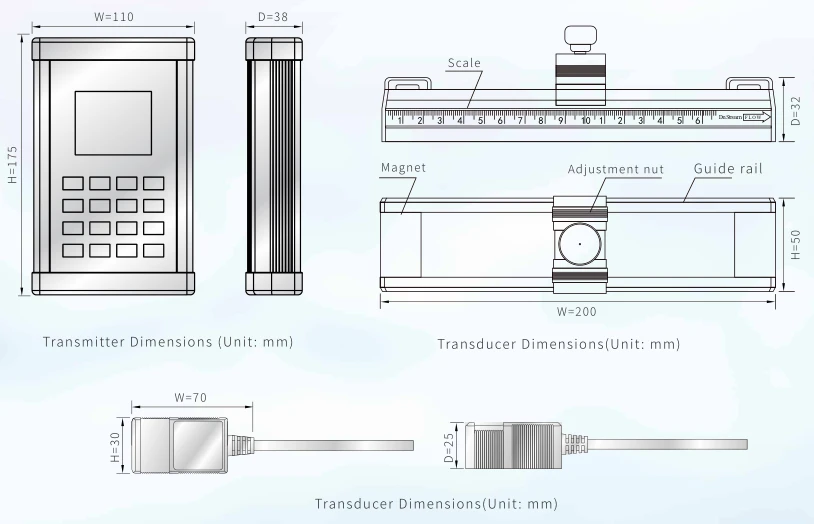

2)Body Parameters

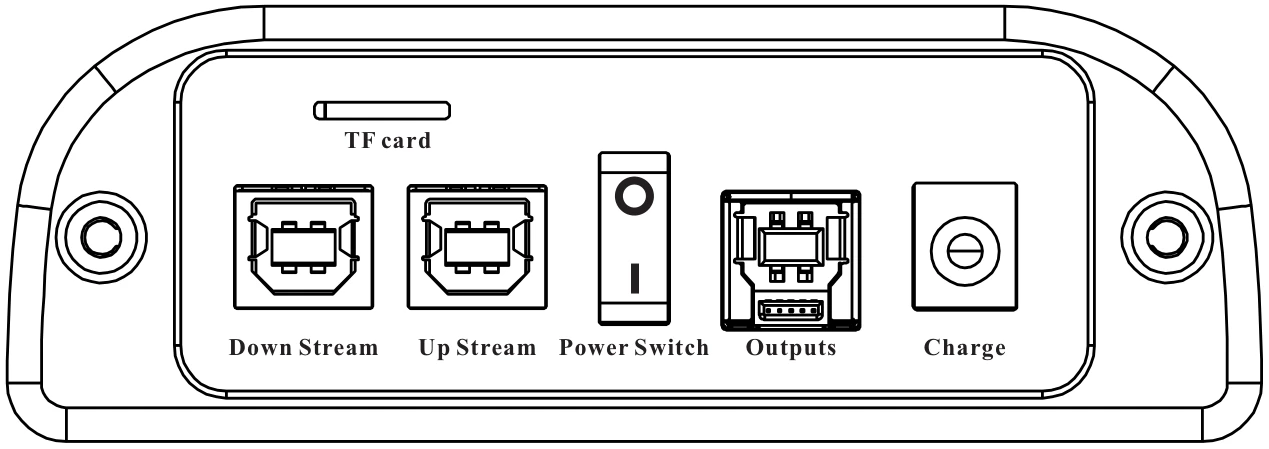

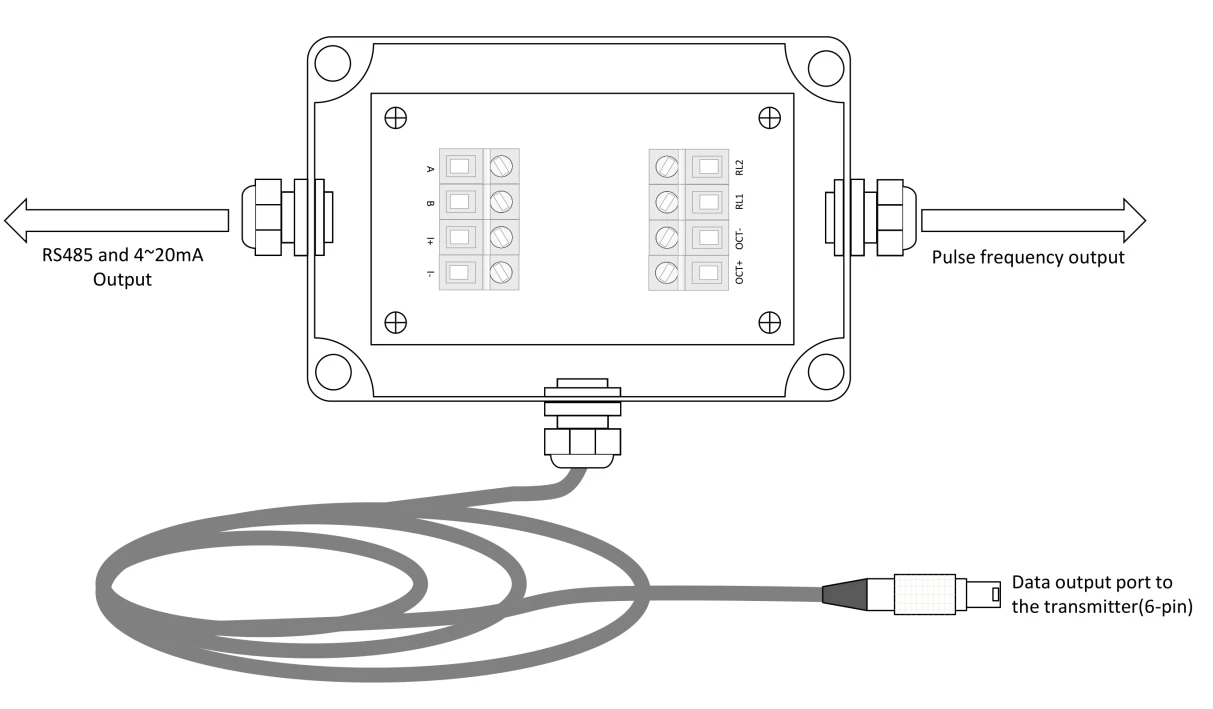

Wiring diagram

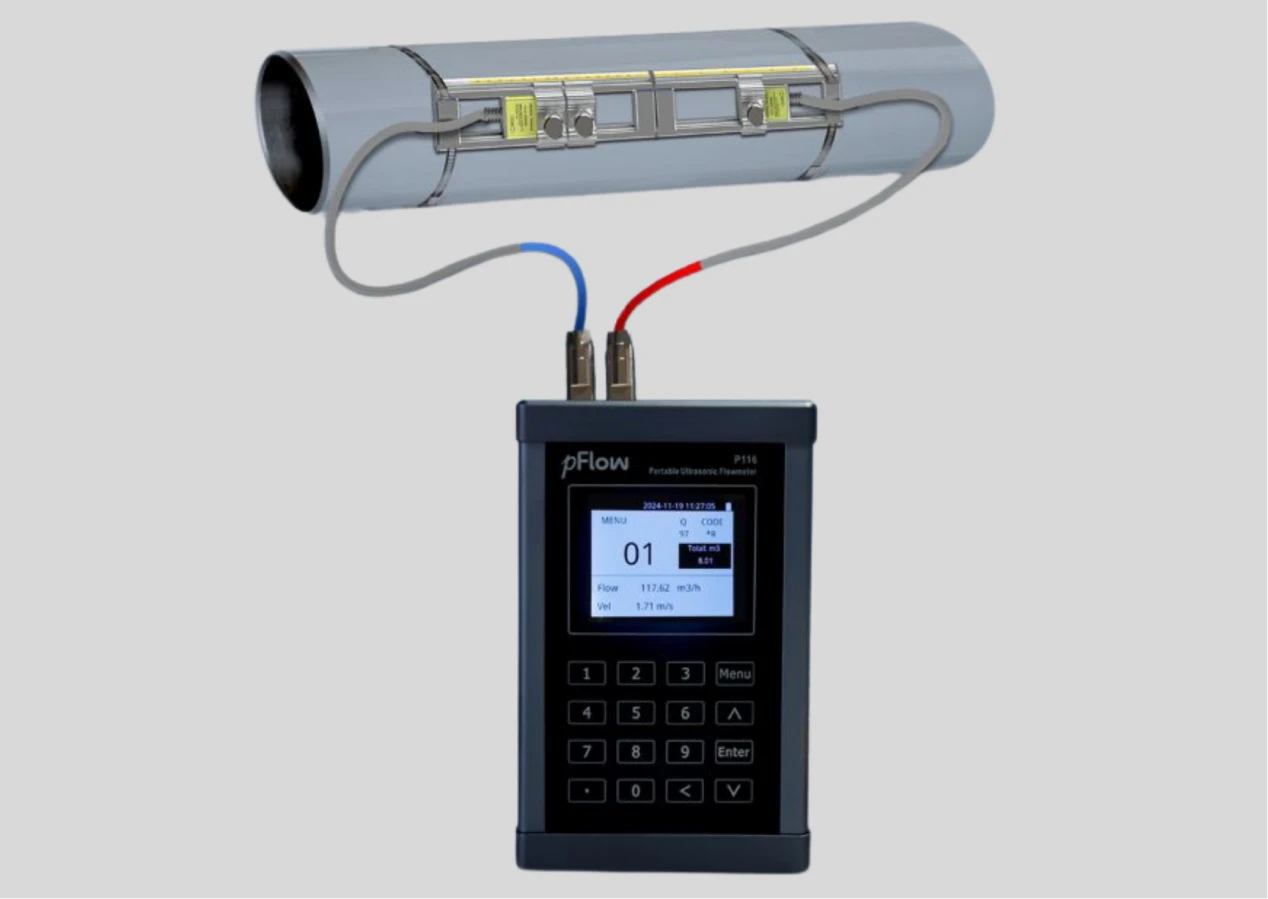

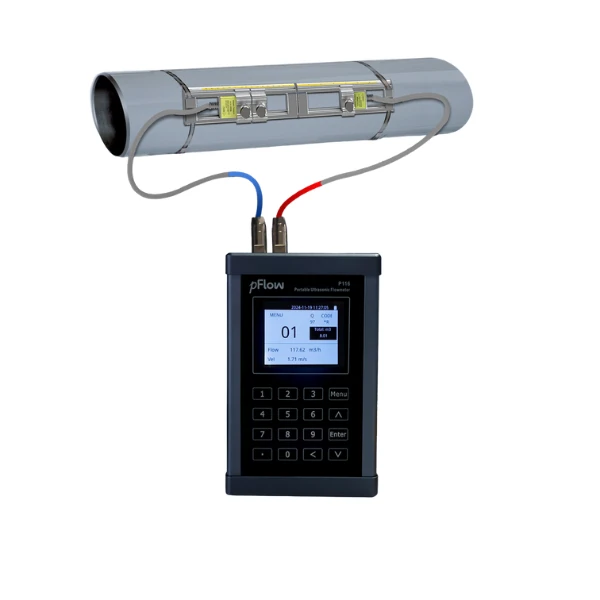

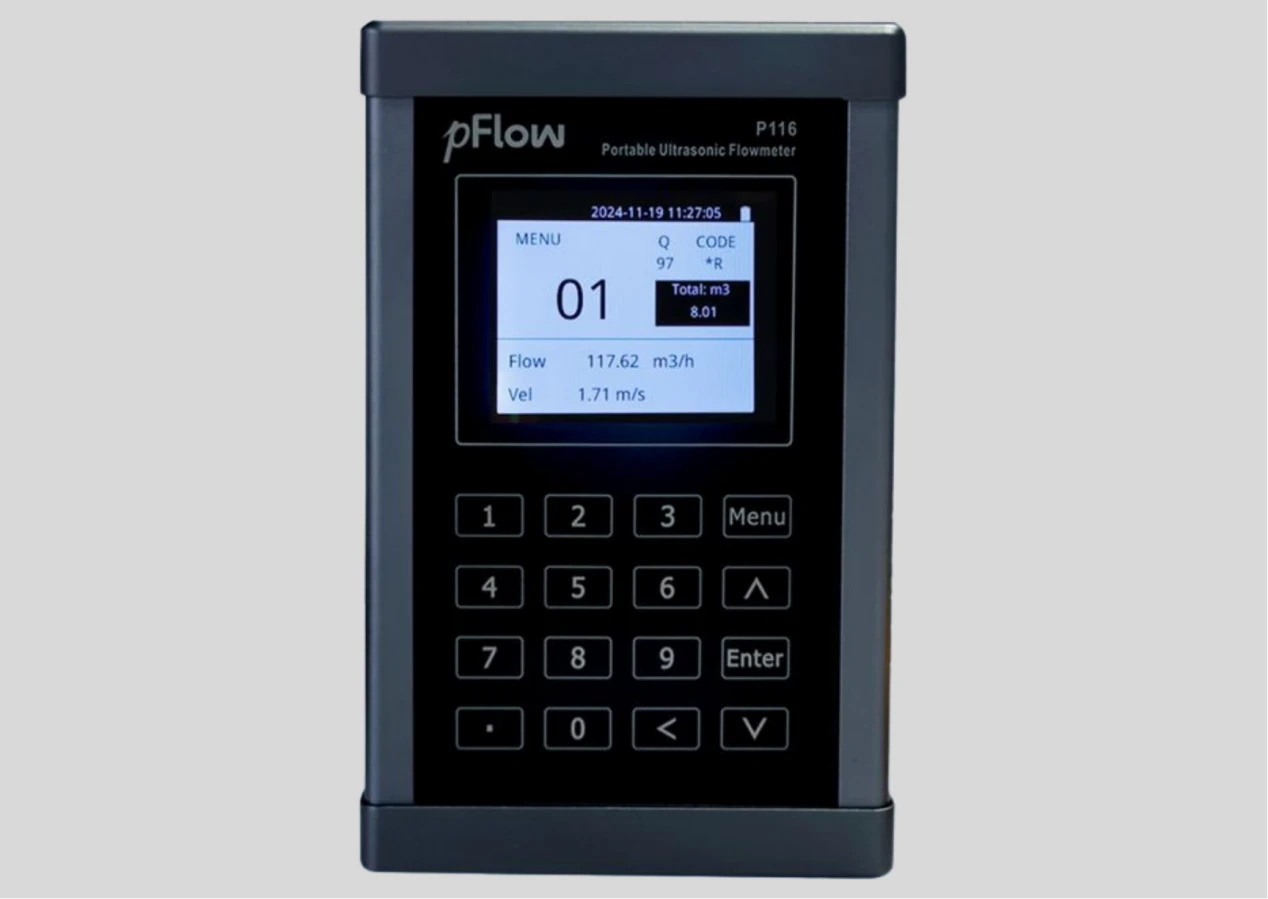

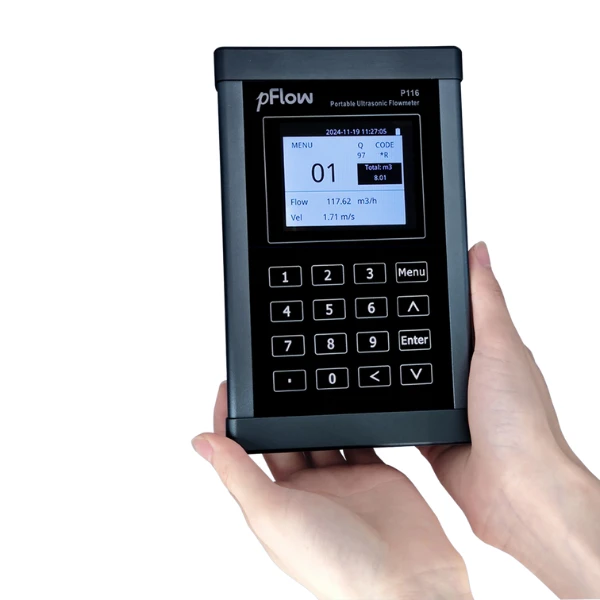

3)Appearance
