Brief Introduction
|
Accuracy:±2.0% of measured value |
|
Pipe size:Clamp-on: DN20~DN80 |
|
Pipe material: Carbon Steel, Stainless Steel, Copper, PVC |
|
Power Supply:POE network cable power supply |
PRODUCT INTRODUCTION

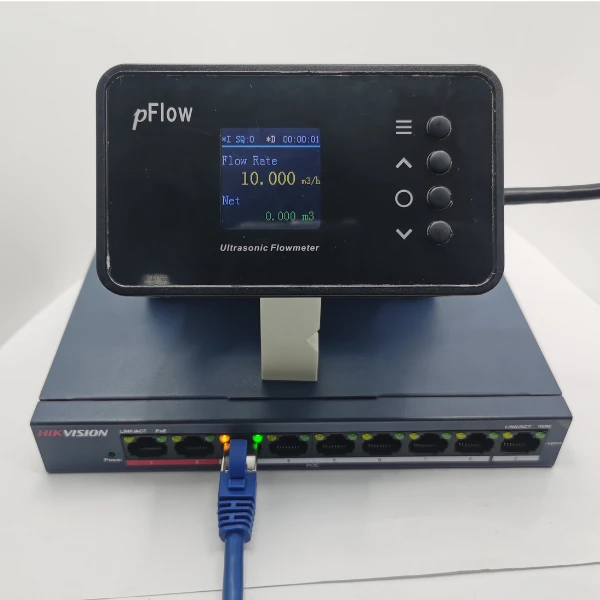

The F3E Clip-on ultrasonic flowmeter adopts the ultrasonic time difference measurement principle, and is combined with Gentos ultrasonic signal processing technology and unique flow algorithm, to achieve accurate measurement of fluid flow in the pipeline. The product has an integrated clamp-on structure design, which is simple and convenient to install. After four steps of operation, it can be powered on for measurement. During the installation process, there is no need to contact the fluid medium, and there is no need to stop production. The instrument adopts POE power supply and Ethernet communication to realize cloud data storage. Users can access cloud data anytime and anywhere through mobile terminals or PC terminals to manage, analyze and query measurement data information.
Product Applications
The F3E Clip-on PoE Flow Meter is highly applicable for PC liquid cooling systems. It can be easily installed on the cooling pipes without breaking them, allowing for real-time monitoring of the coolant flow rate. With its POE power supply and Ethernet communication, it enables cloud data storage and remote access via mobile or PC terminals. This feature is particularly useful for PC enthusiasts who want to ensure the optimal performance and safety of their liquid cooling setups. By accurately measuring the flow velocity and providing instant feedback, the F3E flow meter helps prevent potential issues such as leaks or insufficient cooling flow, thus maintaining the stability and efficiency of the PC system.
Product Parameter
1)Technical Parameters
|
Performance specifications |
|||
|
Flow range |
0.1~16ft/s (0.03~5.0m/s) |
||
|
Accuracy |
±2%,(1.0~16ft/s) |
||
|
Pipe size |
DN20~DN80 |
||
|
Fluid |
Water |
||
|
Pipe material |
Carbon Steel, Stainless Steel, Copper, PVC |
||
|
Function specifications |
|||
|
Support Protocol |
HTTP,MQTT Protocol |
||
|
IP |
IP54 |
||
|
Power supply |
POE network cable power supply |
||
|
Keypad |
4 keys |
||
|
Display screen |
1.44 "LCD color screen, resolution 128 * 128 |
||
|
Temperature |
Transmitter installation ambient temperature: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Measured medium temperature: 32 °F to 140 °F ( 0℃ ~ 60℃ ). |
||
|
Humidity |
0 to 99% RH,non-condensing |
||
|
Physical specifications |
|||
|
Transmitter |
Integrated |
||
|
Transducer |
Clamp on |
||
|
Weight |
POE waterproof tail line, standard length: 0.5m |
||
2)Body Parameters

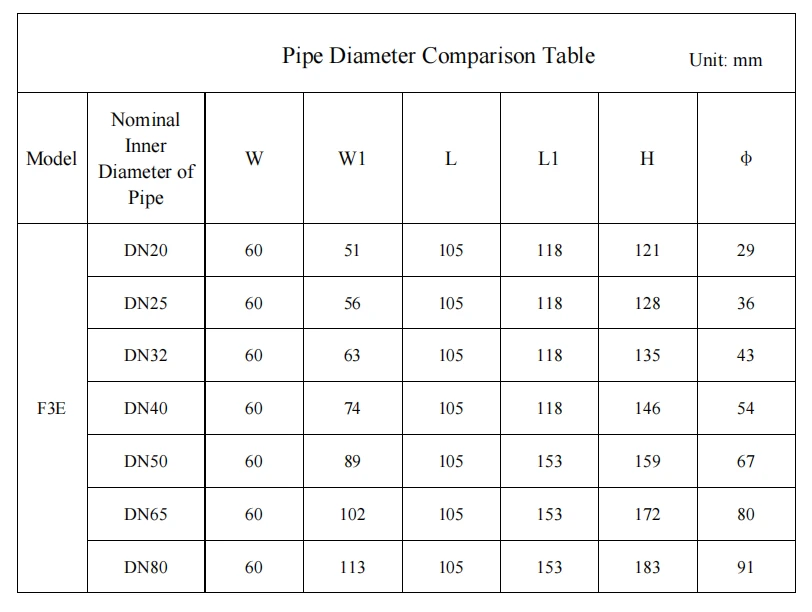

Transmitter Dimension

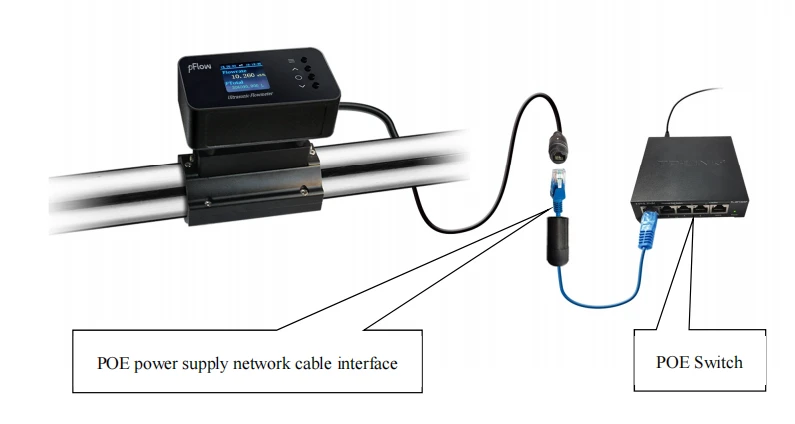

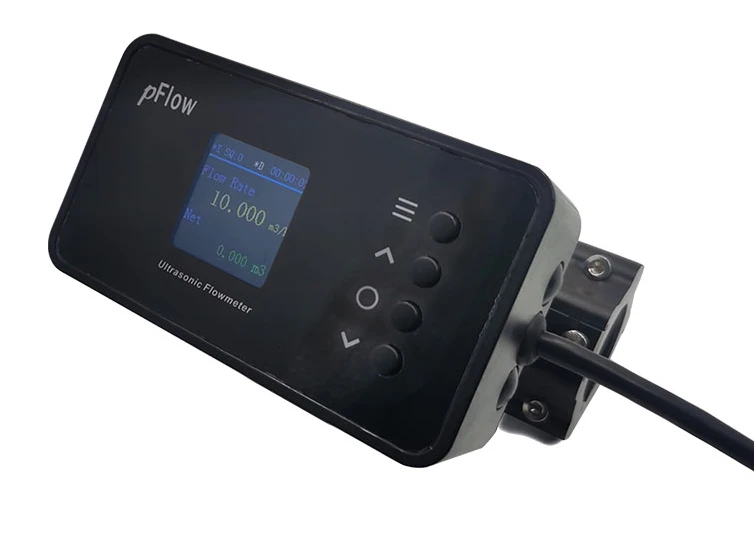

3)Appearance

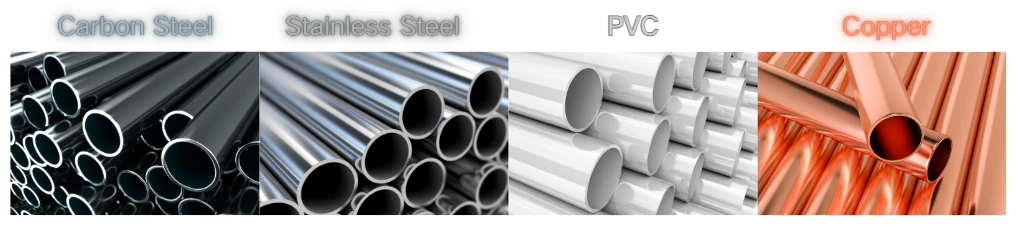

Professional Measure Single Material
Detectable Fluids

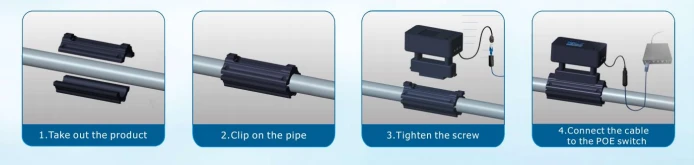

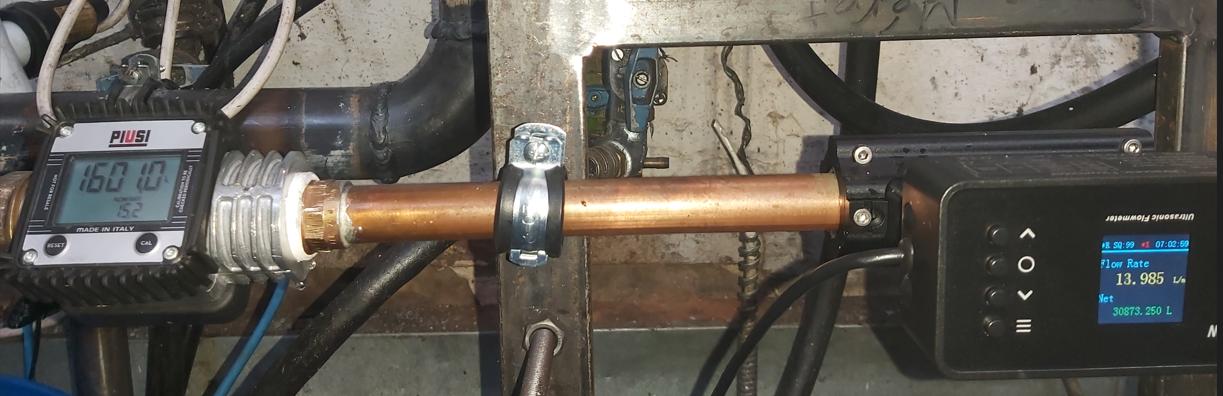

INSTALL
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.

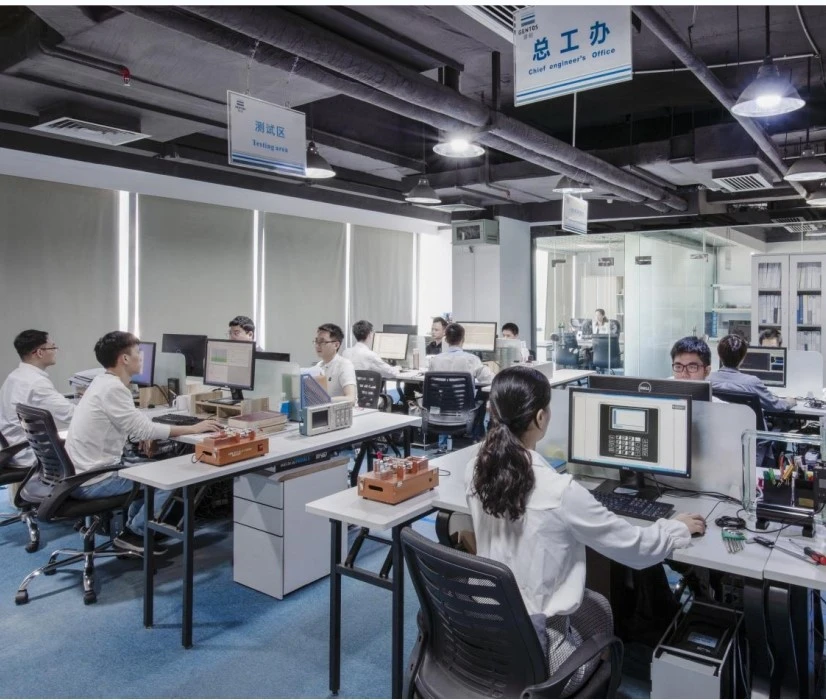

Company environment display:

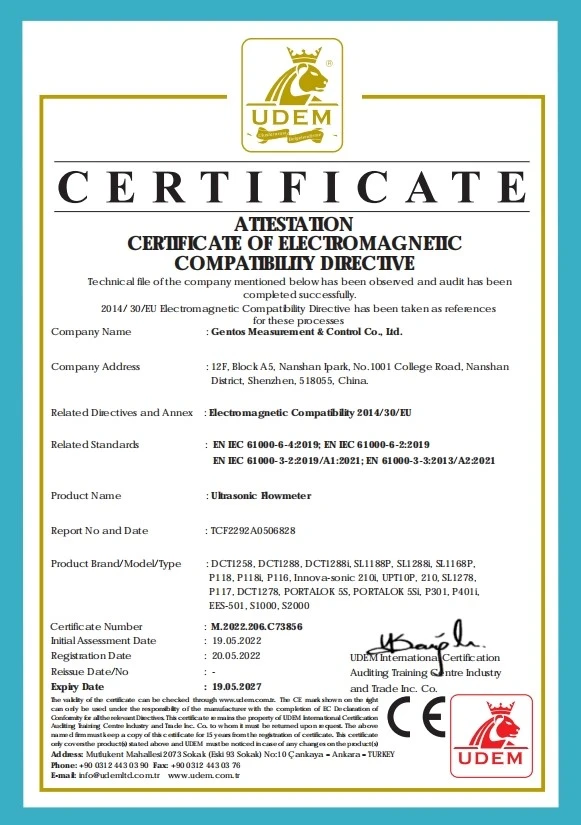

Certificate display：
Deliver, Shipping, and Serving
Direct support：
Qucik response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 1 to 3 days window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: Do you have stock?
A: Yes, we have safety inventory. We have a complete production line to meet bulk orders
Q: How to ensure the quality of your products, will the finished product be inspected?
A: Yes, every step of production and finished product must be strictly checked by QC before shipment.
Q: How long is your delivery time?
A: Lead time about 1-3 days after payment (you can get it in 5-7 days to your door).
Q: Can you give us a discount?
A: We can of course talk to specific numbers, but let's make sure we're on the same page about this solution being a good fit for your needs.
Q: Are you a FACTORY or TRADING COMPANY?
A: es,we are a manufacturer with designing, manufacturing, marketing and exporting.
