Brief Introduction
|
Accuracy: |
±1.0% |
Pipe Size: |
Clamp-on:1"~48"in(25mm~1200mm) |
|
Output: |
Analog output: 4 ~ 20mA, Max 750Ω. |
Medium Temperature: |
40°F~176°F(-40℃~80℃) |
Product Introduction
The P117 portable ultrasonic flow meter can be clamped in seconds without cutting pipes or stopping the system, and can instantly read deionized water flow anywhere in liquid cooling system.
- Low cost
- Simple menus.
- Daily/monthly/yearly totals.

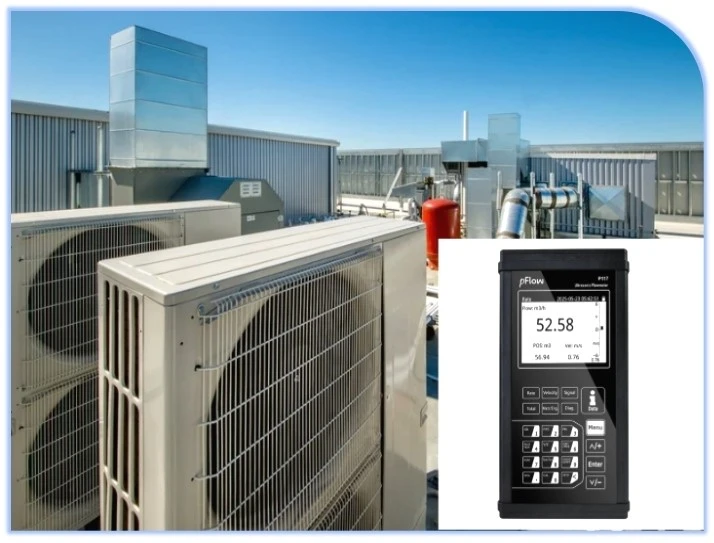

Liquid Cooling Systems
Process industries (chemical, pharmaceutical, food and beverage)
Energy management and environmental monitoring
Agriculture and irrigation systems
Research and development
Facilities management
Industrial maintenance and troubleshooting
Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Specifications |
|
|
Flow range |
± (0.03 ~ 16) ft/s ± (0.01 ~ 5) m/s |
|
Accuracy |
± 1.0% of measured value |
|
Repeatability |
0.2% |
|
Pipe Size |
1" ~ 48" (25mm ~ 1200mm) |
|
Functional Specifications |
|
|
Outputs |
Analog output: 4~20mA, Max 500 Ω. |
|
TF card |
Storage: 16GB (To prevail in kind); Max: 1000 files; Interval: 1 ~ 86400 seconds. |
|
Power supply |
10.8V rechargeable Lithium Battery Power ( continuous operation of main battery 6 hours ). |
|
Keypad |
Tactile Keys. |
|
Display |
3.5 inch TFT black and white screen( 320 × 480 ), backlit LCD. |
|
Temperature |
Transmitter: 14°F to 122°F (-10℃～50℃) Transducer: -40°F to 176°F (-40℃～80℃,standard) |
|
Humidity |
0 ~ 99% RH, non-condensing. |
|
Physical Specifications |
|
|
Transmitter |
NEMA13 ( IP54 ). |
|
Transducer |
Encapsulated design, IP68; Standard cable length: 5m. |
|
Weight |
Transmitter: approximately 0.85kg Transducer: (including transducer rail): 1.25kg |
Body Parameters

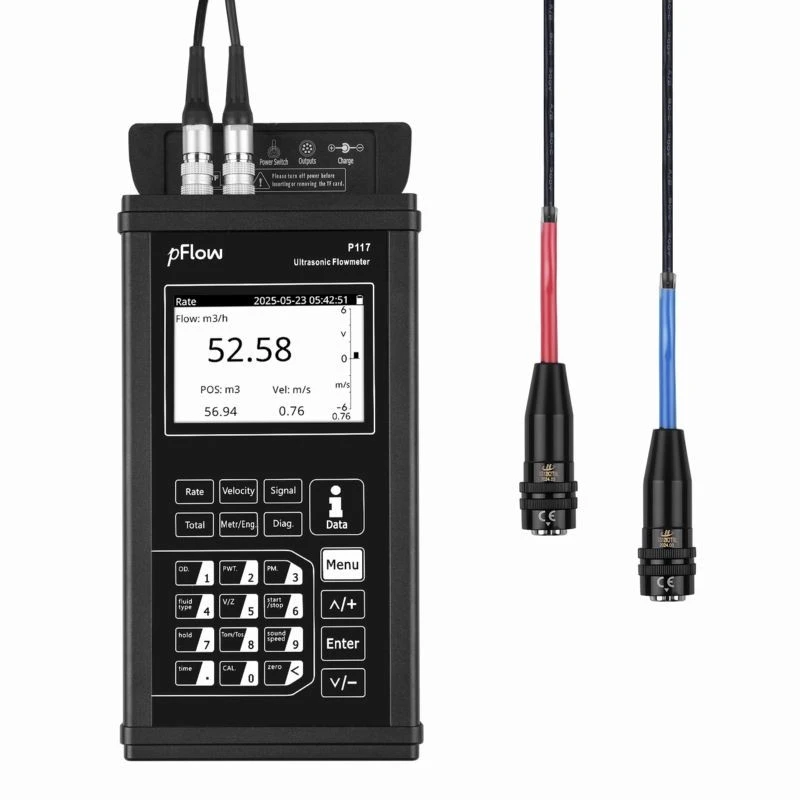

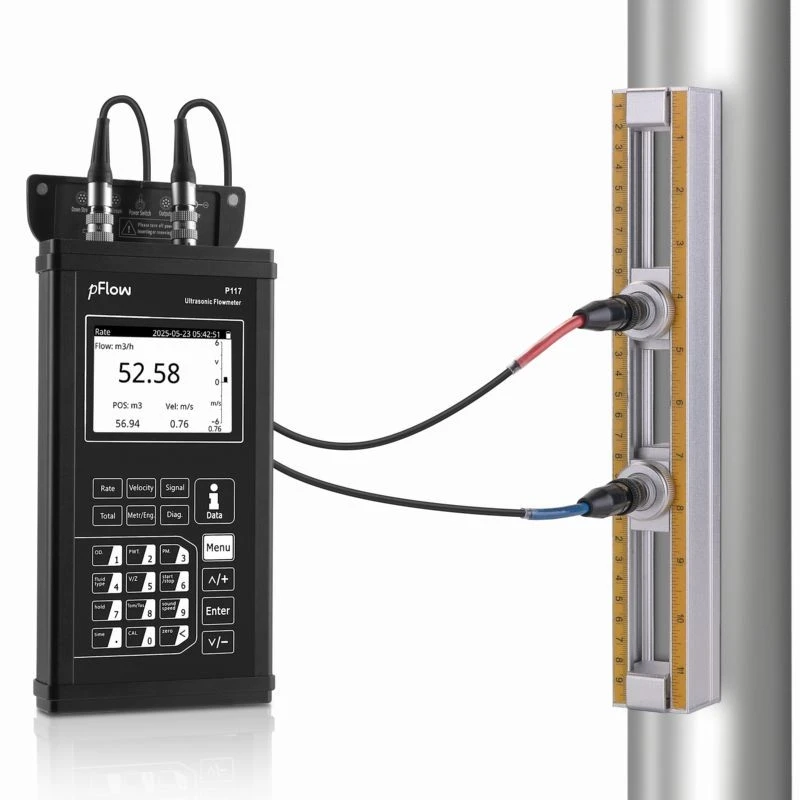

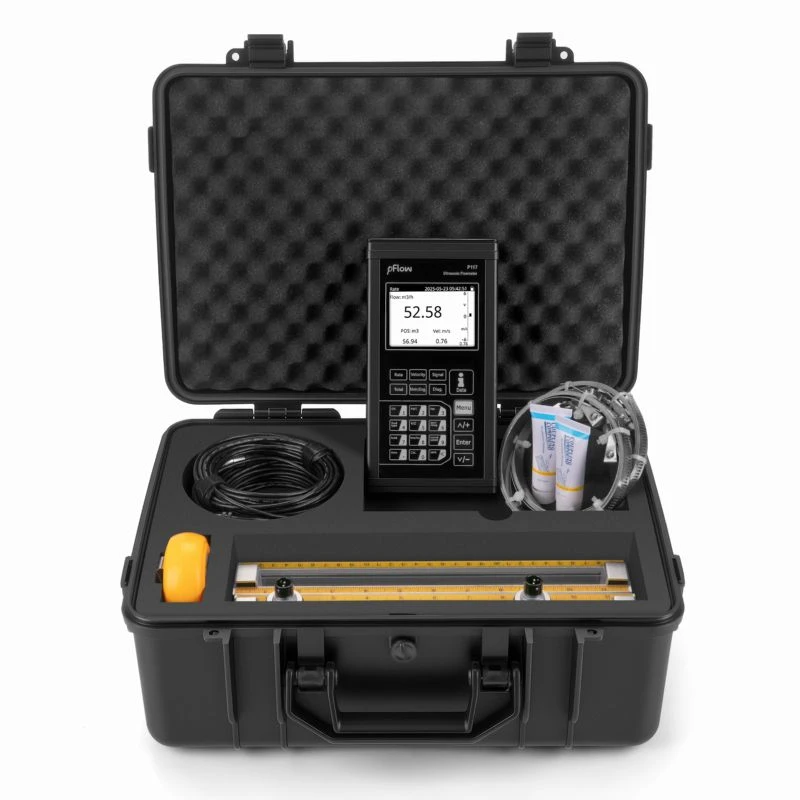

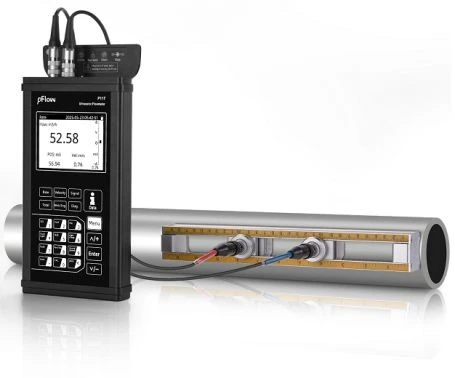

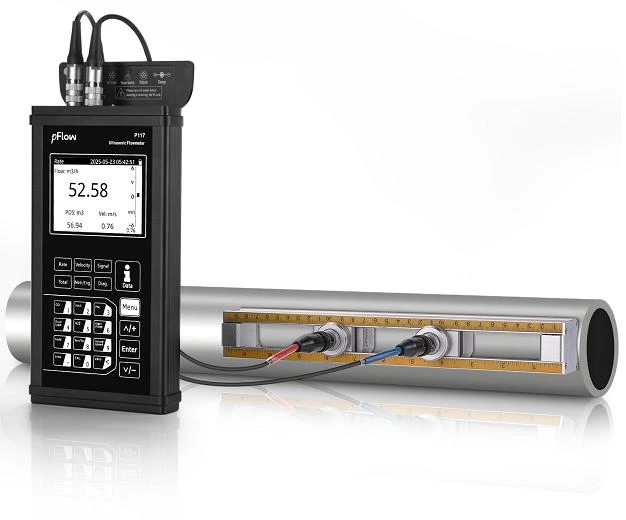

Appearance

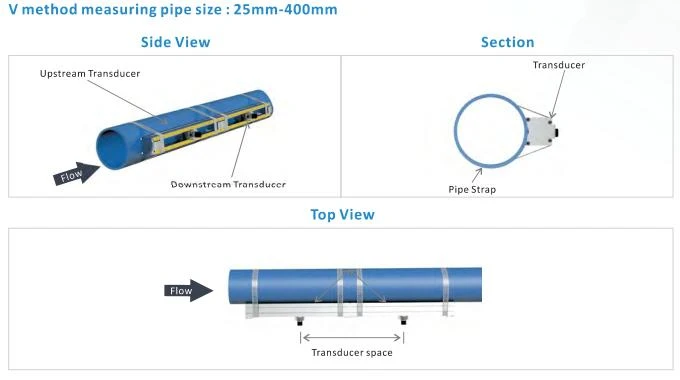

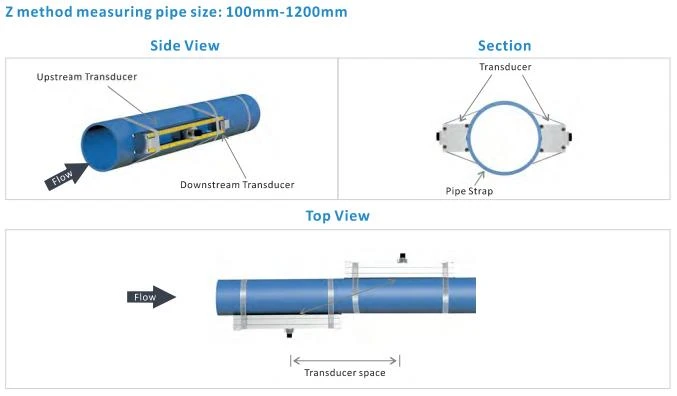

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: Does the P117 require pipe cutting or process shutdown for installation?
A: No-its transducers simply clamp onto the outside of the pipe; the line stays intact and in service.
Q: How is the P117 powered and how can I retrieve its data?
A: A built-in rechargeable 10.8 V lithium battery powers the unit for about 6 h, and measurements are logged to the supplied 16 GB TF card for easy off-load via any card reader.
