Brief Introduction

Accuracy:	±2.0% of measured value	Pipe Size:	25mm~600mm (1ʺ~24ʺ)
Output:	RS485, 4-20mA	Medium Temperature:	0℃~60℃

Product Introduction

Adopts FPGA chip & low-voltage broadband pulse tech, supports 25mm-600mm pipes, realizing high-precision water flow measurement.

Features 64-day/64-month/5-year data storage, 16-key operation, and IP65/IP68 protection, adapting to complex industrial scenes.

product-394-202

Product Applications

Industrial water monitoring, commercial water supply metering
Water and wastewater managementHVAC (Heating, Ventilation, and Air
Conditioning) systems
Process industries (chemical, pharmaceutical, food and beverage)
Energy management and environmental monitoring
Agriculture and irrigation systems
Research and development
Facilities management
Industrial maintenance and troubleshooting
Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.

Technical Parameters

Performance specifications
Flow range	0.16 ft/s ~ 16 ft/s ( 0.5 m/s ~ 5.0 m/s ).
Accuracy	± 2.0 % of measured value
Pipe size	1" ~ 24" ( 25mm ~ 600mm ).
Fluid	Water.
Pipe material	Carbon steel, stainless steel, PVC, Copper.
Function specifications
Outputs	Analog output : 4 ~ 20mA, max load 750Ω.
Communication interface	RS485 MODBUS.
Power supply	10 ~ 36VDC/1A.
Keypad	Touch Keys*16
Display	20×2 lattice alphanumeric, back lit LCD.
Temperature	Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ); Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ).
Humidity	Up to 99% RH, non-condensing.
Physical specifications
Transmitter	Engineering Plastic (ABS), IP Rating IP65
Transducer	Encapsulated design, IP68.
transducer cable	Standard cable length: 16.5 ft (5m).
Weight	Transmitter: approximately 0.6kg; Transducer: approximately 0.5kg.

product-634-319

product-279-284

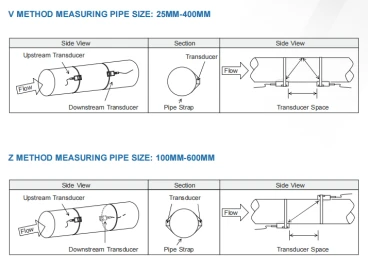

product-369-265

Q: What pipe materials does D114 support?

A: It supports carbon steel, stainless steel, PVC, and copper pipes, covering 25mm~600mm (1ʺ~24ʺ) sizes.

Q: How to extend the transducer cable?

A: Use shielded twisted-pair cable (AWG 20#, 0.4mm² core) to extend up to 300m; use a sealed waterproof junction box.

Q: Can D114 recover factory defaults?

A: Yes, enter Window M37, select "Reset", press Enter to restore all parameters to factory settings (note: user data will be deleted).

Q: What if no signal is detected (*I displayed)?

A: Check transducer spacing (match M25), add coupling compound, re-clean the pipe surface, or switch to Z mounting method.

Q: How to view historical flow data?

A: Enter Window M82, select day/month/year, use arrow keys to review the last 64 days/months or 5 years of flow data.
