Brief Introduction
|
Accuracy: |
±2% |
Pipe Size: |
DN20~DN80 |
|
Flow Velocity: |
0.1~16ft/s (0.03~5.0m/s) |
Pipe Material: |
Carbon Steel, Stainless Steel, Copper, PVC |
Product Introduction

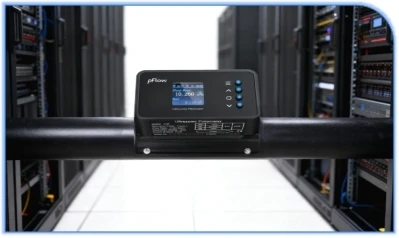

Designed for Dielectric Coolant loops in liquid-cooling systems, the IP54-rated F3E clamps over DN20–DN80 carbon steel, stainless steel, copper or PVC in 4 steps-no downtime, no wet work. POE power and cloud data keep tanks and servers monitored anywhere.
- Live cloud data
- Install in minutes
- Zero coolant contact
- Liquid cooling system
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Index |
|
|
Flow Velocity |
0.1~16ft/s (0.03~5.0m/s) |
|
Accuracy |
±2%,(1.0~16ft/s) |
|
Repeatability |
0.2% |
|
Pipe Size |
DN20~DN80 |
|
Medium |
Water |
|
Pipe Material |
Carbon Steel, Stainless Steel, Copper, PVC (Select one of them as per customer's requirements. The details are subject to the instrument display.) |
|
Function Index |
|
|
Support Protocol |
HTTP,MQTT Protocol |
|
Power Supply |
POE network cable power supply |
|
Key |
4 keys |
|

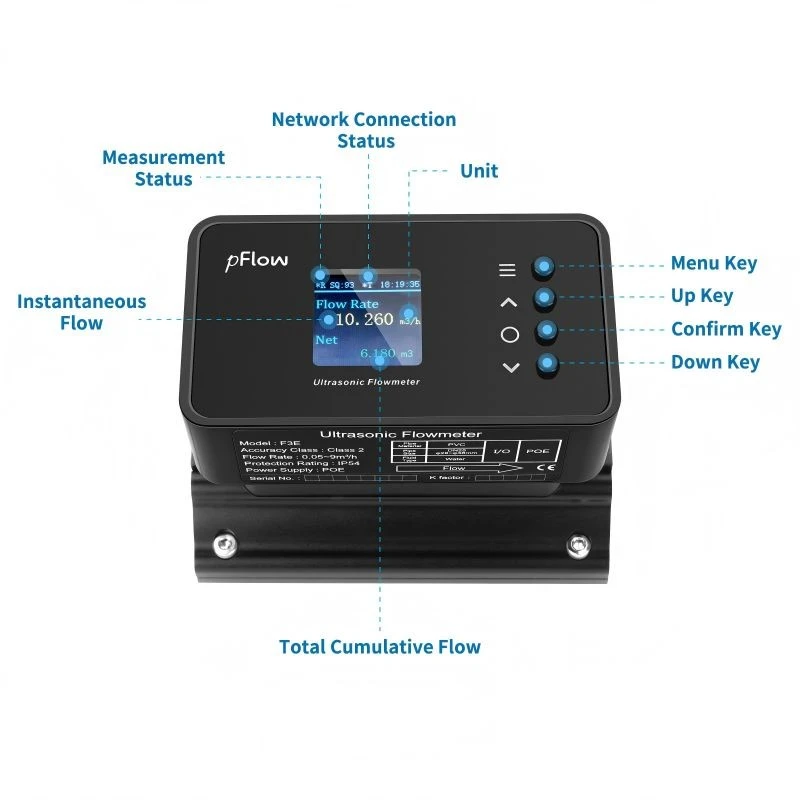

Display Screen |
1.44 "LCD color screen, resolution 128 * 128 |
|
Temperature |
Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ) |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
IP |
IP54 |
|
Physical Characteristics |
|
|
Transmitter |
Integrated |
|
Transducer |
Clamp On |
|
Cable |

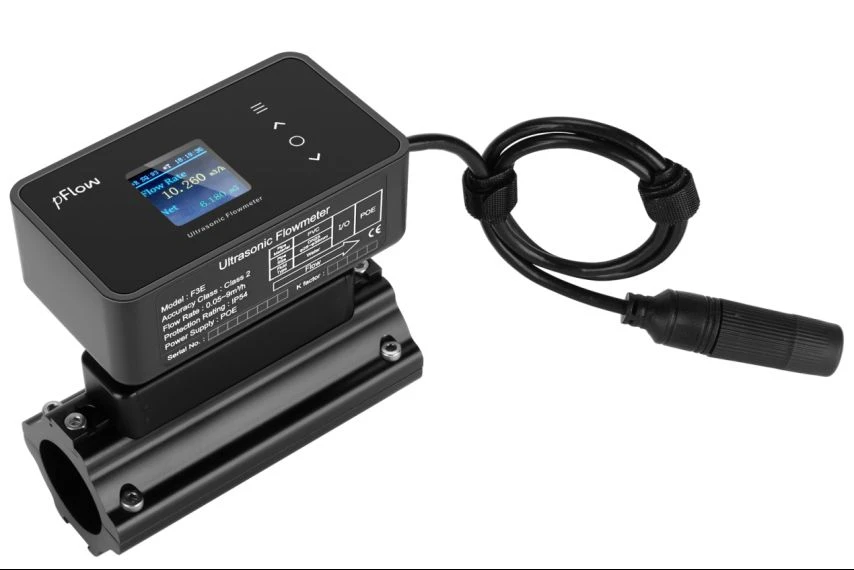

POE waterproof tail line, standard length: 0.5m |

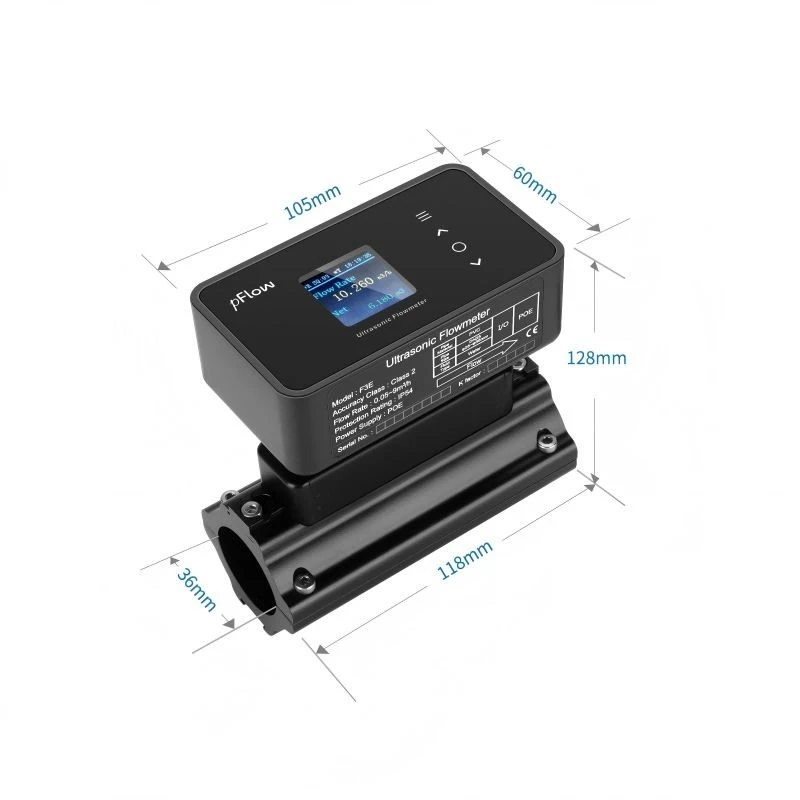

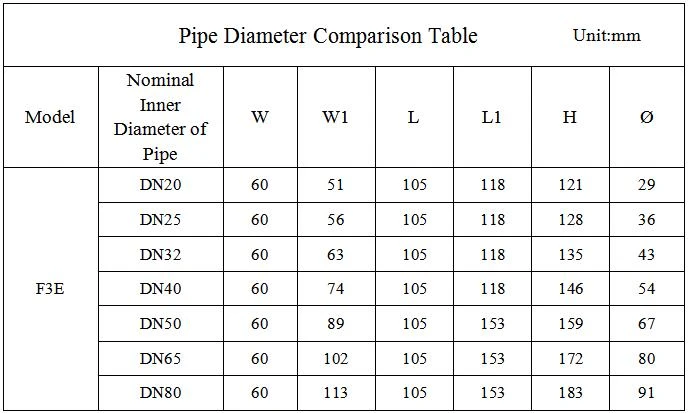

Body Parameters
Appearance

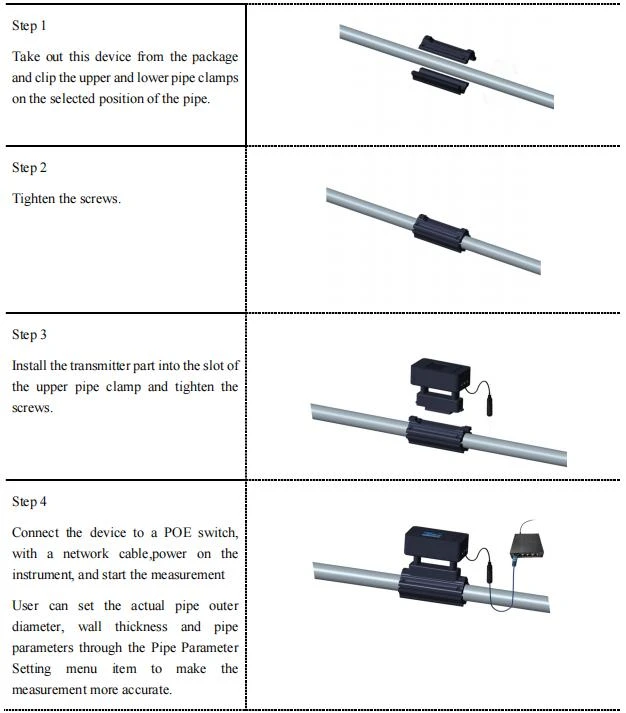

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
