Brief Introduction
|
Accuracy: |
±2.0% |
Pipe size : |
DN20~DN80 |
|
|
Output: |
RS485,LoRaWAN |
IP Rating: |
IP54 transducer |
|
|
Temperature: |
0~60℃ |
|||
Product Introduction

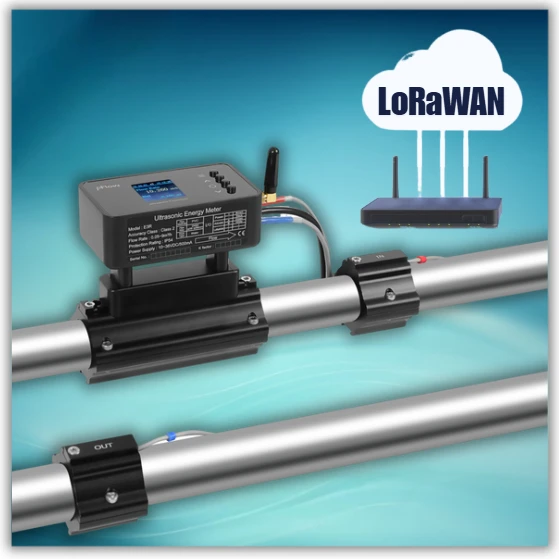

The E3R Clamp-on Ultrasonic Flowmeter is designed for precise temperature measurement in various industrial applications. Equipped with LoRaWAN communication technology, it enables long-range, low-power data transmission, making it ideal for remote monitoring. The E3R's wide temperature measurement range and high accuracy ensure reliable performance in diverse environments, providing essential data for process optimization and energy management. Its non-invasive design allows for easy installation without disrupting existing pipelines, making it a versatile solution for temperature measurement needs.
Product Applications
●Hotel temperature metering, Lodge cooling energy metering
●Liquid cooling industry,efficient cooling, temperature control, energy saving
●Water and wastewater management
●HVAC (Heating, Ventilation, and Air Conditioning) systems
●Process industries (chemical, pharmaceutical, food and beverage)
●Energy management and environmental monitoring
●Agriculture and irrigation systems
●Research and development
●Facilities management
●Industrial maintenance and troubleshooting
●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
1)Technical Parameters
|
Performance Index |
|
|
Flow Velocity |
0.1~16ft/s (0.03~5.0m/s) |
|
Accuracy |
±2% of measured value , velocity＞0.3m/s |
|
Pipe Size |
DN20~DN80 |
|
Temperature range |
0~60℃ |
|
Temperature difference range |
2~50K |
|
Temperature resolution |
0.01℃ |
|
Medium |
Water |
|
Pipe Material |
Carbon Steel, Stainless Steel, Copper, PVC (According to the user's selection requirements, it has been selected at the factory, and the details are subject to the instrument display.) |
|
Function Specifications |
|
|
Input interface |
2*PT1000 Clamp-on temperature sensor |
|
Communication interface |
RS485; FUJI or MODBUS Protocol |
|
LoRa Communication |
Maximum Transmit Power: 22dBm Temperature：-40~85℃ LoRaWAN communication protocol is available |
|
LoRa Frequency selection |
EU868 Frequency: 863000000~865400000, unit: HZ US915 Frequency: 902300000~914900000, unit: HZ CN779 Frequency: 780100000~786500000, unit: HZ EU433 Frequency: 433775000~434665000, unit: HZ AU915 Frequency: 915200000~927800000, unit: HZ CN470 Frequency: 470300000~489300000, unit: HZ AS923(HK) Frequency: 920000000~925000000, unit: HZ |
|
Power supply |
10～36VDC/500mA |
|
Keyboard |
4 touch keys |
|
Display screen |
1.44 " LCD colorful screen, resolution 128 * 128 |
|
Temperature |
Transmitter: -10℃~50℃ Transducer: 0℃~60℃ |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
IP rating |
IP54 |
|
Physical Characteristics |
|
|
Transmitter |
All-in-one |
|
Transducer |
Clamp on |
|
Cable |
Ø5 Six-core cable, standard length: 2m |
2)Body Parameters
|
Pipe Diameter Comparison Table Unit:mm |
|||||||
|
Model |
Nominal Inner Diameter of Pipe |
W |
W1 |
L |
L1 |
H |
Ø |
|
E3R |
DN20 |
60 |
51 |
105 |
118 |
121 |
29 |
|
DN25 |
60 |
56 |
105 |
118 |
128 |
36 |
|
|
DN32 |
60 |
63 |
105 |
118 |
135 |
43 |
|
|
DN40 |
60 |
74 |
105 |
118 |
146 |
54 |
|
|
DN50 |
60 |
89 |
105 |
153 |
159 |
67 |
|
|
DN65 |
60 |
102 |
105 |
153 |
172 |
80 |
|
|
DN80 |
60 |
113 |
105 |
153 |
183 |
91 |
|
|

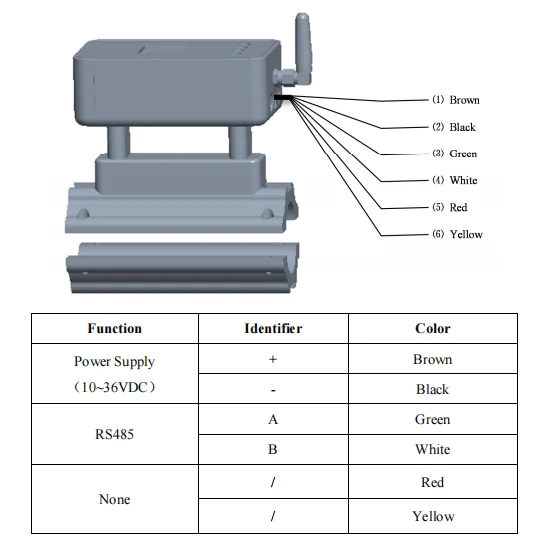

Function |
Identifier |
Color |
|
10~36VDC power supply |
+ |
Brown |
|
- |
Black |
|
|
RS485 |
A |
Green |
|
B |
White |
|
|
None |
/ |
Red |
|
/ |
Yellow |
Wiring

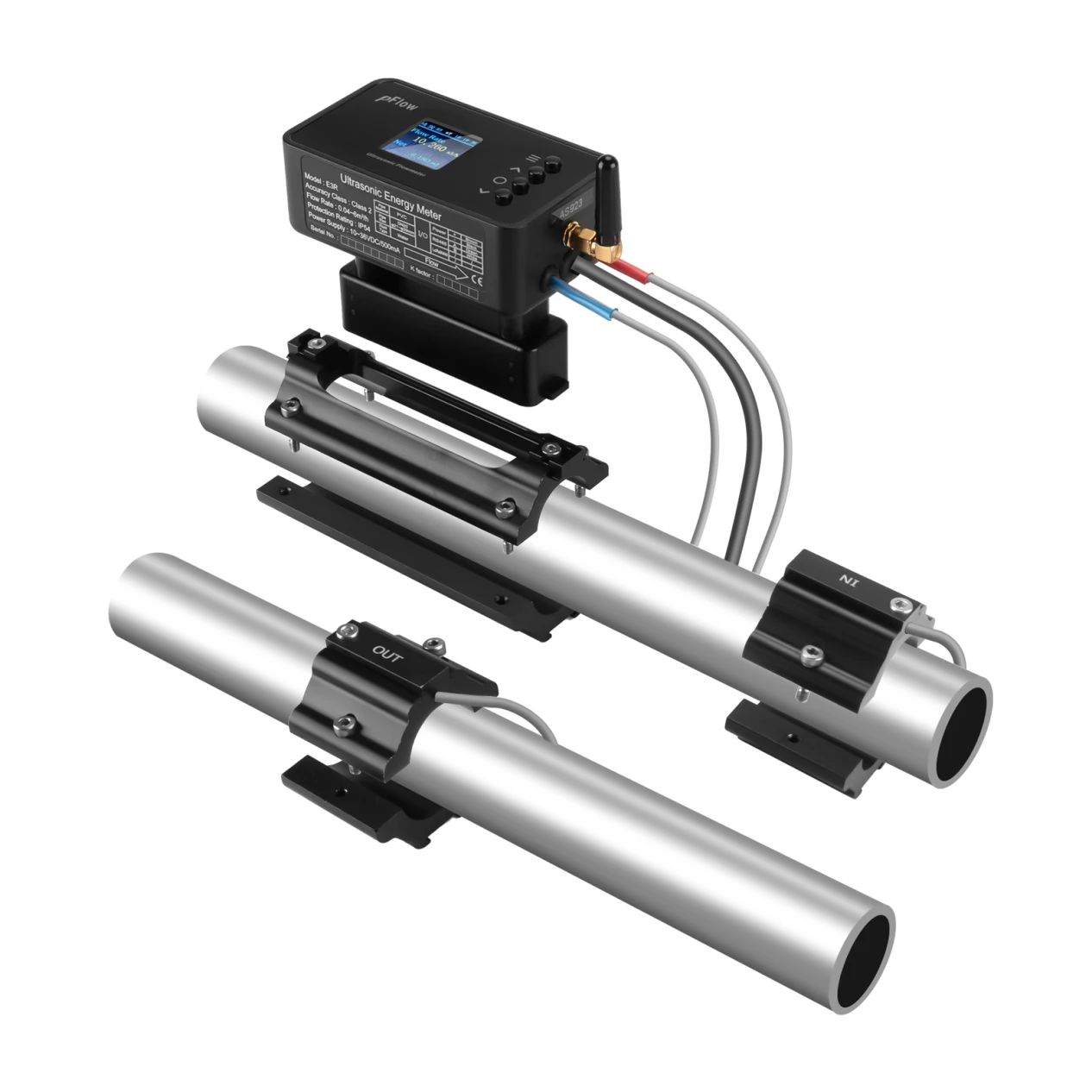

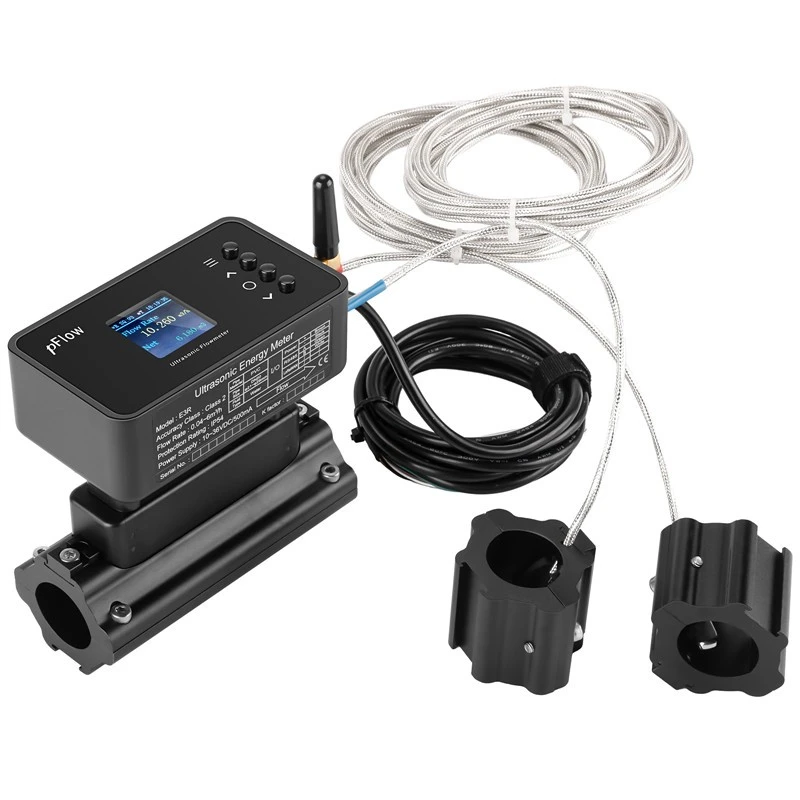

3)Appearance
4)Professional Measure Single Material
5)Detectable Fluids
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display:
Certificate display：
Deliver, Shipping, and Serving
Direct support：
Qucik response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 1 to 3 days window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: What is the temperature measurement range of the E3R Ultrasonic Flowmeter?
A: The E3R Ultrasonic Flowmeter can measure temperatures from 0°C to 60°C (32°F to 140°F), making it suitable for a wide range of industrial applications.
Q: How does the LoRaWAN feature benefit temperature measurement in remote locations?
A: The LoRaWAN feature allows the E3R Ultrasonic Flowmeter to transmit temperature data over long distances with low power consumption, making it ideal for remote monitoring where access is limited.
Q: Can the E3R Ultrasonic Flowmeter be easily integrated into existing systems for temperature monitoring?
A: Yes, the E3R Ultrasonic Flowmeter is designed with a non-invasive clamp-on design, allowing for easy installation without disrupting existing pipelines, making it simple to integrate into existing systems for temperature monitoring.
Q: What kind of data can be transmitted using LoRaWAN in the E3R Ultrasonic Flowmeter?
A: The E3R Ultrasonic Flowmeter can transmit real-time temperature data, flow rates, and other relevant measurements using LoRaWAN, providing comprehensive insights for remote monitoring and analysis.
Q: How does the LoRaWAN protocol enhance the reliability of temperature measurements in industrial settings?
A: The LoRaWAN protocol ensures reliable data transmission over long distances with minimal power consumption, enhancing the reliability of temperature measurements in industrial settings where consistent data is crucial for process control and optimization.
