Brief Introduction
|
Accuracy: |
±2% of FS |
Pipe Size: |
10mm |
|
Flow Velocity Range: |
0.1 L/min ~35L/min |
Repeatability: |
0.8% |

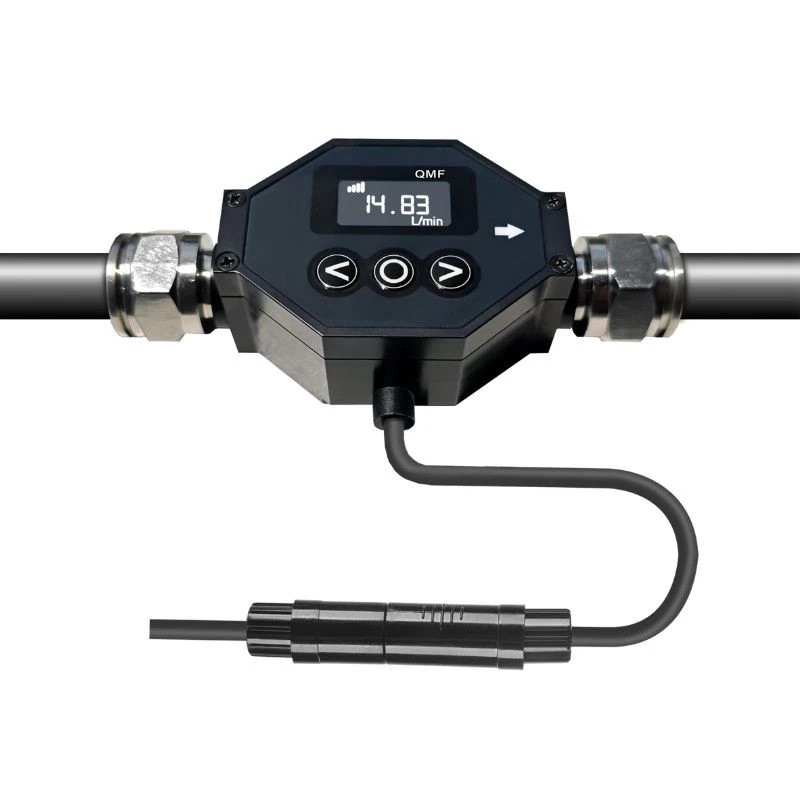

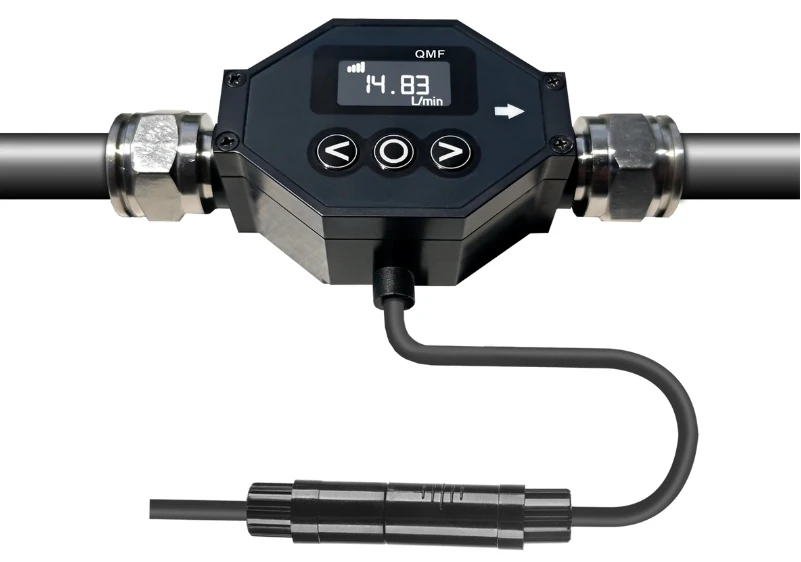

Product Introduction

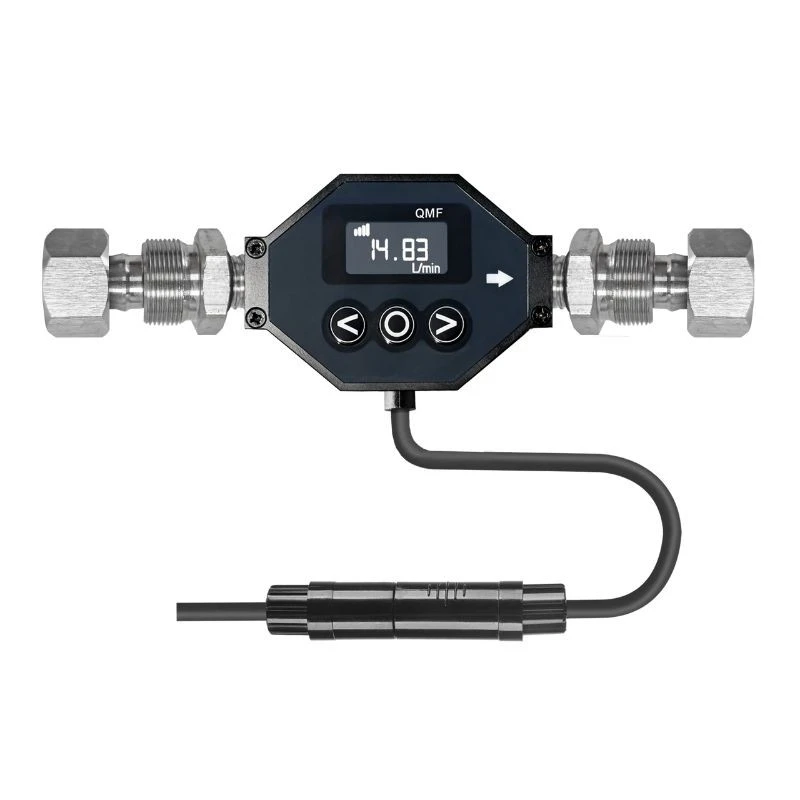

The QMF clamps straight onto 10 mm tubing and, by time-of-flight ultrasound, tracks coolant down to 0.1 L/min with ±2 % FS accuracy. Its millisecond update pinpoints micro-leaks before hotspots form. It ships with barb, push-in or quick-twist fittings for plug-and-play upgrade of liquid cooling system.
- Zero pressure drop
- Saves pumping energy
- Prevents thermal shutdown

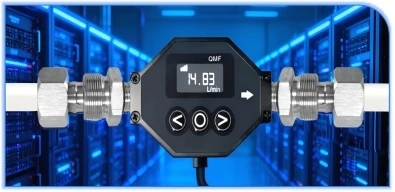

- Liquid Cooling System
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Indicators |
|
|
Flow Velocity Range |
0.1 L/min ~35L/min |
|
Accuracy |
±2% of FS |
|
Repeatability |
0.8% |
|
Pipe Size |
10mm |
|
Medium |
Water |
|
Functional Indicators |
|
|
Communication Interface |
RS485; supports MODBUS protocol |
|
Output (optional) |
4~20mA, OCT |
|
Power Supply |
10～36VDC/500mA |
|
Keyboard |
3 touch keys |
|
Display Screen |
0.96" (160*80) LCD color screen |
|
Operating temperature |
-10℃~50℃ |
|
Operating pressure |
0~1.6MPa |
|
Humidity |
5~95% relative humidity, no condensation |
|
IP Rating |
IP65 |
|
Physical Characteristics |
|
|
Housing Material |
Engineering plastic(PPS) |
|
System interface |
G1/4 internal thread |
|
Cable |
φ5 black six-core shielded cable with self-locking connector, standard length: 1 m |
Body Parameters

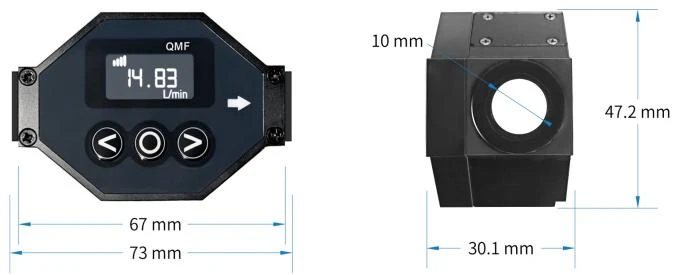

Appearance

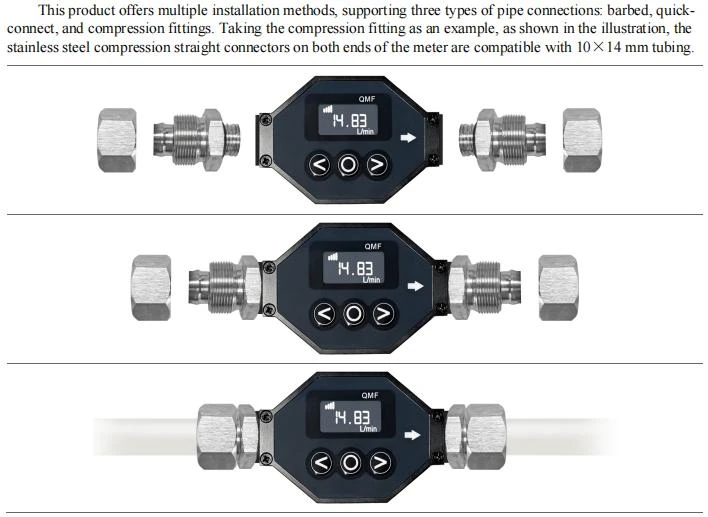

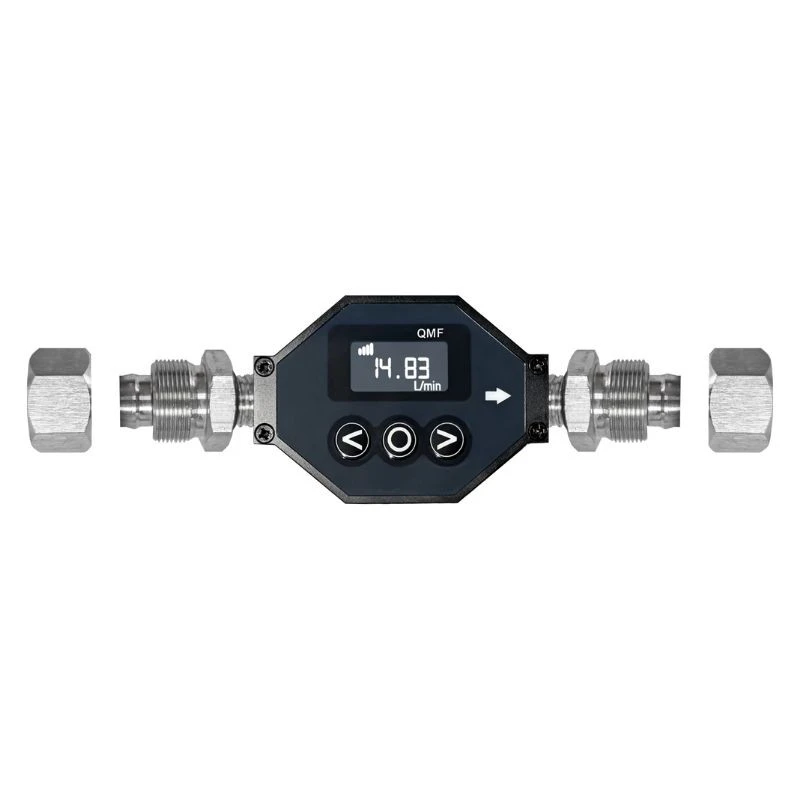

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
