Brief Introduction
|
Fluid: |
water |
Pipe Size: |
1" ~ 200" ( 25mm ~ 5000mm ) |
|
Power Supply: |
90～245VAC(48～63Hz)or 10～36VDC |
Medium Temperature: |
0℃ ~ 80℃ |
Product Introduction
D118 Ultrasonic Flowmeter offers an accuracy of ±0.5%, ensuring highly reliable data for effective system management. Its measurable range spans from DN25 to DN5000, making it versatile for a wide variety of pipe sizes and applications.
- Ultra-low-power, interference-resistant IC design enables
- Clamp-and-play operation like a multimeter
- AC & DC power supply
- Liquid Cooling System
- IoT Smart Home
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance specifications |
|
|
Measurable Flow Velocity Range |
±0.01m/s～±12 m/s (±0.03 ft/s～±40 ft/s) |
|
Accuracy |
0.5% (0.5~5m/s standard condition) |
|
Repeatability |
0.1% |
|
Pipe Size Range |
Clamp-on type: 25mm~5000 mm (1″~200″) Insertion type: 50mm~5000 mm (2″~200″) |
|
Function specifications |
|
|
Output |
Analog output: 4～20mA, maximum load 750Ω Pulse output: 0～9999Hz, OCT output (maximum and minimum frequencies adjustable) Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ) |
|
Communication |
RS485, available to MODBUS protocol |
|
TFCard |
Storage period: More than 1000 days Storage interval: 1～3600 seconds |
|
Power Supply |
90～245VAC(48～63Hz)or 10～36VDC |
|
Keyboard |
24-key touch keyboard |
|
Display Screen |
3.71-inch TFT color screen |
|
Temperature |
Transmitter ambient temperature: -10℃～50℃ Sensor medium temperature: -40℃～80℃ (standard) |
|
Humidity |
Up to 99% RH, non-condensing. |
|
Physical specifications |
|
|
Transmitter |
Die-cast aluminum chassis, IP rating: IP65 |
|

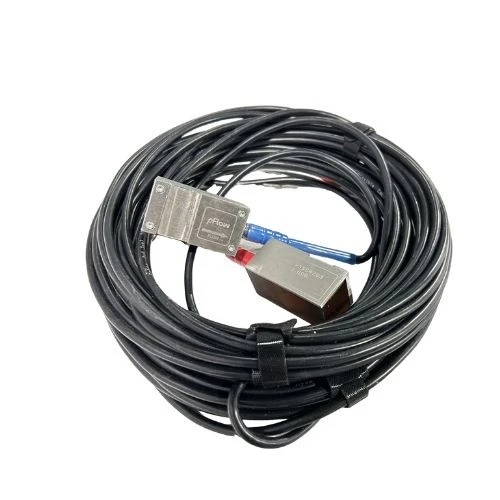

Transducer/Sensor |
Sealed design, IP rating: IP68 Standard cable length: 9m, can be extended to 305m |
|
Weight |
Transmitter: Approximately 2.2kg Clamp-on sensor: Approximately 2kg per pair Insertion sensor: Approximately 4kg per pair |

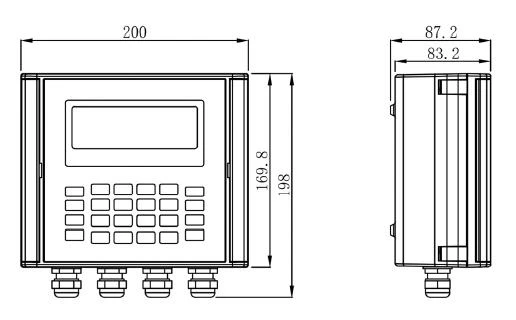

Body Parameters

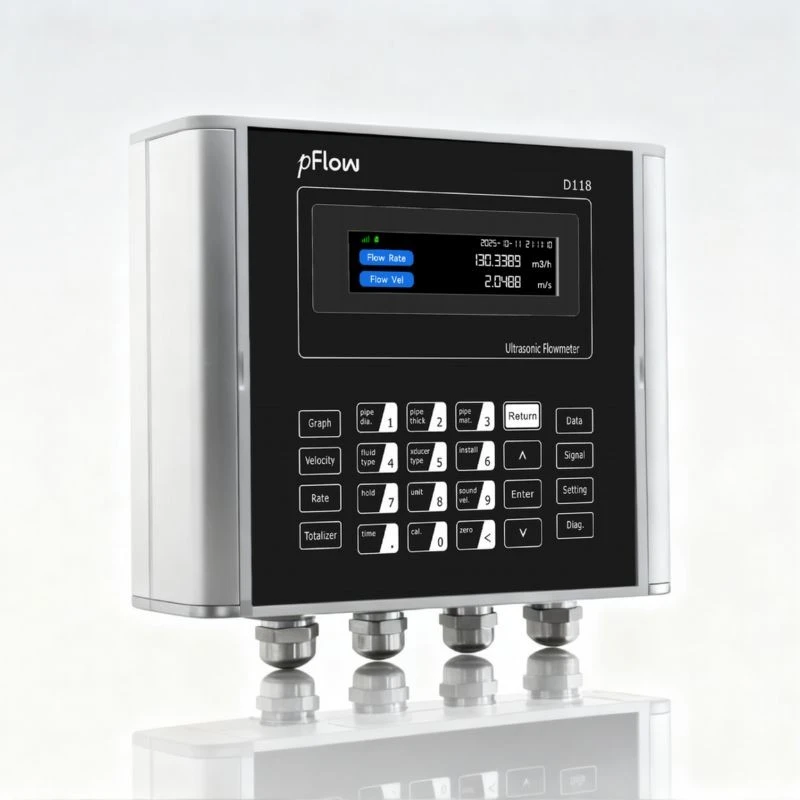

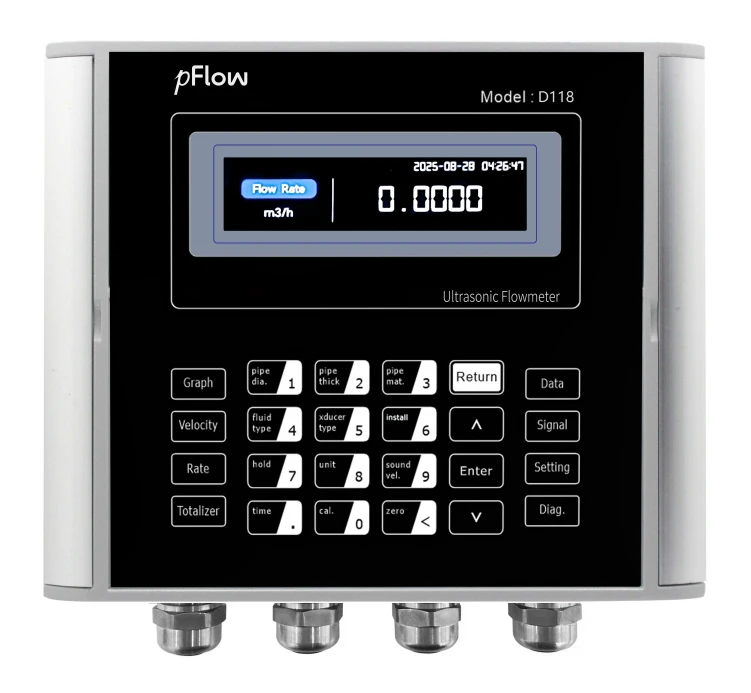

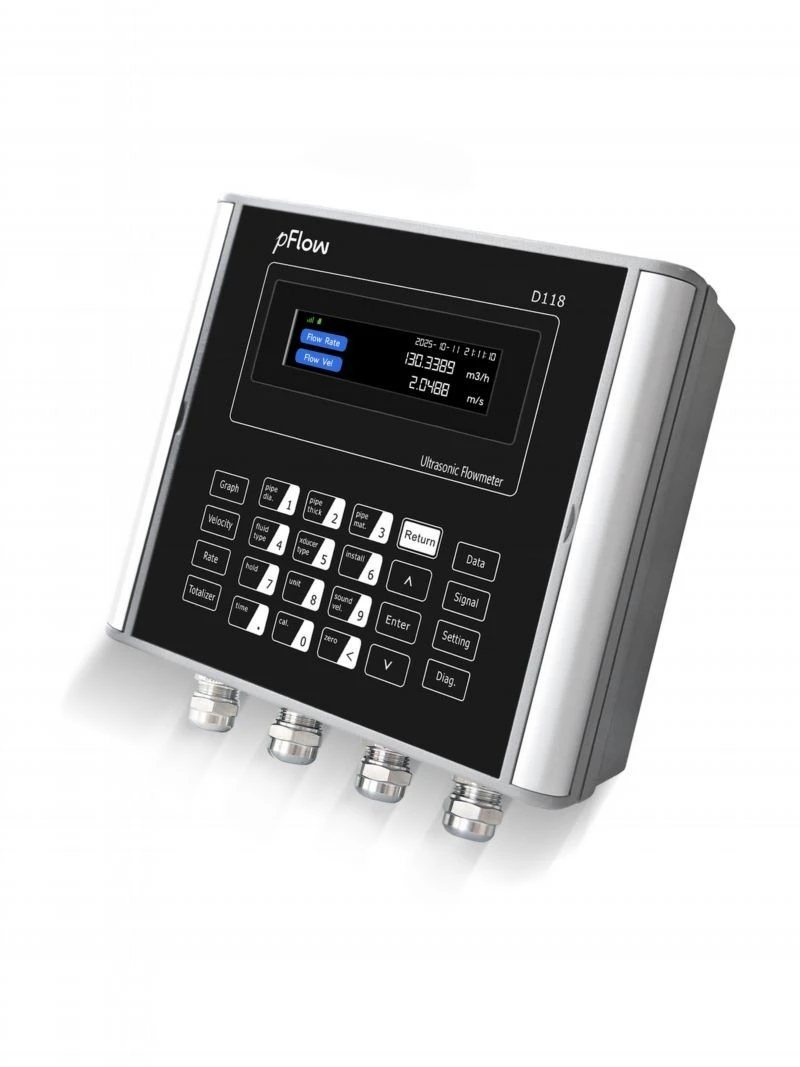

Appearance

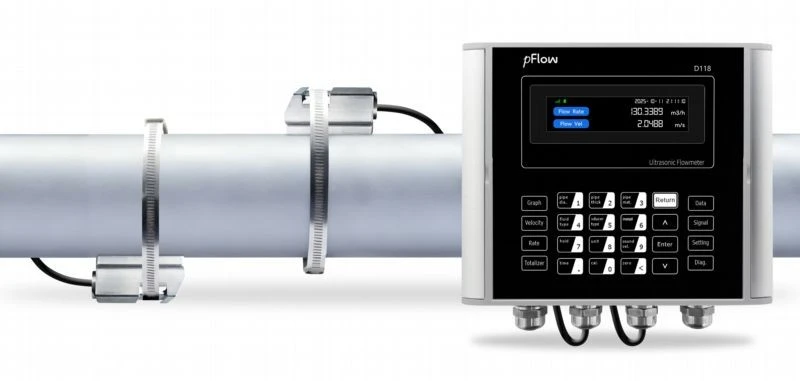

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
