Brief Introduction

Fluid:	water	Pipe Size:	1" ~ 48" ( 25mm ~ 1200mm )
Power Supply:	10-36VDC	Medium Temperature:	0℃ ~ 60℃

Product Introduction

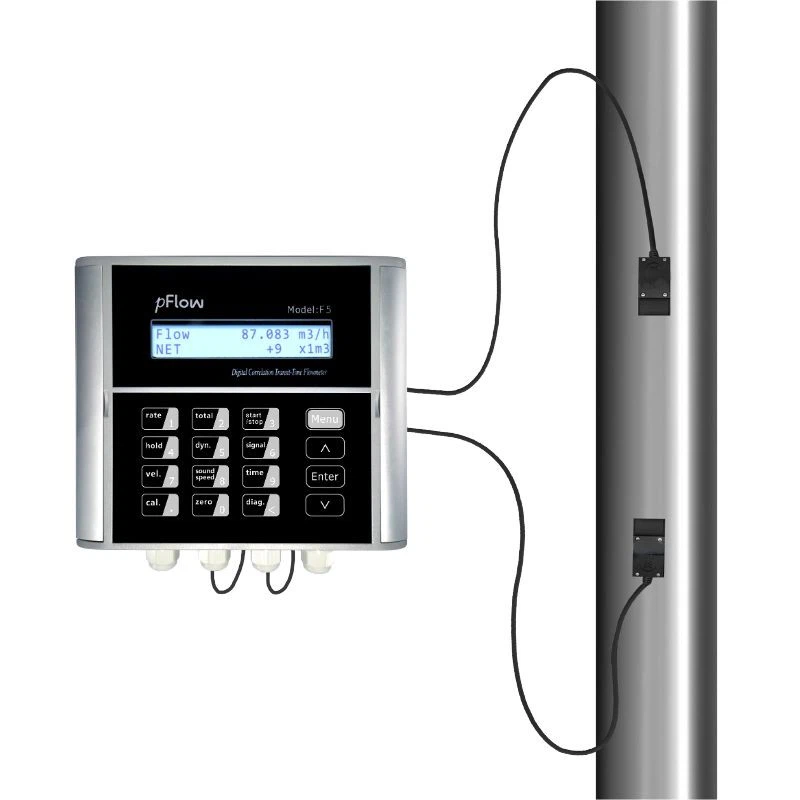

Data logger flow meter for data center: Clip-on install, 1''–48" pipes, water-ready. ARM precision , low cost-flow insight in minutes.

Ultra-low-power, interference-resistant IC design enables
Clamp-and-play operation like a multimeter
Data logger for data storage

Product Applications

Data center
Water and wastewater management
HVAC (Heating, Ventilation, and Air Conditioning) systems
Process industries (chemical, pharmaceutical, food and beverage)
Energy management and environmental monitoring
Agriculture and irrigation systems
Research and development
Facilities management
Industrial maintenance and troubleshooting
Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.

Product Parameter

Technical Parameters

Performance specifications
Flow range	0.01～5.0 m/s(0.03～16 ft/s)
Accuracy	± 1.0 % of measured value (0.5m/s～5m/s)
Pipe size	Clamp-on: 25mm～800mm (1"～32") Insertion: 50mm～1200mm (2"～48")
Fluid	Water.
Pipe material	Carbon steel, stainless steel, PVC, Copper.
Function specifications
Outputs	Analog Output: 4～20mA, with a maximum load of 750Ω Pulse Output: 0～9999Hz, OCT output (maximum and minimum frequencies are adjustable) Relay Output: Maximum frequency of 1Hz (1A @ 125VAC or 2A @ 30VDC)
Communication interface	RS485 MODBUS
WiFi	Frequency Range: 2.412~2.484GHz
	Transmit Power: 802.11b 16±2 dBm, 802.11n 13±2 dBm, 802.11g 14±2 dBm
	Open Environment Transmission Distance: 40 meters
Standard TF Card	Storage Period: Over 1000 days, Storage Interval: 1 to 3600 seconds
Power supply	10～36VDC/1A
Keypad	16 ( 4×4 ) key with tactile action.
Display	20×2 lattice alphanumeric, back lit LCD.
Temperature	Transmitter: 14 °F to 122 °F (–10℃ ~ 50℃); Transducer: 32 °F to 176 °F (0℃ ~ 80℃).
Humidity	Up to 99% RH, non-condensing.
Physical specifications
Transmitter	PC/ABS Plastic Housing, IP Rating IP65
Transducer	Encapsulated design, IP Rating IP68
Transducer cable	Standard Length: 9m (30ft)
Weight	Transmitter: 0.7kg Transducer: 0.4kg

Body Parameters

Appearance

Installation

FAQ

Q: Are you a trading company or a factory?

A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.

Q: What are the advantages of ultrasonic flow meters?

A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.

Q: How do you install a flow meter?

A: Follow the manufacturer's installation instructions or view our youtube installation video.

Q: How to choose the right flow meter model for you?

A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.

Q: Can this water meter track water usage?

A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.

Hot Tags: data logger flow meter for data center, China data logger flow meter for data center manufacturers, suppliers, factory, beer flow sensor, BMS Meter, Chilled Water BTU Meter, electrical power monitoring system, Flow Meter for Marine, water meter with bms integration

Products Description

1)Technical Parameters

Performance specifications
Flow range	0.01～5.0 m/s(0.03～16 ft/s)
Accuracy	± 1.0 % of measured value (0.5m/s～5m/s)
Pipe size	Clamp-on: 25mm～800mm (1"～32") Insertion: 50mm～1200mm (2"～48")
Fluid	Water.
Pipe material	Carbon steel, stainless steel, PVC, Copper.
Function specifications
Outputs	Analog Output: 4～20mA, with a maximum load of 750Ω Pulse Output: 0～9999Hz, OCT output (maximum and minimum frequencies are adjustable) Relay Output: Maximum frequency of 1Hz (1A @ 125VAC or 2A @ 30VDC)
Communication interface	RS485 MODBUS
WiFi	Frequency Range: 2.412~2.484GHz
	Transmit Power: 802.11b 16±2 dBm, 802.11n 13±2 dBm, 802.11g 14±2 dBm
	Open Environment Transmission Distance: 40 meters
Standard TF Card	Storage Period: Over 1000 days, Storage Interval: 1 to 3600 seconds
Power supply	10～36VDC/1A
Keypad	16 ( 4×4 ) key with tactile action.
Display	20×2 lattice alphanumeric, back lit LCD.
Temperature	Transmitter: 14 °F to 122 °F (–10℃ ~ 50℃); Transducer: 32 °F to 176 °F (0℃ ~ 80℃).
Humidity	Up to 99% RH, non-condensing.
Physical specifications
Transmitter	PC/ABS Plastic Housing, IP Rating IP65
Transducer	Encapsulated design, IP Rating IP68
Transducer cable	Standard Length: 9m (30ft)
Weight	Transmitter: 0.7kg Transducer: 0.4kg

Data Logger Flow Meter For Data Center
