Brief Introduction
|
Accuracy: |
±2.0% |
Pipe size : |
15mm-50mm |
|
|
Output: |
RS485 & 4-20mA |
IP Rating: |
IP54 |
|
| Temperature: | 32 °F to 140 °F ( 0℃ ~ 60℃ ) | |||

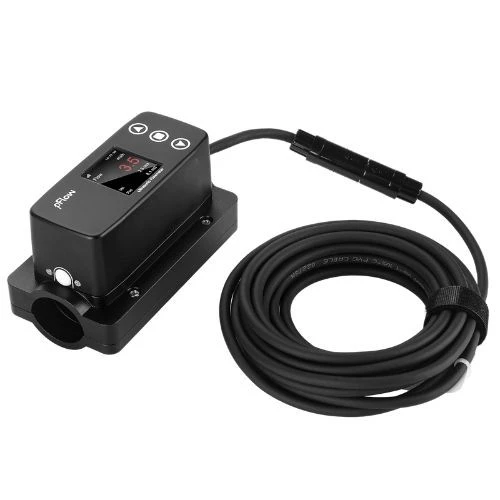

Product Introduction
Are you looking to optimize your liquid cooling system with reliable and accurate flow measurement? Look no further than the GFCL Ultrasonic Flow meter.
- Use advanced transit-time measurement principles

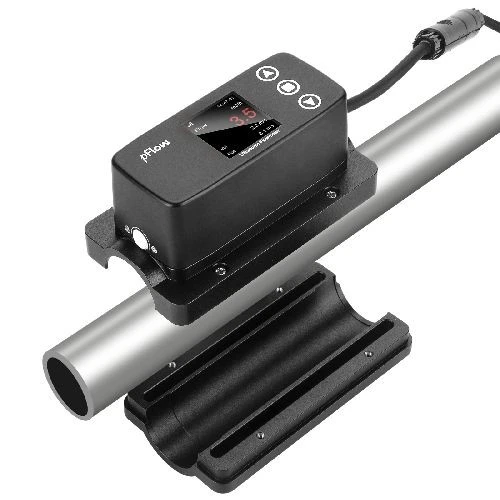

- Integrated external clamping on -quick and easy installation
- Fits pipe materials. stainless steel, copper, PVC, and PPR

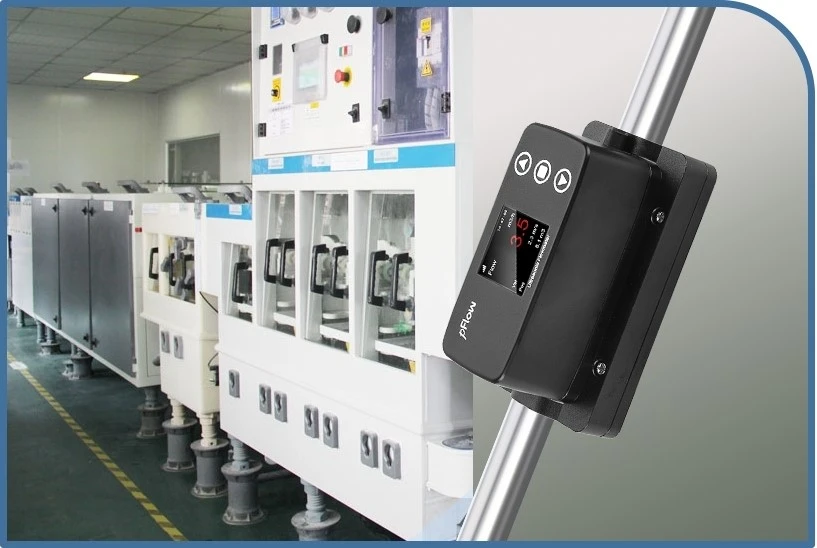

Hotel energy metering,Lodge cooling energy metering
Liquid cooling industry,efficient cooling, temperature control, energy saving
Water and wastewater management
HVAC (Heating, Ventilation, and Air Conditioning) systems
Process industries (chemical, pharmaceutical, food and beverage)
Energy management and environmental monitoring
Agriculture and irrigation systems
Research and development
Facilities management
Industrial maintenance and troubleshooting
Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Index |
|
|
Flow velocity |
0.03m/s ~5.0m/s |
|
Accuracy |
±2%,(0.3m/s ~5m/s) |
|
Repeatability |
0.4% |
|
Medium |
Water |
|
Pipe Size |
DN15,DN20,DN25,DN32,DN40,DN50 |
|
Pipe Material |
Stainless Steel, PVC, Copper, PPR |
|
Functional Index |
|
|
Outputs |
4~20mA |
|
Power supply |
10～36VDC/500mA |
|
Communication Interface |
RS485, Support FUJI Protocol and MODBUS Protocol |
|
Keypad |
3 touch keys |
|
Display screen |
1.54"LCD color screen, resolution 240*240 |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
Temperature |
Transmitter: 14℉ to 122℉ ( -10℃ ~ 50℃ ) Transducer: 32℉ to 140℉ ( 0℃ ~ 60℃ ) |
|
IP |
IP54 |
|
Physical Characteristics |
|
|
Transmitter |
All-in-one |
|
Transducer |
Clamp on |
|
Network Cable |
φ5 six core cable, standard length: 4m |
Body Parameters
|

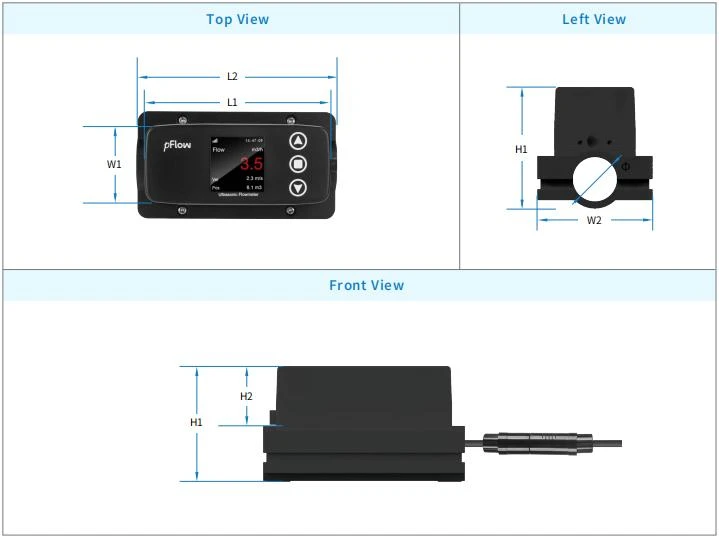

Pipe Diameter Comparison Table Unit：mm |
||||||||
|
Model |
Nominal Inner Diameter of Pipe |
W1 |
W2 |
L1 |
L2 |
H1 |
H2 |
φ |
|
GFCL |
DN15 |
42 |
42 |
96 |
110 |
63 |
32.5 |
22.5 |
|
DN20 |
42 |
59.5 |
96 |
110 |
69.5 |
32.5 |
29 |
|
|
DN25 |
42 |
59.5 |
96 |
110 |
76 |
32.5 |
35.5 |
|
|
DN32 |
42 |
64.5 |
96 |
110 |
83 |
32.5 |
42.5 |
|
|
DN40 |
42 |
76.5 |
96 |
110 |
95 |
32.5 |
54.5 |
|
|
DN50 |
42 |
85.5 |
96 |
110 |
104 |
32.5 |
63.5 |
|
|

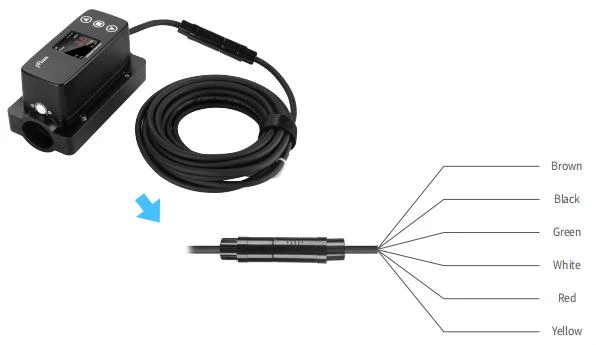

Color |
Identifier |
Function |
|
Brown |
+ |
10~36 VDC Power Supply |
|
Black |
- |
Power Ground |
|
Green |
A |
RS485+ |
|
White |
B |
RS485- |
|
Red |
I+ |
4~20mA+ |
|
Yellow |
I- |
4~20mA- |

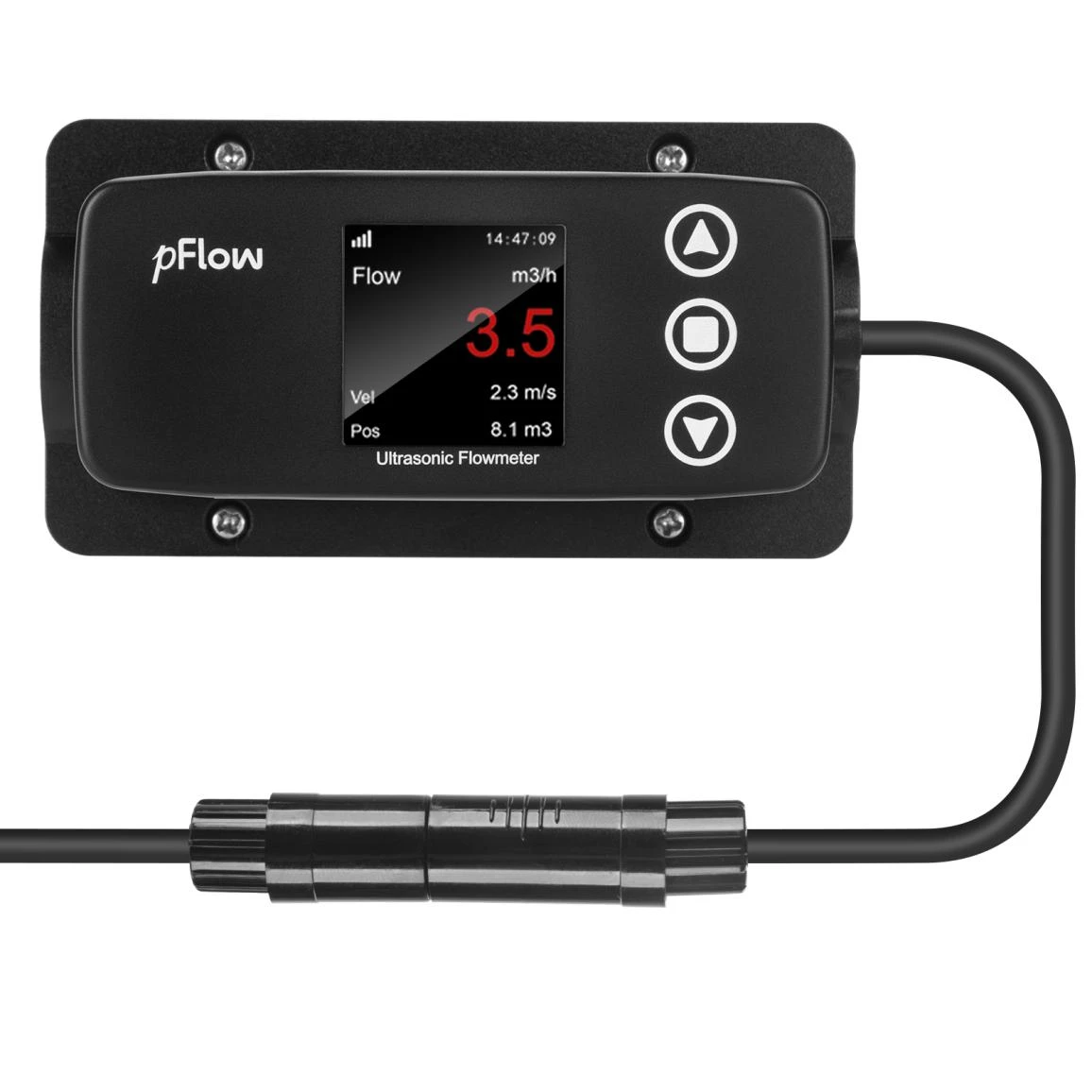

Appearance

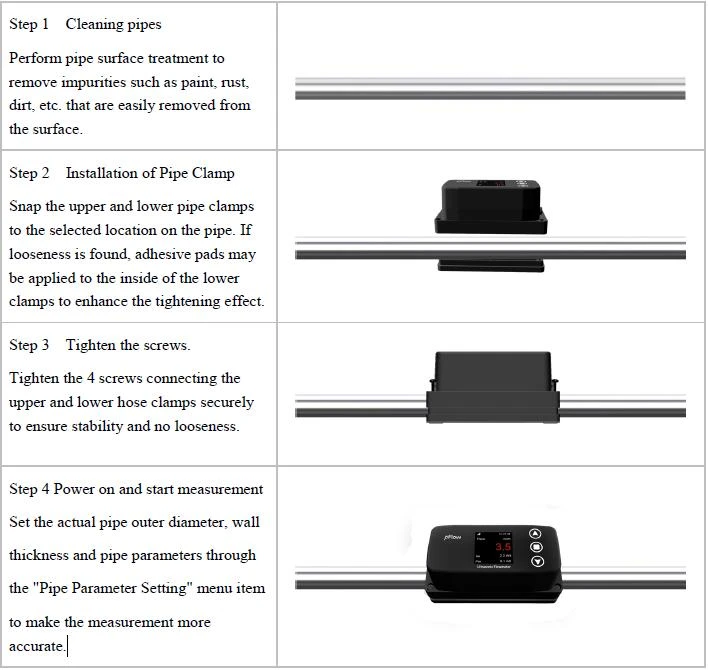

Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
