Brief Introduction
The VC201 integrates LoRa technology for seamless remote control via cloud servers
Offering extended-range transmission and robust penetration capabilities.
Users can now efficiently manage water systems from anywhere using their computers
Product Introduction

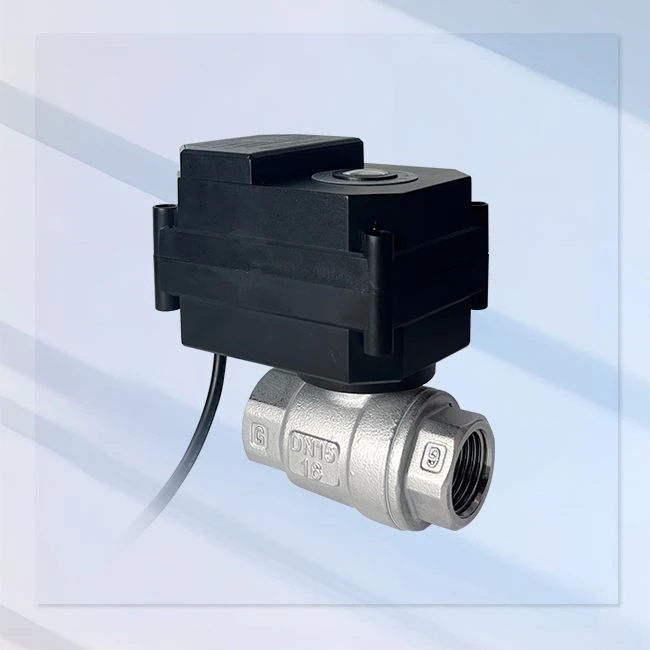

Gentos has recently unveiled a cloud-managed IoT valve actuator, the VC201 Chemical Processing Flow Switch, marking a significant advancement in electric valve intelligence.
These cutting-edge products harness LoRa wireless communication technology, enabling seamless integration with the LoRaWAN communication protocol. Leveraging extended-range transmission and robust penetration capabilities, users can now remotely govern the IoT valve actuator via cloud servers from their computers. This innovation notably streamlines individuals' management of water systems.
Product Parameter
1) Body Parameters

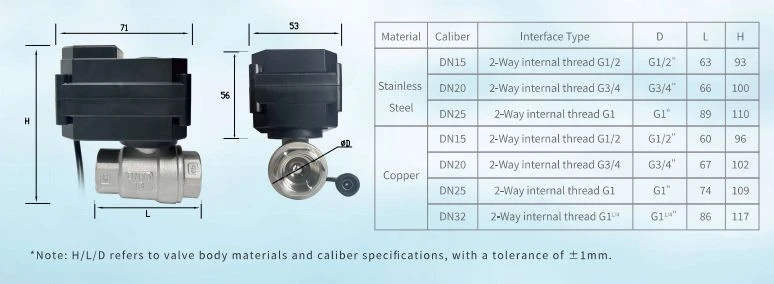

2) Appearance
3)Technical Parameters
|
Valve Body Diameter |
Copper：DN15~DN32 Stainless Steel：DN15~DN25 |
|
Measured medium |
water |
|
Power Supply Voltage |
DC5V |
|
Maximum Power |
3W |
|
Output Torque |
2Nm |
|
LoRa Communication |
Support LoRaWAN communication protocol |
|
Maximum transmit power：22dBm |
|
|
Temperature：-40℃~85℃ |
|
|
LoRa Frequency Selection |
EU868 Frequency：863000000~865400000,Unit:HZ |
|
US915 Frequency：902300000~914900000,Unit: HZ |
|
|
CN779 Frequency：780100000~786500000,Unit: HZ |
|
|
EU433 Frequency：433775000~434665000,Unit: HZ |
|
|
AU915 Frequency：915200000~927800000,Unit: HZ |
|
|
CN470 Frequency：470300000~489300000,Unit: HZ |
|
|
AS923(HK) Frequency：920000000~925000000,Unit: HZ |
|
|
MeterTube App |
Available |
|
Controller Operation |
Remote control via MeterTube Mobile APP |
|
Operation Pressure |
≤1.0MPa |
|
Connection Method |
2-Way internal thread G |
|
IP Rating |
IP65 |
|
Medium Temperature |
≤100℃ |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
Valve Body Material |
Copper, Stainless Steel |
Product Features

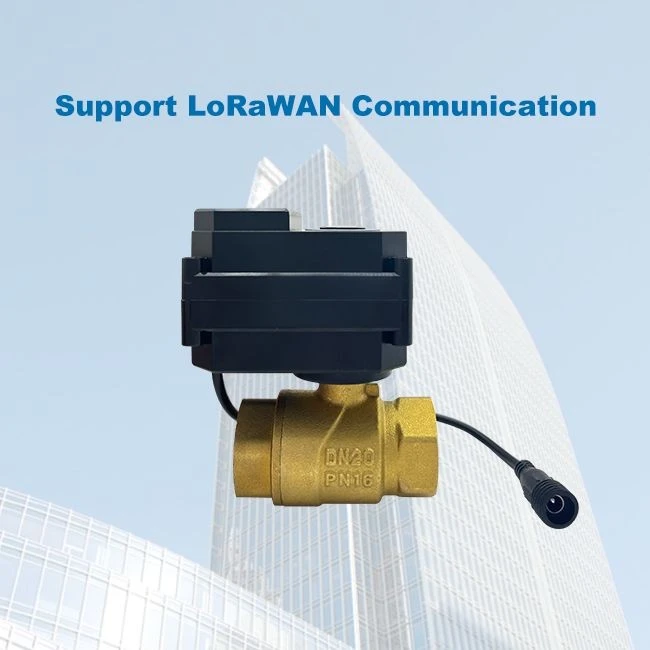

Support LoRaWAN communication protocol
Wireless communication, no wiring required
Timing control

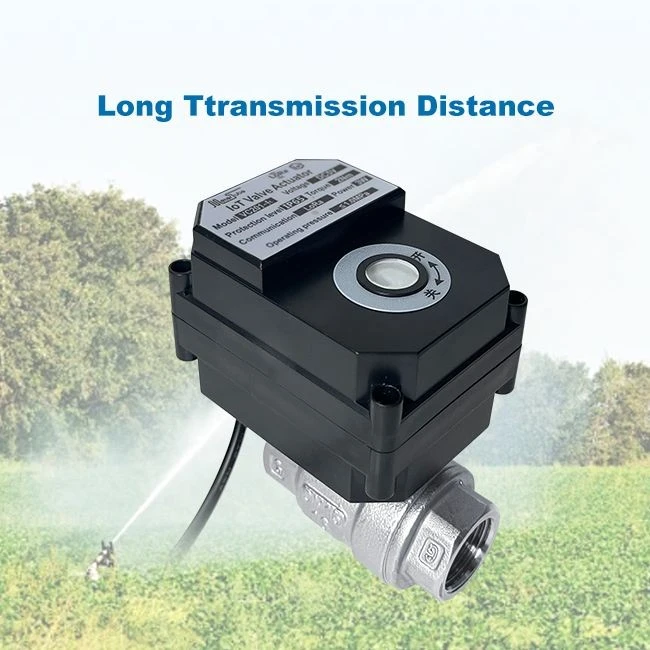

Long transmission distance and strong penetration ability
The valve can be adjusted 0-100% opening to control the flow rate
IP Rating: IP65

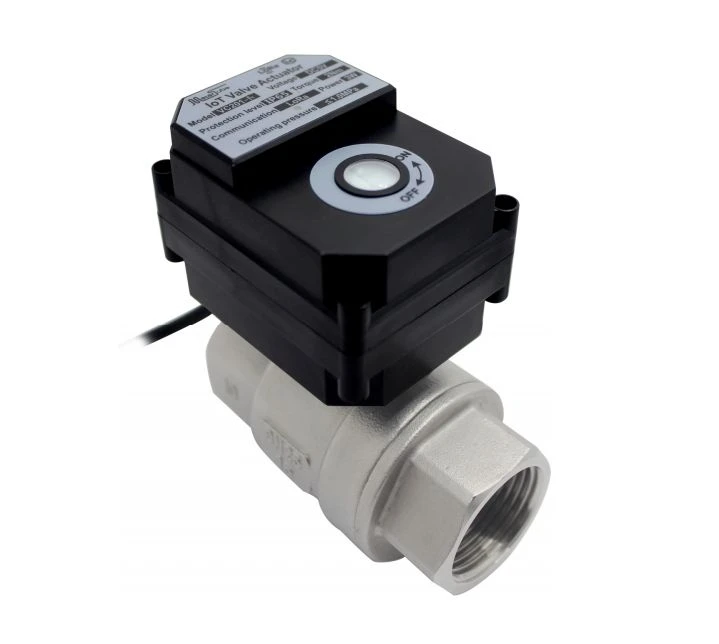

Product details
Product Applications
Chemical Processing
Farm Irrigation: Farm and gardening irrigation system flow control.
Household Water Management: Automatic garden & vegetable watering system control.
Building Water Management: Remote water & flow control management.
Aquaculture: Control the flow rate to meet various water demands for fish or shrimp.
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Our technically trained sales staff has extensive product knowledge as well as application and industry experience. This experience and specialization allows us to quickly recommend the most effective solutions to our customers, thus saving valuable time.
Gentos supports its customers with 30 years of manufacturing experience and expertise. Our sales staff is ready to provide comprehensive support at all levels of the business, from model selection, to on-site guided installation and operation, to post-product support.
Gentos has established a fast delivery system to ensure that customers can get the products they need when they need them. Generally, after receiving an order, Gentos can complete the delivery of the product within 2 to 3 days. Gentos supports a variety of transportation and express delivery methods.
FAQ
Q1: What are the features of this VC201 IoT valve actuator?
A1: Uses LoRa wireless communication technology and supports LoRaWAN communication protocol.
Q2: How does this product help make electric valves smart?
A2: Through the cloud server, users can remotely control the valve actuator, which facilitates the control of the water system.
Q3: What types of water systems is this product suitable for?
A3:Applicable to various water systems to help achieve intelligent control of valves.
Q4: How does this product improve the convenience of valve control?
A4:Users can remotely control IoT valve actuators on the PC through cloud services, thereby conveniently and quickly managing the water system.
Q5: What innovations does this product have in the field of electric valve intelligence?
A5:It is an innovative product in this field, realizing intelligent control of electric valves through LoRa technology.
