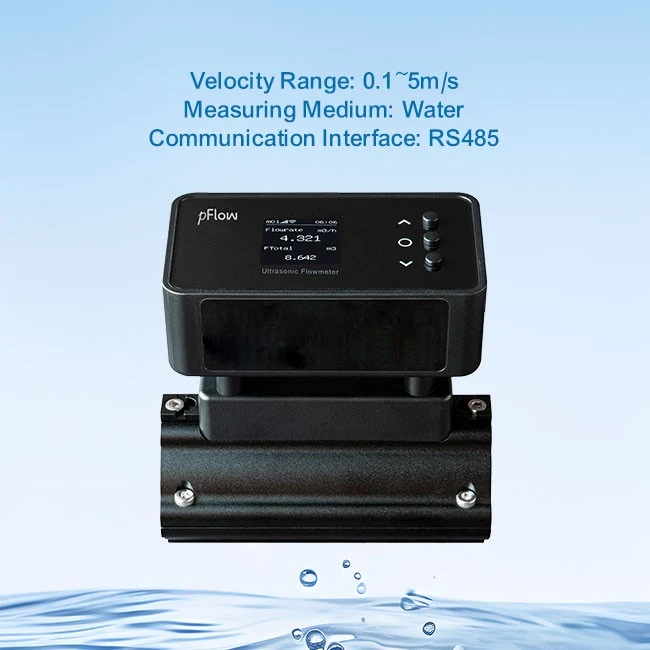

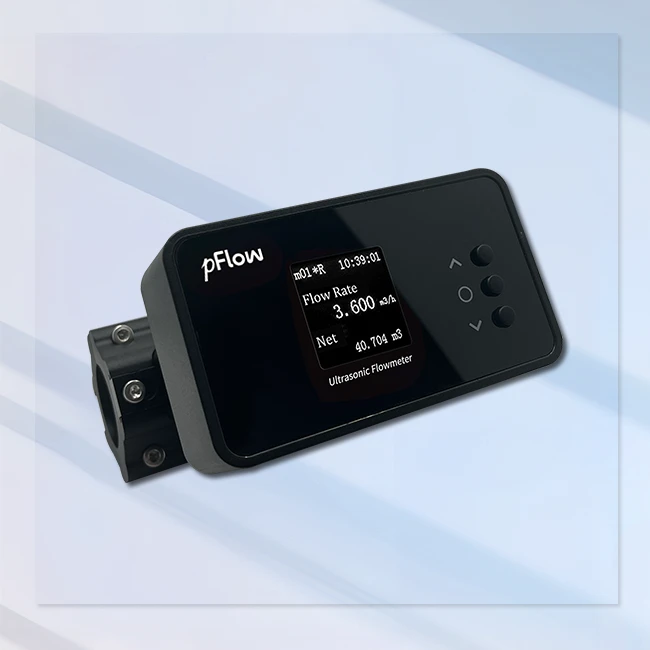

Ultrasonic Flowmeter Clamp On Type



The Ultrasonic flowmeter clamp on type is invented, with all-in-one Compact Design, which allows quick installation and convenient flow measurement. Non-invasive installation available, the sensors are installed outside the pipe. Easy to install and will not interrupt the manufacturing process. No pressure drop, low maintenance cost.





Performance	Function	Physical
Flow range: ±0 . 1ft/s- ±16ft/s (±0 .03m/s- ±5m/s)	Outputs: Analog output:4-20mA , Rs485 .	Transmitter: PC/ABS
Accuracy: ±2 .0%	Power supply: 10-36VDC/500mA	Keyboard: 3 touch Keys
Pipe size: DN20MM-DN80MM	Temperature: Ambient Temp:14℉- 122℉(- 10℃-50℃) Fluid/ Medium Temp:32℉- 140℉(0℃-60℃)	Display: 1 .44'' LCD
Fluid: Water		Protection Rate: Ip54
Pipe material: PVC , Carbon Steel , Stainless Steel , Copper	Humidity: Up to 99% RH , non-condensing	Cable Length: Power cable: standard length 2m







Ultrasonic flowmeter clamp on type play a crucial role in the field of water resources engineering, particularly in the operation of dams, reservoirs, and water channels. These devices are essential for accurate measurement and monitoring of water flow rates, ensuring efficient management and utilization of water resources.



In the context of dams and reservoirs, ultrasonic flowmeter clamp on type are utilized for various purposes. Firstly, they are used to measure the inflow and outflow rates of water, providing valuable data for water resource management. This information helps in determining the availability of water for irrigation, industrial use, and domestic consumption. Additionally, flow meters assist in monitoring the water level in reservoirs, ensuring that the water storage capacity is optimally utilized while preventing overflow or depletion.



Water channels, such as canals and irrigation systems, also rely on flow meters for effective water management. These devices are used to measure the flow rates of water in the channels, allowing for accurate calculation of the water volume delivered to different areas. This information is crucial for irrigation scheduling, ensuring that crops receive an adequate amount of water for optimal growth. Furthermore, flow meters help in detecting and addressing any leaks or losses in the water distribution system, promoting water conservation and reducing wastage.



The use of flow meters in water resources engineering extends beyond dams and water channels.





Clamp on type ultrasonic flow meter is an integrated structure design, which is easy to install through 6 screws, and has special insulation on the outside. The jacket reduces the hassle of field installation. It is unnecessary to cut the pipe, stop flow for installation and there is no pressure loss.



Our ultrasonic flow meter F2 has rich network functions, supporting Wi-Fi, 4-20mA output, Rs485, OCT/Relay, etc, with Cloud data storage and analysis management system. You can have access to "Gentos iCloud", or customize the version that connects to your own cloud system/ intelligent management system, realized unattended and unified administration.



The installation process consists of three sequential steps:

Step 1: Begin by removing the product, then securely attach the upper and lower pipe clamps onto the designated pipe for measurement.

Step 2: Proceed to insert the body into the slots of the upper pipe clamps and fasten them tightly. Additionally, ensure that the screws are properly tightened.

Step 3: To enhance the accuracy of the measurement, it is possible to configure the actual pipe outer diameter(OD), wall thickness, and pipe material parameters using the "Pipe Parameter Setting" menu potion.

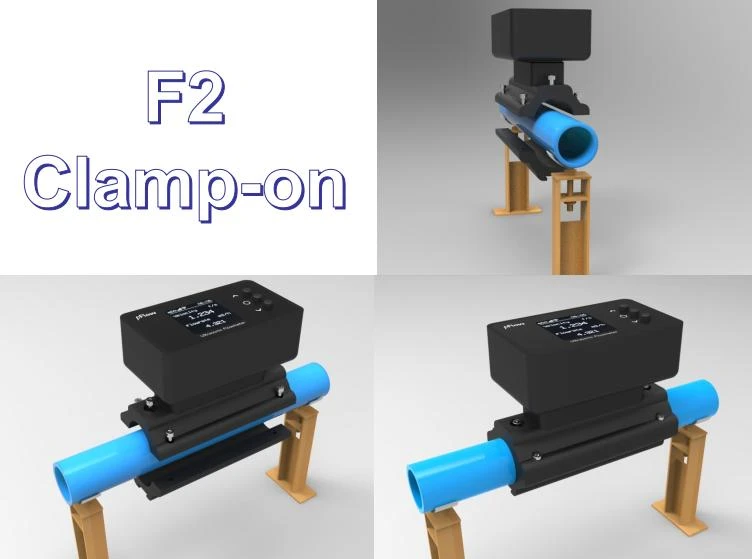

The installation steps can be based on the diagram below:





Gentos is dedicated to collaborating with customers to effectively utilize fluid resources, provide energy-saving and emission-reducing solutions, and ensure accurate measurement. Their ultrasonic flow meters have applications in various industries, including petroleum, water, chemical, thermal heat and power, and scientific research units. The success of their "transit time" patented technology has also allowed them to expand into cutting-edge fields.



Furthermore, Gentos prioritizes workforce growth through comprehensive training programs and transparent promotion procedures. They maintain a well-balanced team structure by nurturing experienced employees and gradually introducing managerial talent at different levels, ensuring the company's constant and robust development.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Advancing customer convenience, Gentos has revolutionized its delivery system, guaranteeing prompt acquisition of desired products. Consistently, Gentos expedites order processing and swift product dispatch within an efficient timeframe of 2 to 3 days. Enriched by a diverse array of transportation and express delivery methods, Gentos caters to the manifold needs of its customers.





Q: What is the difference between sonar and ultrasonic flow meter?

A: Sonar and ultrasonic flow meters have distinct applications and operational principles. Sonar is predominantly employed for underwater distance measurement and object detection through the utilization of sound waves. Conversely, an ultrasonic flow meter is specifically engineered for the quantification of fluid flow rates within pipes.



Q: What is the primary benefit of a clamp-on flow meter?

A: The clamp on type flow meter offers effortless installation and user-friendly data interpretation, enhancing the overall convenience of the customer experience.



Q: How do I choose a clamp meter?

A: The measurement range of our company's model is restricted to pipe diameters from DN20MM to DN80MM.



Q: What are the limitations of clamp meter?

A: Can measure the size of the pipe diameter is limited, our company this model can measure the size of the pipe diameter is DN20MM-DN80MM.



Q: What is the application of clamp on meter?

A: Our company's clamp on type flow meter can be utilized by customers in any scenario where water measurement is required, taking into account the pipe material and diameter.
