Swimming Pool Flow Meter



• No Piping Damaged & Less Maintenance Cost
• Handheld Portable Ultrasonic Water Flow Meter Pool
• High Precision ±1.0% & High Anti-jamming
• Pipe Size DN25-DN1200mm (1"-48")



The invention of handheld ultrasonic flow meter can be traced back to the early 1980s. At that time, with the progress of science and technology and the development of industrial automation, the demand for fluid flow measurement is increasing. The traditional flow meter has some limitations, such as the need to cut off the pipeline flow, susceptible to changes in the nature of the medium, measurement accuracy is limited.



To overcome these problems, researchers have begun to explore new measurement methods and technologies. Ultrasonic technology, as a non-invasive, high-precision measurement method, has attracted the interest of researchers. Ultrasonic technology utilizes the characteristics of sound wave propagation in fluids, and by measuring the propagation time and speed of sound waves, the flow rate and flow rate of a fluid can be calculated.



Based on ultrasonic technology, researchers have gradually developed various types of flow meters, including handheld ultrasonic flow meters. This type of flowmeter can be easily carried and operated by clamping or attaching the sensor to the surface of the pipe to achieve non-invasive flow measurement.



With the continuous progress of technology, handheld ultrasonic flowmeter in the measurement accuracy, data processing capabilities and portability has been significantly improved. Now, P117 Handheld Ultrasonic Flow Meter has been widely used in various fields, including Industrial Process Monitoring, Energy Management, HVAC, Swimming Pool,Water Management etc.

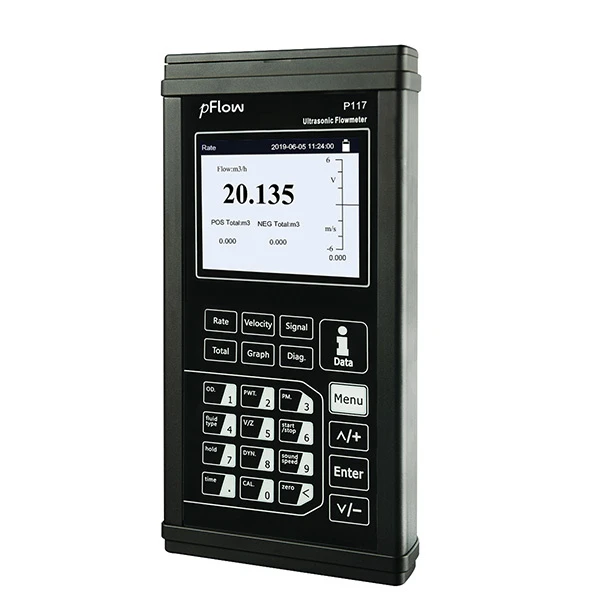

P117 Handheld Ultrasonic Swimming Pool Flow Meter is a high-precision, non-intrusive flow measurement device realized by using ultrasonic technology on the basis of improvement and innovation of the limitations of traditional flowmeters.





Specifications
Flow Rage	± (0.03~20) ft/s ± (0.01~6) m/s
Accuracy	± 1.0% of measured value
Repeatability	0.3%
Pipe Size	DN25-DN1200mm
Output	Analog output: 4-20mA, Max 750 Ω
SD Card	512 files Interval: 1~60 seconds
Power Supply	Rechargeable Lithium Battery Power (continuous operation of main battery 6 hours
Keypad	Tactile Keys
Display	3.5 inch TFT black and white screen( 320 × 240 ), backlit LCD
Temperature	Transmitter:-10℃~50℃ (-40°F to 176°F) Measuring medium: -40℃ ~80℃ (Standard)
Humidity	0~99% RH, non-condensing
Transmitter	NEMA13 (IP54)
Transducer	Encapsulated design, IP68 Standard cable length: 5m
Weight	Transmitter:lkg





Applications:HVAC,Industrial Wastewater Treatment,Sewage Treatment,RAS,Aquaculture,Environmental Protection & Energy Systems etc.



Humans consume large quantities of water and produce increasing amounts of wastewater. This places greater emphasis on environmentally responsible water treatment and the use of renewable resources. Wasted water presents sustainability challenges, depletes energy reserves, and undermines ecosystem health. Water and wastewater treatment facilities have complex operational processes that involve a wide range of flow measurement tasks. These applications require the highest flowmeter accuracy and reliability, as well as long-term stability and low cost. the Swimming Pool Flow Meter provides non-insertion measurements with simple installation and low maintenance costs. The Swimming Pool Flow Meter can be installed and seamlessly integrated into piping systems or production processes without intervention.



The P117 Swimming Pool Flow Meter is virtually maintenance free and will provide accurate measurement data for many years. Suitable for sizes DN25 to DN1200mm, it is largely independent of medium, pipe material and installation location.







Wiring



Data Output Wiring

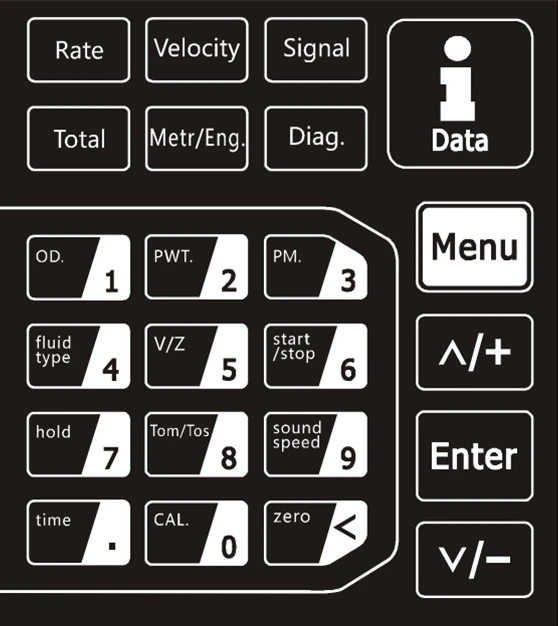

Keypad

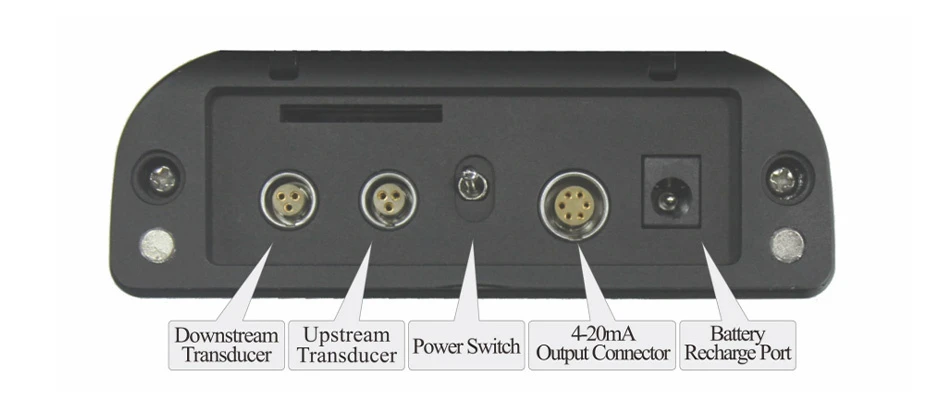

Wring Diagram





Gentos has been a reputable manufacturer of ultrasonic flow meters for more than three decades. They are known for their high-quality products and competitive pricing. As pioneers in the field of eco-friendly products and innovation, we work to raise the bar for the sector while maintaining affordable prices.



With unwavering determination, we shall persistently strive for advancements to elevate the caliber and amplify the performance of our burgeoning range of products.



Throughout the captivating journey of designing novel solutions, we diligently seek the invaluable insights of our esteemed patrons, cherishing their indelible contribution to our triumphant voyage.



Using this synergistic strategy to its full potential, we have skillfully carved out a distinct position for ourselves in an industry that desperately wants safety and performance to coexist peacefully.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





In its quest for customer-centricity, Gentos has devised an agile delivery system, ensuring timely product acquisition. Time and again, Gentos seamlessly executes order processing and product dispatch, aiming to deliver within a mere 2 to 3-day timeframe. Catering to varied customer preferences, Gentos extends an extensive array of transportation and express delivery alternatives.





Q: What kind of pipe material could be measured?

A: Usually for PVC,Stainless Steel,Carbon Steel,Copper etc.More detailed information please contact our sales department.



Q: What's the difference between P118i and P117 Swimming Pool Flow Meter?

A: (1)P117 has ±1.0% accuracy,while P118i has ±0.5% accuracy.

(2)P117 could measure DN25-DN1200mm,while P118i could measure DN25-DN1800mm.

(3)P117 has the black and white Scree,while P118i has the Colorful TFT LCD Screen.



Q: Can I replace the battery in P117? What is the typical battery life?

A: We don't recommend customers to replace the battery by themselves.

The life span is usually 3~5 years,but some of our customers have used it for 7~8 years.



Q: Why is the CL output abnormal?

A: (1)Check to see if the desired current output mode is set in Window M55.
(2)Check to see if the maximum and minimum current values are set properly in Windows M56 and M57.Re-calibrate CL and verify it in Window M49.

Q: Why is the flow rate still displayed as zero while there is fluid obviously inside the pipe and a symbol of "R" displayed on the screen?
A: Check to see if "Set Zero" was carried out with fluid flowing inside the pipe (Refer to Window M42). If it is confirmed, recover the factory default in Window M43.
