Cloud Service with LoRa Flow Meter

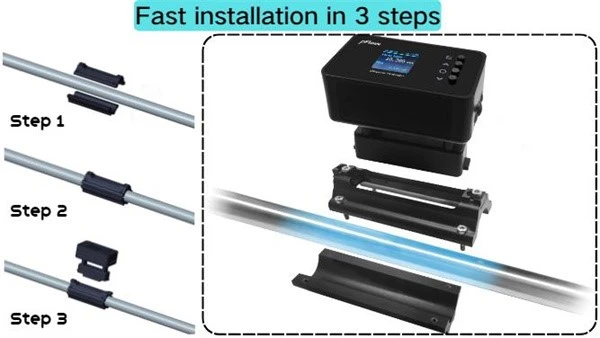

The F3R is unique in that it installs quickly with just four screws and has specially designed insulation for dependability. Especially, having RS485 and LoRa choices increases communication versatility and makes it easier to integrate into a variety of systems. Time and resources are saved since pipe cutting is not necessary with the clamp-on design. The LoRaWAN ultrasonic water meter is a flexible alternative for companies looking for dependable and effective flow meter solutions because of its connectivity choices and scalability.





Product Parameter
Flow Range:	0.03~5.0m/s	Accuracy:	±2% (1.0~16ft/s standard condition)
Repeatability:	0.2%	Pipe Diameter Range (Optional):	DN20~DN80 (21~91mm)
Measuring Medium:	Water	Pipe Material (Optional):	Carbon Steel, Stainless Steel, PVC, Copper
Outputs:	LoRa , RS485 (FUJI or MODBUS Protocol)	Power Supply:	10～36VDC/500mA (Available to wired power supply adapter)
Cable Wires	φ5 six core cable, standard length: 2m (Extension cable is available)	IP Rating:	IP54



Product Details	Payment & Shipping Terms
Place of Origin: Shenzhen, China	Minimum Order Quantity: 1
Brand Name: pflow	Packaging Details: Conventional Packaging
Certification: ISO:9001, ISO:14001, CE	Delivery Time: 1-3 working days
Model Name: F3R	Payment Terms: T/T
LoRa Frequency selection
EU868 Frequency: 863000000~865400000, unit: Hz
US915 Frequency: 902300000~914900000, unit: Hz
CN779 Frequency: 780100000~786500000, unit: Hz
EU433 Frequency: 433775000~434665000, unit: Hz
AU915 Frequency: 915200000~927800000, unit: Hz
CN470 Frequency: 470300000~489300000, unit: Hz
AS923(HK) Frequency: 920000000~925000000, unit: Hz





The cloud service with LoRa flow meter, equipped with LoRa long-range and RS485 communication, stands out for its efficiency. The clamp-on design facilitates swift installation without the need for pipe alterations, ensuring a seamless and quick setup. This feature not only saves time but also minimizes disruptions to ongoing processes. With LoRa technology, the meter provides reliable long-range communication, adding to its versatility and making it an ideal choice for industries that prioritize fast and convenient flow meter installations.





The F3R LoRaWAN Ultrasonic Water Meter stands out with its versatility, finding applications across diverse sectors. In HVAC systems, precise measurements are essential for optimal performance. Building automation systems and smart water flow meters benefit from its easy installation and reliable data collection. For farming irrigation systems, the F3R ensures accurate flow measurements, contributing to efficient water distribution. Residential water supply systems and cleaning systems also value the F3R's capabilities for precise monitoring without disruptions. In recirculating aquaculture systems, where water quality is crucial, the F3R serves as a reliable solution for accurate flow measurement. Its adaptability makes it a valuable asset in various scenarios, providing efficient and precise water flow monitoring.





With its sturdy ABS+PC build, the F3R LoRaWAN Ultrasonic Water Meter guarantees dependability and longevity. Its adaptability is further enhanced by the range of pipe diameters it can handle, spanning from DN20 to DN80. The meter is appropriate for a variety of locations because of its IP54 classification, which provides an additional layer of protection against dust and water. Because of its IP54 certification, robust construction, and capacity to function in this range of pipe diameters, the F3R is positioned as a flexible and trustworthy option for accurate water flow measurements in a variety of applications.







Gentos, a renowned company with a rich history of thirty years, is a pioneer in the manufacturing of ultrasonic flow meters. We are widely recognized for our exceptional craftsmanship and competitive pricing, making us a leader in the industry.



Our relentless dedication to innovative solutions and environmental sustainability sets new standards for the industry, without compromising affordability.



We constantly strive to enhance the quality and performance of our evolving product range, ensuring that our focus remains unwavering.

By combining reliability and efficiency, Gentos has successfully carved a unique position in the market, offering a seamless fusion of these qualities.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Driven by a dedication to unparalleled customer service, Gentos has implemented an expedited delivery system, guaranteeing prompt product provision. Devotedly, Gentos expedites order processing and swift product dispatch within an astonishing turnaround time of 2 to 3 days. Providing a comprehensive array of transportation and express delivery alternatives, Gentos goes above and beyond to surpass customer expectations.





Q: What is LoRa water meter ?

A: Cloud service with LoRa flow meter utilizes Long Range wireless technology for remote water consumption monitoring, enabling efficient resource management and conservation.



Q: What is LoRa module ?

A: A LoRa module is a hardware component that integrates Long Range (LoRa) communication technology for wireless data transmission over extended distances.



Q: What is difference between LoRa and LoRaWAN ?

A: LoRa is the wireless communication technology for long-range, low-power devices. LoRaWAN is the network protocol built on LoRa, defining communication within wide-area networks for IoT devices.



Q: Can you use LoRa without LoRaWAN ?

A: Yes, LoRa can be used without LoRaWAN. LoRa is the underlying wireless communication technology, and it can be employed in point-to-point or point-to-multipoint configurations for private, localized communication without utilizing the LoRaWAN network protocol.
