Clamp On Ultrasonic Water Flow Meter



Clamp on ultrasonic water flow meter F3 is designed for catering to the small pipe size of PVC, carbon steel, stainless steel, copper which can be widely used in HVAC chilled water system, building automation system, farming irrigation system, residential water supply system, cleaning system, recirculating aquaculture system(RAS), etc. It is very easy to install, the installation only needs 30s at fast. The compact structure, is suitable for various narrow working environments.





Performance	Function	Physical

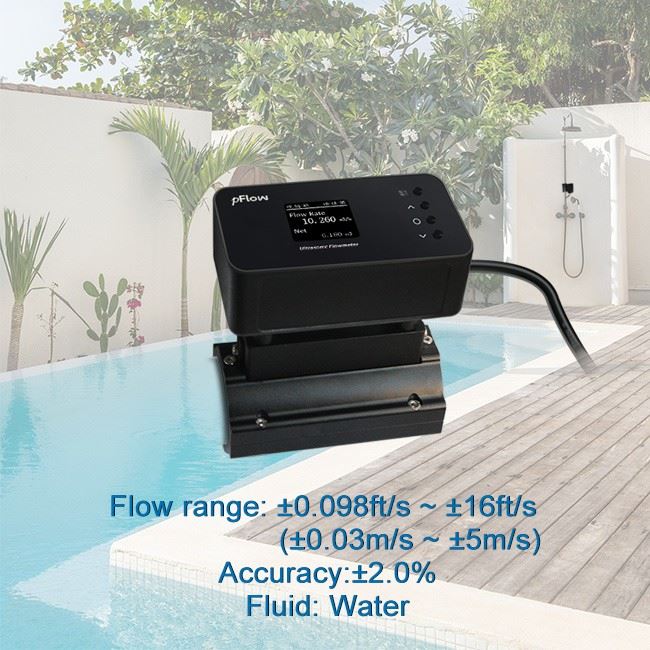

Flow range: ±0 . 098ft/s- ±16ft/s (±0 .03m/s- ±5m/s)	Outputs: Analog output:4-20mA , Rs485 .Wi-Fi, OCT Pulse Relay	Transmitter: PC/ABS
Accuracy: ±2 .0%	Power supply: 10-36VDC/500mA	Keyboard: 3 touch Keys
Pipe size: DN20MM-DN80MM	Temperature: Ambient Temp:14℉- 122℉(- 10℃-50℃) Fluid/ Medium Temp:32℉-140℉(0℃-60℃)	Display: 1 .44'' LCD
Fluid: Water		Protection Rate: Ip54
Pipe material: PVC , Carbon Steel , Stainless Steel , Copper	Humidity: Up to 99% RH , non-condensing	Cable Length: Power cable: standard length 2m







Clamp on ultrasonic water flow meters play a important role in the cooling system industry. In this sector, accurate measurement and monitoring of water flow rates are essential for efficient operation and maintenance.

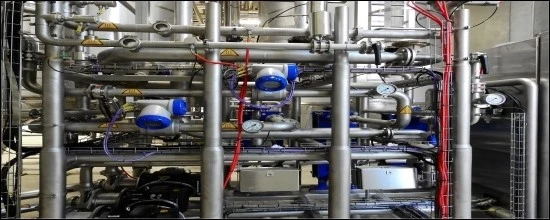

Cooling System are widely used in industries such as power generation, manufacturing, and HVAC. These systems remove excess heat from equipment or processes to maintain optimal operating temperatures. Water is commonly used as a cooling medium due to its excellent heat transfer properties.



Accurate flow measurement in cooling systems is crucial for several reasons:

Efficiency: Proper flow rate control ensures efficient heat transfer, maximizing cooling system performance.

Maintenance: Monitoring flow rates helps identify any abnormalities or blockages that may hinder system operation.

Energy Savings: Optimizing flow rates can lead to energy savings by reducing pump power requirements.



Ultrasonic flow meters utilize ultrasonic waves to measure flow velocity. They are non-intrusive and can be installed externally, making them convenient for retrofitting into existing cooling systems. Ultrasonic flow meters are suitable for a wide range of pipe sizes and offer excellent accuracy.

Accurate flow measurement allows for precise control of cooling water flow rates, optimizing heart transfer and improving system efficiency.

Flow meters provide real-time data on water flow rates, enabling operators to identify any deviations from normal operating conditions promptly.

By monitoring flow rates, flow meters help detect issues such as blockages or leaks, allowing for proactive maintenance and preventing costly system failures.

Optimizing flow rates based on accurate measurements can lead to energy saving by reducing pump power consumption.

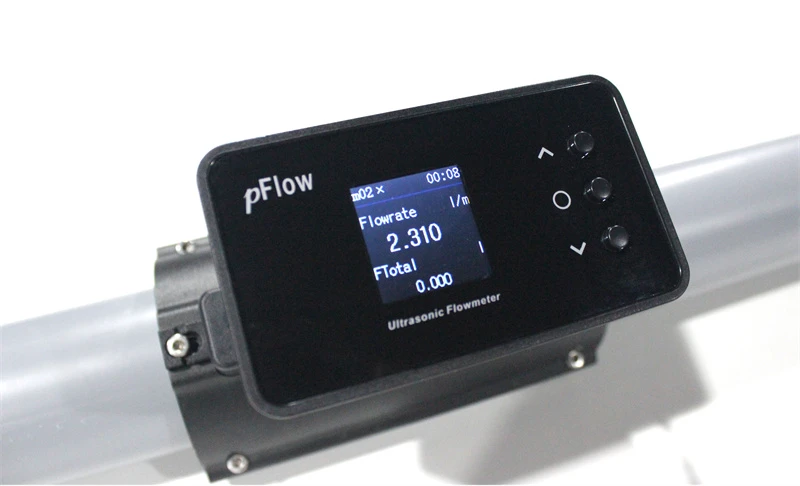

Clamp on ultrasonic water flow meter is an integrated structure design, which is easy to install through four screws, and has special insulation on the outside. The jacket reduces the hassle of field installation. It is unnecessary to cut the pipe, stop flow for installation and there is no pressure loss. Clamp on ultrasonic water flow meter also has rich network functions, supporting Wi-Fi, 4-20mA output, etc, with Cloud data storage and analysis management system. You can have access to"Gentos iCloud", or customize the version that connects to your own cloud system/ intelligent management system, realized unattended and unified administration.





Gentos is committed to collaborating with clients to effectively utilize fluid resources, offering comprehensive solutions for energy conservation, emission reduction, minimizing fluid resource utilization losses, precise measurement, and enhancing the efficient utilization of fluid resources.



Gentos ultrasonic flowmeter applications in addition to the traditional petroleum industry, the water industry, the chemical industry, the city of thermal heat and power industry, measurement of scientific research units, by virtue of its "transit time" patented technology has also been successfully applied to other cutting-edge fields.



At the same time, Gentos also pays attention to the development of employees, providing them with a clear promotion system and comprehensive training opportunities.



In the team structure, in addition to continuously cultivate the growth of the old staff, but also gradually introduced various levels of management personnel, reasonable old and new collocation, so that the development of the Jianheng company grows more steadily.

Gentos is known for its innovative approach to finding the greatest fluid measurement technologies and applications for humankind and turning them into guidelines and standards for the fluid measurement industry.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





In its unwavering pursuit of customer satisfaction, Gentos has established a swift delivery system, ensuring timely product delivery. With utmost efficiency, Gentos expedites order processing and swift product dispatch, aspiring to complete the delivery process within a commendable 2 to 3-day timeframe. Offering an expansive selection of transportation and express delivery options, Gentos strives to go above and beyond in catering to customer needs.





Q: Do ultrasonic flow meters need calibration?

A: Our ultrasonic flow meter undergoes calibration during the manufacturing process, and we possess a certification that validates the quality of our product. The certificate serves as evidence of our product's compliance with the required standards.



Q: Where is ultrasonic flow meter used?

A: Based on the specific pipe diameter and material, there is a need for water measurement, which can be fulfilled by utilizing an ultrasonic flow meter.



Q: Why use a clamp meter?

A: The ultrasonic flow meter is characterized by its ease of installation and adaptability to various application scenarios. Customers can conveniently install and switch the meter based on their specific requirements and changing circumstances.



Q: What are the parameters of ultrasonic flow meter?

A: Every product comes with suitable specifications, and customers have the option to reach out to our customer service team or refer to the product page for details.



Q: Can ultrasonic flow meter measure air flow?

A: At present, our company's existing product is specifically designed for precise water measurement, while it is not equipped to accurately measure gas.
