Product Introduction

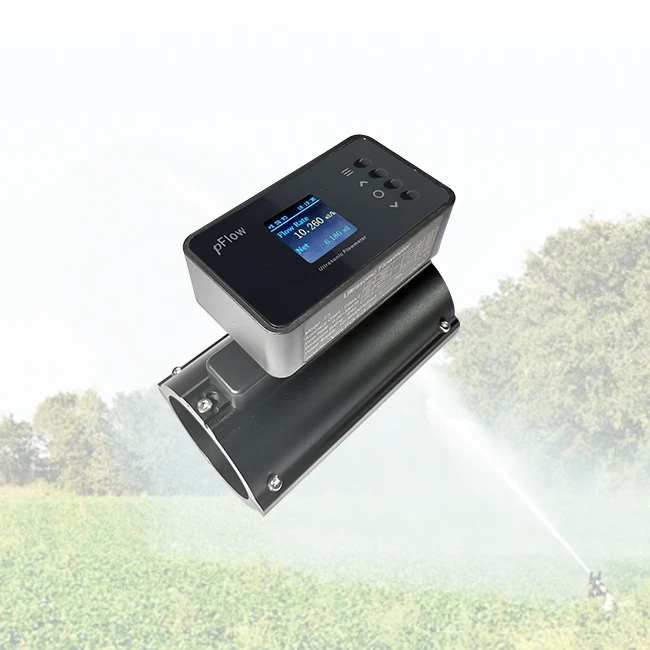

Ultrasonic Flow Water Meter( OCT Pulse+Relay/OCT Pulse+RS485/RS485+Relay)
High-precision Measurement: OCT Relay adopts advanced ultrasonic technology, which can realize high-precision flow measurement. Its precise sensors and algorithms provide accurate flow data to meet application scenarios that require high accuracy in flow measurement.
Wide Range Measurement: The OCT Relay is capable of measuring over a wide range of flow rates, making it suitable for applications with different flow levels. It can measure from low to high flow rates with a wide measurement range.
Non-Invasive Installation: The OCT Relay is an external clamp-on ultrasonic flow meter that can be installed and maintained without interrupting pipe flow. It does not require piping cuts or changes in piping configuration, reducing the difficulty and cost of installation and maintenance.
Multiple Output Interfaces: OCT Relay supports multiple output interfaces, including RS485, Pulse etc. These interfaces can be connected with different control systems and devices for easy data transmission and integration.
High Stability and Reliability: OCT Relay has good stability and reliability, and can maintain accurate measurements in long-time operation and harsh environments. It adopts advanced signal processing technology and anti-interference design to resist the influence of electromagnetic interference and noise.
Easy To Operate and Maintain: OCT Relay has an easy-to-use operation interface and parameter setting function, which allows users to configure and adjust conveniently.
Product Parameter
|
Specifications |
|
|
Flow Velocity |
0.1~16ft/s (0.03~5.0m/s) |
|
Accuracy |
±2%,(1.0~16ft/s) |
|
Repeatability |
0.2% |
|
Pipe Size |
DN20-DN80mm |
|
Medium |
Water |
|
Pipe Material |
Carbon Steel, Stainless Steel, Copper, PVC |
|
Communication Interface |
OCT Pulse & Relay, RS485(standard) Support FUJI Protocol and MODBUS Protocol |
|
Output |
OCT&Relay |
|
Power Supply |
10～36VDC/500mA |
|
Keyboard |
4 physical keys |
|
Display Screen |
1.44 " LCD color screen, resolution 128 * 128 |
|
Temperature |
Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ). |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
IP |
IP54 |
|
Transmitter |
Integrated |
|
Transducer |
Clamp on |
|
Cable |
φ5 six core cable, standard length: 2m |
Product Application
- HVAC,Washing Machine,Tap Water
- Modern Agricultural Irrigation,Garden Irrigation,Water In Production Process
- Industrial Circulating Water,Reclaimed Water,Pure Water/Ultra Pure Water
- Swimming Pool,Laundry Industry,Aquaculture,Fish Farm etc
Ultrasonic Flow Water Meter can accurately measure the flow rate of water used in the home, helping households with water metering and billing. By monitoring water flow, households can better manage their water use, control water costs, as well as be reminded to conserve water. With the external clamp-on mini-meter flow meter, households can monitor and record water consumption in real time to understand their water use habits and consumption. This helps families to plan their water use rationally, avoid wastage and promote the sustainable use of water resources.
Ultrasonic Flow Water Meter can monitor flow changes in household water pipes, and when there are abnormal flow fluctuations, it may mean that the water pipes are leaking or otherwise malfunctioning. With timely detection, households can quickly identify and fix problems to avoid water damage and waste. External clamp-on mini-meter flow meters can be used to monitor the working condition of a home's water supply system to ensure that water pressure and flow are within normal limits. This helps to protect the safe operation of a home's water system and prevent problems caused by high or low water pressure.
Ultrasonic Flow Water Meter also can record and store water consumption data, which can be analyzed by households to understand water consumption habits and trends, further optimizing water consumption behaviors and achieving water conservation and environmental protection goals.
Product Details
Transmitter Dimension
Meter Wiring
Installation Steps
Display Description
Product Qualification
Gentos understands that in order to stay ahead in a rapidly evolving market, continuous improvement is essential. They invest significant resources in research and development to stay at the cutting edge of technology and innovation. By constantly pushing the boundaries of what is possible, Gentos strives to provide their customers with the most advanced and efficient ultrasonic flow meters available.
In addition to their commitment to innovation, Gentos also places great emphasis on environmental sustainability. They actively seek out eco-friendly solutions and integrate them into their product design and manufacturing processes. By doing so, Gentos not only contributes to a greener future but also helps their customers meet their sustainability goals.
Gentos' dedication to excellence, their collaborative approach with customers, and their commitment to innovation and sustainability have cemented their position as a leader in the industry. As they continue to evolve and adapt to the changing needs of their customers, Gentos remains focused on providing comprehensive solutions that optimize fluid resource utilization, preserve energy, and contribute to a sustainable future.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Gentos is dedicated to customer-centricity and has implemented an expedited delivery system to ensure prompt product distribution. Gentos expedites order processing and swift product dispatch, striving to complete the process within an efficient 2 to 3-day window. With an extensive selection of transportation and express delivery methods, Gentos caters to the unique demands of every customer.
FAQ
Q: What's the resolution of the Ultrasonic Flow Water Meter?
A:For 1.44 " LCD color screen, resolution 128 * 128.
Q: If we need the sample for the Ultrasonic Flow Water Meter,How long that we could receive the products?
A:For 1~2 days,according to the different products and the quantity.
Q: If we need to measure SS for DN50~DN80mm,could we use F3RO Ultrasonic Flow Water Meter?
A:Our F3RO flow water meter just could measure DN20,DN25,DN32,DN40,DN50,
DN65,DN80.Considering your requirement,we suggest that could consider our D116,P118i and P117.
Q: Could we use F3RO Ultrasonic Flow Water Meter to measure Gas or Oil?
A:Our F3RO ultrasonic flow water meter just could measure water,no Gas and Oil.
Q: Could we do our own brand for the Ultrasonic Flow Water Meter?
A:Yes!We support OEM and could do your own brand based on the customization cost.
