Brief Introduction
|
Accuracy: |
±3% of FS |
Pipe Size: |
DN15-50 |
|
Output: |
RS485, 4-20mA |
Medium Temperature: |
0℃~85℃ |
Product Introduction

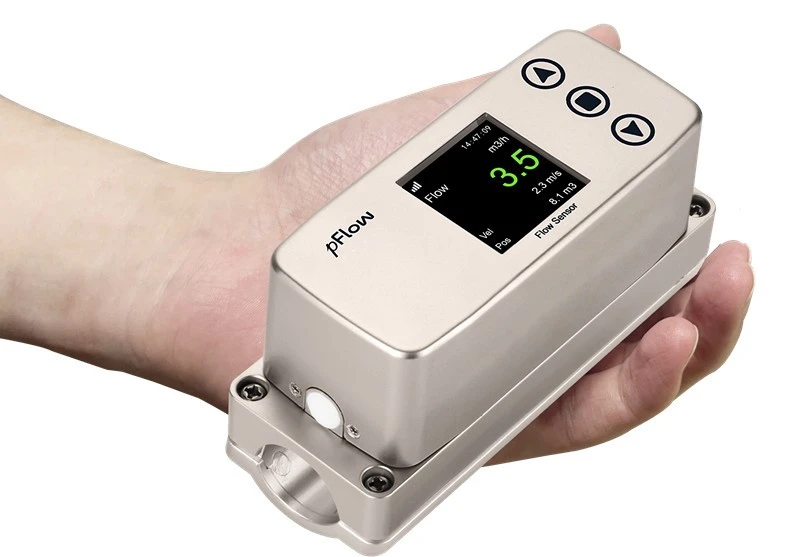

The GF-SH-CL Ultrasonic Flow Sensor enables fast, non-invasive measurement of water flow in existing irrigation pipelines, ideal for smart agriculture applications. It provides real-time flow rate and totalized usage, helping users prevent over-irrigation and improve water efficiency.
Key Advantages:
No Pipe Modification Required

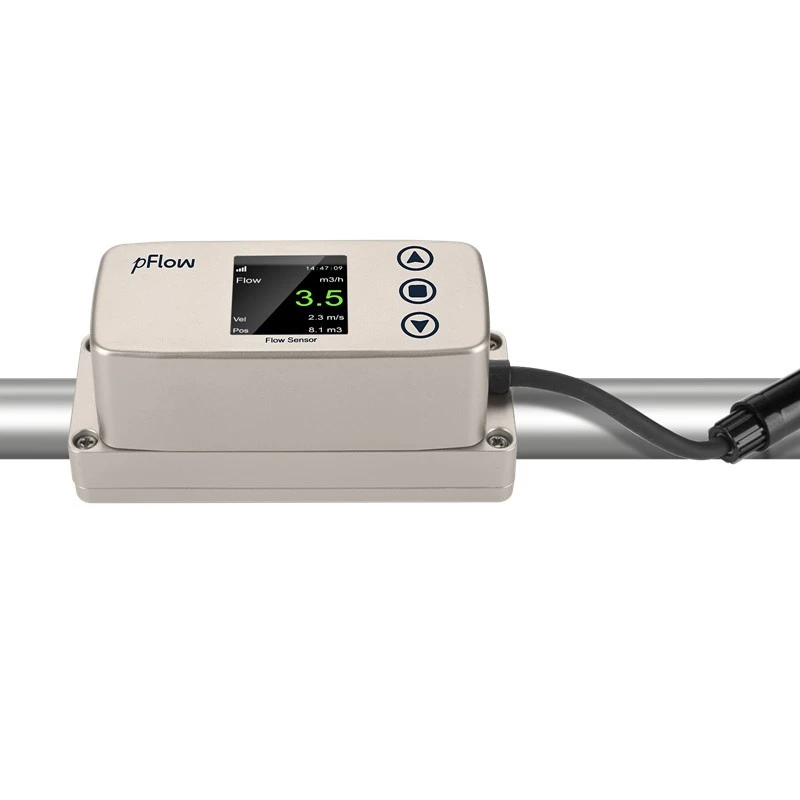

Clamp-on design allows quick installation without cutting or disrupting the pipeline.
Real-Time Monitoring
Instant access to flow velocity and total water usage for precise irrigation control.
High Compatibility
Supports pipe sizes DN15–DN50 and materials like stainless steel, suitable for most agricultural systems.
Characteristics
①Permanent coupling pads design,less maintenance cost.
②Reusable for various materials,less purchase cost.
③Comprehensive & Intuitive Display:Include date,flow,velocity,etc. Clear reading with color fonts in dim light.
- Agriculture and irrigation systems, Modern Agriculture, drop irrigation, Gardening
- Recirculating aquaculture systems, RAS, Aquaculture Services
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Energy management and environmental monitoring
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
Technical Parameters
|
Performance Index |
|
|
Velocity Range |
0.1~16ft/s (0.03~5.0m/s) |
|
Accuracy |
±3% of FS |
|
Pipe Size |
DN15,DN20,DN25,DN32,DN40,DN50 |
|
Medium |
Water |
|
Pipe Material |
Stainless steel |
|
Function Index |
|
|
Communication Interface |
RS485, Support MODBUS Protocol |
|
Output |
4-20mA |
|
Power Supply |
10～36VDC/500mA |
|
Keyboard |
3 keys |
|
Display Screen |
1.54" LCD color display, resolution 240*240 |
|
Temperature |
Transmitter:14°F to 122°F(-10℃~50℃) |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
IP |
IP54 |
|
Physical Characteristics |
|
|
Casing Material |
PC engineering plastic |
|
Clamp Material |
PC engineering plastic |
|
Transducer |
Clamp On |
|
Cable |
φ 5 black six-core shielded cable with self-locking connectors, standard length: 4m |
Body Parameters
Installation
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track water usage?
A: Yes, it's designed to monitor and track water usage, detecting leaks in real time and helping manage water budgets effectively.
