Brief Introduction
MP Series use Gentos' original patented technology to simplify the operation and use of flowmeter.The product is designed with an integrated clamp-on structure.User only needs to clamp the mini flow meter on the pipe section tested,then use nylon cable tie to lock it automatically.The installation is completed quickly that breaks by the complicated installation and use of mini flow meter.
Product Introduction
● Easy to Install & No Pipe Damaged
● WiFi Communication & Realize Cloud Data Storage
● App Remote Monitoring and Measuring
Product Parameter
1) Body Parameters

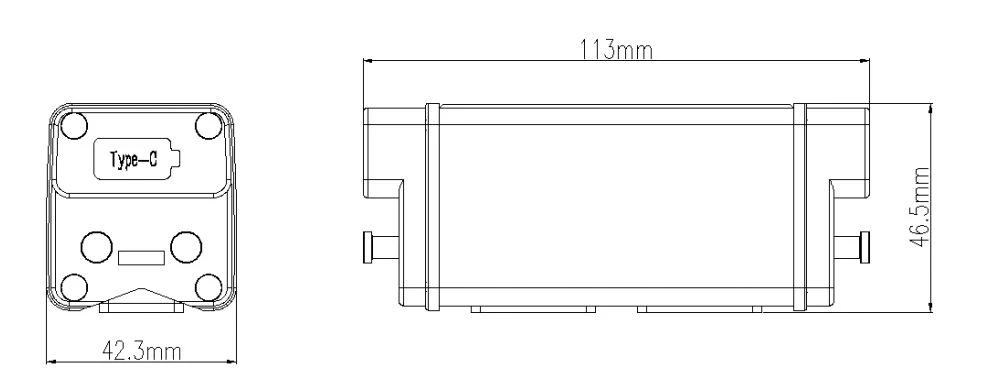

Transmitter Dimension
Max Dimension: 113mm*42.3mm*46.5mm
Installation Diagram
Use nylon self-locking cable ties to fix both ends of the meter
2) Appearance
Display and Settings
3)Technical Parameters
|
Performance Index |
|
|
Flow velocity |
0.03~5.0 m/s |
|
Pipe Size |
DN20,DN25,DN32 |
|
Measured medium |
Water |
|
Pipe Material |
Carbon Steel, Stainless Steel, Copper, PVC (According to the user's model selection, the model has been determined at the time of delivery.) |
|
Temperature |
Transmitter installation ambient temperature: Class A, 5~55℃ The temperature of the medium measured by the sensor: 0℃~60℃ |
|
Functional Index |
|
|
Input |
Type-C (Power Supply, Charge, Communication) |
|
Output |
Type-C (Communication) |
|
WIFI |
Frequency Range：2400~2483.5MHz Theoretically up to 40 meters transmission distance in open environment |
|
Power supply |
Externally Connected with 5V, 1A power adapter; Built-in 3.7V lithium battery (optional) |
|
Key |
2 touch keys |
|
Display screen |
0.96" LCD Display Screen Resolution 80*160 |
|
Humidity |
Relative humidity 0~99%, No condensation |
Product Applications

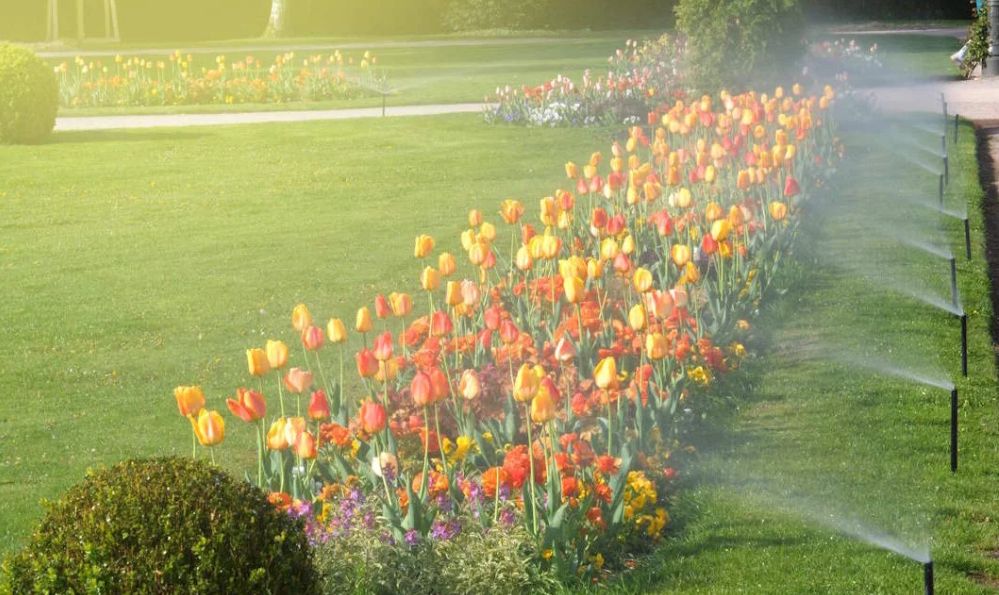

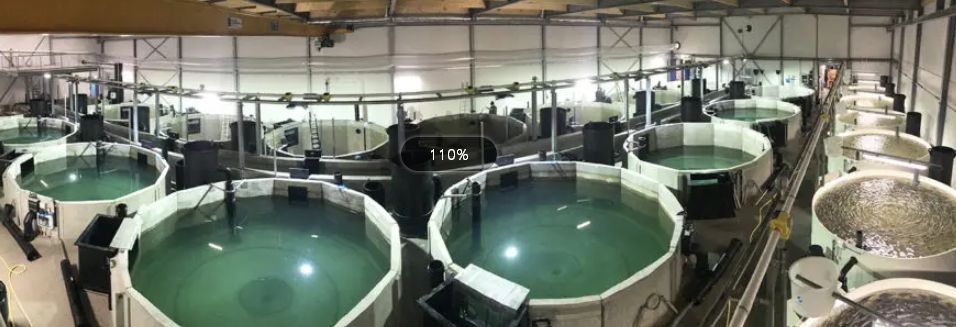

Applications:Household Water,Building Water,Municipal Garden Irrigation,Dormitory Water,Golf Course,Gardening,Aquaculture,Farm Irrigation,Automatic Car Wash etc.
Mini Flow Meter MP is designed with an integrated clamp-on structure,no pipe damaged,easy to install.With real-time monitoring function, can provide timely feedback data to help users quickly find problems and take appropriate measures to improve the response speed and efficiency of the system.Mini Flow Meter MP typically have lower energy consumption and can operate stably for longer periods of time, reducing the frequency of battery replacement or recharging and lowering maintenance costs.
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q1: What is the purpose of a rotameter?
A1: The purpose of a rotameter is to measure the flow rate of a fluid (liquid or gas) passing through a pipe or tube. Rotameters are simple and cost-effective flow meters that rely on the principle of variable area flow measurement. The key components of a rotameter include a tapered tube through which the fluid flows, a float or ball that moves up and down based on the flow rate, and a scale to read the flow rate.
Q2: Why does rotameter need to be mounted vertically?
A2: Rotameters are typically designed to be mounted vertically because the float or ball inside the tube relies on the force of gravity to accurately indicate the flow rate of the fluid passing through the tube. When mounted vertically, gravity ensures that the float or ball moves freely and responds accurately to changes in flow rate.
Q3: What is the difference between a flowmeter and a rotameter?
A3:Flowmeters are more versatile and accurate instruments for measuring flow rates, while rotameters are simpler devices that provide a visual indication of flow rate but may have limitations in accuracy and range. The choice between a flowmeter and a rotameter depends on the specific requirements of the application and the level of accuracy needed for the flow rate measurement.
Q4:How does a rotameter measure flow rate?
A4:A rotameter measures flow rate by utilizing the principles of buoyancy and flow resistance to indicate the flow rate of a fluid based on the position of a float or ball within a tapered tube. It is a simple and cost-effective flow measurement instrument suitable for applications where accurate flow rate indication is sufficient.
Q5: How to adjust the rotameter?
A5: Adjust the measuring range of the rotameter according to your needs and fluid properties. The measuring range can be adjusted by changing the position of the float by turning the adjusting screw or adjusting the valve.
