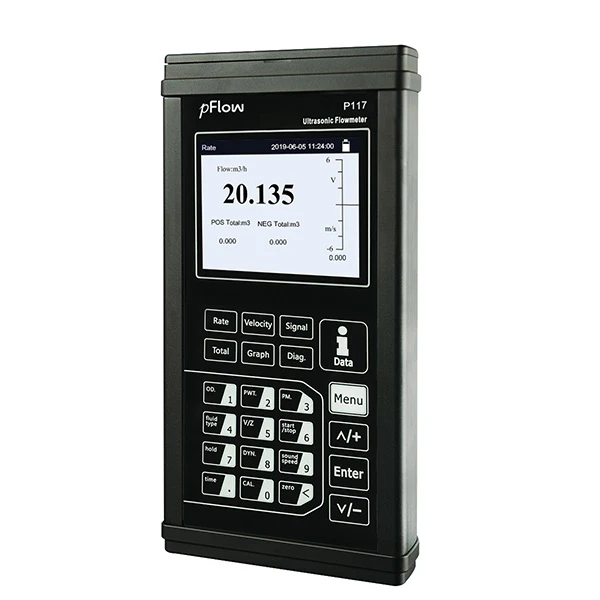

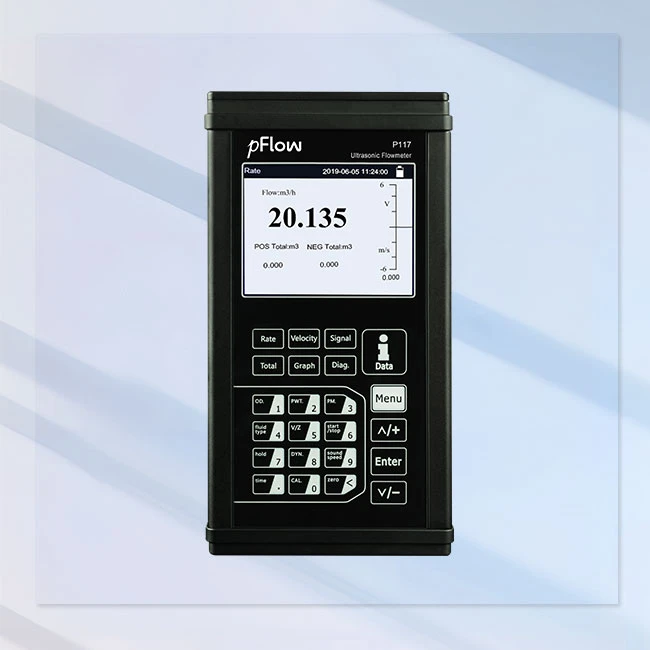

Water Flow Meter Pool



● No Piping Damaged & Less Maintenance Cost

● High Precision ±1.0% & High Anti-jamming

● Pipe Size DN25-DN1200mm (1"-48")





Specifications
Flow Range	± (0.03~20) ft/s ± (0.01~6) m/s
Accuracy	± 1.0% of measured value
Repeatability	0.3%
Pipe Size	DN25-DN1200mm
Output	Analog output: 4-20mA, Max 750 Ω
SD Card	512 files Interval: 1~60 seconds
Power Supply	Rechargeable Lithium Battery Power (continuous operation of main battery 6 hours
Keypad	Tactile Keys
Display	3.5 inch TFT black and white screen( 320 × 240 ), backlit LCD
Temperature	Transmitter:-10℃~50℃ (-40°F to 176°F) Measuring medium: -40℃ ~80℃ (Standard)
Humidity	0~99% RH, non-condensing
Transmitter	NEMA13 (IP54)
Transducer	Encapsulated design, IP68 Standard cable length: 5m
Weight	Transmitter:lkg





Applications:HVAC,Industrial Wastewater Treatment,Sewage Treatment,RAS,

Aquaculture,,Environmental Protection & Energy Systems etc.

High Accuracy Water Flow Meter without direct contact with the fluid, through the sensor clamped on the outside of the pipe for measurement, will not interfere with the fluid or pollution. It adopts ultrasonic technology for flow measurement, which has high precision and stability.Also can accurately measure different types of fluids, including liquids and the fluid temperature, pressure and viscosity changes have less impact.Also can be adapted to different pipe sizes and pipe materials, and has a large measuring range. It can measure from small diameter pipes to large diameter pipes, suitable for a variety of specifications of the water treatment system.It usually has good long-term stability and reliability. They use advanced sensors and signal processing technology, can be used over a long period of time to maintain accurate measurement results, not easily affected by the external environment.



High Accuracy Water Flow Meter offer the advantages of non-invasive measurement, high accuracy measurement, wide range measurement, long-term stability and remote monitoring and control in water treatment applications. They provide reliable flow data for water treatment systems, helping to optimize the treatment process and improve efficiency and quality.

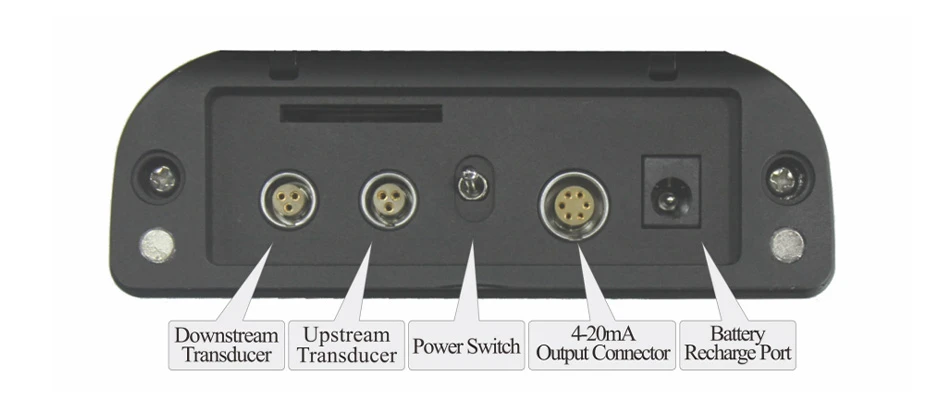

Wiring

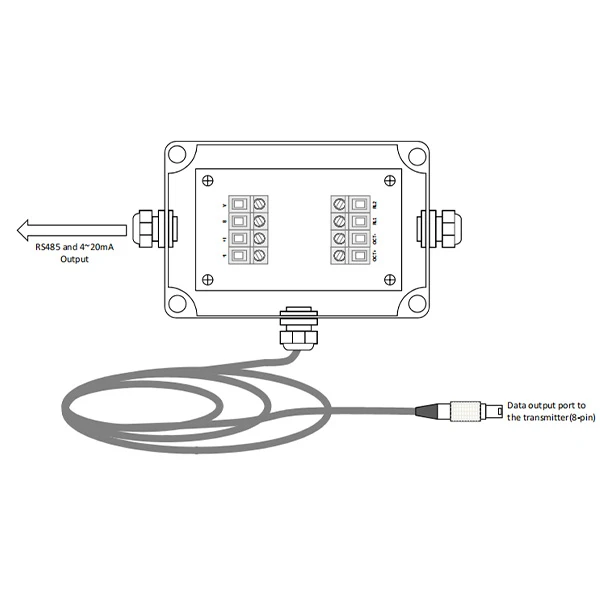

Data Output Wiring

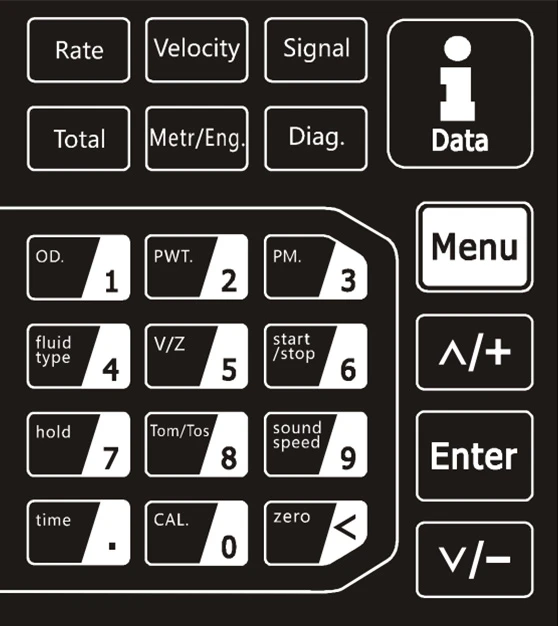

Keypad

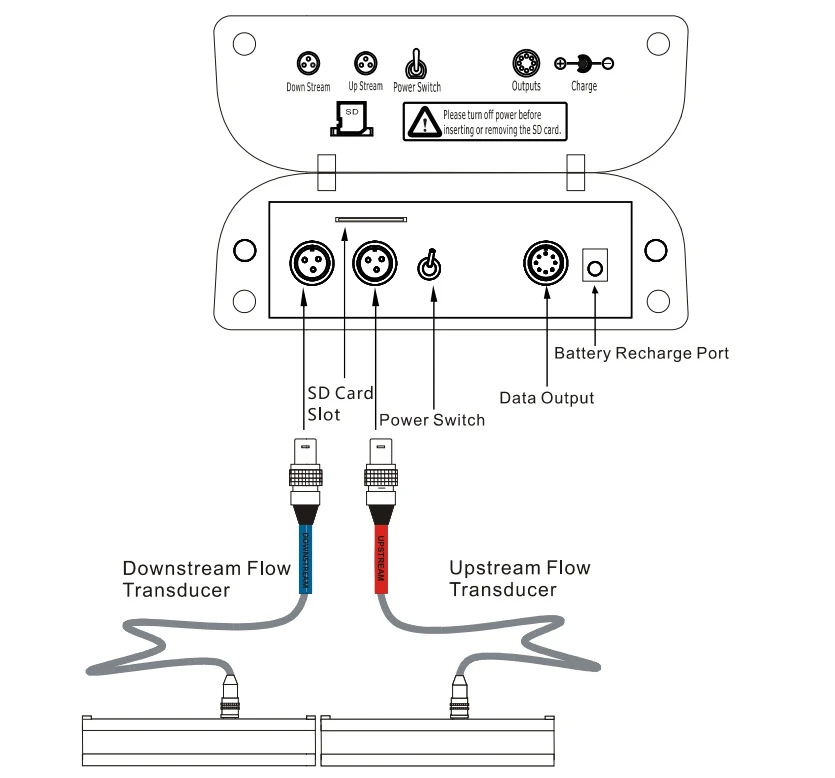

Wring Diagram







Before installing the transducers, clean the pipe surface where the transducers are to be mounted. Remove any rust, scale or loose paint and make a smooth surface. Choose a section of sound conducting pipe for installing the transducers. Apply a wide band of sonic coupling compound down the center of the face of each transducer as well as on the pipe surface, ensure there are no air bubbles between the transducers and the pipe wall, and then attach the transducers to the pipe with the straps provided and tighten them securely.



Note:

1.The two transducers should be mounted at the pipe's centerline on horizontal pipes. Make sure that the transducer mounting direction is parallel with the flow.

2.During the installation, there should be no air bubbles or particles between the transducer and the pipe wall. On horizontal pipes, the transducers should be mounted in the 3 o'clock and 9 o'clock positions of the pipe section in order to avoid any air bubbles inside the top portion of the pipe.

3.If the transducers cannot be mounted horizontally symmetrically due to limitation of the local installation conditions, it may be necessary to mount the transducers at a location where there is a guaranteed full pipe condition(the pipe is always full of liquid)



Gentos is committed to collaborating with clients to effectively utilize fluid resources, offering comprehensive solutions for energy conservation, emission reduction, minimizing fluid resource utilization losses, precise measurement, and enhancing the efficient utilization of fluid resources.

With the successful application of its transit-time patent technology, Gentos' ultrasonic flow metres find applications not only in traditional industries like the petroleum, water resources, chemical, urban heating, and power industries, but also in research institutions for measurement purposes.

At the same time, Gentos also pays attention to the development of employees, providing them with a clear promotion system and comprehensive training opportunities.

In terms of team structure, Gentos cultivates the advancement of seasoned workers while also introducing managerial talent gradually at different levels, resulting in a well-balanced mix of new and seasoned staff members to guarantee the company's constant and robust development.

Innovation is the hallmark of Gentos as we continuously search for the best fluid measurement technologies and applications for humanity, transforming them into standards and regulations for use in the field of fluid measurement.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





1.What kind of pipe material could be measured?

A:Usually for PVC,Stainless Steel,Carbon Steel,Copper etc.More detailed information please contact our sales department tanya@gentos.com.cn.



2.What's the difference between P118i and P117 High Accuracy Water Flow Meter?

(1)P117 has ±1.0% accuracy,while P118i has ±0.5% accuracy.

(2)P117 could measure DN25-DN1200mm,while P118i could measure DN25-DN1800mm.

(3)P117 has the black and white Scree,while P118i has the Colorful TFT LCD Screen.



3.Can I replace the battery in P117? What is the typical battery life?

A:We don't recommend customers to replace the battery by themselves.

The life span is usually 3~5 years,but some of our customers have used it for 7~8 years.



4.Why is the CL output abnormal?

(1)Check to see if the desired current output mode is set in Window M55.
(2)Check to see if the maximum and minimum current values are set properly in Windows M56 and M57.Re-calibrate CL and verify it in Window M49.

5.Why is the flow rate still displayed as zero while there is fluid obviously inside the pipe and a symbol of "R" displayed on the screen?
A:Check to see if "Set Zero" was carried out with fluid flowing inside the pipe (Refer to Window M42). If it is confirmed, recover the factory default in Window M43.
