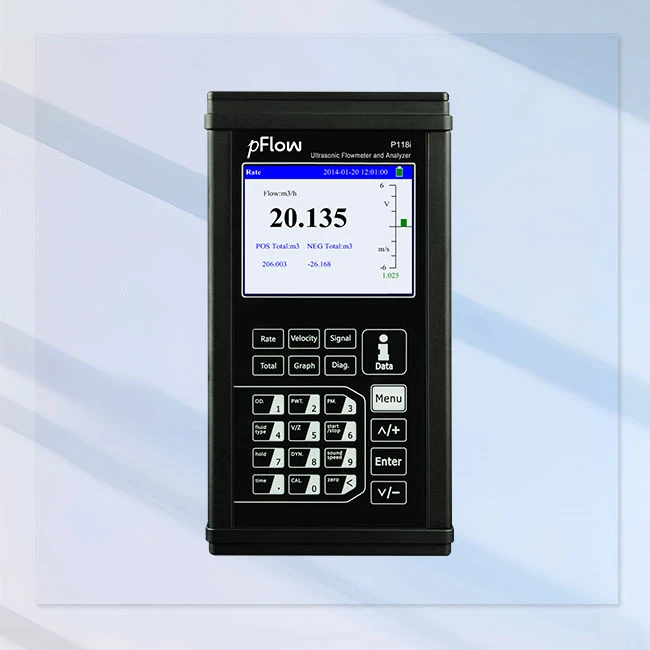

Product Introduction
● High Accuracy ±0.5% with curve graphs indicating flow data

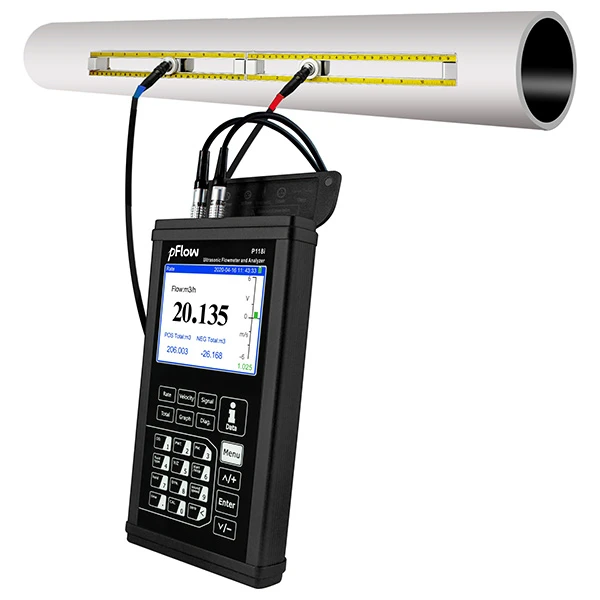

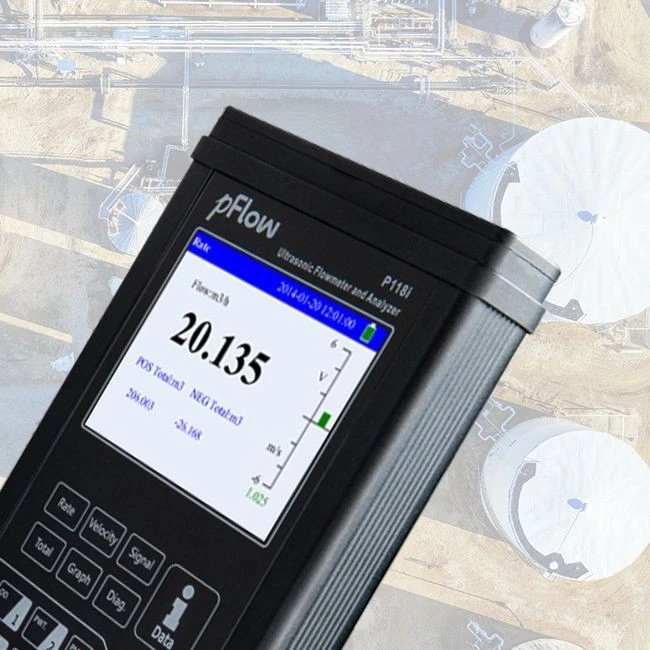

● Handheld ultrasonic flow meter with portable carrying case
● 3.5 inch TFT Color Backlit LCD Screen 320*240

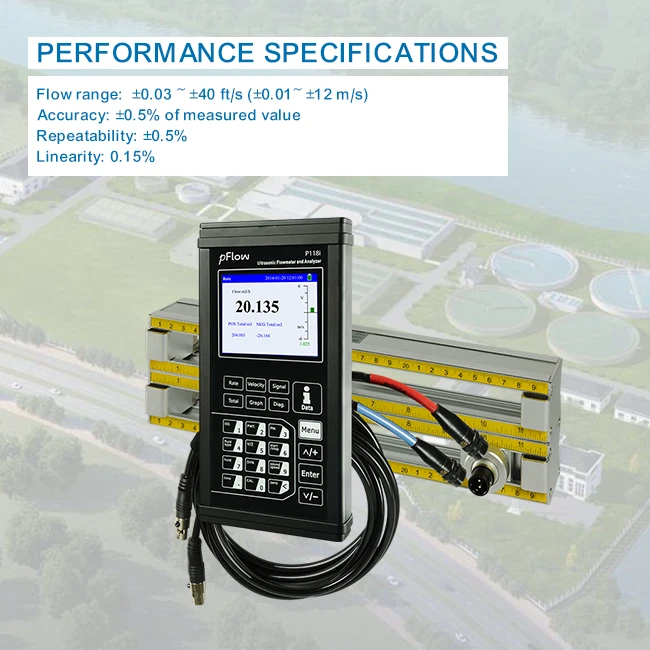

Product Parameter
|
Specifications |
|
|
Flow Range |
± (0.03 ~ 40) ft/s ± (0.01 ~ 12) m/s |
|
Accuracy |
± 0.5% of measured value |
|
Repeatability |
0.15%. |
|
Pipe Size |
DN25-DN1800mm |
|
Output |
Analog output: 4~20mA, Max 750 Ω. |
|
SD Card |
Storage: 2GB (To prevail in kind) Max: 512 files Interval: 1 ~ 60 seconds |
|
Power Supply |
Rechargeable Lithium Battery Power ( continuous operation of main battery 10 hours ). |
|
Keypad |
Tactile Keys |
|
Display |
3.5 inch TFT color screen( 320 × 240 ), backlit LCD. |
|
Temperature |
Transmitter: -10℃ ~ 50℃ ( -40°F to 176°F ) Measuring medium: - 40℃ ~ 80℃ (Standard) |
|
Humidity |
0 ~ 99% RH, non-condensing. |
|
Transmitter |
NEMA13 ( IP54 ). |
|
Transducer |
Encapsulated design, IP68 Standard cable length: 5m |
|
Weight |
Transmitter:lkg |
Product Application
Applications:HVAC,Industrial Wastewater Treatment,Sewage Treatment,RAS,
Aquaculture,,Environmental Protection & Energy Systems etc.
With the continuous expansion of wastewater treatment plants and more stringent requirements for advanced wastewater treatment, a more reliable way to improve piping systems has become the greatest need.
The majority of the market uses electromagnetic induction flow meters, which can easily cause these instruments to wear out due to the large amount of solids filled in the medium, which can affect incorrect readings and subsequent failures, which can be time consuming and laborious to deal with.
Non Intrusive Flow Meter P118i can choose the external clamping type for measurement, no contact with the medium, no wear and tear, so almost no maintenance. The entire measurement system consists of the main body of the device and ultrasonic sensors, no need to break open the pipeline to install, no downtime, and no need for a large number of personnel or heavy equipment, one person can easily install.

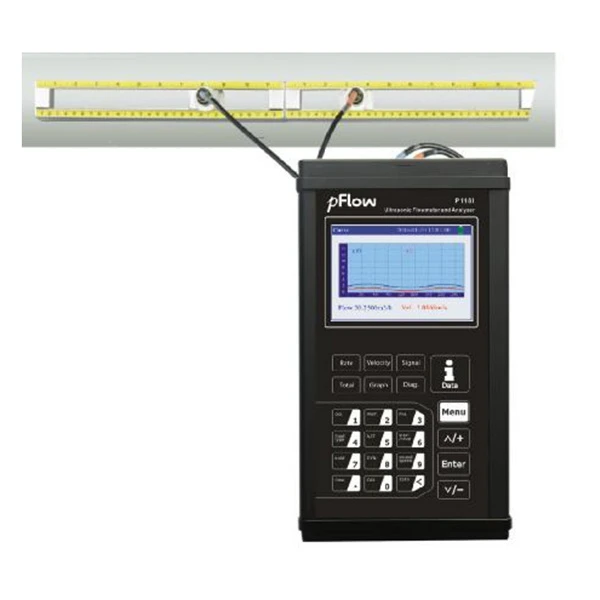

Product Details
Non Intrusive Flow Meter P118i enables the user to do flow measurement checks at many points in a flow process without the need for a permanent installation.This Ultrasonic Energy Meter uses Gentos unique PICOFLY time measurement technology, which could make the resolution reach to 10 picoseconds (0.01 nanosecond).
It realizes the high respondence and high accuracy ultrasonic measurement technology and application.Comparing with other traditional flowmeter or ultrasonic flowmeter, it has distinctive features such as high precision, high reliability, high capability and low cost.
More advantages of the Ultrasonic Energy Meter:PICOFLY technology designed. Less hardware components, low voltage broadband pulse transmission and low consumption power. Clear and user-friendly menu selections make it simple and convenient to use Ultrasonic Energy Meter. Daily, monthly and yearly totalizer flow. Parallel operation of positive, negative and net flow totalizer with scale factor (span) and 7 digit display.

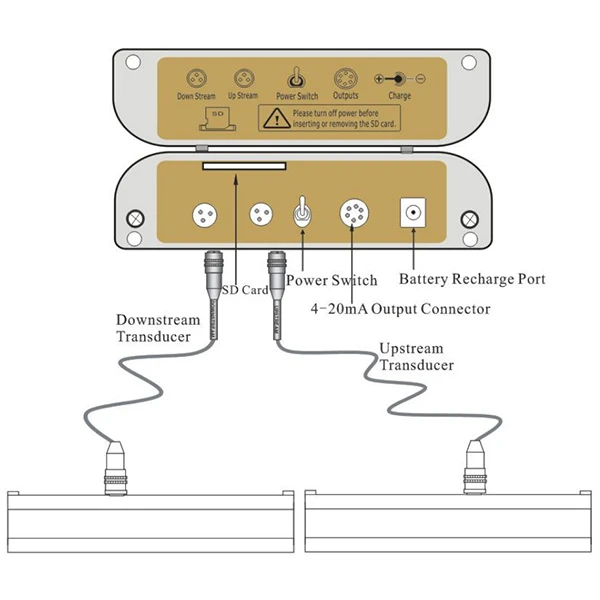

Wiring Diagram
Transmitter Dimensions
Transducer

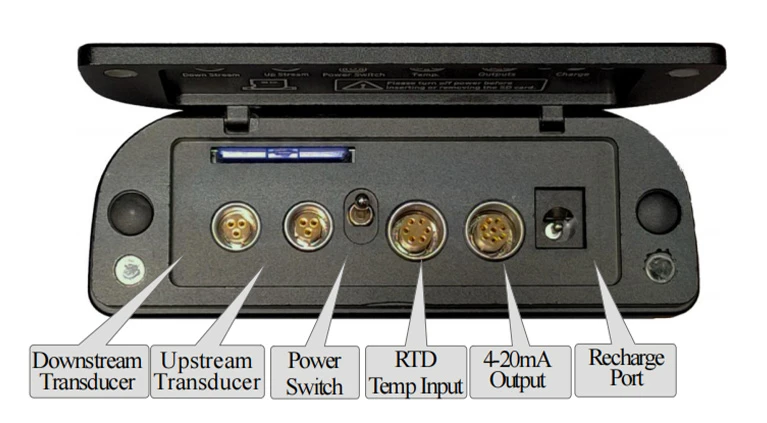

Wiring

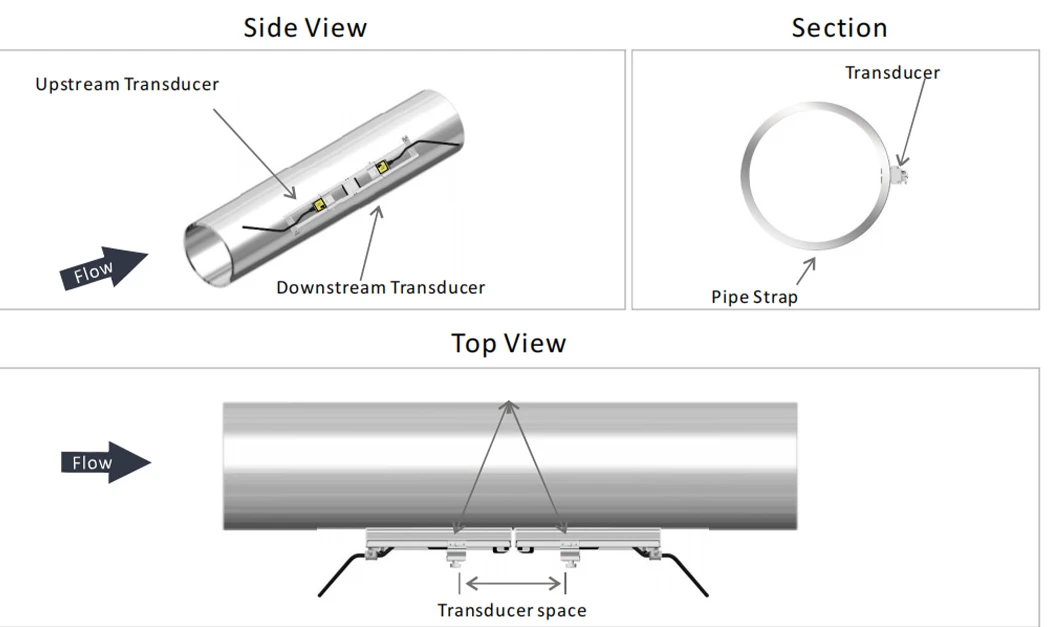

V Method Measuring Pipe Size: 50mm~400mm

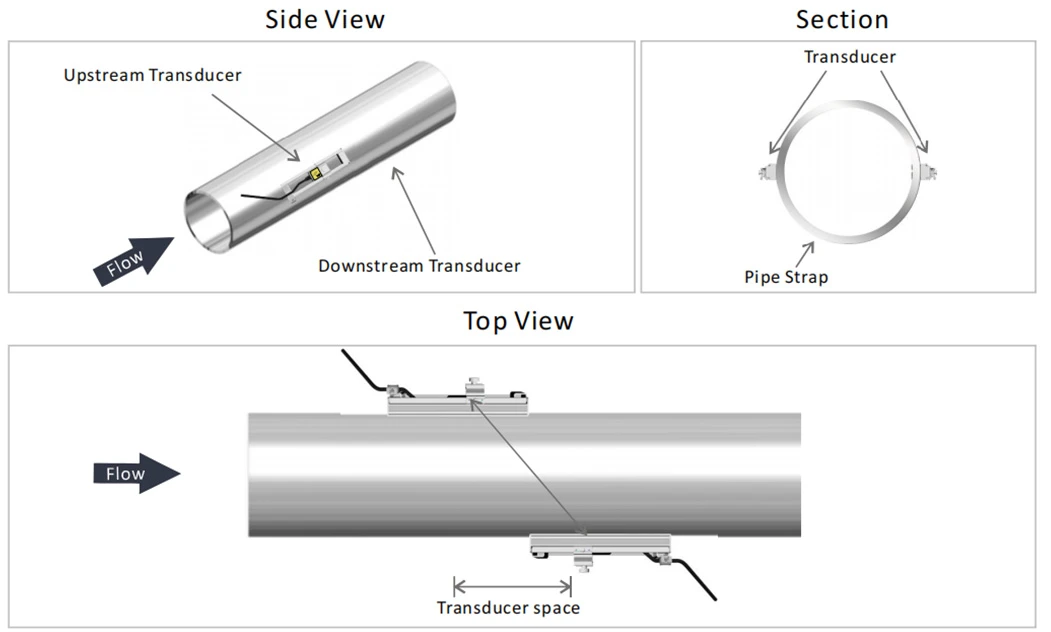

Z Method Measuring Pipe Size:25mm~1200mm

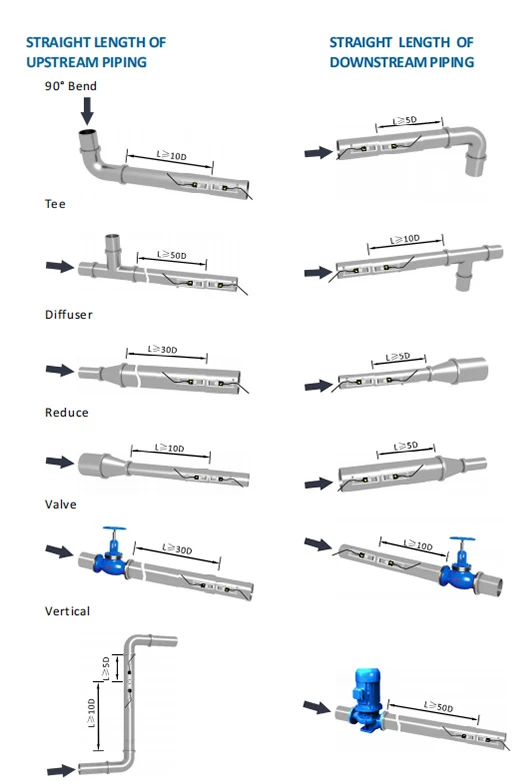

Installation Site Selection
Product Qualification
Gentos is committed to collaborating with clients to effectively utilize fluid resources, offering comprehensive solutions for energy conservation, emission reduction, minimizing fluid resource utilization losses, precise measurement, and enhancing the efficient utilization of fluid resources.
With the successful application of its transit-time patent technology, Gentos' ultrasonic flow metres find applications not only in traditional industries like the petroleum, water resources, chemical, urban heating, and power industries, but also in research institutions for measurement purposes.
At the same time, Gentos also pays attention to the development of employees, providing them with a clear promotion system and comprehensive training opportunities.
In terms of team structure, Gentos cultivates the advancement of seasoned workers while also introducing managerial talent gradually at different levels, resulting in a well-balanced mix of new and seasoned staff members to guarantee the company's constant and robust development.
Innovation is the hallmark of Gentos as we continuously search for the best fluid measurement technologies and applications for humanity, transforming them into standards and regulations for use in the field of fluid measurement.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
FAQ
1.How do I know that the Non Intrusive Meter fits the size of my pipe?
A: Customers need to provide the pipe material and pipe diameter.Then our sales department will recommend the flow meter that suitable for you,also all the products will have the calibration certificate with our own factory before delivery.
2.Wouldn't it be more convenient to use a water pipe? Then why use Non Intrusive Flow Meter?
A:Usually water pipes are the mechanical meter, which measuring accuracy is low and need to break the pipe.Non Intrusive Flow Meter no need to damage the pipe,less maintenance cost.
3.Can the Non Intrusive Flow Meter be put in a portable carrying case for transfer to other places after measurement?
A:Yes!P118i has the portable carrying case.
4.If I need to measure PVC for DN25-DN1000mm,may I choose P118i Non Intrusive Flow Meter?
A:Yes!P118i could measure DN25-DN1800mm,measuring PVC,SS,Carbon Steel,Copper etc.Choose P118i would be very helpful for you!
5.Dose the P118i Non Intrusive Flow Meter have an RTD Input?
A:Yes!Our handheld high accuracy P118i has the RTD input,also for the PT1000 Temperature sensor.
