Flow Meter Panel



The F3P panel mount rotameter Embedded ultrasonic flowmeter is based on the principle of ultrasonic transit time measurement. It is integrated with Gentos' advanced ultrasonic signal processing technology and a unique flow algorithm to ensure precise measurement of fluid flow within pipelines. Featuring a distinct external clamping structure, this product offers a simple and convenient installation process. During installation, there is no need to come into contact with the fluid medium, allowing for seamless installation without disrupting production activities.

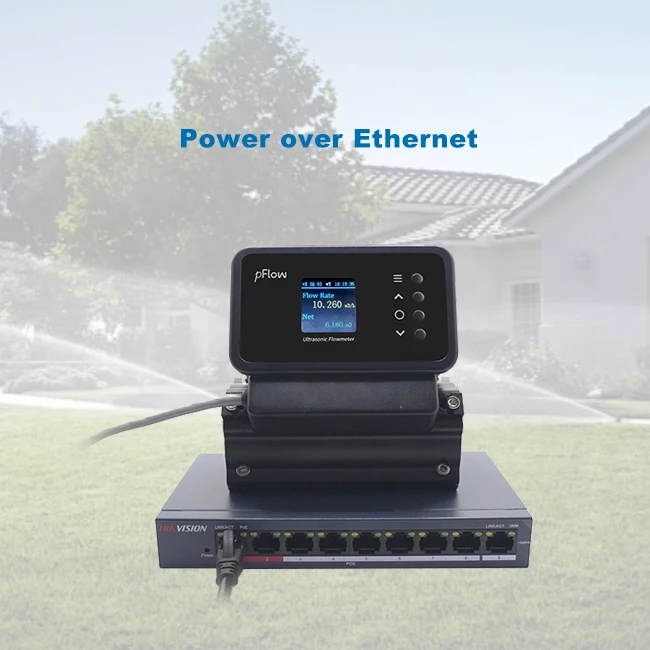

Furthermore, the device is powered by POE and supports Ethernet communication for cloud-based data storage. Users have the capability to access, manage, analyze, and query measurement data information stored in the cloud from mobile terminals or PC terminals, providing flexibility and accessibility for data utilization from any location and at any time.





1) Body Parameters

2)Appearance

3)Technical Parameters

Performance Index
Flow velocity	0.1~16ft/s (0.03~5.0m/s)
Pipe Size	DN20~DN80
Measured medium	water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC (Select one of them as per customer's requirements. The details are subject to the instrument display.)
Accuracy level	±2%,(1.0~16ft/s)
Temperature	Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ).
Functional Index
Communication Protocol	Support HTTP Protocol and MQTT Protocol
Power supply	POE network cable power supply
Key	4 keys
Display screen	1.44 "LCD color screen, resolution 128 * 128
Humidity	Relative humidity 0~99%, No condensation
Physical Characteristics
Transmitter	Plate mounted type
Transducer	Clamp on Standard cable length：9m
Network Cable	POE network cable, standard length: 2m





● Easy installation, No need to break pipeline

● No adjustment, Clip on to measure

● LCD color display screen

● 360° rotation adjustable display

● POE network cable power supply, safe and convenient.





The application of panel mount rotameter in the chemical industry is extensive, as accurate flow measurement is crucial for ensuring operational stability and production efficiency in chemical production processes. Rotameters, as a simple yet effective flow meter, are widely utilized in various sectors of the chemical industry, including production, laboratory research, environmental protection, and safety monitoring.



In chemical production processes, panel mount rotameter are primarily used for the following purposes:

1. Raw Material Conveyance and Control: Different raw materials need to be transported to reactors or mixing tanks in chemical production processes. Rotameters can monitor and control the flow of raw materials, ensuring that the materials are mixed in the correct proportions to obtain the desired reaction products.

2. Reaction Process Monitoring: Accurate flow control is critical in controlling reaction rate, temperature, and pressure in chemical reactions. By installing panel mount rotameter at the reactor outlet, operators can monitor the flow of reactants in real-time, adjust reaction conditions promptly, and ensure process stability and safety.

3. Chemical Ingredient Preparation and Mixing: Precise preparation of chemical solutions or mixtures is essential in chemical production. Rotameters can control the flow of different solutions, ensuring the accuracy and repeatability of ingredient preparation and maintaining product quality.

4. Wastewater Treatment and Environmental Monitoring: Large amounts of wastewater and exhaust gas are generated in the chemical industry. By installing Rotameters on wastewater discharge pipes, real-time monitoring of wastewater flow can be conducted to assess the load of wastewater treatment facilities and ensure compliance with environmental regulations.

5. Laboratory Research: In chemical laboratories, researchers often conduct various experiments, including catalyst evaluation, synthesis reactions, and material assessments. Rotameters can measure the flow of liquids and gases in experimental processes, helping researchers understand experimental conditions and ensure accurate and reliable results.

In conclusion, Rotameters play an indispensable role in the chemical industry, providing accurate flow data through their simple and reliable measurement principles. They contribute significantly to improving production efficiency, ensuring product quality, and safeguarding environmental safety. In the modern chemical industry, Rotameters will continue to play a vital role in enabling automation, intelligent production, and driving sustainable development in the chemical industry.





Gentos is committed to collaborating with clients to effectively utilize fluid resources, offering comprehensive solutions for energy conservation, emission reduction, minimizing fluid resource utilization losses, precise measurement, and enhancing the efficient utilization of fluid resources.

With the successful application of its transit-time patent technology, Gentos' ultrasonic flow metres find applications not only in traditional industries like the petroleum, water resources, chemical, urban heating, and power industries, but also in research institutions for measurement purposes.

At the same time, Gentos also pays attention to the development of employees, providing them with a clear promotion system and comprehensive training opportunities.

In terms of team structure, Gentos cultivates the advancement of seasoned workers while also introducing managerial talent gradually at different levels, resulting in a well-balanced mix of new and seasoned staff members to guarantee the company's constant and robust development.

Innovation is the hallmark of Gentos as we continuously search for the best fluid measurement technologies and applications for humanity, transforming them into standards and regulations for use in the field of fluid measurement.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Q1: What is the purpose of a rotameter?

A1: The purpose of a rotameter is to measure the flow rate of a fluid (liquid or gas) passing through a pipe or tube. Rotameters are simple and cost-effective flow meters that rely on the principle of variable area flow measurement. The key components of a rotameter include a tapered tube through which the fluid flows, a float or ball that moves up and down based on the flow rate, and a scale to read the flow rate.



Q2: Why does rotameter need to be mounted vertically?

A2: Rotameters are typically designed to be mounted vertically because the float or ball inside the tube relies on the force of gravity to accurately indicate the flow rate of the fluid passing through the tube. When mounted vertically, gravity ensures that the float or ball moves freely and responds accurately to changes in flow rate.



Q3: What is the difference between a flowmeter and a rotameter?

A3:Flowmeters are more versatile and accurate instruments for measuring flow rates, while rotameters are simpler devices that provide a visual indication of flow rate but may have limitations in accuracy and range. The choice between a flowmeter and a rotameter depends on the specific requirements of the application and the level of accuracy needed for the flow rate measurement.



Q4:How does a rotameter measure flow rate?

A4:A rotameter measures flow rate by utilizing the principles of buoyancy and flow resistance to indicate the flow rate of a fluid based on the position of a float or ball within a tapered tube. It is a simple and cost-effective flow measurement instrument suitable for applications where accurate flow rate indication is sufficient.



Q5: How to adjust the rotameter?

A5: Adjust the measuring range of the rotameter according to your needs and fluid properties. The measuring range can be adjusted by changing the position of the float by turning the adjusting screw or adjusting the valve.
