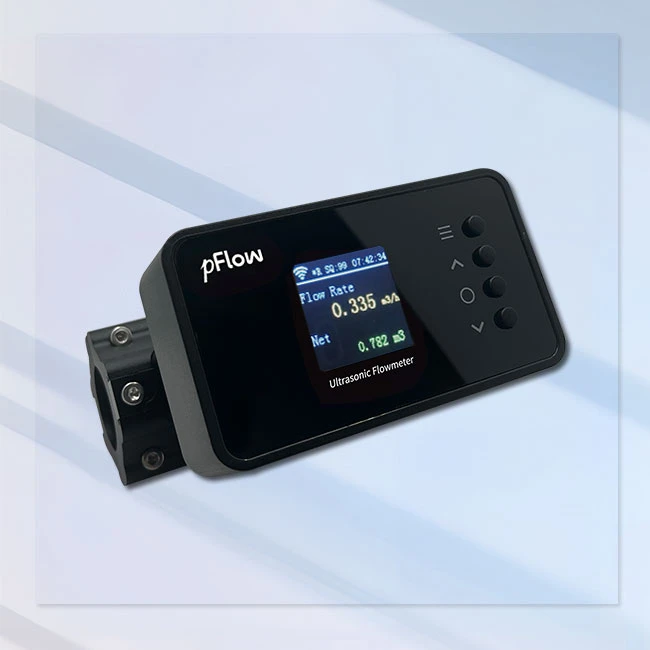

Transit Time Ultrasonic Flow Meter-F3W

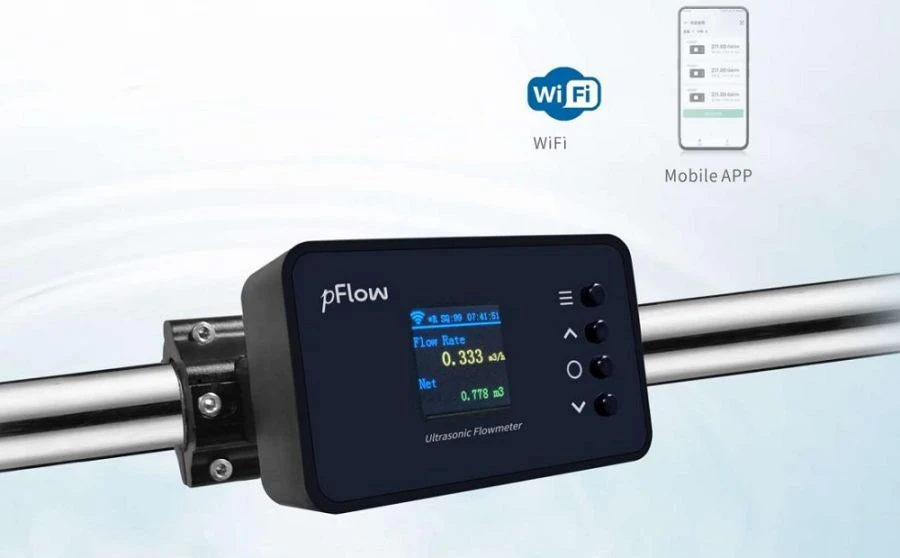

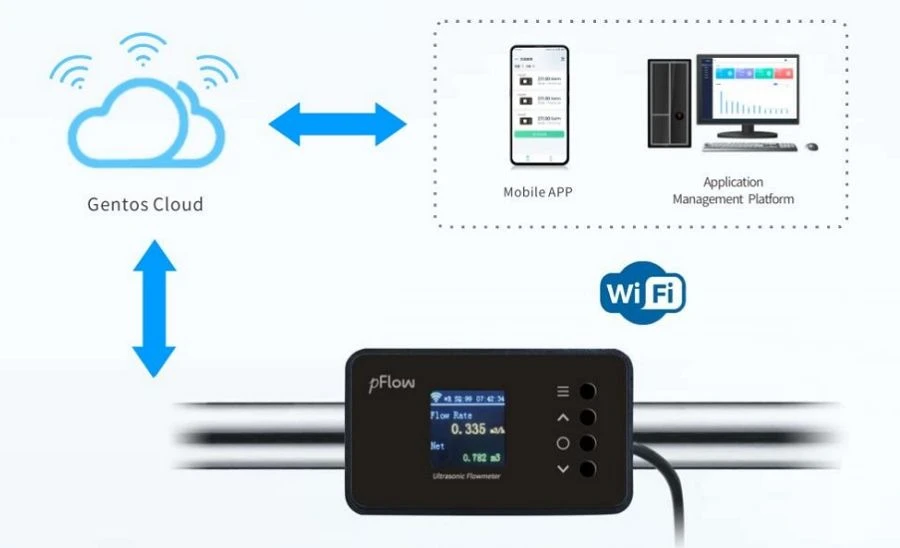

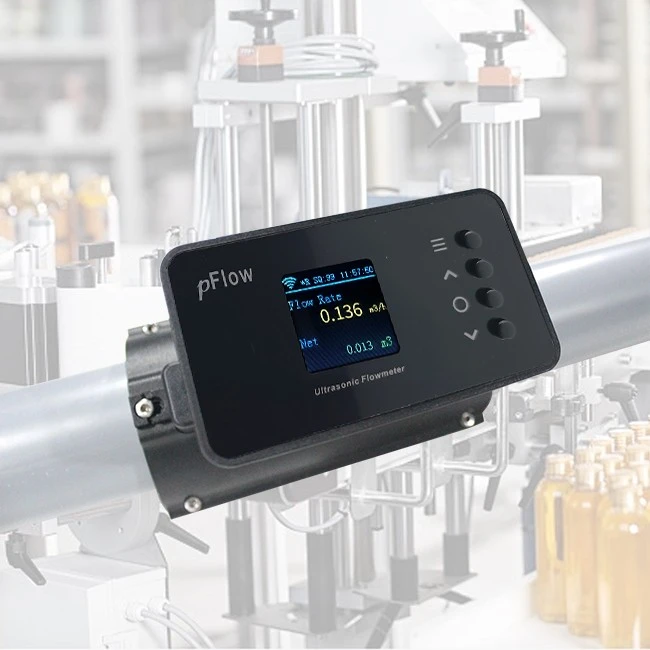

Gentos clip-on ultrasonic flow meter F3W adopts the measurement principle of transit time method. Combined with Gentos ultrasonic signal processing technology and unique flow algorithm, fluid flow in the pipeline can be accurately measured. The product is all-in-one and clip-on structure design, which is simple and convenient to install. Only four steps are required from unboxing to measuring. The installation process requires no contact with fluid media and no need to shut down. The Transit Time Ultrasonic Flow Meter F3W does not require direct contact with the fluid being measured, ensuring that there is no disruption to the flow path and minimizing maintenance requirements. The instrument adopts WiFi communication to realize cloud data storage. Users can manage, analyze and monitor measurement data information by access cloud data through mobile phone and PC terminals anywhere anytime. Equipped with an intuitive interface, including a digital display and user-friendly menu navigation, the Transit Time Ultrasonic Flow Meter F3W offers ease of operation and quick access to flow data. Featuring robust construction and solid-state technology, the Transit Time Ultrasonic Flow Meter requires minimal maintenance, resulting in reduced downtime and lower total cost of ownership. The Transit Time Ultrasonic Flow Meter F3W is equipped with integrated WiFi functionality, allowing seamless communication with local networks and internet-connected devices. This enables remote monitoring, data logging, and control of the flow meter from virtually anywhere with internet access.





1)Body Parameters

2)Appearance



3)Technical Parameters

Performance Index
Flow velocity	0.1~16ft/s (0.03~5.0m/s)
Pipe Size	DN20~DN80
Measured medium	water
Pipe Material	Carbon Steel, Stainless Steel, Copper, PVC (Select one of them as per customer's requirements. The details are subject to the instrument display.)
Accuracy level	±2%,(1.0~16ft/s)
Temperature	Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 140 °F ( 0℃ ~ 60℃ ).
Functional Index
Communication Interface	RS485 and WiFi
Power supply	10~36VDC, max 500mA
Key	4 keys
Display screen	1.44 "LCD color screen, resolution 128 * 128
Humidity	Relative humidity 0~99%, No condensation
Physical Characteristics
Transmitter	Compact
Transducer	Clamp on Standard cable length：2m

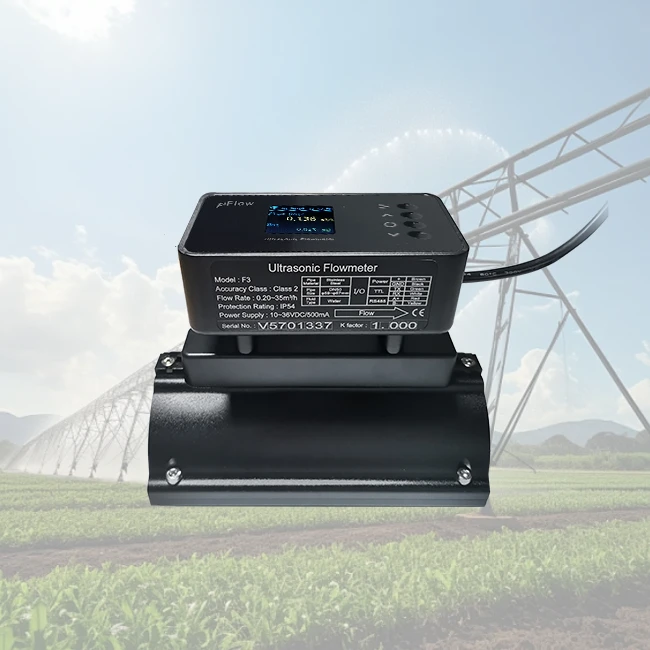

Water Management: Flow meters are installed at strategic points within water distribution networks to monitor the flow rates of water entering and exiting different sections of the network. This data helps water utility companies detect leaks, identify areas of high water consumption, and optimize the distribution of water resources. Flow meters are used to detect leaks and quantify water losses within water distribution systems. By comparing the flow rates at different points in the network, water utility companies can identify discrepancies indicative of leaks or unauthorized water usage. This information enables prompt repairs and helps minimize water loss. Flow meters installed at individual water meters or building entry points allow for accurate measurement of water consumption by residential, commercial, and industrial consumers. This data helps water utility companies bill customers accurately, identify trends in water usage patterns, and implement conservation measures. Flow meters are integrated into irrigation systems to monitor the flow rates of water delivered to agricultural fields, parks, and landscaping areas. By measuring water usage accurately, farmers and landscape managers can optimize irrigation schedules, prevent overwatering, and conserve water resources. Flow meters are utilized in wastewater treatment plants to measure the flow rates of wastewater entering and exiting different treatment processes. This data assists plant operators in optimizing treatment efficiency, ensuring regulatory compliance, and assessing the impact of flow variations on plant performance. Flow meters are deployed in stormwater drainage systems to monitor the flow rates of stormwater runoff during rainfall events. This information helps municipal authorities manage stormwater infrastructure, assess flood risks, and design effective drainage solutions to mitigate urban flooding. Combined with water quality sensors, flow meters provide valuable data for assessing the quality of water in rivers, lakes, and reservoirs. By measuring flow rates alongside parameters such as turbidity, pH, and dissolved oxygen levels, environmental agencies can evaluate water quality trends, identify sources of pollution, and implement remediation measures. Flow meters are essential in hydroelectric power plants for measuring the flow rates of water through turbines. Accurate flow measurements enable power plant operators to optimize electricity generation, manage reservoir levels, and comply with regulatory requirements related to water discharge.





For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.





Q1: What is a Transit Time Ultrasonic Flow Meter?

A1: Transit time ultrasonic flow meters measure the difference in time from when an ultrasonic signal is transmitted from the first transducer until it crosses the pipe and is received by the second transducer.



Q2: What is the difference between transit time and Doppler ultrasonic flow meter?

A2: Transit time flow meters measure the time difference between upstream and downstream signals, while Doppler flow meters use the Doppler effect to measure the velocity of the fluid. Both flow meter types have advantages and limitations, and their choice depends on the application's specific needs.



Q3: What is the principle of ultrasonic flow meter?

A3: The ultrasonic flow meter operates by alternately transmitting and receiving a burst of ultrasound between the two transducers by measuring the transit time that it takes for sound to travel between the two transducers in both directions.



Q4: Are transit time ultrasonic flow meters suitable for both large and small pipe sizes?

A4: Yes, transit time ultrasonic flow meters are available in various sizes and configurations to accommodate a wide range of pipe sizes, from small diameters typically found in residential applications to large diameters used in industrial processes.



Q5: What maintenance is required for transit time ultrasonic flow meters?

A5: Transit time ultrasonic flow meters generally have low maintenance requirements. Routine maintenance may include cleaning the transducers, verifying proper alignment, and ensuring that the electronics are functioning correctly. Calibration may also be required periodically to maintain accuracy.
