Brief Introduction
|
Accuracy: |
± 0.5%. |
Pipe size : |
1″ ~ 200″ ( 25 mm ~ 5000 mm ). |
|
Repeatability: |
0.15%. |
Output: |
OCT, Relay, RS485, 4-20mA ,RTD |
|
Temperature: |
-40°F ~ 176°F ( - 40℃ ~ 80℃, standard ). |
||
|
SD Card |
Max record: 512 days; Record time interval: 1 ~ 3600 s ( standard ). |
||
Product Introduction

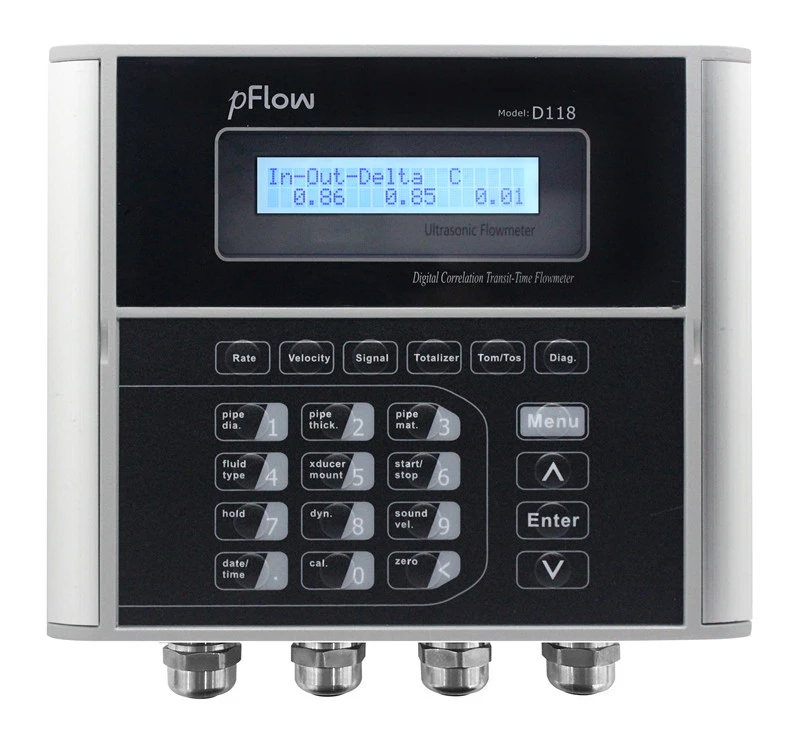

The D118-RTD-PT1000 ultrasonic BTU flowmeter is designed for precision energy measurement in hotels. It uses advanced ultrasonic time measurement technology and high-reliability signal processing circuits to achieve accurate liquid and flow measurement. This device can measure flow and energy consumption in both directions, making it ideal for hotel energy efficiency audits. The integrated RTD temperature sensor allows for precise temperature control, ensuring accurate energy calculations. With a user-friendly interface and easy installation process, the D118-RTD-PT1000 operates without direct contact with the fluid medium, effectively avoiding interference with existing systems. It's the perfect choice for modern hotel energy management.
Product Applications
●Hotel energy metering,Lodge cooling energy metering
●Liquid cooling industry,efficient cooling, temperature control, energy saving
●Water and wastewater management
●HVAC (Heating, Ventilation, and Air Conditioning) systems
●Process industries (chemical, pharmaceutical, food and beverage)
●Energy management and environmental monitoring
●Agriculture and irrigation systems
●Research and development
●Facilities management
●Industrial maintenance and troubleshooting
●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
1)Technical Parameters
|
Performance specifications |
|
|
Flow range |
±(0.03ft/s ~ 40 ft/s) ±(0.01m/s ~ 12 m/s ) |
|
Accuracy |
± 0.5% of measured value. 1.5 ft/s～40 ft/s or -1.5 ft/s～-40 ft/s (0.5 m/s～12 m/s or -0.5 m/s～-12 m/s) |
|
Fluid |
Water(chilled water,pure water,clean water,sea water,hot water,etc.) |
|
Repeatability |
0.15%. |
|
Pipe Size |
1″ ~ 200″ ( 25 mm ~ 5000 mm ). |
|
Pipe Material |
Stainless Steel, Carbon Steel, Copper, Cast Iron, Ductile Iron, PVC, Aluminum, Asbestos, Fiber Glass-Epoxy. |
|
Function Specifications |
|
|
Output |
Analog output: 0/4 ~ 20 mA, ( max load 750 Ω ); Pulse output: 0 ~ 9999 Hz, OCT ( min. and max. frequency is adjustable ); Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ). |
|
Communication Interface |
RS232 & RS485. |
|
SD Card ( standard ) |
Max record: 512 days. Record time interval: 1 ~ 3600 s. |
|
Power supply |
90 ~ 245 VAC (48 ~ 63 Hz) Or 10 ~ 36 VDC. |
|
Keypad |
22 light tactile keys. |
|
Display |
20 × 2 lattice alphanumeric, backlit LCD. |
|
Temperature |
Transmitter: 14°F ~ 122°F (- 10℃ ~ 50℃ ). Transducer: -40°F ~ 176°F ( - 40℃ ~ 80℃, standard ). |
|
Humidity |
Up to 0 ~ 99% RH, non - condensing. |
|
Physical specifications |
|
|
Transmitter |
Die-cast aluminum, IP65. |
|
Transducer |
Encapsulated design. Standard / Maximum cable length: 30 ft / 1000 ft ( 9m / 305 m ). |
|
Weight |
Transmitter: approximately 4.7 lb ( 2.15 kg ). Transducer: approximately 2.0 lb ( 0.9 kg ). ( standard ) |
(2) Body Parameters

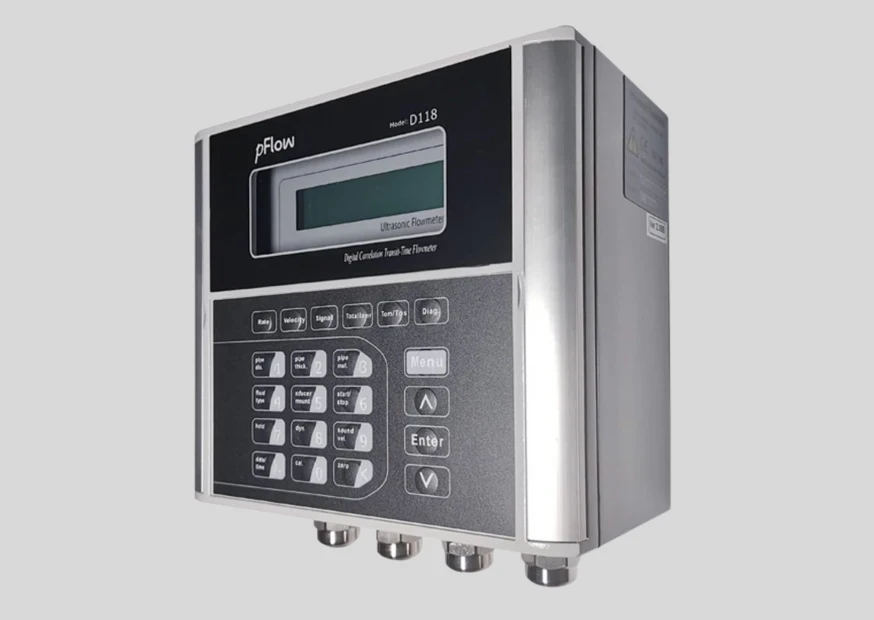

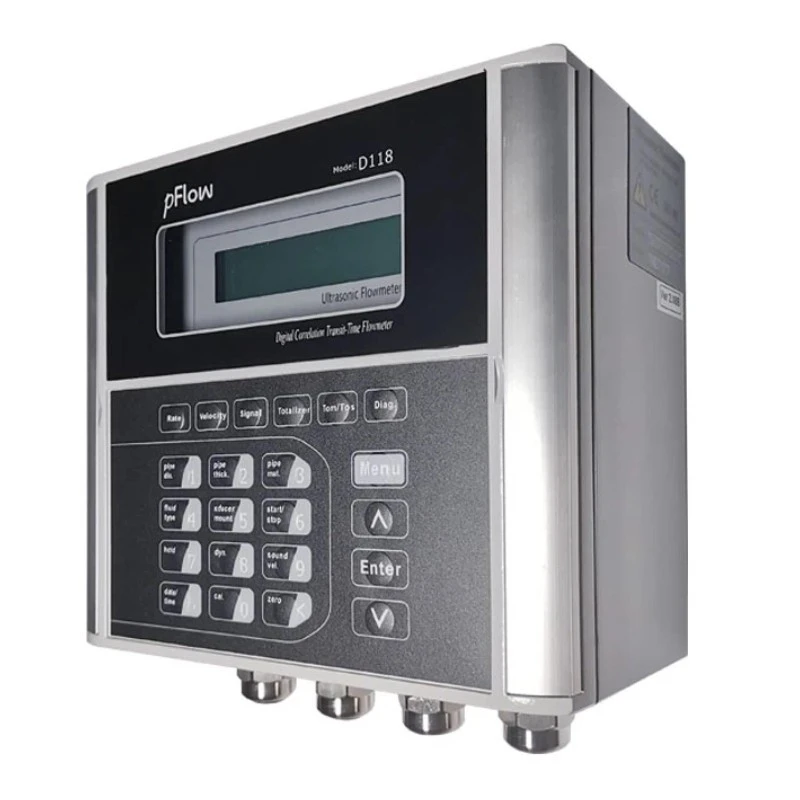

Transmitter
Transducer
PT1000 Temperature senor

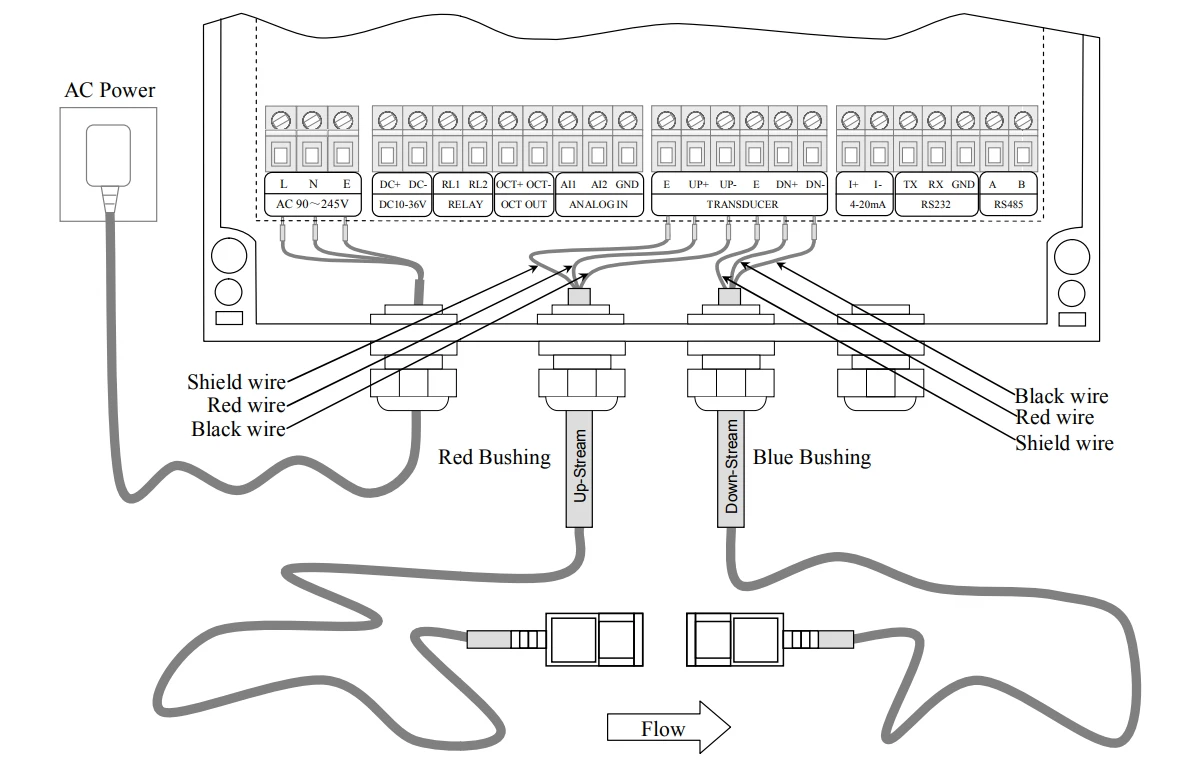

Wiring Diagram

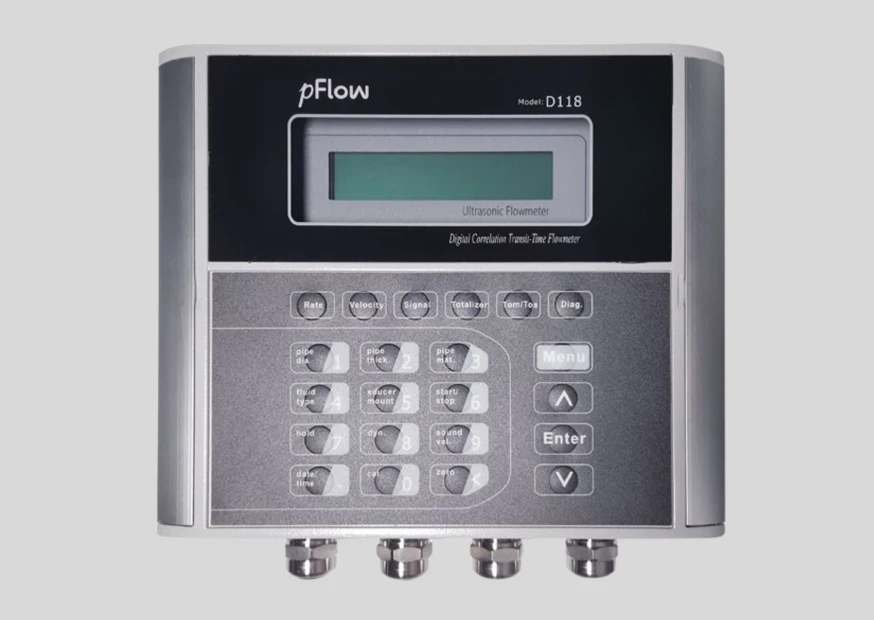

(3)Appearance

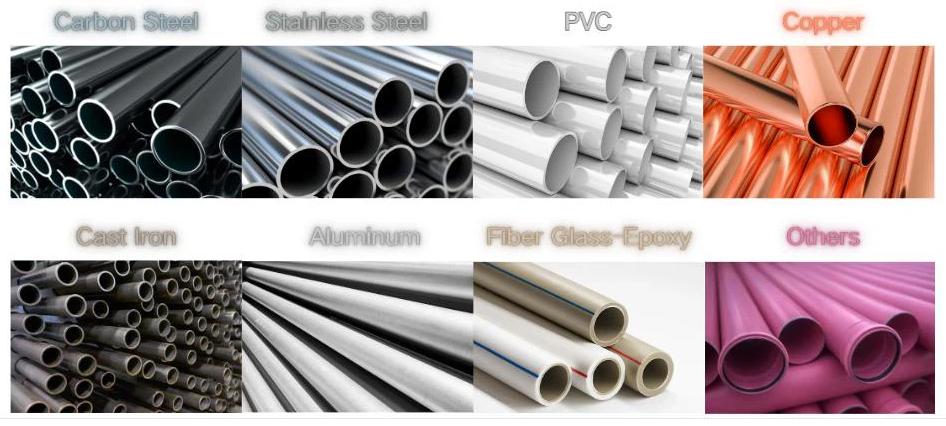

Compatible Pipe Materials
Detectable Fluids

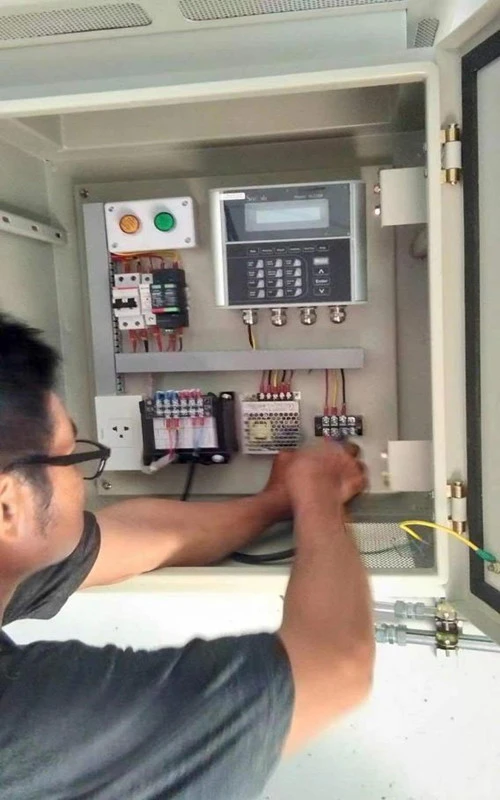

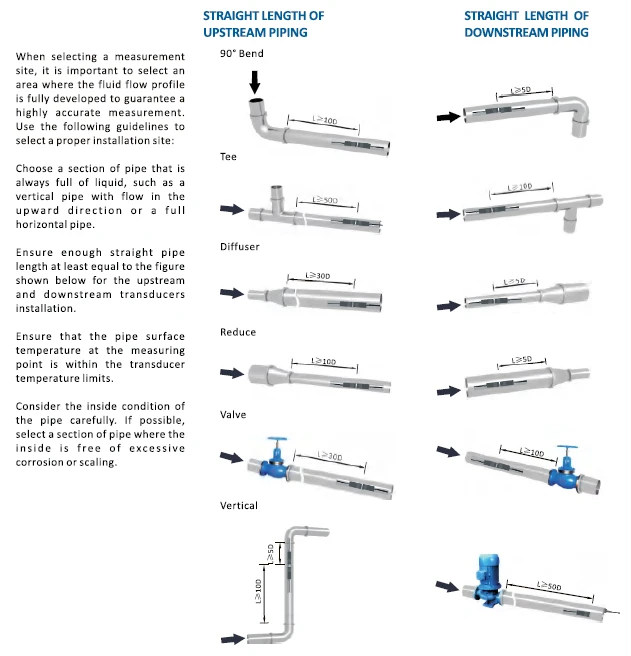

Installation Site Selection
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display:
Certificate display：
Deliver, Shipping, and Serving
Direct support：
Qucik response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 1 to 3 days window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: Do you have stock?
A: Yes, we have safety inventory. We have a complete production line to meet bulk orders
Q: How to ensure the quality of your products, will the finished product be inspected?
A: Yes, every step of production and finished product must be strictly checked by QC before shipment.
Q: How long is your delivery time?
A: Lead time about 1-3 days after payment (you can get it in 5-7 days to your door).
Q: Can you give us a discount?
A: We can of course talk to specific numbers, but let's make sure we're on the same page about this solution being a good fit for your needs.
Q: Are you a FACTORY or TRADING COMPANY?
A: Yes,we are a manufacturer with designing, manufacturing, marketing and expor
