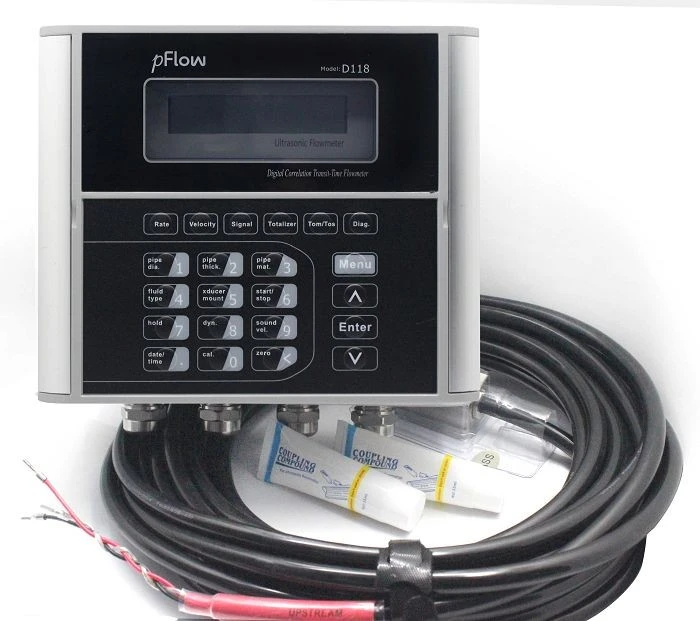

Product Introduction
D118 Wall-mounted Flow Meter is a highly effective tool designed specifically for aquaculture applications, providing precise and reliable flow measurement, ensure efficient water recirculation, reducing fish farming, shellfish cultivation, and other aquatic systems waste.
Brief Introduction
- Accuracy: ±0.5%
- Pipe size range: 1"~200" (25~5000mm)
- Output: OCT output, Relay output, RS485, 4-20mA output
- Power supply: 90 ~ 245 VAC (48 ~ 63 Hz) Or 10 ~ 36 VDC
- Encapsulated design, IP68(Transducers)
Product Parameter
1)Technical Parameters
|
Performance Index |
|
|
Flow range |
±(0.03ft/s ~ 40 ft/s) ±(0.01m/s ~ 12 m/s ) |
|
Accuracy |
± 0.5% of measured value. |
|
Repeatability |
0.15%. |
|
Fluid |
Water(chilled water,pure water,clean water,sea water,hot water,etc.) |
|
Pipe Size |
1″ ~ 200″ ( 25 mm ~ 5000 mm ) |
|
Pipe Material |
Carbon Steel ,Stainless Steel, Cast Iron ,Ductile Iron,Copper, PVC,Aluminum,Asbestos,Fiber Glass--Epoxy,Other |
|
Functional Index |
|
|
Communication Interface |
RS232 & RS485. |
|
Output |
Analog output : 4 ~ 20mA, (max load 750Ω) Pulse output: 0~9999 Hz, OCT ( min. and max. frequency is adjustable ) Relay output: max. frequency 1Hz ( 1A@125VAC or 2A@30VDC ) |
|
SD Card |
Max record: 512 days. Record time interval: 1 ~ 3600 s. |
|
Power supply |
90 ~ 245 VAC (48 ~ 6633 HHzz) Or 10 ~ 36 VDC. |
|
Keypad |
22 light tactile keys. |
|
Display screen |
20×2 lattice alphanumeric, back lit LCD. |
|
Humidity |
Up to 99% RH, non-condensing. |
|
Temperature |
Transmitter: 14 °F to 122 °F ( –10℃ ~ 50℃ ) Transducer: 32 °F to 176 °F ( 0℃ ~ 80℃ ) |
|
IP Rating |
IP65 |
|
Physical Characteristics |
|
|
Transmitter |
PC/ABS, IP65 |
|
Transducer |
Encapsulated design, IP68 |
|
Cable |
The standard length of cable: 30ft (9m) Maximum lengthen to 1000ft(305m) |
|
Weight |
Transmitter: approximately 4.7 lb ( 2.15 kg ). Transducer: approximately 2.0 lb ( 0.9 kg ). ( standard ) |
2)Body Parameters
Transmitter
C011 Transducer
Transmitter Wiring
3)Appearance
4)Compatible Pipe Materials
5)Detectable Fluids
Product Applications
- Inland farming,Recirculating aquaculture systems, RAS,aquaculture services
- Water and wastewater management
- HVAC (Heating, Ventilation, and Air Conditioning) systems
- Process industries (chemical, pharmaceutical, food and beverage)
- Agriculture and irrigation systems
- Research and development
- Facilities management
- Industrial maintenance and troubleshooting
- Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: Are you a trading company or a factory?
A: We have been focusing on ultrasonic flowmeters for 32 years and we are a well-known manufacturer integrating R&D and factory.
Q: What are the advantages of ultrasonic flow meters?
A: They offer non-invasive measurement, high accuracy, resistance to fluid property variations, suitability for various fluids, and low maintenance requirements.
Q: How do you install a flow meter?
A: Follow the manufacturer's installation instructions or view our youtube installation video.
Q: How to choose the right flow meter model for you?
A: Contact our technical sales with your pipe material and diameter, and we will recommend the most suitable model.
Q: Can this water meter track energy usage?
A: Yes, it's designed to monitor and track thermal energy usage, monitoring in real time and helping manage energy budgets effectively.
