Brief Introduction
The Model D348D Plus Ultrasonic Flowmeter, leveraging ARM COMA tech & low-voltage broadband pulses, is a cutting-edge universal flowmeter. Ideal for clean liquids, it's also tolerant of minor air bubbles or solids in industrial fluids. It stands out with high precision, reliability, capability, & cost-effectiveness. Features include low power ARM COMA chip, anti-jamming, user-friendly menu for easy parameter setting, dual measurement units. Stores 512 files with 1-second intervals. Offers parallel flow totals, scale factor, 7-digit display, & built-in batch controller for seamless control.
Product Parameter

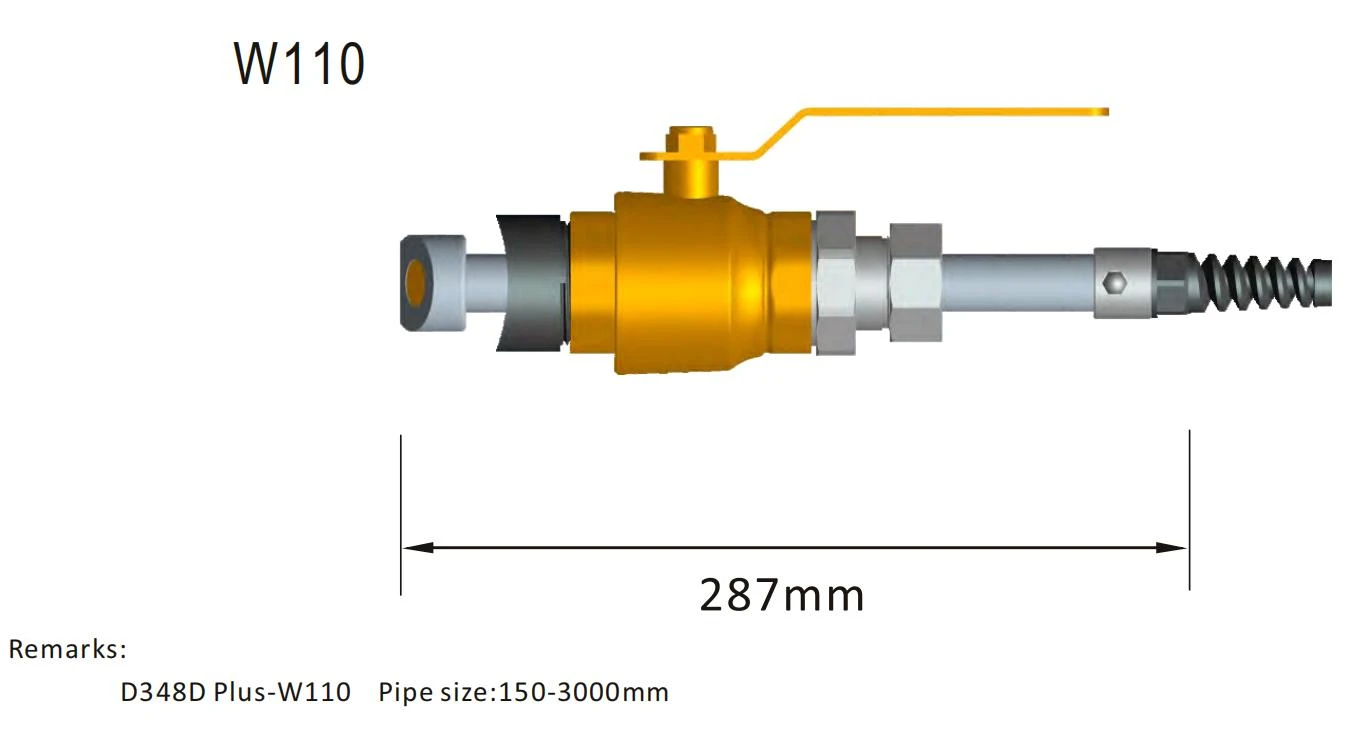

Body Parameters

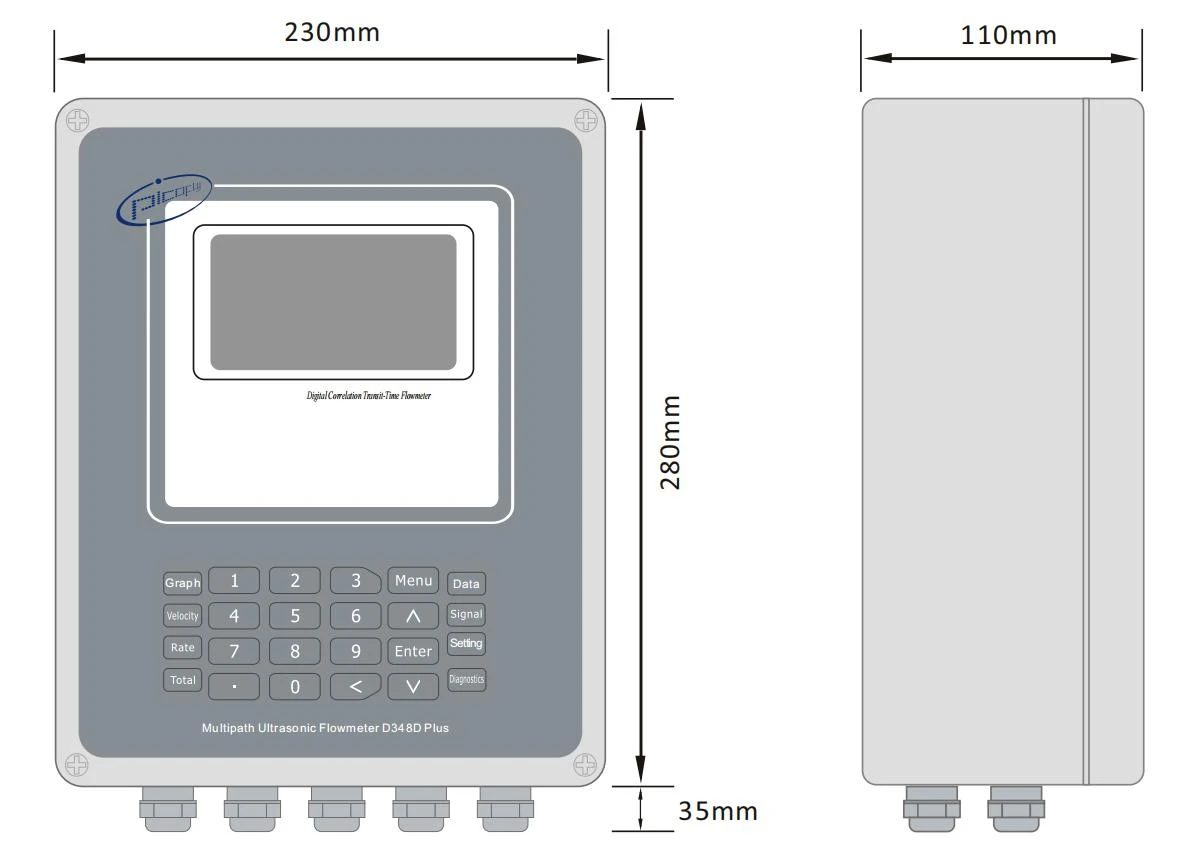

Transmitter Dimension
Technical Parameters
|
Performance Index |
|
|
Flow Range |
±(0.03 ft/s ~23 ft/s) ±(0.01 m/s ~7 m/s) |
|
Accuracy |
±0.5% of measured value condition) |
|
Repeatability |
0.1% |
|
Pipe Size |
1"~200"(DN25~DN5000), support 2~6 sound channels |
|
Medium |
Water |
|
Functional Index |
|
|
Output |
Analog output：4~20mA,maximum：750Ώ Pulse output：0~9999Hz,OCT output(adjustable) Relay output：the highest 1Hz(1A@125VAC or 2A@30VDC) |
|
Communication |
RS-485 Communication Interface,Support Modbus Protocol |
|
TF Card |
Max record: 8 GB Storage time interval: 1~13000 s |
|
Power Supply |
90～250VAC@48～63Hz or 10～36VDC |
|
Keypad |
24 light tactile keys |
|
Display Screen |
4.7 inch TFT color screen |
|
Temperature |
Transmitter:-10℃～60℃ Transducer:- 40℃～80℃(standard) |
|
Humidity |
Up to 0 ~ 99% RH, non-condensing |
|
Physical Characteristics |
|
|
Transmitter |
Die-cast aluminum, IP65 |
|
Transducer |
Encapsulated design., Protection grade IP68 |
|
Cable |
The standard length of cable: 30ft (9m) |
|
Performance Index |
|
|
Flow Range |
±(0.03 ft/s ~23 ft/s) ±(0.01 m/s ~7 m/s) |
|
Accuracy |
±0.5% of measured value condition) |
|
Repeatability |
0.1% |
Product Applications
Applications:HVAC,Washing Machine,Tap Water,Modern Agricultural & Garden Irrigation,Water In Production Process,Industrial Circulating Water,Pure Water,Aquaculture etc.
Water flow control: In some specific applications in the automotive industry, such as tempering equipment, ultrasonic flow meters can be used for water flow control. These devices often require precise control of water flow to maintain specific process conditions, and the high accuracy and stability of ultrasonic flow meters make them an ideal choice.
High temperature and high pressure environment: For some high temperature and high pressure environments in the automotive industry (such as in the engine compartment), ultrasonic flow meters can work stably and accurately measure flow, providing engineers with reliable data support.
Product Qualification
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.

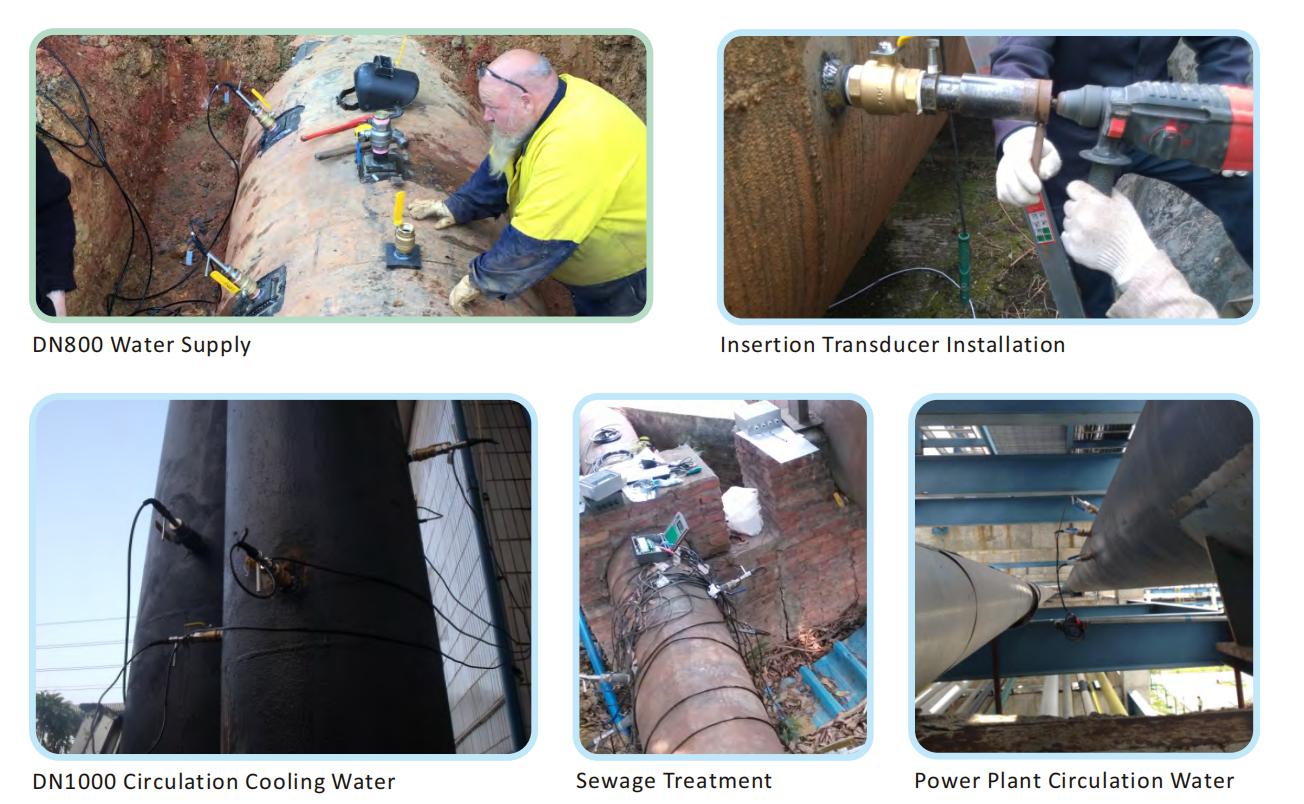

Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q1: What are the advantages of D348D?
A1: It is suitable for use with large pipe diameters, 2-6 channels, especially for smart air conditioners. The IP rating reaches IP68, it is waterproof, and its high accuracy is as high as 0.5%.
Q2: What kind of transportation do we take?
A2: Federal, UPS, freight forwarding, etc., delivery time: 1~2 days
Q3:How long is the warranty period
A3:Two years.
Q4:What certificate guarantees?
A4:Baoding certificate, international certification ISO9000
Q5: How to adjust the rotameter?
A5: High accuracy: Ultrasonic flow meters can provide high-precision flow measurement data, helping to improve the accuracy of vehicle performance evaluation.Non-contact measurement: The non-contact measurement method will not affect the measured substance and is suitable for measurement in a variety of media and environments.Versatility: Can be used to measure a variety of liquids and gases, adapting to different flow ranges and measurement needs.Simple maintenance: There are no wearing parts, simple maintenance and long service life, which reduces the use cost.
