Flow Meter for Marine



Flow meter for Marine is a flow meter designed using FPGA chip and low-voltage broadband pulse transmission. Comparing with other traditional flowmeter or ultrasonic flowmeter, Flow meter for Marine has distinctive features such as high precision, high reliability and low cost, the flow meter for marine features other advantages: TVT technology designed.



Less hardware components, low voltage broadband pulse transmission, Low consumption power, Clear, user-friendly menu selections make marine flow meter simple and convenient to use. Daily, monthly and yearly totalized flow Parallel operation of positive, negative and net flow totalizes with scale factor(span) and 7digit display, while the output of totalize pulse and frequency output are transmitted via relay and open collector.





Performance
Flow range	±0 .03ft/s ~ ±16ft/s (±0 .01m/s ~ ±5m/s)
Accuracy	±1 .0%
Pipe size	Clamp-on: 1''-48''(25mm-1200mm)
Fluid	Water
Pipe material	PVC , Carbon Steel , Stainless Steel .

Function

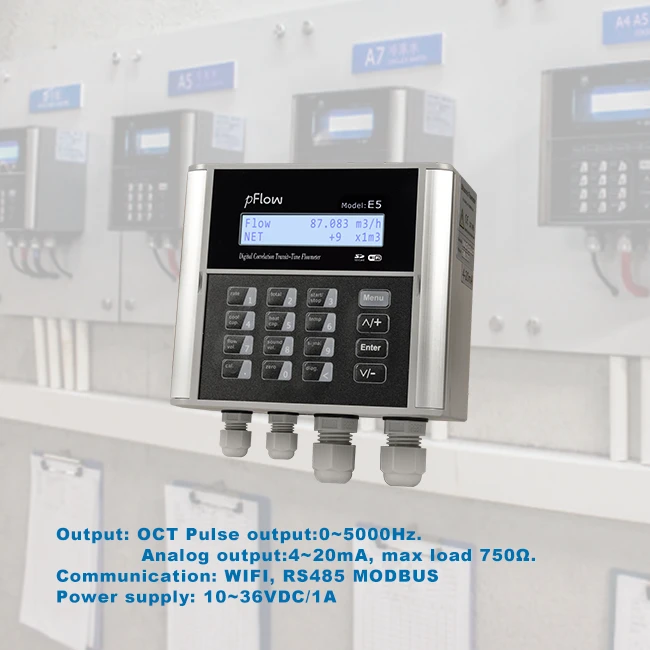

Outputs	Analog output:4~20mA , WiFi , max load 750Ω OCT Pulse output: 0-5000Hz.
Power supply	10~36VDC/1A
Communication interface	RS485 MODBUS
Temperature	Transmitter:14℉~ 122℉(- 10℃-50℃) Transducer:32℉~ 176℉(0℃-80℃)
Humidity	Up to 99% RH , non-condensing
Physical
Transmitter	PC/ABS, IP65.
Keyboard	16(4X4)key with tactile action
Display	20x2 lattice alphanumeric, back lit LCD.
Transducer	Encapsulated design, IP68.
Cable Length	Power cable: standard length 9m





Within the realm of marine research, flow meter for marine emerge as indispensable instruments, allowing researchers to delve into a myriad of water parameters. By precisely measuring the flow rates of seawater, these instruments serve as gateways to comprehending the intricate workings of ocean currents, deciphering tidal patterns, and unraveling the discreet pathways through which pollutants disperse. Furthermore, the invaluable contribution of marine flow meters extends to monitoring the intricate flow dynamics within marine ecosystems, fortifying ecological research endeavors and bolstering conservation initiatives.



In the realm of shipbuilding, the significance of marine water flow meters takes center stage, as they provide the critical ability to measure the flow rates of water and various other fluids coursing through a vessel's interconnected systems. In doing so, these instruments assume the vital responsibility of ensuring the seamless functionality of cooling systems, facilitating the meticulous transfer of fuel, and guaranteeing the efficient management of ballast water. By vigilantly monitoring flow rates with unparalleled accuracy, marine flow meters make an invaluable contribution to the overall safety and efficiency of a ship's operations, fostering an environment where smooth sailing reigns supreme.



Within the dynamic domain of port operations, the integrative role of marine water flow meter becomes increasingly apparent, as they meticulously measure the flow rates of water during pivotal loading and unloading activities. By skillfully optimizing the utilization of water resources, these instruments lay the foundation for efficient and sustainable port operations. Moreover, marine flow meters offer invaluable support by systematically monitoring the discharge of wastewater and effluents, ensuring steadfast compliance with stringent environmental regulations. Through their unwavering vigilance, these instruments serve as the gatekeepers of environmental sustainability, facilitating a harmonious coexistence between the maritime industry and the delicate ecosystems it traverses.



In essence, marine water flow meters emerge as indispensable allies in the pursuit of knowledge, enabling scientists to decipher the intricate workings of marine environments. Whether it be through comprehending ocean currents, studying tidal patterns, or tracking the movement of pollutants, these instruments open up a world of understanding. In the realm of shipbuilding, flow meter stand as sentinels of functionality, ensuring the smooth operation of essential systems. Lastly, within the bustling realm of port operations, their meticulous monitoring guarantees the efficient use of water resources, safeguarding the environment for future generations. Thus, the indelible role of flow meters engraves itself upon the tapestry of maritime industries and ecological conservation efforts alike, forever intertwined in their pursuit of knowledge and preservation.

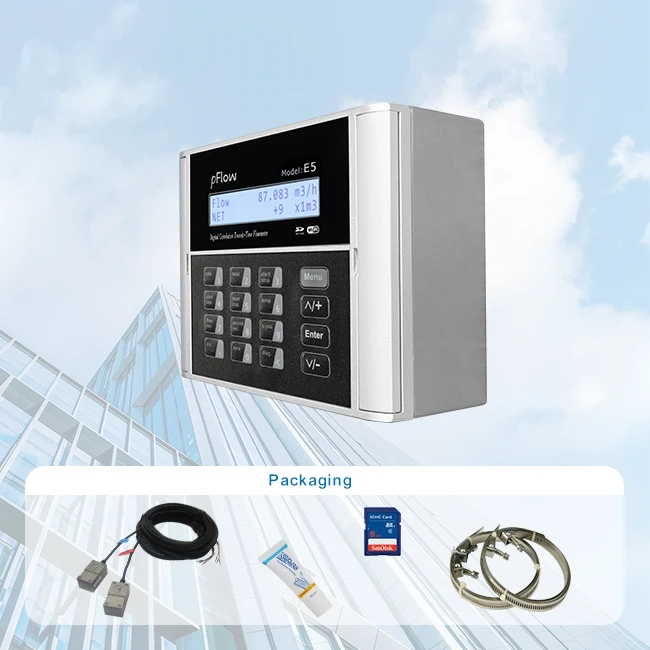

The unique digital signal processing technology enhances the anti-interference ability. Combined with the precision clamp on/ insertion flow sensor and clamp on PT1000 temperature sensor, E5 features more stable measurement signal, more accurate measurement, simpler installation way, easier maintenance mode.





Gentos has earned a reputation for excellence by creating high-quality, affordably priced ultrasonic flow metres for over three decades.

We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.

We will keep working on improvements to raise the calibre and performance of our product range as it develops.

Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success.

Using this synergistic strategy to its full potential, we have skillfully carved out a distinct position for ourselves in an industry that desperately wants safety and performance to coexist peacefully.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Ensuring customer needs are met promptly, Gentos has devised an expedited delivery mechanism. Effortlessly, Gentos concludes order processing and product distribution within a short span of 2 to 3 days. Boasting a versatile fleet of transportation and express delivery options, Gentos leaves no stone unturned in fulfilling customer expectations.





Q: What is the purpose of a flow meter?

A: The main purpose of flow meters is to measure and monitor the flow of fluids such as liquids. They provide accurate data on the rate, volume of fluid flow. to fulfil the needs of process control, resource management, troubleshooting and maintenance. They play an important role in various industrial and commercial applications.



Q: What is the instrument used to measure the flow of water?

A: A flow measurement device commonly referred to as a flowmeter is an instrument that is used to measure the flow rate of a fluid per unit time.



Q: What is the different between a flowmeter and a flow gague?

A: A flow meter is an instrument used to measure the flow of a fluid, while a flow gauge is an instrument used to indicate the flow of a fluid. A flowmeter provides an accurate measurement of the flow rate, while a flowmeter provides a real-time indication of the flow rate.



Q: How does a water flow meter work?

A: Ultrasonic Flow Meter: An ultrasonic flow meter uses the velocity of propagation of ultrasonic waves to measure flow. It contains a transmitter and a receiver, which are located on both sides of the pipe. The transmitter emits ultrasonic pulses into the fluid, and the receiver receives these pulses and measures their propagation time. As the fluid flows through, the speed at which the ultrasonic waves propagate in the direction of flow is related to the flow rate. By measuring the difference in propagation time of the ultrasonic waves, the flow rate and flow rate can be calculated.



Q: What is the minimum distance for a flow meter?

A: Different models of products can be measured in different diameters and tubes, please customers according to the parameters of the product specification to test.
