BMS Meter



E8 series BMS water meter is a state-of-the-art transit time ultrasonic energy meter. Designed using the latest digital technology and low-voltage broadband pulse transmission.While principally designed for full-pipe clean liquid applications.The instrument is tolerant of liquids with small amounts of air bubbles or suspended solids found in most industrial environments. Comparing with other traditional flowmeter or ultrasonic flowmeter, it has distinctive features such as high precision, high reliability, high capability and low cost for BMS water measurement, other features: TVT technology designed. Less hardware components, low voltage broadband pulse transmission, low consumption power. Clear, user-friendly menu selections make flowmeter simple and convenient to use. Daily, monthly and yearly totalized flow. Parallel operation of positive, negative and net flow totalizes with scale factor (span) and 7 digit display, while the output of totalize pulse and frequency output are transmitted via relay and open collector.



E8 series ultrasonic energy meter that can realize the bidirectional independent BMS water measurement function of "cold" and "hot". It adopts advanced modular all-in-one design, independent menu operation, LCD backlight display, and it is suitable for the continuous measurement of cooling and heating energy of central air conditioning's chilled water and cooling water, meeting different measurement requirements. The unique digital signal processing technology enhances the anti-interference ability. Combined with the precision clamp on/insertion flow sensor and clamp on PT1000 temperature sensor, E8 features more stable measurement signal, more accurate measurement, simpler installation way, easier maintenance mode.





Product Parameter
Flow range	±0.03ft/s ~ ±40ft/s (±0.01m/s ~ ±12m/s)
Accuracy	±0.5% of measured value
Fluid	Water, Sea Water, Diesel Oil, Kerosene, Gasoline , Fuel Oil, Gasoline, Propane, Alcohol, Butane, Other
Pipe material	Carbon Steel, PVC, Stainless Steel, Asbestos, Cast Iron, Aluminum, Ductile Iron, Fiber Glass-Epoxy, Copper, Other
Pipe size	1" to 200" (25mm to 5000mm)
Outputs	Analog output: 4~20mA, max load 750Ω. Pulse output: 0~9999Hz, OCT, (min. and max. frequency is adjustable) Relay output: SPST, max 1Hz,(1A@125VAC or 2A@30VDC)
Communication	WIFI, RS232&RS485
Temperature	Transmitter:14℉~122℉(-40℃~60℃) Transducer:32℉~176℉(-40℃~80℃)





• Water Utility Management: E8 is commonly used in water distribution systems to accurately measure the flow of water. It employed by water utilities for billing purposes, leak detection, and overall management of water resources.
• Energy Management in Buildings: E8 is integrated into heating, ventilation, and air conditioning (HVAC) systems in buildings. It help monitor and manage the flow of water or other fluids for efficient energy usage and billing.
• District Heating Systems: Energy meters play a role in district heating systems, where they measure the flow of hot water used for heating purposes in residential and commercial areas. This aids in energy efficiency and billing accuracy.
• Renewable Energy Systems: In renewable energy applications such as geothermal or solar thermal systems, ultrasonic energy meter E8 is used to measure the flow of heat-carrying fluids. This helps optimize the performance of the renewable energy systems.
• BMS cooling Systems: E8 is used in BMS cooling systems, including those in data centers or industrial cooling processes. It can monitor the flow of cooling fluids to ensure effective heat dissipation.

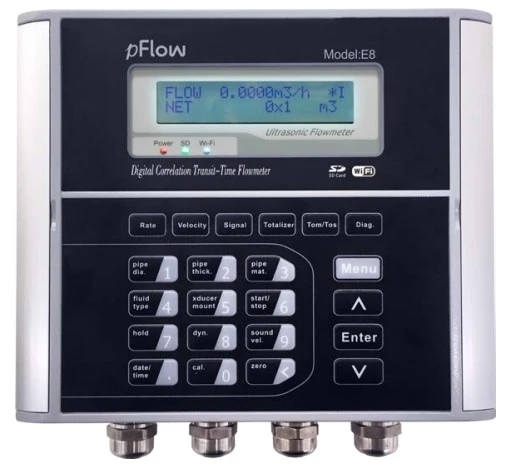

Screen Display





For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.



As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





In its pursuit of customer-centric excellence, Gentos has introduced an expedited delivery system, ensuring prompt acquisition of desired products. Faithfully, Gentos expedites order processing and product dispatch within a swift timespan of 2 to 3 days. Speckled with a myriad of transportation and express delivery options, Gentos aims to accommodate every customer's specific requirements.





Q: What are the advantages of BMS water meters?

A: BMS BTU meters offer advantages such as high accuracy, no moving parts, low maintenance requirements, and the ability to measure a wide range of flow rates. They are also suitable for various fluids and are non-intrusive, meaning they do not interfere with the flow.



Q: Do ultrasonic BTU meters require regular maintenance in BMS measurement?

A: E8 is low-maintenance device as it has no moving parts. However, periodic checks and calibrations may be recommended to ensure continued accuracy. Regular inspection for fouling or build-up on transducers during the BMS measurement may also be necessary.



Q: Is BMS meter E8 suitable for high-temperature applications?

A: E8 is designed to handle high-temperature fluids, making them suitable for applications such as district heating systems or industrial processes involving elevated temperatures.



Q: Which type of water meter is used in industry?

A: Most water management and industrial installations use ultrasonic flow meters to measure water consumption. These devices are also well suited for drinking water supply – and can come with programmed switches and alarms.



Q: What is the purpose of water meters?

A: Water meters measure the volume of water used by residential and commercial building units that are supplied with water by a public water supply system. They are also used to determine flow through a particular portion of the system.
