Flow Scan Meter Marine

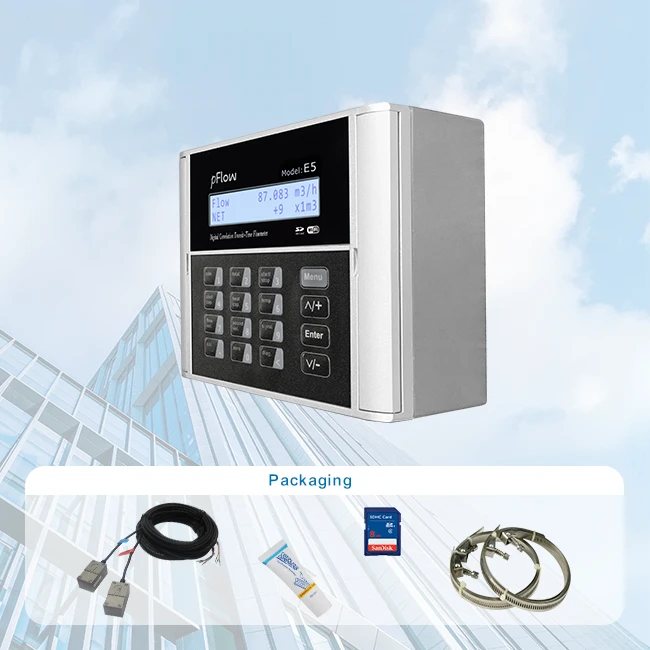

Flow scan meter marine that can realize the bidirectional independent measurement function of "cold" and "heat". It adopts advanced modular all-in-one design, independent menu operation, LCD backlight display, and it is suitable for the continuous measurement of cooling and heating energy of central air-conditioning's chilled water and cooling water, meeting different measurement requirements.

The unique digital signal processing technology enhances the anti-interference ability. Combined with the precision clamp on/ insertion flow sensor and clamp on PT1000 temperature sensor, Marine flow meter features more stable measurement signal, more accurate measurement, simpler installation way, easier maintenance mode.





Performance	Function	Physical
Flow range: ±0 . 03ft/s- ±16ft/s (±0 .01m/s- ±5m/s)	Outputs: Analog output:4-20mA , WiFi , max load 750Ω OCT Pulse output: 0-5000Hz.	Transmitter: PC/ABS, IP65
Accuracy: ±1 .0%	Power supply: 10-36VDC/ 1A	Keyboard: 16(4X4)key with tactile action
Pipe size: Clamp-on: 1''-48''(25mm-1200mm)	Temperature: Transmitter:14℉- 122℉(- 10℃-50℃) Transducer:32℉- 176℉(0℃-80℃)	Display: 20x2 lattice alphanumeric, back lit LCD.
Fluid: Water		Transducer : Ip68
Pipe material: PVC , Carbon Steel , Stainless Steel , Copper	Humidity: Up to 99% RH , non-condensing	Cable Length:Power cable: standard length 9m







Flow scan meter marine E5 are specifically designed to withstand the harsh conditions and corrosive environments encountered in marine operations. With their ability to accurately measure the flow of liquids, these flow meters play a vital role in various applications, including marine engineering, shipbuilding , and offshore operations.



One of the primary applications of Marine flow meters is in monitoring water consumption on ships and vessels. Water is a significant expense for maritime operations, and accurately measuring its flow is essential for optimizing water efficiency and reducing costs. Marine flow meters enable real-time monitoring of water consumption, allowing operators to identify any inefficiencies or a abnormal water usage patterns. This information can then be used to implement corrective measures and improve overall water management strategies.



In addition to water consumption monitoring, Marine flow meters are also utilized in ballast water management systems. Ballast water is essential for maintaining the stability and trim of vessels, but it can also introduce harmful organisms and pollutants into marine ecosystems. Marine flow meters are used to accurately measure the flow of ballast water during loading and discharge operations, ensuring compliance with international regulations and preventing the spread of invasive species.



Marine flow meters find application in cooling systems onboard ships and offshore platforms. Efficient cooling is crucial for the proper functioning of engines, generators, and other equipment. By accurately measuring the flow rate of cooling water, Marine flow meters help optimize cooling system performance, prevent overhearing, and minimize the risk of equipment failure.





Marine flow meter supports WiFi connected function of Gentos iCloud service, we can check the measurement data on mobile phone and PC in real time by following WeChat Public number--- SMART METERS, making data reading and field maintenance more convenient.





Gentos has built a strong reputation for creating high-quality and affordable ultrasonic flow meters for over three decades. Our commitment to innovation and eco-friendly solutions sets industry standards while maintaining affordability. We continuously improve our product line's functionality, quality, and performance to advance the industry. We value the input of our esteemed clientele during the intricate process of product design, recognizing their indispensable contributions to our profound accomplishments.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





With an unwavering focus on customer satisfaction, Gentos has introduced a swift delivery system, assuring timely product acquisition. Meticulously, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day timeframe. Empowered by an array of transportation and express delivery options, Gentos prides itself on exceeding customer expectations.





Q: What is the purpose of a flow meter?

A: The primary objective of flow meters is to gauge and oversee the movement of liquids, for example, fluids. They offer precise information on the pace and volume of fluid stream, satisfying the prerequisites of process control, asset management, issue identification, and maintenance. They assume a crucial part in different mechanical and business applications.



Q: What is the instrument used to measure the flow of water?

A: A flow monitoring device commonly known as a flowmeter is a tool utilized to gauge the rate of fluid flow within a specific time frame.



Q: Which type of flowmeter is used for measuring water flow?

A: Ultrasonic flowmeter is now widely used in testing water flow, one is its easy operation, one is the installation method is also relatively easy.



Q: How does a water flow meter work?

A: Ultrasonic Flow Meter: An ultrasonic flow meter utilizes the velocity of ultrasonic wave propagation to determine the flow rate. It comprises of a transmitter and a receiver positioned on opposite sides of the pipeline. The transmitter emits ultrasonic pulses into the fluid, while the receiver detects these pulses and measures the time it takes for them to propagate. The velocity at which the ultrasonic waves travel in the direction of flow is directly proportional to the flow rate. By analyzing the difference in propagation time of the ultrasonic waves, the flow rate and flow velocity can be accurately calculated.



Q: What is the minimum distance for a flow meter?

A: Customers are advised to conduct testing based on the product specifications, as different models may require different tube diameters for measurement.
