Ultrasonic Flow Meter Manufacturer

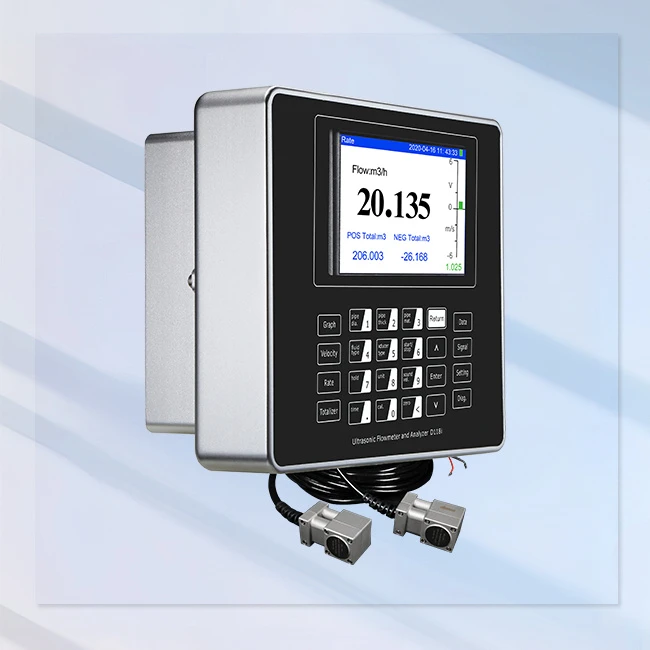

The Model D118i Flow Meter is a state-of-the-art universal transit-time flow meter designed using ARM COMA technology and low-voltage broadband pulse transmission. While principally designed for clean liquid applications, the instrument is tolerant of liquids with the small amounts of air bubbles or suspended solids found in most industrial environments.





Specifications

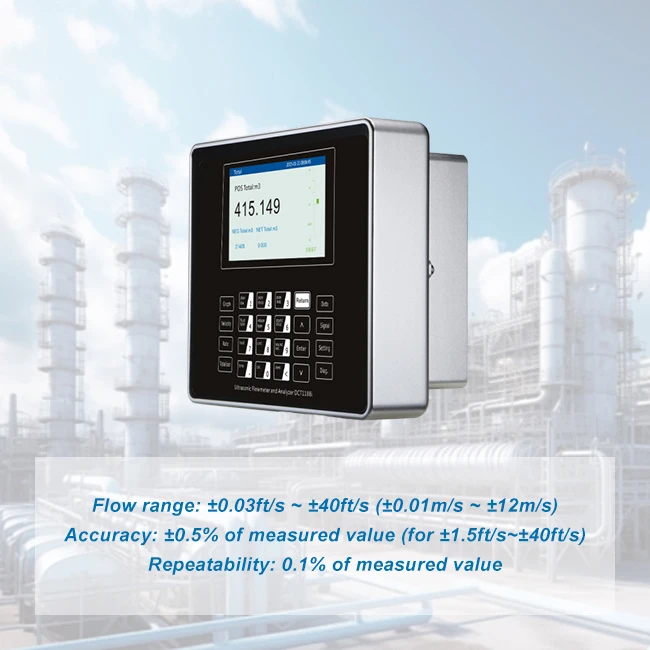

Flow Rage	0～±40ft/s(±0.01～12m/s)
Accuracy	±0.5% of measured value; 1.5 ft/s～15 ft/s (0.5 m/s～5 m/s)
Repeatability	0.1%
Pipe Size	DN25-DN1200mm
Output	Analog output：4～20mA,maximum：750Ώ Pulse output：0～9999Hz,OCT output(adjustable) Relay output：the highest 1Hz(1A@125VAC or 2A@30VDC)

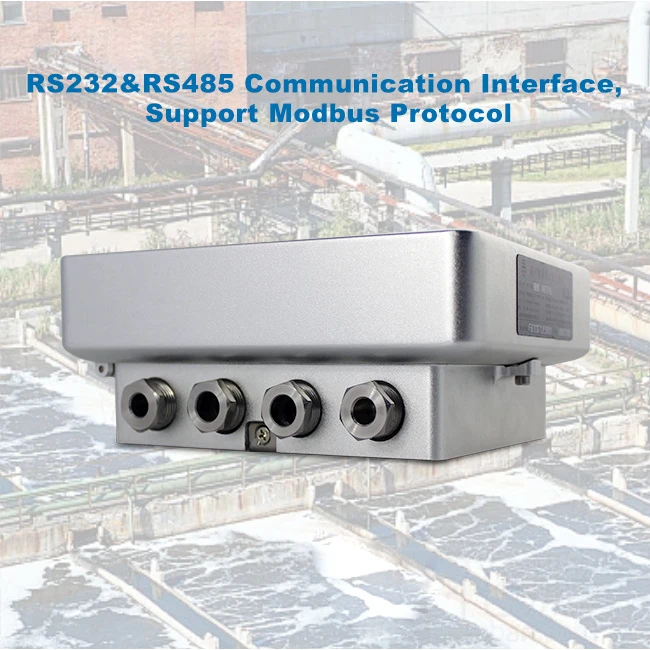

Communication	RS-232/RS-485 Communication Interface,Support Modbus Protocol
WIFI	Transmitting power: 802.11b:16±2dBm(@11Mbps) 802.11g:14±2dBm(@54Mbps) 802.11n:13±2dBm(@HT20,MCS7) Frequency range: 2.412-2.484GHz
Power Supply	90～250VAC@48～63Hz or 10～36VDC

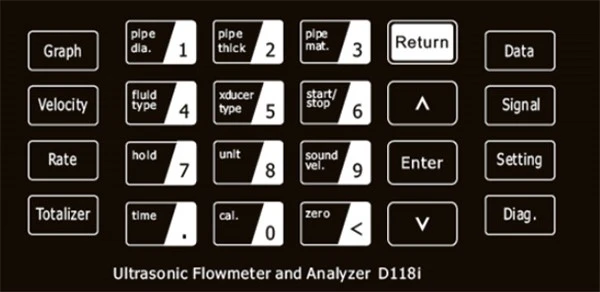

Keypad & Display	24 light touch keys,5.0 inch TFT color screen

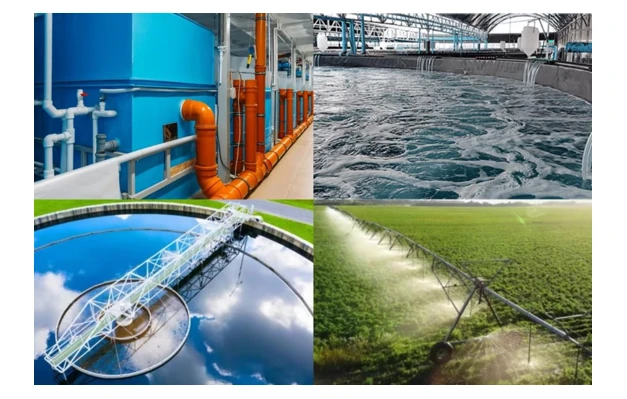

Applications:Wastewater Treatment,Liquid Hybrid Systems,Water Softener,Fish Production Systems,Enviromental Protection & Energy Systems etc.



Industrial Wastewater Treatment

Ultrasonic flow meter manufacturer can be used to monitor flow changes in wastewater treatment plants to help staff understand the efficiency of wastewater treatment and water quality improvement. At the same time, through the analysis of flow data, customer can optimize the sewage treatment process and reduce operating costs. In the drainage network, portable ultrasonic flow meter can effectively monitor the flow and flow rate of sewage in the pipeline, helping staff understand the operational status of the drainage system.



Modern Agricultural Irrigation

Ultrasonic flow meter manufacturer can be used to monitor the flow and pollutant content of wastewater, to help enterprises understand the effect of wastewater treatment, to ensure that wastewater discharge standards. This is important for protecting the environment and promoting sustainable development. In agricultural irrigation, accurate measurement and management of irrigation water helps to achieve rational use of water resources and optimization of agricultural production. Portable Ultrasonic Water Flow Meter has a wide measuring range, low power consumption and other characteristics, suitable for flow measurement in agricultural irrigation







Comparing With other traditional flowmeter or ultrasonic flowmeter, D118i has distinctive features such as high precision, high reliability, high capability and low cost,other advantages:

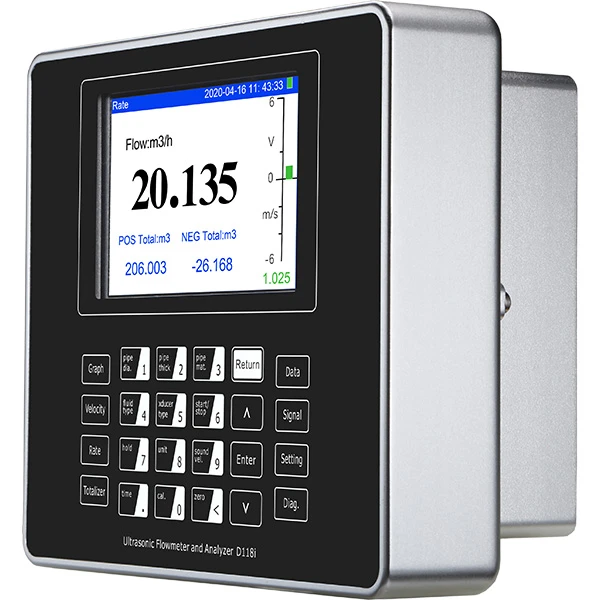

Part A:With ARM COMA chip, low power consumption, high reliability, anti-jamming etc.





Part B:User-friendly menu designed. Parameters of pipe range, pipe material, pipe wall thickness, output signals, etc can be conveniently entered via the windows. British and Metric measurement units are available.With the TF Card, 512 files can be stored,the time interval can be within 1 second.

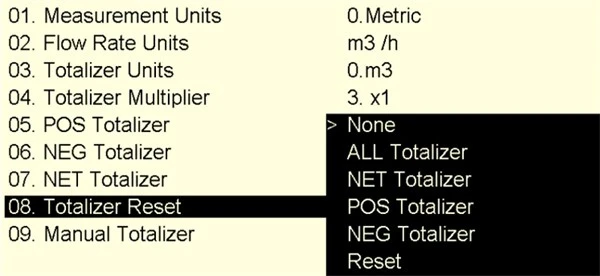

Part C:Parallel operation of positive, negative and net flow totalizer with scale factor and 7 digit display. Internally configured batch controller makes batch control convenient.The flow meter ensures the higher resolution and wider measuring range by the 0.04nS high resolution, high linearity and high stability time measuring circuit and 32 bits digits processing program.







Gentos has gained a stellar reputation for its steadfast commitment to collaborating with customers, optimizing the utilization of fluid resources, and providing comprehensive solutions for energy conservation, emission reduction, minimizing fluid resource loss, precise measurement, and enhancing the efficiency of fluid resource utilization.

Gentos' ultrasonic flow meters have achieved great success in traditional industries such as petroleum, water resources, chemical, urban heating, and power. Moreover, they have also found applications in research institutions for accurate measurement.

Furthermore, Gentos places great importance on the development of its employees, offering clear promotion systems and comprehensive training opportunities.

Renowned for its innovative approach, Gentos continuously explores the most exceptional fluid measurement techniques and their applications, transforming them into the guiding principles and standards within the fluid measurement industry.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Endeavoring to exceed customer expectations, Gentos has implemented an accelerated delivery system, ensuring the timely arrival of products. Steadfastly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day duration. Empowered by a wide assortment of transportation and express delivery options, Gentos prioritizes customer satisfaction.





Q：It says the product is tolerant of liquids with air bubbles or suspended solids. What will be the level of tolerance for Portable Ultrasonic Water Flow Meter?

A: Preferably no air bubbles or suspended solids.Otherwise it will block the signal.



Q: Do you only sell the whole products or the pre-assembled parts for the D118i Ultrasonic Water Flow Meter?

A: We can only sell the whole prodcts,Pre-assembled parts is not available,kindly be noted.



Q: Does the PCB of Portable Ultrasonic Water Flow Meter has the wiring spares A/I,RS485B,RTD inputs?

A: The A/I,RTD is not available for use.RTD is main for temperature sensor.We suggest that could refer to our D118 and D116 ultrasonic flowmeter.More detailed information could contact our sales department tanya@gentos.com.cn.



Q: May we know the available frequency of the "Piezoelectric Elements" used in the sensors of Portable Ultrasonic Water Flow Meter?

A: Currently the frequency is 1M.



Q: Do you have any certificate for the Portable Ultrasonic Water Flow Meter?

A: Yes!We have CE Certificate,ISO9001/ISO14001 Certificate.



Q: Do you support OEM or ODM For your Portable Ultrasonic Water Flow Meter?

A: Yes!We support OEM and ODM,Kindly contact our sales department tanya@gentos.com.cn for detailed information,appreciated very much.
