Industrial Ultrasonic Flow Meters



• With ARM COMA Chip,Low Power Consumption
• High Reliability,Anti-Jamming
• User-friendly Menu Designed,Pipe parameters,thickness etc,could be entered via the windows(British & Metric units available)
• With TF Card,512 files can be stored





Specifications
Flow Rage	0～±40ft/s(±0.01～12m/s)
Accuracy	±0.5% of measured value; 1.5 ft/s～15 ft/s (0.5 m/s～5 m/s)
Repeatability	0.1%
Pipe Size	DN25-DN1200mm
Output	Analog output：4～20mA,maximum：750Ώ Pulse output：0～9999Hz,OCT output(adjustable) Relay output：the highest 1Hz(1A@125VAC or 2A@30VDC)

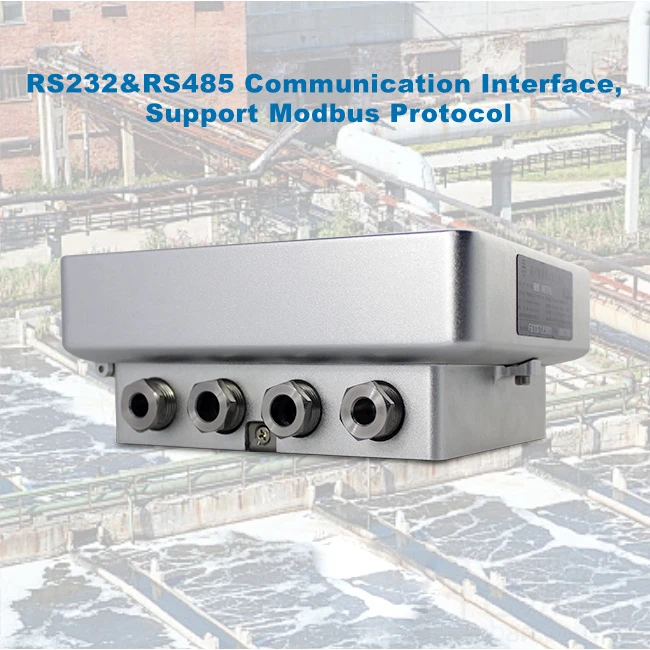

Communication	RS-232/RS-485 Communication Interface,Support Modbus Protocol
WIFI	Transmitting power: 802.11b:16±2dBm(@11Mbps) 802.11g:14±2dBm(@54Mbps) 802.11n:13±2dBm(@HT20,MCS7) Frequency range: 2.412-2.484GHz
TF Card	Max record: 16GB Storage time interval: 1 ~13000 s
Power Supply	90～250VAC@48～63Hz or 10～36VDC
Keypad & Display	24 light touch keys,5.0 inch TFT color screen
Temperature	Transmitter: 14°F to 122°F (-10℃～50℃) Transducer: -40°F to 176°F (-40℃～80℃,standard)
Humidity	Up to 0 ~ 99% RH, non-condensing
Transmitter	Die-cast aluminum, IP65
Transducer	Encapsulated design., Protection grade IP68 The standard length of cable:9m
Weight	Transmitter:2.4kg





• Water, sewage ( with low particle content ) and seawater,Acid alkali liquor, edible oil, diesel oil, crude oil, alcohol, beer, etc.
• Water plant and sewage treatment plants
• Plant irrigation
• Metallurgy and mining applications ( cooling water and acid recovery, for example )
• Petroleum and chemicals,Food and Medicine
• Energy-saving monitoring, water-saving management and flow inspection,flow tracking and collection, computerized management and monitoring network system



In the process of industrial production, wastewater discharge is an important link. Industrial Ultrasonic Flow Meters can be used to monitor the flow rate and pollutant content of wastewater, helping enterprises understand the effect of wastewater treatment, to ensure that the wastewater meets the discharge standards.This is important for protecting the environment and promoting sustainable development.

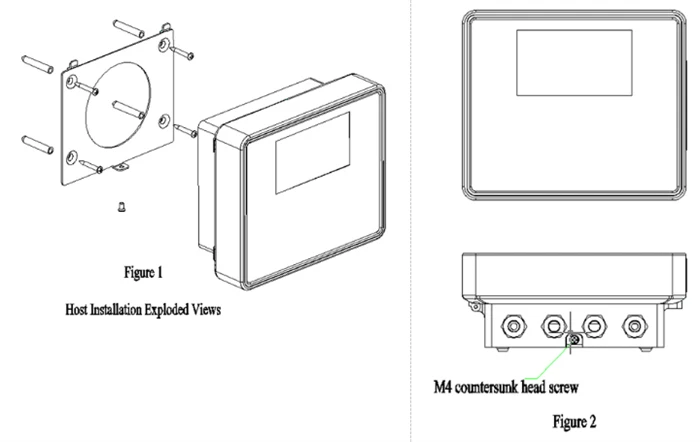

Transmitter Installation

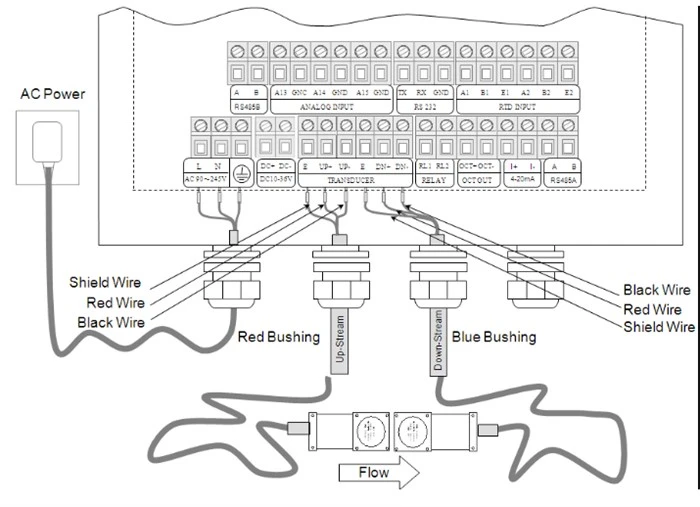

Transmitter Wiring

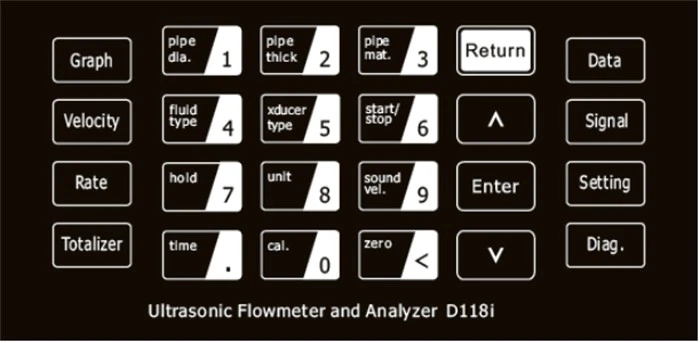

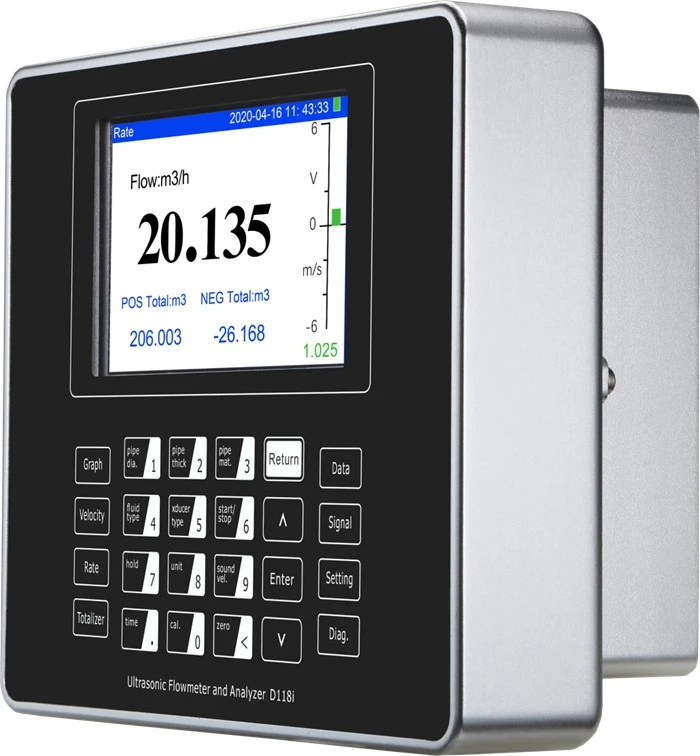

Transmitter Display Screen





Gentos has been a leading manufacturer of high quality and competitively priced ultrasonic flow meters for the past three decades.We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance.

Our actively collaborate with our valued customers, soliciting their invaluable input in the design of new products and showing our appreciation for our contributions to the company's success.This collaborative approach has helped Gentos establish a unique position in the industry, combining reliability and efficiency.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Pioneering efficient customer service, Gentos has introduced a rapid delivery system, guaranteeing timely product provision. Without fail, Gentos promptly processes orders and delivers products within an efficient window of 2 to 3 days. Offering a diverse range of transportation and express delivery channels, Gentos prioritizes customer satisfaction.





Q: What are the different types of Industrial Ultrasonic Flow Meters?

A: Here are three different types of ultrasonic flow meters. Transmission (or contrapropagating transit-time) flow meters can be distinguished into in-line (intrusive, wetted) and clamp-on (non-intrusive) varieties. Ultrasonic flow meters that use the Doppler shift are called reflection or Doppler flow meters.



Q: What's the difference between ultrasonic and magnetic flowmeters?

A: Devoid of moving parts. The clamp-on types require a material between the sensor and the pipe to properly transmit the sound. This material degrades over time and needs replacement.



Q: How accurate are Industrial Ultrasonic Flow Meters?

A: Ultrasonic flow meter accuracy is quite high. Typical ultrasonic flow meter accuracy ranges from 0.7% to 1%.



Q: What are the disadvantages of Industrial Ultrasonic Flow Meters?

A: The temperature measurement range of the ultrasonic flowmeter is not high, and generally, it can only measure the fluid whose temperature is lower than 200℃.



Q: New pipe, high quality material and all installation requirements met: why still no signal detected ?

A: Check pipe parameter settings, installation method and wiring connections. Confirm if the coupling compound is applied adequately, the pipe is full of liquid, transducer spacing agrees with the screen readings and the transducers are installed in the right direction.



Q: Old pipe with heavy scale inside, no signal or poor signal detected: how can it be resolved?

A: 1.Check if the pipe is full of fluid. Try the Z method for transducer installation (If the pipe is too close to a wall, or it is necessary to install the transducers on a vertical or inclined pipe with flow upwards instead of on a horizontal pipe).
2.Carefully select a good pipe section and fully clean it, apply a wide band of coupling compound on each transducer face (bottom) and install the transducer properly.
3.Slowly and slightly move each transducer with respect to each other around the installation point until the maximum signal is detected. Be careful that the new installation location is free of scale inside the pipe and that the pipe is concentric (not distorted) so that the sound waves do not bounce outside of the proposed area.
4.For pipe with thick scale inside or outside, try to clean the scale off, if it is accessible from the inside. (Note: Sometimes this method might not work and sound wave transmission is not possible because of the a layer of scale between the transducers and pipe inside wall).
