Product Introduction
The E5E Energy Meter is a device for measuring and monitoring energy consumed. It utilizes ultrasonic technology to measure parameters during the transmission and conversion of energy, thus enabling energy monitoring and management.

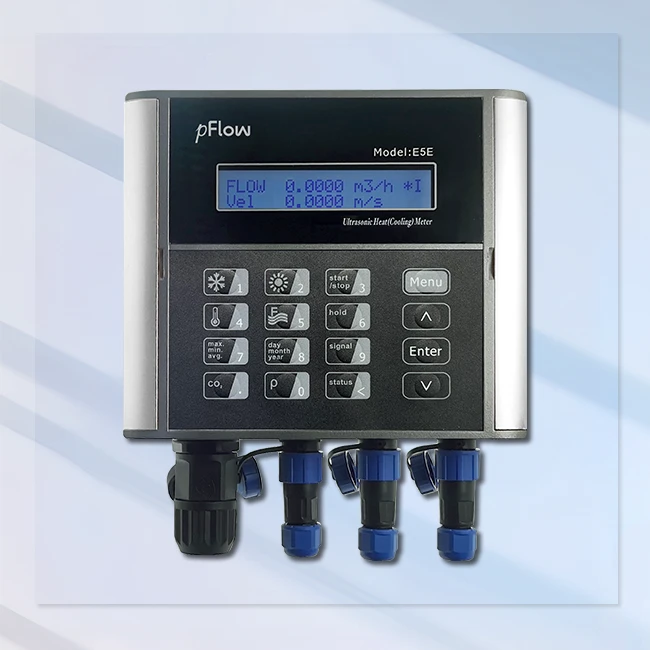

BTU meter installation in chilled water system E5E adopts advanced modular design, independent menu operation and LCD backlight display. It is suitable for continuous measurement of cooling and heating of chilled water and cooling water of central air conditioners to meet different measurement requirements. E5E has the function of MeterTube - Intelligent air conditioning billing system. Users can browse and view it in WEB terminal and APP through the account and password provided by Gentos. The monitoring data of each meter (group) can be directly and clearly checked, and the corresponding data charts can be observed according to the relevant data. It supports time billing and monitoring alarm function, and also has system management page, which is convenient to set user management, cost unit price, product management, device management, alarm monitoring, etc.
Ultrasonic energy meter E5E has many advantages such as high accuracy, fast response time and reliability. It can be used to monitor and control various types of energy, including electrical, thermal, and chilled water energy. Ultrasonic energy meters have a wide range of applications in industrial automation, building management, medical equipment, agriculture and other fields. E5E adopts advanced transducer and signal processing technology, with high reliability and stability, it can work stably for a long-term. E5E can record historical data on energy consumption and analyze the data to help users better understand energy usage. It can help users to manage high efficiency energy and reduce the cost of energy.
Product Parameter
|
Description |
|||
|
E5E |
Ultrasonic energy meter Installation method: wall mount Transmitter: Flow Range: 0.01~5.0m/s (0.03~16ft/s) Accuracy : Flow accuracy: ±1%. Energy accuracy: ±2%. Repeatability: 0.2% Pipe Size Range: Clamp-on: DN25~DN1200 (1"~48") Keyboard: 16 (4x4) touch keys Display: 20x2, alphanumeric, backlight LCD Power supply: POE network cable power supply Transmitter enclosure: IP65,ABS/PC enclosure |
||
|
CP037E |
Clamp on transducer installation method: Clamp on Pipe size range: 25mm~1200mm Transducer cable length: 9m Transducer enclosure: CPVC, aluminium alloy Operating temperature: 0°C~80°C |
||
|
W211E |
Insertion transducer Installation method: Insertion Pipe size range: 50mm~1200mm Transducer cable length: 9m Transducer: Carbon steel, PEI, Bottom: Carbon steel, Copper Operating temperature: -10°C~80°C |
||
|
Type of Temperature sensor |
|
|
T1 |
PT 1000 Clamp on |
|
T2 |
PT 1000 Insertion |
Product feature and application
Chilled Water Treatment: E5E can be used to monitor the energy consumption of water treatment equipment, helping to improve the efficiency and environmental sustainability of Chilled water treatment.
- Manufacturing: E5E can be used to monitor the energy use of manufacturing equipment, helping to optimize production processes and reduce energy waste.
- Transportation: E5E can be used to monitor the energy consumption of transportation, helping to improve the efficiency and environmental friendliness of transportation.
- Energy management systems: E5E can be used in energy management systems to help monitor and control energy use and improve energy efficiency.
- Renewable energy: E5E can be used to monitor and optimize the energy output of renewable energy equipment, to improve the efficiency of renewable energy use.
- Environmental monitoring: E5E used for monitoring energy conservation and energy utilization in the environment to achieve environmental protection and sustainable development.
- Air conditioning and heating systems: E5E can be used in air conditioning and heating systems to improve indoor comfort and energy utilization.
- Automotive industry: E5E is using for monitoring energy consumption and driving behavior of automobiles to improve their energy efficiency.
- Aerospace industry: E5E use of aerospace industry equipment to improve productivity and energy utilization.
- Electronics Manufacturing: E5E used to monitor the energy use of equipment in the electronics manufacturing industry to improve productivity and energy utilization.

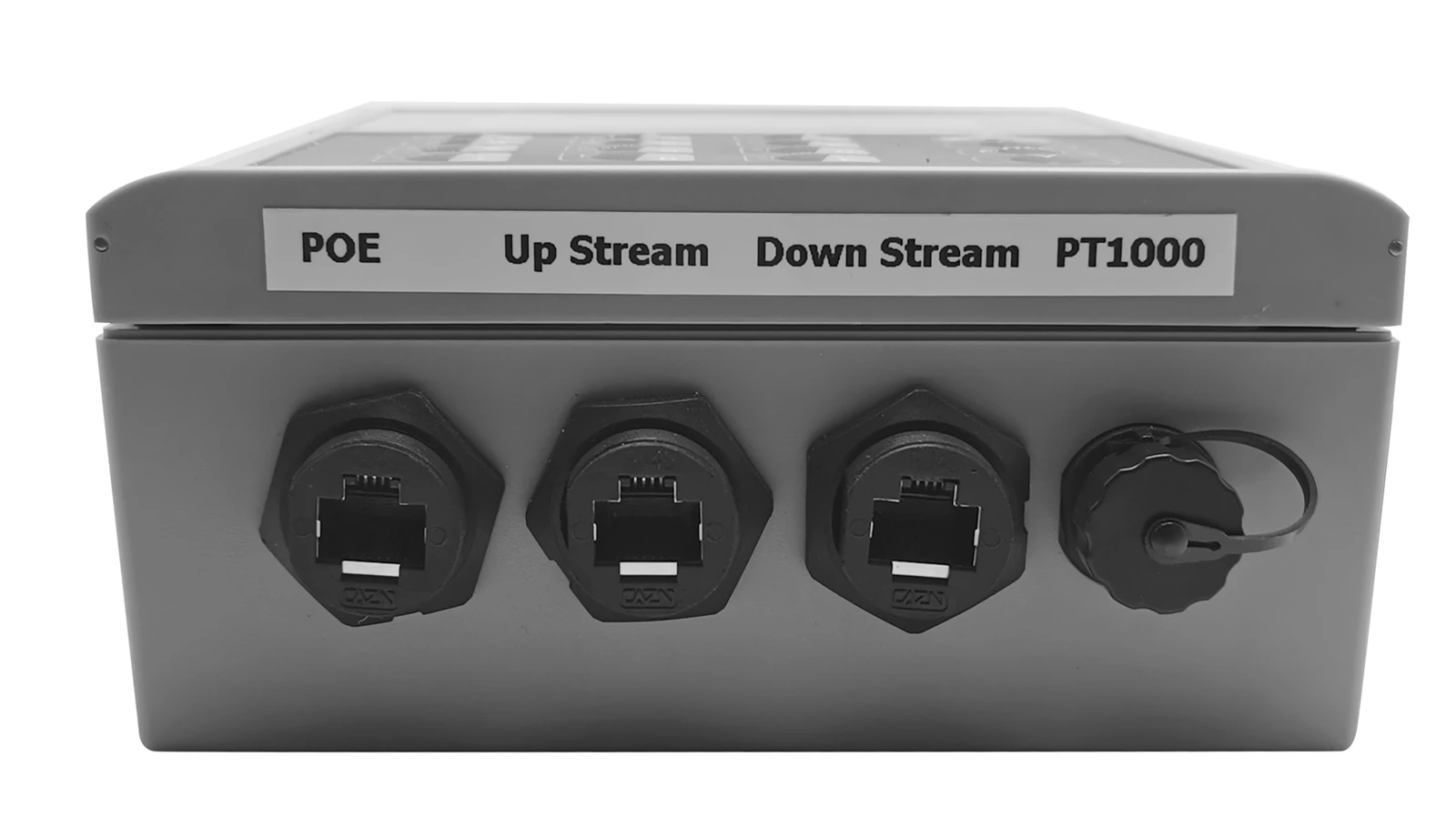

Product Details
Product Qualification
Gentos is a renowned company specializing in the development of high-quality and cost-effective ultrasonic flow meters. With a focus on simplicity and efficiency, our solutions have garnered a strong reputation in the industry over the past 30 years. We prioritize innovation and environmentally-friendly approaches, ensuring that our products meet industry standards while remaining affordable. Our dedication to continuous improvement drives us to enhance the functionality, quality, and performance of our product line, pushing the boundaries of the industry. We highly value the input of our esteemed clients during the intricate process of product design, recognizing their invaluable contributions to our remarkable achievements.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Shipping
Ushering in an era of unparalleled customer convenience, Gentos has deployed an efficient delivery system, guaranteeing timely product delivery. Through unwavering dedication, Gentos expedites order processing and swift product dispatch within an impressive timeframe of 2 to 3 days. With an extensive array of transportation and express delivery methodologies, Gentos customizes its services to meet diverse customer needs.
FAQ
Q: Do chilled water BTU meters require calibration?
A: Yes, calibration is essential to ensure accurate measurements. Periodic recalibration may be necessary to maintain precision.
Q: What are the maintenance requirements for BTU meter installation in chilled water system?
A: BTU meters have minimal moving parts, reducing wear and tear. Regular checks for fouling or buildup on transducers may be necessary, and periodic calibration is recommended for sustained accuracy.

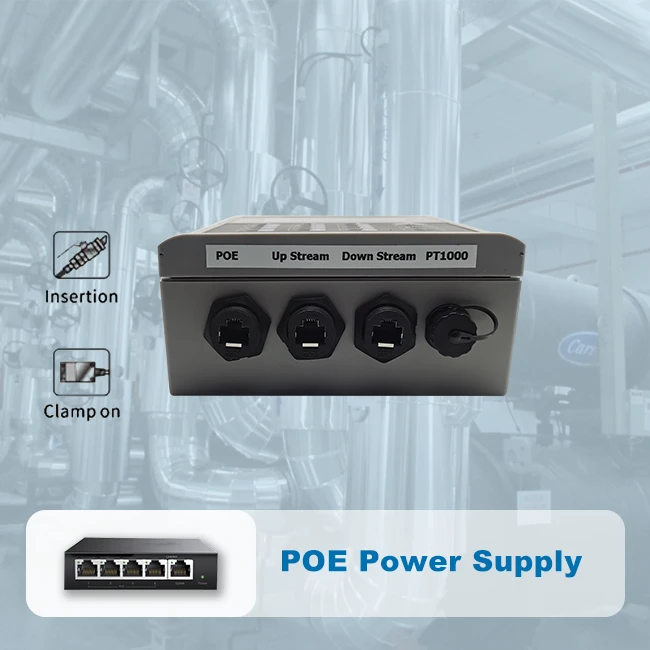

Q: Can E5E with POE output be easily integrated into existing systems?
A: Yes, E5E with POE output is designed for easy integration into existing Ethernet-based systems, it's convenient for various applications.
Q: How does a chilled water unit work?
A: A chilled water system uses water instead of air to cool your home. The water absorbs heat from the home and disperses it outside. The system cools the water down to a temperature of 40 degrees and then circulates it through the water coil's air handler.
Q: What are the benefits of a BTU meter for chilled water?
A: One advantage of using a BTU meter for chilled water is that it enables accurate measurement of the energy consumption of cooling systems, allowing for better control and optimization of energy usage. This can result in significant cost savings and improved efficiency of HVAC systems.
