Waste Water Meter



The wall-mounted waste water meter D118 with an accuracy of ± 0.5%, capability to measure high and low temperatures, and a non-intrusive design is well-suited for a range of applications where precise flow measurements in varying temperature conditions. The deviation of ±0.5% means that the measured flow rate is within 0.5% of the actual flow rate, providing precise and reliable measurements. The waste water flow meter D118 is designed to measure flow rates in high-temperature environments. This feature is crucial for applications where the waste water or fluid being measured has elevated temperatures. Additionally, the flow meter can handle low-temperature environments. This versatility allows it to adapt to a wide range of temperature conditions, making it suitable for diverse industrial and waste water applications. The waste water flow meter D118 is designed to be wall-mounted, offering easy installation and minimal disruption to existing piping systems. The clamp-on design means that the sensors can be attached to the outside of the pipe without the need for cutting or penetrating the pipe, making it a non-intrusive solution. The sensors of D118 are non-intrusive and work by transmitting ultrasonic waves through the pipe wall, measuring the time it takes for the waves to travel upstream and downstream. Changes in flow affect the travel time, allowing the meter to calculate the flow rate. D118 is versatile and can be used with different pipe sizes. The clamp-on design allows for flexibility in adapting to various pipe diameters without the need for additional modifications. With the ability to measure both high and low temperatures, this flow meter is suitable for a variety of applications, including industrial processes, wastewater treatment, and other fluid management scenarios where temperature variations are common.





Description

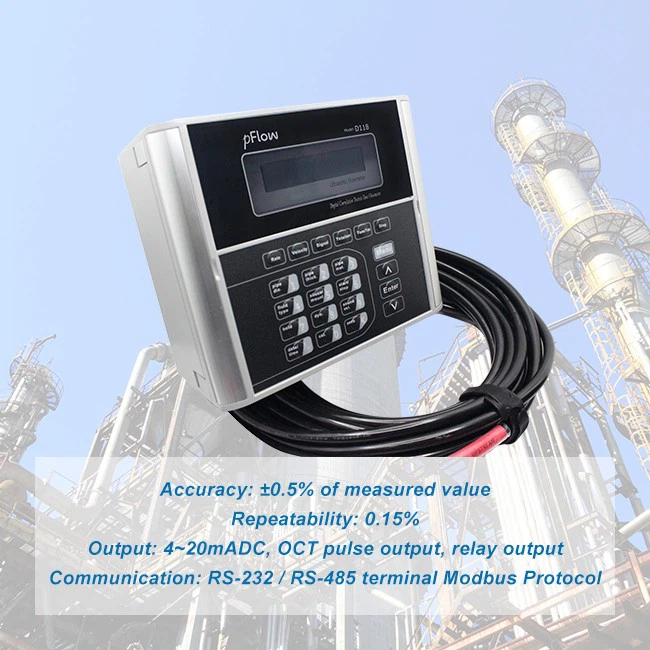

D118

Digital Correlation Transit Time Flowmeter Installation method: Wall mount 8G SD card high memory data logging, maximum memorize 512 files data. Flow Range: 0.03 ~ ±40ft/s (0.01~ ±12 m/s) Accuracy: ±0.5% of measured value Repeatability: 0.15% Pipe Size Range: 1″~200″(25mm ~ 5000mm) Keyboard:16 (4×4) touch keys Display: 20*2, alphanumeric, backlit LCD Power supply: 90-250VAC, 48-63 Hz or 10-36V DC Transmitter enclosure: IP65, die-cast aluminum machined enclosure Output: 4~20mADC, OCT pulse output, relay output Communication: RS-232 / RS-485 terminal Modbus Protocol High temperature Clamp on transducer: 32℉ ~ +302℉(0℃ ~ +150℃)





Chemical Processing

Waste water meter D118 plays a critical role in the chemical processing industry by providing accurate measurements of fluid flow rates. It can used to measure the flow rates of various chemicals during batch processing. This ensures precise control over the addition of raw materials, facilitating accurate batch production. In continuous manufacturing processes, flow meters provide real-time monitoring of fluid flow rates. This is crucial for maintaining consistent product quality and optimizing process efficiency. D118 is integrated into chemical injection systems to measure and control the flow of chemicals into the process. This is common in applications such as pH control, corrosion inhibition, and chemical dosing. It helps monitor and control the flow rates of different chemicals being mixed or blended. This ensures the precise formulation of chemical products and maintains product quality.D118 is used to control the feed rates of reactants in chemical reactors. This ensures optimal reaction conditions, minimizes waste, and enhances the efficiency of chemical reactions.And help monitor the flow rates of solvents and cleaning agents in chemical cleaning processes. This aids in controlling the consumption of chemicals and optimizing cleaning efficiency. It is applied in processes involving the neutralization of acids or bases. They measure the flow rates of neutralizing agents, ensuring precise control of pH levels in the final product. Flow meters are used to monitor the performance of pumps by measuring the flow rates of liquids being pumped. This helps in detecting pump malfunctions and optimizing pump efficiency. It is contribute to quality control by ensuring accurate proportions of different components during blending operations. This is essential for meeting product specifications. In situations where chemicals are transferred between different parties, flow meters are used for custody transfer measurements. This ensures accurate billing and accountability. Flow meters assist in monitoring and controlling the discharge of chemicals into the environment. This is crucial for complying with environmental regulations and minimizing the impact of chemical processes on surrounding ecosystems. D118 is in the chemical processing industry contribute to process efficiency, product quality, and safety by providing accurate measurements and control over fluid flow rates in a wide range of applications.









Gentos has been producing high-quality, cost-effective ultrasonic flow metres for over thirty years, and it has built a solid reputation for itself in the process.

Our reputation for excellence has won them customers and kept them at the forefront of the industry in terms of innovative and environmentally friendly products, as well as their commitment to raising industry standards, always at a reasonable cost.

We will keep working on improvements to raise the calibre and performance of our product range as it develops.

Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success.

It is this collaborative model that has allowed Gentos to distinguish itself and establish a unique position in an industry that demands the perfect combination of security and performance.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Guided by a commitment to exceptional customer service, Gentos has introduced a swift delivery system, ensuring timely product provision. Faithfully, Gentos accelerates order processing and swift product dispatch within an impressive turnaround time of 2 to 3 days. Offering a comprehensive range of transportation and express delivery options, Gentos goes the extra mile to meet customer expectations.





Q:What is the role of wastewater flow meters in environmental compliance?

A:Wastewater flow meters play a crucial role in ensuring that discharge levels comply with environmental regulations. Accurate measurement helps wastewater treatment facilities adhere to effluent quality standards and avoid penalties for non-compliance.



Q:How is flow measured in most wastewater treatment plants?

A:Ultrasonic flow meters are popularly used to ensure precision flow measurement of wastewater streams. They are designed intelligently and constructed toughly to meet demanding applications in waste-water treatment plants.



Q:Why is accurate wastewater flow measurement important?

A:Accurate wastewater flow measurement is essential for optimizing treatment processes, meeting regulatory requirements, and preventing issues like overflows or underflows. It helps in efficient operation, environmental compliance, and resource management.



Q:Can wastewater flow meters handle different types of wastewater?

A:Yes, many wastewater flow meters are designed to handle various types of wastewater, including industrial effluents, sewage, and storm water. The choice of meter depends on factors such as the composition, temperature, and flow characteristics of the wastewater.



Q:What are the advantages of ultrasonic flow meters for measuring wastewater?

A:Ultrasonic flow meters offer a reliable and versatile solution for measuring wastewater flow. Their non-intrusive nature, accuracy, and adaptability make them well-suited for various applications within the wastewater management sector.
