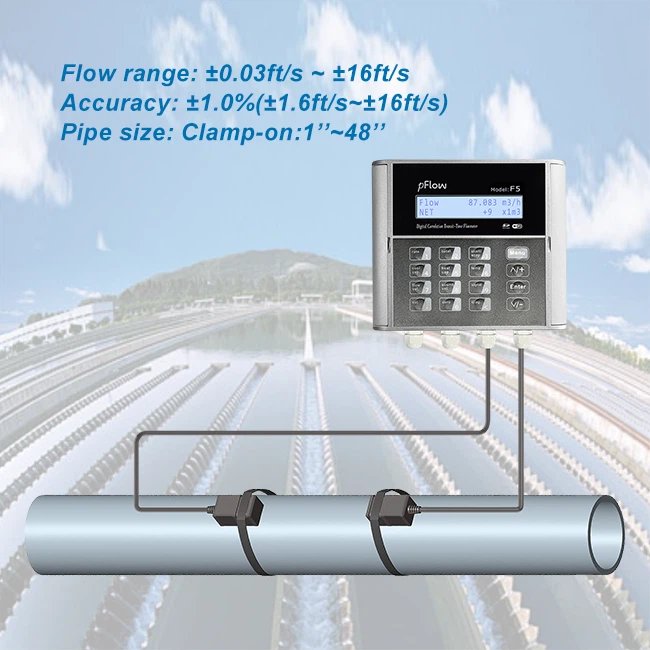

Beverage Flow Meter



The Beverage flow meter is a digital correlated instantaneous flow meter with clamp-on sensors for recording and measuring water flow in disposable or closed circuit cooling or heating water circuits. The beer flow meter has a wide range of applications and many producers and manufacturers wish to use this type of flow meter to reduce water consumption and record their own flow data. Water is used in many parts of life and this product is suitable for many applications. Quick and easy installation also allows customers to quickly switch to different locations





Performance
Flow range	±0.03ft/s ~ ±16ft/s (±0.01m/s ~ ±5m/s)
Accuracy	±1.0%(±1 . 6ft/s~ ±16ft/s) (±0 .5m/s~ ±5m/s)
Pipe size	Clamp-on:1''~48''(25mm~1200mm)
Fluid	Water
Pipe material	PVC , Carbon Steel , Stainless Steel.

Function
Outputs	OCT Pulse output:0~5000Hz . Analog output:WIFI, 4~20mA, max load 750Ω .
Communication interface	RS485 MODBUS
Power supply	10~36VDC/1A
Temperature	Ambient Temp:14℉~ 122℉(- 10℃~50℃) Fluid/ Medium Temp:32℉~ 140℉(0℃~60℃)
Keypad	16(4×4)key with tactile action
Humidity	Up to 99% RH , non-condensing
Display	20×2 lattice alphanumeric, back lit LCD.
Physical
Transmitter	PC/ABS, IP65 .
Transducer	Encapsulated design, IP68 .
Transducer cable	Standard cable length:30ft(9m) .
Weight	Transmitter:approximately 0.7kg; Transmitter:approximately 0.4kg







The beer flow meter play a important role in Beverage Industry. Beer flow meter in the beverage industry can improve production efficiency, ensure product quality, reduce waste, and help companies achieve sustainable development goals.



• Process Control: Beer flow meter can be used to control water flow during beverage production, ensuring that each batch of beverage is formulated accurately and maintains consistent quality.
• Mixing and blending: In the beverage manufacturing process, ultrasonic flow meters can be used to accurately measure and control the mixing ratios of water and other ingredients to ensure product consistency and quality.
• Filling and Packaging: Beer flow meter can be used to monitor water flow during the filling and packaging of beverages to ensure accurate amounts of water in each packaging unit, avoiding waste and product quality issues.
• Cleaning and Disinfection: Beer flow meter can be used to monitor water flow during the cleaning and disinfection process, ensuring that the amount of water used and the treatment time meets hygiene standards.
• Energy management: Beer flow meter can be used to monitor energy consumption in the beverage production process, helping beverage companies to manage and optimize energy and improve energy efficiency.





Beverage flowmeter combines ultrasonic flowmeter with internet+, adopts advanced modular all-in-one design and adopts advanced modular all-in-one design and TVT time measurement technology with independent menu operation and LCD backlight display.

Unique digital signal processing technology enhances anti-interference capability. Combined with high-precision clamp-on and insertion type flow sensors, the measurement signal is more stable and accurate, and the installation is simpler and easier to maintain.

Beer flow meter supports Modbus, Fuji communication protocol, OCT, relay, 4-20mAh output, RS485 communication interface used in current industrial occasions, and can be flexibly selected in combination with site conditions. It can be flexibly selected in combination with the site conditions.







Gentos, with its rich legacy of three decades, has emerged as a vanguard in the field of ultrasonic flow meter manufacturing, renowned for its unparalleled craftsmanship and competitive pricing.

As pioneers in the field of eco-friendly products and innovation, we work to raise the bar for the sector while maintaining affordable prices.

We will keep working on improvements to raise the calibre and performance of our product range as it develops.

Our actively collaborate with our valued customers, soliciting their invaluable input in the design of new products and showing our appreciation for our contributions to the company's success.

Using this synergistic strategy to its full potential, we have skillfully carved out a distinct position for ourselves in an industry that desperately wants safety and performance to coexist peacefully.



Company environment display：



Certificate display：



Deliver, Shipping, and Serving





Fostering seamless customer experiences, Gentos has instituted a rapid delivery system, ensuring timely arrival of requested products. Reliably, Gentos expedites the processing of orders and swift product dispatch within an efficient 2 to 3-day timeframe. Presenting an extensive array of transportation and express delivery methodologies, Gentos caters to diverse customer preferences.





Q: How accurate are clamp on ultrasonic flow meters?

A: ±2% is the norm.



Q: What is the major advantage of a clamp on type flow meter?

A: Easy to install and very intuitive to read data, making the customer experience more convenient.



Q: How do I choose a clamp meter?

A: Customers can choose the right type of clamp meter according to the material and diameter of the pipe they need to test.



Q: What are the limitations of clamp meter?

A: Can measure the size of the pipe diameter is limited, our company this model can measure the size of the pipe diameter is DN20MM-DN80MM.



Q: What is the application of clamp on meter?

A: Wherever there is a need to measure water, in accordance with the size of the pipe and the diameter of the pipe, the customer can use our company's clamp on meter to measure it.
