Brief Introduction

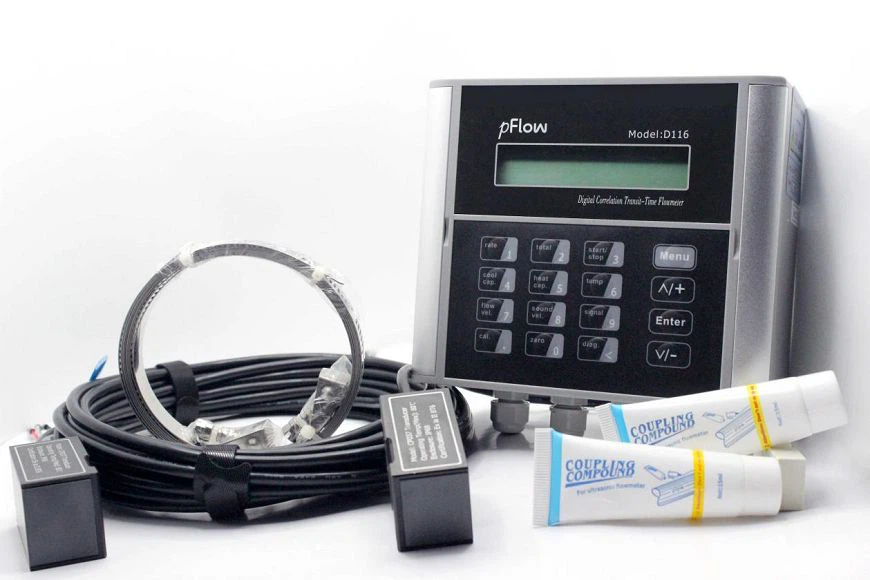

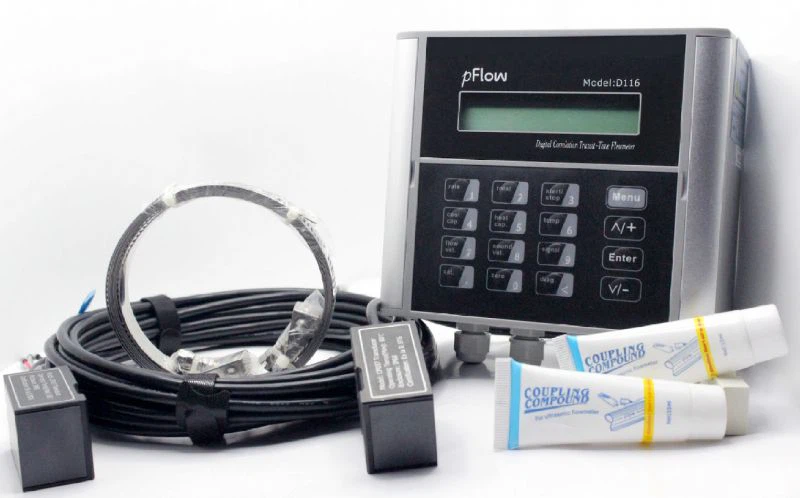

The D116 is a wall-mounted, clamp-on flow meter, which is compact and lightweight, facilitates disassembly and reinstallation, and does not damage any facilities.
Product Introduction
- Precise bi-directional and highly dynamic flow measurement with the non-intrusive clamp-on technology
- High precision at fast and slow flow rates, high temperature and zero point stability
- Water and clean liquids; Tolerant of liquids with small amounts of air bubbles or suspended solids
- Automatic loading of calibration data and transducer detection for a fast and easy set-up (less than 5 min), providing precise and long-term stable results
- Clear ,user-friendly menu selections
- Clamp on transducer and insertion transducer versions
- Transducers available for a wide range of inner pipe diameters (25~1200mm ) and fluid temperatures (0~80℃)
- Thermoelectric sensor is to use conversion element characteristics of electromagnetic parameters change with temperature, the temperature and temperature related parameters for testing device.The resistance change of the temperature change can be converted to known as thermal resistance sensors.Widely used in industrial, medical, chemical, environmental, and other fields.
Product Parameter
Body Parameters
Transmitter

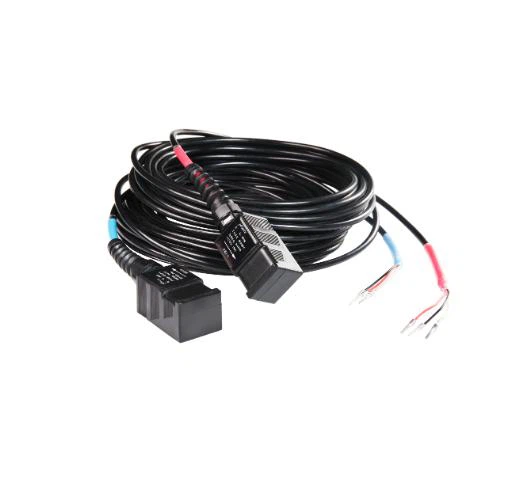

Transducer CP037
Temperature senor PT1000
Wring diagram
Three-wire connections methods is used for the RTD module and PT1000 temperature sensors, connections methods is as follows.
The two PT1000 temperature sensors are installed on the inlet and outlet pipes and they will input temperature
signals to the D116 transmitter.
Appearance
Technical Parameters
|
Performance Index |
|
|
Flow velocity |
±0.03ft/s ~ ±16ft/s (±0.01m/s ~ ±5.0m/s) |
|
Accuracy |
±1.0% of measured value Energy: class 2 |
|
Pipe size |
1"to 48" (25mm to 1200mm) |
|
Functional Index |
|
|
Communication Interface |
RS232&RS485 |
|
Output |
Analog output: 4~20mA, max load 750Ω. Pulse output: 0~9999Hz, OCT, (min. and max. frequency is adjustable) |
|
Power supply |
10～36VDC/500mA |
|
Keypad |
16(4x4) keys with tactile action |
|
Display screen |
20x2 lattice alphanumeric, back lit LCD |
|
Temperature |
Transmitter:14℉~122℉(-10℃~50℃) Transducers(CP037):32℉~176℉(0℃~80℃) Temperature sensors(PT1000): 32℉~212℉(0℃~100℃) |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
Physical Characteristics |
|
|
Transmitter |
PC/ABS,IP65 |
|
Transducer |
Encapsulated design double-shielded transducer cable Standard/maximum cable length:30ft/985ft(9m/300m) Temperature difference: min temperature 3K max temperature difference 15K activated temperature difference 0.2K |
|
Weight |
Transmitter:approximately 0.7kg Transducer:approximately 0.4kg |
|
HT Sensor |
Pt1000 |
|
Technical type |
3 wire |
|
Measuring range |
0℃~100℃ |
Product Applications

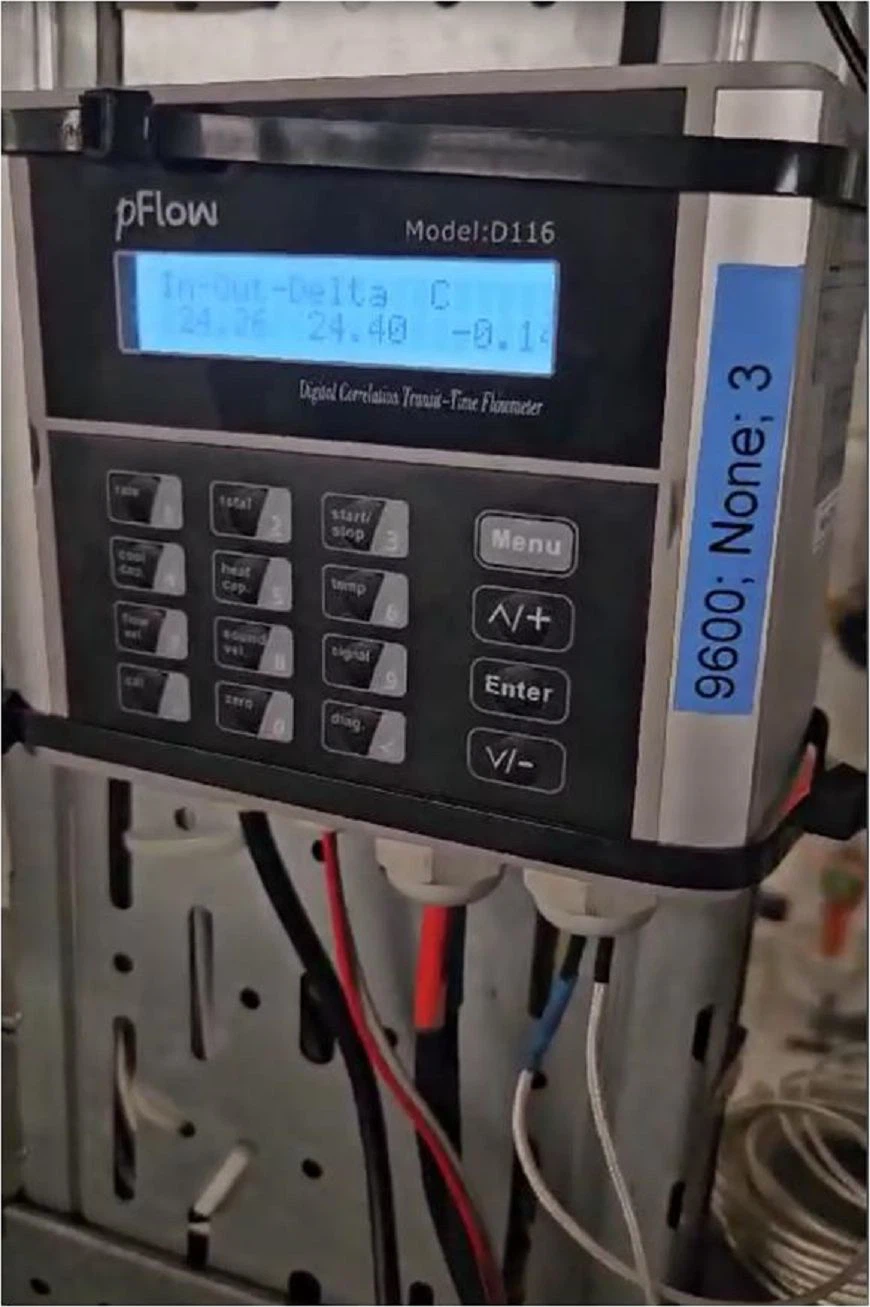

Application:HVAC system
Model name: D116
Pipe material: Stainless steel
Pipe size: DN80
Liquid: Chill Water
Product Qualification
