Brief Introduction
|
Accuracy: |
±1.0% |
Pipe size : |
1"~48" (25~1200mm) |
|
|
Output: |
OCT, Relay RS485, 4-20mA ,Modbus |
IP Rating: |
IP68 transducer |
|
|
Temperature: |
32 °F to 176 °F ( 0℃ ~ 80℃ ) |
|||
Product Introduction
The P117 Handheld Ultrasonic Flow Meter has been a beloved choice for over 30 years, renowned for its enduring reliability and appeal. This device offers high precision with an accuracy of ±1% and is widely accepted for its stable performance and economical price. Its non-invasive clamp-on design allows for easy installation without the need to cut into pipes, ensuring no pressure drop or risk of contamination.
The P117 features a 3.5-inch TFT backlit digital display, built-in rechargeable battery providing up to 10 hours of operation, and large-capacity data logging capabilities. Suitable for measuring a wide range of water, clean water, hot water, cooling water, and more, it is ideal for various applications such as water treatment, HVAC systems, and industrial processes. Experience the proven stability and charm of the P117 for your flow measurement needs.
Product Applications
●Hotel energy metering,Lodge cooling energy metering
●Liquid cooling industry,efficient cooling, temperature control, energy saving
●Water and wastewater management
●HVAC (Heating, Ventilation, and Air Conditioning) systems
●Process industries (chemical, pharmaceutical, food and beverage)
●Energy management and environmental monitoring
●Agriculture and irrigation systems
●Research and development
●Facilities management
●Industrial maintenance and troubleshooting
●Carbon footprint, carbon audit, carbon assessment, carbon neutrality, and carbon trading etc.
Product Parameter
1)Technical Parameters
|
Performance Index |
|
|
Flow velocity |
±0.03 ~ ±20 ft/s (±0.01~ ±6 m/s) |
|
Accuracy |
±1% |
|
Repeatability |
0.3% |
|
Linearity |
±1% |
|
Pipe Size |
Clamp-on:1″~ 48″ (25mm~1200mm) |
|
Functional Index |
|
|
Outputs |
Analog output: 4~20mA, Max 750 Ω. |
|
SD card |
Storage: 8GB; Max: 512 files; Interval: 1 ~ 60 seconds. |
|
Power supply |
Rechargeable Lithium Battery Power . |
|
Keypad |
Tactile Keys. |
|
Display screen |
3.5 inch TFT screen( 320 × 240 ), backlit LCD. |
|
Humidity |
Relative humidity 0~99%, No condensation |
|
Temperature |
Transmitter(Ambient):14℉~122℉(-10℃~50℃) Transducer(Fluid):40℉~176℉(-40℃~80℃) |
|
Physical Characteristics |
|
|
Transmitter |
NEMA13 ( IP54 ). |
|
Transducer |
Encapsulated design, IP68; Standard cable length: 5m. |
|
Network Cable |
Transmitter:approximately1.0kg. |
Body Parameters
TRANSMITTER DIMENSIONS
TRANSDUCER (C011)
Wring diagram

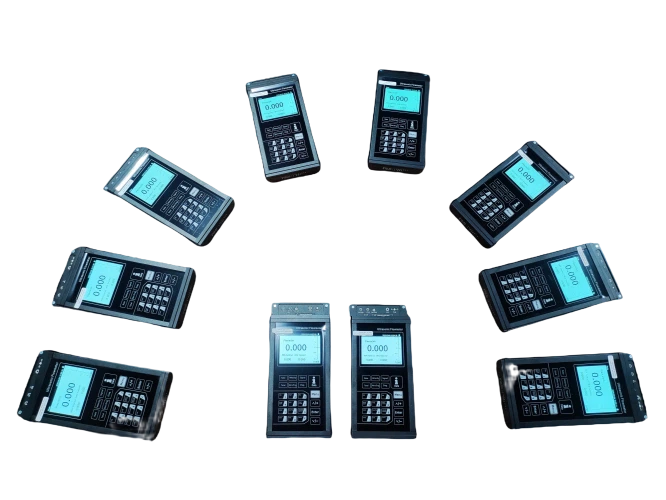

3)Appearance
Compatible Pipe Materials
Detectable Fluids
Product Qualification:
For more than three decades, Gentos has been at the forefront of manufacturing top-notch, competitively priced ultrasonic flow meters, earning a reputation for excellence. We are industry leaders in innovation and eco-friendly products, striving to elevate industry standards while keeping costs reasonable.
As our product line continues to evolve, we remain committed to enhancing functionality and pushing the boundaries of quality and performance. Throughout the process of designing new products, we actively seek input from our valued customers, recognizing their invaluable contributions in shaping our success. It is through this collaborative approach that we have carved out a distinctive position in an industry that demands a seamless fusion of safety and performance.
Company environment display：
Certificate display：
Deliver, Shipping, and Serving
Direct support：
Quick response：
Fast delivery：
Shipping
Nurturing seamless customer experiences, Gentos has implemented an expedited delivery system, ensuring prompt product acquisition. Effortlessly, Gentos expedites order processing and swift product dispatch within an efficient 2 to 3-day window. Featuring an extensive selection of transportation and express delivery options, Gentos caters to the unique preferences of each customer.
FAQ
Q: What is the difference between a flow meter and a water meter?
A: A flow meter is a device used to measure the rate of flow of a fluid (such as water, gas, or oil) in a pipeline or system. A water meter is a specific type of flow meter designed to measure the volume of water passing through a pipe
Q: Which type of flowmeter is used for measuring water flow?
A: The type of flow meter commonly used for measuring water flow is a water meter. Water meters are specifically designed flow meters that are calibrated to accurately measure the volume of water passing through a pipe. They are widely used by utility companies to monitor water consumption for billing purposes in residential, commercial, and industrial settings. Water meters come in various types, including mechanical (such as positive displacement and turbine meters) and electronic (such as electromagnetic and ultrasonic meters), each with its own advantages and applications.
Q: How does water flow meter work?
A: Water flow meters work by measuring the velocity of the water flow and then calculating the volume of water passing through the meter based on this velocity and the cross-sectional area of the pipe
Q: How does an inductive flow meter work?
A: Inductive flow meters work by inducing a voltage in a conductive fluid as it flows through a magnetic field. This induced voltage is then measured to determine the flow rate of the fluid passing through the meter.
Q: How do I choose a water flow meter?
A: When selecting a water flow meter, consider the following steps:Confirm the Properties of the Detection Fluid;Clarify the Purpose of Measurement;Confirm Product Specifications etc.
